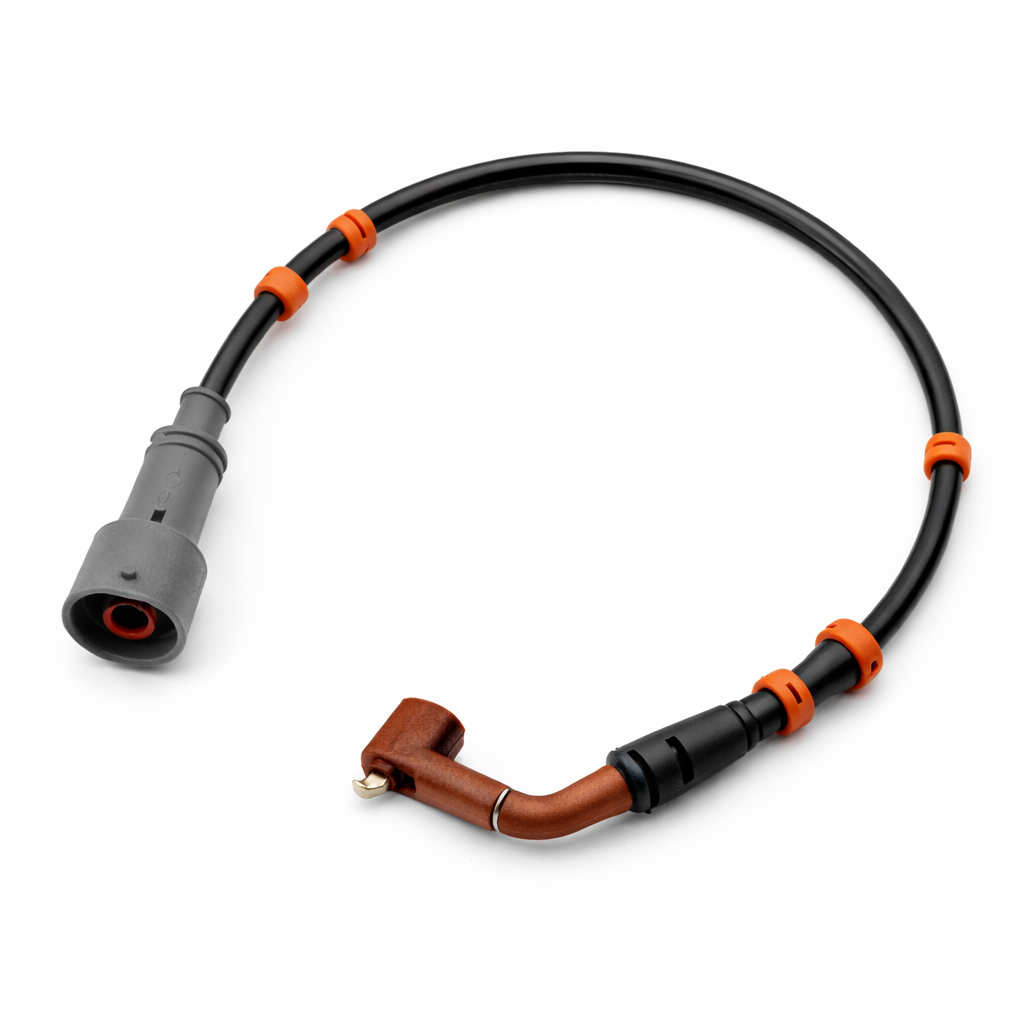

What a brake-pad wear sensor does
A wear sensor provides an electrical or audible indication that a monitored pad has approached its replacement threshold. It is deliberately consumed or activated by pad wear. The threshold normally leaves a service margin, but that margin is not permission to delay inspection because remaining life depends on driving, load and brake condition.
The sensor observes one selected location rather than the whole braking system. Pads can wear at different rates across an axle and between inner and outer positions, especially where slides, pistons or parking-brake mechanisms are restricted.
How the warning is generated
- The sensor is clipped or moulded into a defined pad position.
- Friction material gradually reduces during braking.
- At the design depth, the sensor element reaches the disc or changes state.
- The vehicle detects an open circuit, short circuit or resistance change.
- A warning lamp, message or calculated remaining distance is displayed.
- The brakes are inspected and worn parts are replaced as necessary.
- A compatible sensor is fitted and the service system is reset if required.
Sensor technologies
| Type | Operating principle | Service characteristic |
|---|---|---|
| Loop/open-circuit sensor | A wire loop is worn through by the disc. | Normally single-use after activation. |
| Earth-contact sensor | Disc contact creates a path to earth. | Diagnosis must distinguish contact from wiring faults. |
| Resistance-coded sensor | One or more elements change measured resistance. | Correct electrical specification is essential. |
| Two-stage sensor | Separate wear depths provide progressive information. | May support calculated remaining service life. |
| Integrated pad sensor | Lead and element are built into the friction pad. | Renewed as part of the pad set. |
| Acoustic wear tab | A metal indicator contacts the rotating disc and squeals. | No electrical reset, but noise source needs confirmation. |
System components and signal path
Pad-end element
The shaped end locates at a precise depth in the pad. Its retention feature must match the pad slot; forcing a similar element can crack it, leave it loose or set the wrong warning depth.
High-temperature lead
The cable operates near the disc and caliper but still depends on its heat sleeves and routing. Excess cable can touch the wheel or disc, while an over-tight route can be pulled apart at full steering lock or suspension travel.
Connector and vehicle harness
Seals exclude water and brake dust. Terminals must remain straight and latched without added grease unless the vehicle procedure specifies a compatible product. The body-side harness also needs inspection because replacing the sensor cannot repair a damaged vehicle wire.
Control and service display
A simple circuit may switch a lamp directly, whereas a body or brake-control module can evaluate resistance and calculate service life. Some resets are available through vehicle controls; others require diagnostic equipment and valid sensor readings.
Fitment variables
| Check | Possible variation | Why it matters |
|---|---|---|
| Axle and side | Front/rear and left/right lead routing. | Length and connector location change. |
| Brake option | Disc diameter, caliper family and pad shape. | Sensor interface follows the pad system. |
| Build date | Harness or warning strategy revision. | One model year can use multiple designs. |
| Pad construction | Separate sensor slot or integrated lead. | Parts must be selected as a compatible set. |
| Electrical logic | Loop, earth or coded resistance. | Wrong logic can create a permanent warning. |
| Lead hardware | Clips, sleeves, grommets and branch points. | Correct restraint prevents abrasion and tension. |
| Quantity | One or several sensors per axle/vehicle. | Ordering a pad quantity does not define sensor quantity. |
Wear behaviour and operating limits
Pad life is influenced by vehicle mass, traffic, gradient, towing, driving technique, regenerative braking and caliper condition. The monitored pad is chosen as a representative position, but it cannot guarantee that another pad has not worn faster. A seized slide can leave the sensor pad relatively thick while the opposite pad reaches its backing plate.
Sensor insulation faces heat cycles, water, salt, stone impact and flexing. It is not designed to rub continuously on a wheel or driveshaft. Once an electrical element has been cut or significantly abraded, it should be replaced rather than joined close to the brake.
A dashboard distance estimate is calculated, not a direct measurement in millimetres. After changes in driving pattern it may fall non-linearly. Treat any minimum, overdue or red warning as an instruction for prompt physical inspection.
Diagnosing warnings and false alerts
| Symptom | Likely checks | Required response |
|---|---|---|
| Wear warning with thin pads | All pad positions, discs and caliper movement. | Repair the brake system and renew required sensors. |
| Warning with thick pads | Broken lead, connector, harness and correct part. | Test the circuit; do not assume the display is wrong. |
| Warning remains after service | Activated old sensor, incomplete connection, reset and coded resistance. | Correct the fault before releasing the vehicle. |
| Intermittent warning on turns | Lead tension, wheel contact and loose connector. | Secure or replace damaged parts immediately. |
| New scraping or grinding | Pad thickness, disc contact, debris and hardware. | Stop driving until brakes are inspected. |
| One pad much thinner | Slides, piston, hose, carrier and pad freedom. | Repair the underlying mechanical defect. |
Electrical diagnosis should begin with the correct wiring diagram and known circuit logic. Measuring resistance with a suitable meter can identify an open lead, but indiscriminately bridging terminals may hide wear information or damage a monitored circuit. Never use a bypass as a repair.
Brake inspection when a sensor activates
- Confirm the displayed warning and relevant axle.
- Secure the vehicle on suitable lifting and support equipment.
- Measure inner and outer pads at every wheel on that axle.
- Inspect disc thickness, surface, corrosion and heat condition.
- Check piston boots, slides, carrier lands and pad freedom.
- Inspect hoses, pipes, fluid leaks and the sensor harness.
- Compare wear from side to side and find the cause of any difference.
- Renew parts according to axle and manufacturer requirements.
Installation and routing
Compare the new and removed sensor before fitting, including connector key, terminal count, total length and every retention point. Install the pad-end element in the specified orientation without pulling on the cable. Replace brittle or missing routing clips rather than using cable ties where they could trap movement or melt.
Follow the original route through caliper, strut and body brackets. Turn steering from lock to lock and consider full suspension movement before the wheel is installed. The lead must not be pinched behind a caliper, stretched across a flexible hose, or placed against the disc shield, CV boot or wheel.
Clean connector housings externally and ensure seals are seated. Do not probe sealed terminals with oversized test pins. After refitting the wheel, tighten fasteners correctly, pump the pedal until firm and verify safe brake operation at low speed in a controlled area.
Reset and verification
A reset should be performed only after the physical brake service is complete and a valid new sensor is connected. The procedure may require ignition state, closed doors, a parking-brake condition or diagnostic communication. Low battery voltage can interrupt a reset and create unrelated faults.
If the service value refuses to reset, recheck part compatibility, both sensor stages, connectors and vehicle wiring. Repeated reset attempts cannot correct an open circuit. Record pad and disc measurements so the next inspection can distinguish normal consumption from abnormal wear.
Common mistakes
- Replacing the indicated pad without checking every pad on the axle.
- Reusing a sensor whose element has contacted the disc.
- Selecting by connector appearance instead of full application data.
- Routing the lead outside its clips or across the flexible hose.
- Pulling the wire to remove a tight connector.
- Applying unsuitable grease inside a sealed electrical plug.
- Resetting the display before repairing the actual wear condition.
- Bypassing a broken circuit to extinguish the warning.
- Assuming the sensor detects disc or hydraulic faults.
- Ignoring unequal wear caused by a restricted caliper.
UK MOT and safety implications
Brakes are safety-critical. A pad-wear warning, visibly worn friction material, insecure component or braking defect can have MOT consequences depending on the condition and warning system. The exact assessment belongs to the current inspection manual and the vehicle presented; clearing a message does not make a defective brake compliant.
Do not drive with grinding brakes, exposed backing plates, a serious pull, leakage or a soft pedal. Where a warning has appeared but braking feels normal, arrange prompt inspection because the remaining service margin can be consumed quickly. Replace pads in the prescribed axle set and follow all bedding and torque instructions.
Brake-pad wear sensor FAQs
Q: Must the sensor be replaced with the pads?
A: Replace it if activated, damaged, integrated or required by the brake-service procedure.
Q: How many sensors does a vehicle use?
A: It varies from one monitored position to several; verify by VIN and brake system.
Q: Can a sensor measure exact pad thickness?
A: Most detect defined wear stages rather than continuously measuring millimetres.
Q: Why is the warning still on after new pads?
A: Check the sensor, connector, wiring, compatibility and required reset.
Q: Can the old sensor be joined or bypassed?
A: No. Restore the warning system with the correct replacement and sound wiring.
Q: Does every pad have a sensor?
A: Usually not, so every pad still needs physical inspection.
Q: Can a wear sensor detect a seized caliper?
A: Not reliably; it only reports conditions at its monitored position.
Q: Are front and rear sensors interchangeable?
A: Often not because length, routing, connector and electrical design differ.
Q: What causes an intermittent warning?
A: A fractured lead, poor connector or cable contact during steering and suspension movement.
Q: Is an acoustic wear tab an electrical sensor?
A: No. It creates noise by contacting the disc at a defined wear point.
Q: Can I reset the warning before changing pads?
A: No. Inspect and repair the brakes before resetting service information.
Q: Does a warning mean the pads are already metal-to-metal?
A: Normally it appears earlier, but actual condition must be checked immediately.
Q: Will a pad-wear warning affect the MOT?
A: Warning and brake condition may be assessed under current MOT requirements.
