PEARL CONSUMABLES

Pearl Consumables for workshop repair and installation

Pearl Automotive identifies Pearl Consumables as its trade workshop-consumables brand. In this represented collection, 304 products are present and 295 are classified as maintenance items. The strongest groups are electrical products, hose clips, fuses, earth straps, cable ties, exhaust clamps, fasteners, tapes and washer-system parts. This is a practical collection of components used to complete repairs, not evidence that every item in Pearl Automotive's wider portfolio is available here.

Consumables reward disciplined stores management. A small difference in thread, conductor area, insulation, clip range, hose material or adhesive can determine whether a repair remains secure. Keep the manufacturer's label with split packs, record relevant batch information where workshop procedure requires it, and compare the product specification with the repair method before installation.

What is actually represented

Automotive cable, terminals and connectors

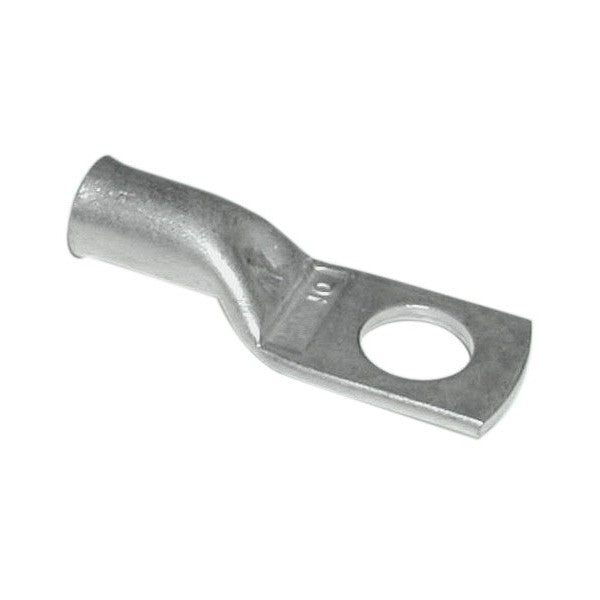

Start with the circuit load and permitted voltage drop, then size the conductor and protection. Strand notation alone should be interpreted using the product's stated cross-sectional or current data. Cable length, ambient temperature, grouping and duty cycle can change performance. Battery and starter circuits carry much greater current than signalling wires and need appropriately rated cable, lugs, insulation and mechanical support.

A reliable crimp depends on a matched conductor, terminal and tool die. Strip only the required insulation length without nicking strands, place conductor and insulation supports correctly, complete the specified crimp and carry out the required pull and electrical checks. Pliers that merely flatten a terminal do not make a controlled crimp. Seal the joint only with the intended heat-shrink, sleeve or connector system.

For an earth strap, compare length, conductor capacity and eyelet dimensions, then clean approved contact faces and secure them at the specified points. Paint, corrosion or a loose joint raises resistance. Do not add an earth route across a component that should remain electrically isolated. On modern vehicles, follow battery-disconnection and reconnection procedures to protect stored settings, control units and supplemental restraint systems.

Fuses are circuit protection, not fault cures

The represented range includes blade and micro-blade fuse products. Match the physical system and the rating specified by the circuit documentation. Colour can help identification within a standard but should not be the only check; read the marking. Never bridge a fuse, wrap it in conductive material or substitute a higher amperage because the correct value opens repeatedly.

A blown fuse indicates overload, short circuit or a failed component until diagnosis proves otherwise. Isolate the supply, inspect the holder for heat and lost spring tension, test the circuit appropriately, then restore protection of the original specification. High-current systems and pyrotechnic battery disconnects require specialised procedures.

Selecting hose by medium and duty

The catalogue contains several distinct hose applications. Sample Pearl data describes particular vacuum hose as black neoprene with a stated -40°C to +100°C range, and particular heater hose as EPDM for automotive heating systems with a stated -40°C to +110°C range. Other sampled products include rubber and over-braided fuel hose, clear PVC washer tubing and a brake-servo air hose. These details demonstrate difference; they do not make the materials interchangeable.

Measure hose by inside diameter where that is how the product is specified. Outside diameter alone can vary with wall construction. Cut squarely with a suitable clean tool, remove debris, push fully over the designed spigot and position the correct clamp behind its retaining bead. Pressure-test or function-test by the system procedure and inspect again when hot or under vacuum.

Hose clips and exhaust clamps

Choose a clip whose working range contains the assembled hose outside diameter without operating at the extreme end of adjustment. Band width and edge form should suit the hose; excessive torque can cut soft material or distort a plastic outlet. Spring clamps, worm-drive clips, ear clamps and fuel-injection clamps behave differently and are not universal substitutes.

Exhaust clamps face heat, vibration and corrosion. Match pipe diameter, joint design and clamp form, support the exhaust so the clamp is not carrying system weight, and align the system before tightening. A clamp cannot restore metal that has become too thin to seal. Keep exhaust repairs clear of fuel and brake lines and inspect for leakage after a heat cycle.

Fasteners, rivets and number-plate fittings

Thread diameter without pitch is incomplete. Identify metric or imperial form, pitch, length measured by the relevant convention, strength or material requirement, head style and drive. Washers may spread load, seal, retain or provide a bearing surface; their function determines type. Replace torque-to-yield or single-use fixings whenever the repair information demands it.

Rivets are selected by body diameter, grip range, head and mandrel or material. The combined panel thickness must sit within the grip range, and the substrate must be sound. Protect freshly drilled edges from corrosion where appropriate and collect swarf. Number-plate fittings must secure the plate without creating misleading characters, covering required markings or damaging hidden wiring.

Tapes, cable ties and temporary repairs

PVC insulation tape can provide specified insulation or bundling within its rating, while self-amalgamating tape bonds to itself to form a sealed wrap when applied correctly. Duct and double-sided tapes have different backings and adhesives. None should be assumed suitable for fuel lines, brake pipes, hot exhausts or structural retention unless the exact product documentation expressly permits that use.

Cable ties need the right length, width, material and environmental resistance. Route the locking head away from abrasion, tension enough to support without crushing insulation, and trim with no sharp projection. Use proper edge clips, conduits and stand-offs where movement or panel contact requires them. A tie wrapped around a hose can create a pressure point and should not replace its designed clip.

Brake unions, battery hardware and other safety-related items

The represented catalogue includes female M10 brake-pipe unions, but “M10” alone does not confirm pitch, flare type, pipe size or system compatibility. Hydraulic brake lines demand the exact union, correct tube and flare, clean assembly and pressure testing by a competent person. The DVSA MOT manual treats leaking hydraulic brake connections as dangerous where applicable and rejects inadequately supported or deteriorated brake components.

Battery retaining brackets and straps must fit the battery and tray, resist movement and avoid shorting terminals. Insulation in a strap title does not remove the need for terminal covers and proper routing. Horns also vary by note, voltage, terminal count, current and mounting; use a fused circuit and relay where the wiring design requires it.

Workshop control, inspection and replacement

Separate visually similar bins, label dimensions and units, and protect terminals, hose and brake parts from dirt or moisture. Inspect stored rubber for cracking or hardening, adhesives for shelf-life limits and metal parts for corrosion. Do not install a component whose identity has been lost after decanting from a labelled pack.

After repair, inspect under the operating conditions that create the load: current flowing, pressure applied, vacuum present, coolant hot or exhaust expanded. Check security and leakage again after an appropriate service interval. A tidy-looking repair is not complete until its electrical, hydraulic, pneumatic or mechanical function has been tested.

Mistakes to avoid with Pearl Consumables

• Choosing a small part because it looks identical while ignoring its material or rating.
• Flattening a crimp terminal with general pliers instead of a matched tool.
• Increasing fuse amperage when a circuit repeatedly opens its correct fuse.
• Using coolant, vacuum or washer hose in a fuel application without explicit approval.
• Tightening a hose clip until it cuts the hose or distorts the connection.
• Identifying a thread by diameter alone and failing to establish pitch or form.
• Treating tape or cable ties as permanent structural, fuel or braking repairs.
• Installing unlabelled loose stock when its technical identity cannot be confirmed.

Pearl Consumables questions and answers

Q: What is Pearl Consumables?

A: Pearl Automotive identifies it as a trade workshop-consumables brand covering practical repair and installation items.

Q: What dominates this represented selection?

A: Electrical products, hose clips, fuses, earth straps, cable ties, clamps, fasteners and workshop tapes are prominent.

Q: Can cable size be chosen from current alone?

A: Also account for length, voltage drop, temperature, grouping, duty and the circuit's required protection.

Q: Is any insulated crimp terminal suitable for automotive wiring?

A: No. Match wire size, terminal system, current, material, insulation environment and the specified crimp tooling.

Q: May a repeatedly blown fuse be replaced with a larger one?

A: Never use a higher value to conceal a fault; diagnose the circuit and restore its specified protection.

Q: Are fuel and heater hoses interchangeable?

A: No. Fluid compatibility, pressure, temperature, permeability and construction must suit the named service.

Q: How is hose size normally checked?

A: Follow the listing convention, commonly inside diameter, and also verify wall, material and working conditions.

Q: What makes a hose clip suitable?

A: Its working range, band form, material and tightening method must suit the hose and connection.

Q: Does an M10 brake union fit every M10 brake line?

A: No. Pitch, flare, tube size and hydraulic-system requirements must all agree.

Q: Can self-amalgamating tape repair a leaking fuel pipe?

A: Do not use tape as a substitute for an approved fuel-system repair and replacement component.

Q: When should loose consumables be discarded?

A: Quarantine them when damaged, contaminated, deteriorated or no longer traceable to a reliable specification.

Q: What completes a consumable-based repair?

A: Correct assembly is followed by functional testing under load and a check for heat, movement or leakage.
