US model year is not the UK registration year

A Cadillac can be built for one US model year, exported later and first registered in the UK after that. Ordering from the registration year alone can cross an engine, lamp, brake or electronic change.

Decode the VIN and build label, record the tenth-character model-year evidence and capture RPO/option codes. Confirm the installed component because imported vehicles often acquire lighting, wheel or suspension changes.

RPO codes turn a badge into a specification

Classic DeVille and Eldorado need generation evidence

Over their histories, these names moved through substantial changes in body construction, driven wheels, engine controls and suspension. An Eldorado generation can be front-wheel drive while another classic Cadillac family uses a rear-drive chassis. DeVille likewise cannot be reduced to one axle or brake design.

Use chassis, engine and transmission numbers plus physical layout. Classic model-year trim can appear similar while wheel cylinders, drums, steering joints or lamps differ.

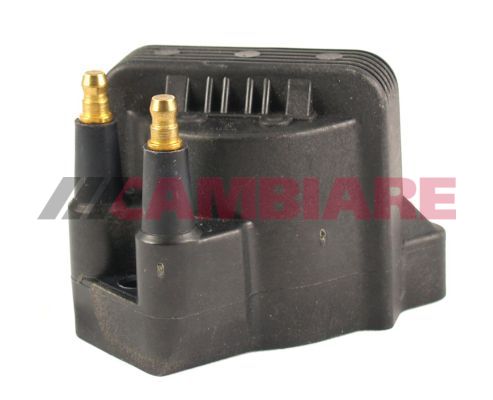

Classic fuel and ignition should be diagnosed mechanically

Carburettor, throttle-body and later port-injection systems need different pumps, pressures and controls. Before adjusting mixture, confirm compression, vacuum leaks, choke operation, ignition dwell/advance where applicable and fuel delivery.

Old rubber hose must be compatible with current fuel and its pressure. Route away from exhaust and use correct clamps. Fuel odour, wet fittings or carburettor flooding rules out starting and road testing.

Imperial and metric fasteners can coexist on an import

Classic chassis hardware may use inch threads, while later repairs or conversion brackets use metric parts. Identify pitch, diameter, grade and seat rather than forcing the nearest nut. Brake and fuel tube fittings also require exact flare and thread.

Modern models begin from different drive layouts

Engine family and installation both matter

A V8 designation does not establish orientation, starter, sump, cooling or exhaust. Northstar-family engines, older pushrod engines and modern turbo or cylinder-deactivation systems use different service data. Identify code and installation.

Use exact oil viscosity and approval, filter, capacity and level process. Diagnose consumption, pressure or valvetrain noise with mechanical evidence. Do not substitute thicker oil to conceal pressure loss.

Cooling capacity cannot compensate for trapped air or leakage

Large engines can still overheat quickly when circulation, fan control, cap pressure or coolant level is wrong. Inspect radiator sections, pump, thermostat, heater, bypass, surge tank and electric/mechanical fan arrangement by generation.

Use the specified coolant chemistry and concentration. Mixing incompatible technologies can reduce protection or form deposits. Pressure-test cold and never open a hot cap. Stop for steam, gauge excursion or heater loss.

Automatic transmission fluid follows the exact unit

Cadillac automatics vary by era, driven wheels and torque capacity. US trade names must be translated into the actual fluid specification, not a similar colour or current generic product. Filter, pan, fill temperature and level process differ.

Shift delay can involve battery voltage, engine torque, mounts, linkage, fluid level, valve control or internal clutches. Preserve codes and learned values before resetting. A friction additive cannot rebuild worn components.

Transfer and axle options are coded separately

AWD/4WD systems can use transfer cases, selectable ranges, controlled couplings and open or limited-slip axles. RPO and unit labels establish ratio and lubricant. Do not assume front and rear differentials use the same oil.

Match tyre circumference across controlled axles. Binding can arise from tyre mismatch, wrong ratio, transfer clutch or fluid. Measure before replacing a driveline assembly.

Escalade service must respect actual mass

Brake thermal capacity, hubs, wheel fasteners, springs, dampers and tyres follow gross and axle weights. Large wheel diameter does not prove load rating. Added security, audio, towing or conversion equipment consumes payload.

Use plated mass and weigh axles when loading is uncertain. A higher tyre pressure or heavier spring cannot raise certified axle capacity. Check tow equipment against the exact model's limits and UK requirements.

Air and electronically controlled suspension needs option data

Some Cadillacs use air levelling, electronic dampers or magnetically controlled damping. A low rear or harsh ride can come from bags, shocks, compressor, lines, height sensors, wiring or control mode. Capture RPO and live height data.

Support frame/body safely and depressurise before opening a line. Do not work under air support alone. After repair, calibrate height and confirm wheel alignment, headlamp aim and sensor operation.

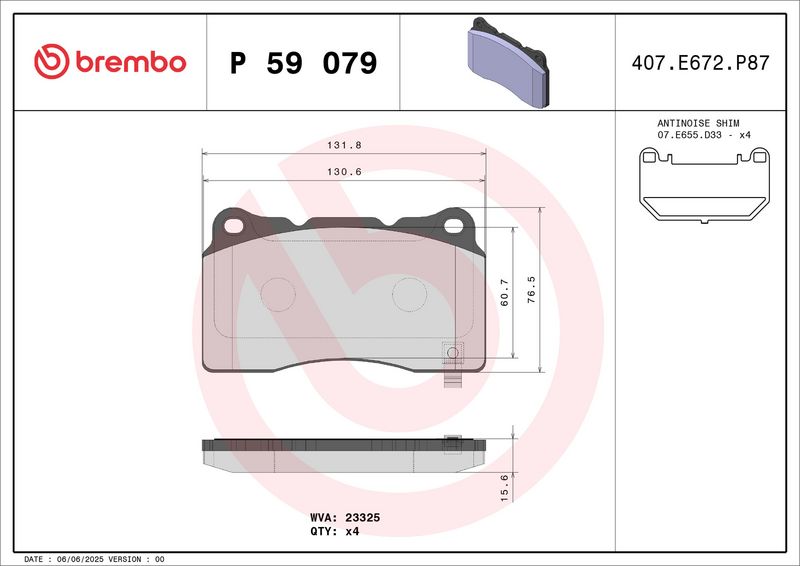

Brake parts must be matched to weight and option

Classic drum systems require the correct drum diameter, shoe width, cylinder bore, adjusters and springs. Modern discs require diameter, thickness, offset, caliper and electronic parking-brake procedure. Thread and flare are critical on imported replacement hoses and pipes.

Use the specified brake fluid from a sealed container. Check booster or accumulator behaviour, ABS data and brake balance. Any leak, low pedal or strong pull prevents a road test.

Import lighting should be a documented circuit

Headlamp dip, indicator colour/position, rear fog lamp, side markers and speed display need to meet the vehicle's age, approval route and current UK rules. Inspect what was actually converted rather than assuming an MOT history proves original wiring quality.

Use proper relays, cable size, weatherproof connections and a fuse close to the supply. Avoid splicing safety or network wiring casually. Keep a diagram and label added modules.

Electrical tests must account for long cable runs

Large bodies and high electrical loads make voltage drop across positive and ground paths important. Test while cranking or operating the affected device. An unloaded 12.6-volt reading does not prove cable capacity.

Modern modules can require theft-deterrent pairing, VIN configuration and software. Support programming voltage. Classic power-window or seat faults still benefit from switch, motor and ground voltage-drop tests before parts replacement.

High voltage applies to electrified generations

Where a traction battery is fitted, orange cables and power electronics can retain dangerous energy after shutdown. Only trained personnel should secure the vehicle, isolate by the correct method, observe discharge time and verify absence of voltage.

Battery impact, unusual heat, water ingress, odour or smoke calls for an exclusion area and specialist advice. Do not charge or lift beneath a suspect enclosure. Low-voltage disconnection is not complete isolation.

Camera and radar aim follows chassis repair

Modern driver-assistance sensors depend on correct windscreen, brackets, ride height and thrust angle. Calibrate after relevant glass, bumper, suspension, steering or collision work. Imported windscreen variants need correct optical and mounting specification.

Mechanical datum comes before target placement

A calibration cannot compensate for a bent bracket, wrong ride height or incorrect alignment. Resolve those conditions first and retain the completed calibration report.

Symptoms determine whether the vehicle should move

Finish against model year, option and UK use

1. Decode VIN, US model year, build and RPO options.
2. Verify engine, gearbox, axle and fitted component labels.
3. Record import wiring, fluids, weight and fault evidence.
4. Control fuel, heavy suspension, brake and voltage hazards.
5. Use exact US-to-UK equivalent specifications and fasteners.
6. Restore heat shields, pipe support, grounds and drainage.
7. Fill, bleed and depressurise by the actual system procedure.
8. Calibrate suspension, steering and tyre-pressure systems.
9. Confirm UK lighting and ADAS alignment.
10. Test progressively and reinspect under operating load.

MOT history does not approve every import detail

UK testing covers lighting, tyres, brakes, steering, suspension, structure, visibility, restraints, emissions and relevant warnings. Vehicle class and approval details depend on the individual import and use; consult current official requirements.

Declare wheel, suspension, engine and lighting changes to the insurer. Never operate an overloaded, leaking or structurally unsafe vehicle.

Practical Cadillac parts FAQs

Q: Is UK registration year the Cadillac model year?
A: Not necessarily; decode VIN and build information.

Q: What do RPO codes identify?
A: Factory axle, brake, suspension and equipment options.

Q: Is every Eldorado or DeVille front-wheel drive?
A: No. Layout depends on generation.

Q: Can a US fluid be matched by colour in the UK?
A: No. Match the exact performance specification.

Q: Are classic Cadillac fasteners all metric?
A: No. Identify inch or metric thread and grade.

Q: Can heavier springs increase Escalade axle capacity?
A: No. Plated limits remain unchanged.

Q: Does a low rear prove air-bag failure?
A: No. Test lines, compressor, valves and sensors.

Q: Can air suspension support a technician underneath?
A: No. Use independent approved supports.

Q: Are US headlamps automatically UK compliant?
A: No. Check age-specific dip and approval requirements.

Q: Does MOT history prove conversion wiring is safe?
A: No. Inspect fusing, routing and connections.

Q: Can mismatched tyres cause AWD binding?
A: Yes. Compare circumference, pressure and wear.

Q: Does low-voltage disconnection isolate an EV Cadillac?
A: No. Use the formal high-voltage process.

Q: Does an MOT pass validate RPO fitment?
A: No. Option and load compatibility remain separate.

Q: What confirms a Cadillac repair?
A: Correct model-year evidence and verified safe operation.
