Land Rover names carry long histories, so generation identification comes before part selection. Defender can mean the earlier utility model or the later monocoque vehicle; Discovery and Range Rover span several platforms and facelifts; Freelander has distinct first- and second-generation systems. Start with the full VIN, production date, exact model/chassis designation, body and wheelbase, UK or other market and steering side. Then record engine code, gearbox and transfer-unit identifiers, driven-axle hardware and factory options. Registration year alone can straddle major changes.
Map the complete four-wheel-drive system rather than ordering a generic 4x4 part. Transfer cases, centre or rear locking functions, couplings, propeller shafts, final drives and electronic controls vary by model and generation. Each housing can require a different lubricant and filling method. Tyre size, pressure and rolling circumference affect driveline load; mixed tyres or large tread differences can imitate or aggravate transfer faults. Terrain-response software cannot compensate for worn tyres, seized brakes or mechanical damage. Inspect underbody impact and water ingress after demanding off-road use.
Suspension may use coils, air springs, adaptive dampers or interconnected controls. On air-suspended Discovery and Range Rover applications—and relevant later Defender variants—prevent automatic levelling and depressurise by the prescribed diagnostic method before opening the system. Diagnose leaks, compressor supply, valves, reservoirs, height sensors and calibration together. Springs, brakes, hubs and tyres also depend on axle load, towing specification and wheel package rather than trim name. Never work beneath a vehicle supported by stored air pressure.
Diesel engines can include EGR, DPF and SCR/AdBlue equipment; petrol, mild-hybrid and plug-in-hybrid versions require their exact engine and electrical identification. High-voltage work needs formal isolation, not just 12-volt disconnection. Use the specified approval for engine, gearbox, transfer case, axles, cooling and brakes—viscosity or fluid colour is insufficient. Stop for red oil-pressure, braking, overheating, steering or high-voltage warnings. UK MOT testing checks defined roadworthiness and emissions items but does not validate wading damage, transfer-fluid history, air-suspension calibration or hybrid maintenance.
Your Current Vehicle
Or
Select Your Vehicle
Shop Parts by Category
Choose a category to view parts for your selected vehicle.
Vehicle Models and Options for LAND ROVER
LAND ROVER Parts Catalogue
Browse the main parts catalogue by vehicle system.
Fix the generation boundary before considering the part
Few vehicle names cover as much engineering change as Defender, Discovery and Range Rover. An earlier utility Defender and the later monocoque Defender are fundamentally different vehicles. Discovery generations change chassis, suspension, electronics and powertrains. Freelander 1 and Freelander 2 use distinct structures and driveline strategies. Range Rover also includes full-size, Sport and other families which must not be reduced to one catalogue heading.
Record the complete VIN and production date, exact chassis/model designation, wheelbase and body, sales market and steering side. Add engine code, transmission and transfer-unit identity, axle/final-drive variants and factory option data. Inspect numbers and physical features on the part fitted, particularly after an engine, axle or gearbox replacement. A used assembly may bolt in while carrying the wrong ratio or electronic configuration.
| Identification stage | Question answered | Hidden complication |
|---|---|---|
| VIN/build date | Which production specification applies? | Registration year can cross a facelift or unit revision |
| Model/chassis and wheelbase | Which structure and body-load case is present? | Defender or Range Rover names cover separate families |
| Engine/gearbox code | Which powertrain, emissions and service parts apply? | Related engines use installation-specific ancillaries |
| Transfer/axle identification | Which ratios, controls and lubricants are required? | A replacement axle can have a different ratio or locker |
| Options and physical inspection | Which suspension, brakes, towing and assistance equipment is fitted? | Later modifications may not appear in factory data |
Body construction changes repair methods
Some Land Rovers use separate chassis construction; others use monocoque bodies with extensive aluminium or mixed materials. Panel appearance does not establish joining method. Approved repair data controls welding, bonding, riveting, heat and corrosion protection. Poor structural repair can alter suspension geometry, crash load paths and restraint performance even when gaps look acceptable.
Draw the torque path from gearbox to all four tyres
Write down the driveline in sequence: transmission, transfer case or power-transfer unit, centre-control device, propeller shafts, front and rear final drives, halfshafts and hubs. Older and newer Defenders do not share one arrangement; Discovery, Freelander and Range Rover generations use different permanent, controlled or selectable strategies. A Terrain Response setting changes control behaviour but does not identify the hardware.
Transfer cases and final drives may have separate fluid approvals, level procedures and calibration. Some rear differentials include electronically controlled locking equipment; others are open units assisted by brake control. A fault message naming traction or terrain systems can result from wheel-speed, steering-angle, suspension-height, low-voltage or network faults rather than a failed transfer assembly.
| Driveline element | Evidence to gather | Symptom overlap |
|---|---|---|
| Transfer case/power-transfer unit | Unit code, ratio, actuator and lubricant | Tyre wind-up, mount movement or gearbox vibration |
| Propeller shaft | Wheelbase, flange, joint and support arrangement | Wheel imbalance or worn engine/gearbox mounts |
| Front/rear final drive | Ratio, locking equipment, case number and oil | Bearing, tyre or driveshaft noise |
| Wheel end | Hub, ABS encoder, shaft spline and brake package | Wheel-speed faults can disable several terrain functions |
| Tyre set | Approved size, load/speed rating, pressure and tread match | Circumference mismatch can imitate driveline binding |
Check all four tyres before diagnosing shudder or tight-turn hopping. Large circumference differences make the driveline absorb continuous speed variation. Keep approved sizes and pressures and consider actual tread depth, not just sidewall markings. Severe vibration, grinding, an oil-starved housing or a propeller-shaft joint with play can become dangerous and should not be tested at motorway speed.
Diagnose height control as a pneumatic and electronic circuit
Air suspension can vary ride height and maintain level under changing load. The circuit may include compressor, dryer, reservoir, valve blocks, air springs, pipes, height sensors and an electronic controller. A low corner does not automatically prove an air spring has failed. Leak rate, compressor current and temperature, reservoir pressure, valve command and sensor plausibility help separate causes.
Prevent self-levelling before lifting the vehicle and use the specified diagnostic routine to exhaust pressure. An air spring can move with dangerous force if opened under load. Support the body independently; never rely on stored air. After repair, inspect pipe routing, set reference height on the required surface and perform calibration. Incorrect height can affect alignment, headlamp aim, driveability and assistance sensors.
Coil systems still depend on precise load matching
Earlier Defender, Freelander and other coil applications need springs matched to axle load, body and equipment. Winches, roof equipment, towing loads or conversions alter working height but do not justify an arbitrary heavy spring. Excessive rate can reduce articulation and damper control. Inspect spring seats, dampers, radius or control arms, bushes, ball joints and anti-roll equipment together.
Resolve brakes, wheels and terrain hardware by installed option

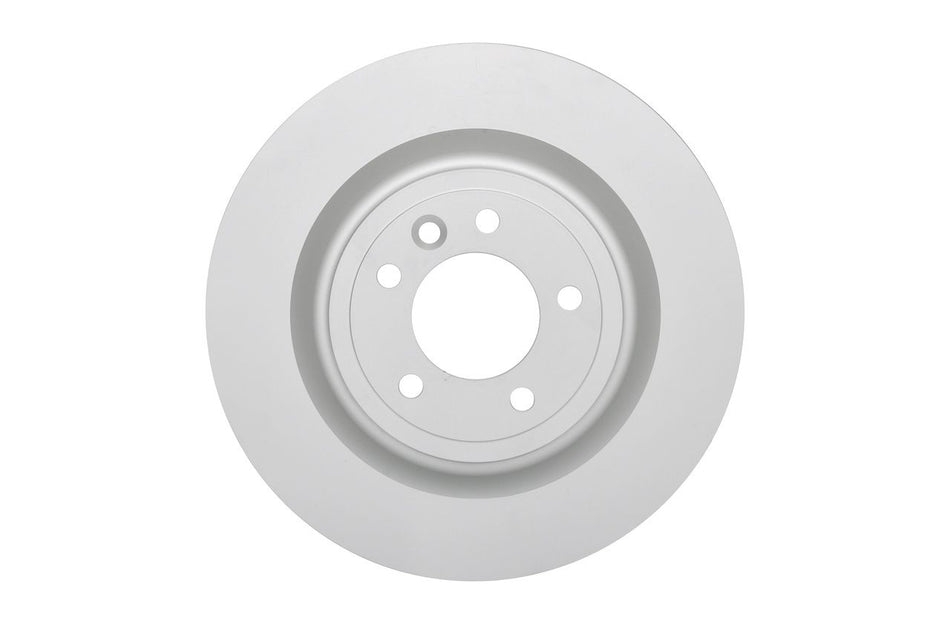

Brake packages vary with model, engine, axle load and wheel option. Confirm disc diameter, thickness and height, caliper, carrier, pad profile, wear sensor and parking-brake mechanism. Some rear systems use an electronic parking-brake actuator or internal drum arrangement requiring a specific bedding and adjustment process. Do not force a seized actuator or retract a mechanism using another generation’s instructions.
Off-road use exposes inner disc faces, shields, wheel-speed wiring and parking-brake components to mud, stones and water. Clean and inspect without directing damaging pressure at seals or connectors. After deep water or contamination, test brakes at low speed in a safe place and inspect axle, transfer and gearbox breathers and fluids when the model instructions or actual ingress risk requires it.
| Post-use inspection | What to examine | Why it matters |
|---|---|---|
| Mud or gravel | Brake shields, inner discs, joints, air bags and sensor wiring | Packed debris abrades moving parts and hides damage |
| Water exposure | Breathers, fluid appearance, wheel bearings, connectors and brakes | Ingress can contaminate oils or reduce friction |
| Towing/heavy load | Tyres, brake temperature, cooling, suspension height and plated limits | Thermal and axle loads increase substantially |
| Underbody impact | Battery/engine shields, tanks, lines, exhaust and structure | Hidden leakage or high-voltage damage can be urgent |
| Recovery operation | Approved recovery points, rated equipment and straight pull path | Tie-down or suspension points may fail violently |
Use only the model’s designated recovery points and follow the handbook’s towing and neutral-selection procedure. A recovery eye or strap has a rated direction and is not automatically suitable for kinetic recovery. Keep people outside the recoil zone. Never work under a vehicle supported only by a jack, terrain mode or air suspension.
Separate diesel, petrol and electrified thermal demands
The complete engine code controls timing drive, lubrication, injection or ignition, turbocharging, cooling and filtration. Capacity or a TD/SD/P badge is not enough. Diesel systems may use EGR, DPF and SCR/AdBlue equipment according to model and emissions stage. Diagnose DPF loading from pressure, temperature, regeneration history and engine condition; forced regeneration is unsafe when oil dilution, fuel faults or excessive soot load has not been assessed.
Mild hybrids and plug-in hybrids add electrical machines, power electronics and batteries. A plug-in Range Rover or Defender variant may retain the combustion maintenance of its engine while introducing high-voltage charging and cooling. Orange cables and traction components need formal shutdown, isolation and proof of absence of dangerous voltage. Collision or underbody damage near a battery warrants a controlled specialist assessment.
Cooling circuits can contain electric pumps, charge coolers, cabin-heater connections and high-voltage loops. Use the approved coolant chemistry for each circuit and the prescribed vacuum or diagnostic bleeding method. Never select by colour or open a hot reservoir. Overheating, sudden coolant loss or a red temperature warning requires shutdown before extensive engine damage occurs.
Allocate every fluid to one labelled housing
Engine oil needs the exact manufacturer specification stated for the engine and emissions system. Viscosity alone cannot establish suitability. Automatic and manual gearboxes, transfer cases, power-transfer units, locking differentials and standard final drives can all require different fluids. Verify the unit tag and current technical data before draining.
Maintain a fill-point map during service. Some housings sit close together and an incorrect plug can drain one assembly while another is overfilled. Follow temperature-dependent level checks where specified and replace sealing hardware as directed. An oil marketed as universal is not evidence that it meets the required approval or friction properties.
| Service fluid | Selection basis | Failure-prone shortcut |
|---|---|---|
| Engine oil | Exact engine, emissions equipment and stated approval | Viscosity or diesel/petrol label alone |
| Transmission fluid | Gearbox code, sump/filter and fill conditions | One automatic fluid for every ratio count |
| Transfer/final-drive oils | Each unit code, locker/coupling type and separate fill | Using axle oil in a controlled clutch system |
| Coolant | Approved chemistry, circuit identity and bleed procedure | Mixing products because the dyes look similar |
| Brake fluid | Specified grade, age and hydraulic procedure | Judging condition from colour alone |
| Air-conditioning refrigerant | Vehicle label, compressor type and qualified equipment | Assuming hybrid and conventional systems use identical oil |
Set urgency from the fault, not the destination
Bring the vehicle to a safe halt when a red warning concerns lubrication pressure, braking, steering assistance, excessive temperature or the traction electrical system. Do not continue with a damaged tyre, loose wheel bearing, failed propeller joint, leaking brake circuit or suspension collapsed onto its stops. If the vehicle is in water or unstable ground, occupant safety comes first; move only according to emergency guidance rather than risking electrical or structural failure.
Amber engine, ABS, airbag, suspension, transmission or terrain-system warnings need prompt diagnosis. Scan the whole vehicle and save fault codes, freeze-frame information, ride heights and supply voltage before clearing them. Battery weakness, corroded connectors or a wheel-speed fault can disable several apparently unrelated features.
Service displays and stamped records are useful but cannot prove fluid identity or that every separate driveline housing was maintained. Record part numbers, approvals, measurements, date and mileage. For vehicles used off road, towing or carrying heavy equipment, add condition inspections based on the duty while retaining the manufacturer’s current scheduled requirements.
Keep upgrades, off-road equipment and UK road use compatible
Larger tyres alter gearing, clearance, speed indication, braking and driveline load. Suspension lifts can disturb joint angles, stability calibration, headlamp aim and ADAS sensors. Winches, bumpers and roof loads affect axle mass and crash behaviour. Verify plated limits, tyre coverage, lighting, pedestrian-safety considerations, insurer notification and any approval requirements before modification.
The UK MOT covers relevant brakes, tyres, steering, suspension, structure, lamps, glazing, seat belts and warning indicators, plus applicable emissions equipment. A removed DPF, catalyst or obviously modified emissions system can be a defect. Severe chassis corrosion, insecure body mounts or dangerous high-voltage damage also require proper repair rather than concealment.
An MOT pass is not an off-road inspection or maintenance certificate. It does not confirm transfer-case oil, wading condition, air-system calibration or traction-battery cooling. Keep the vehicle roadworthy between tests, use correct fasteners and tightening methods, and verify brakes, steering, height and driveline behaviour in controlled conditions after repair.
Practical Land Rover identification FAQs
Q: Is the Defender name enough to identify parts?
A: No. Establish generation, VIN, chassis/body, engine, gearbox and installed driveline first.
Q: Are Discovery generations mechanically interchangeable?
A: No. Structure, suspension, electronics, engines and four-wheel-drive equipment change significantly.
Q: Can one transfer-case oil suit every Land Rover?
A: No. Match lubricant and fill process to the exact transfer or power-transfer unit.
Q: Why do four matching tyres matter?
A: Persistent rotational differences make the centre driveline absorb work and can disrupt its controls.
Q: Does Terrain Response repair a lack of grip?
A: No. Its control modes still depend on sound tyres, brakes, sensors and mechanical driveline parts.
Q: Can air suspension be opened after switching off?
A: No. Disable levelling, support the body and depressurise with the specified procedure.
Q: Is a low corner always a leaking air spring?
A: No. Check leakage, valves, stored pressure, compressor performance, level sensing and the height setup.
Q: Is viscosity enough information for a Land Rover oil choice?
A: No. Confirm the stated lubricant approval against the fitted engine and its exhaust equipment.
Q: Is coolant colour a valid matching method?
A: No. Establish the authorised formula and select the correct thermal circuit.
Q: Should a loaded DPF always be force-regenerated?
A: No. Establish soot load, oil condition and the underlying engine or sensor fault first.
Q: Does disconnecting the starter battery make a plug-in hybrid safe?
A: No. A competent technician must isolate the traction supply and prove the resulting electrical state.
Q: Can any chassis point be used for recovery?
A: No. Use only designated points and rated equipment in the approved direction.
Q: Does an MOT pass confirm a Land Rover is ready for off-road use?
A: No. It does not assess all wading, recovery, driveline-fluid or terrain-system needs.
