MAZDA (CHANGAN) Car Parts

Changan Mazda is a market and production identity

Mazda vehicles built through the Chinese joint venture can have names such as Axela or Atenza and models including CX-4 or CX-5. Visual relationship to a Mazda sold in Britain, Europe or Japan does not confirm identical hardware.

Record full VIN, build plant/date, Chinese model designation, engine, gearbox, driven axles, brakes and equipment. Keep photographs of labels that an international catalogue may not decode.

Global Mazda references need a second layer of proof

Platform and engine family can narrow a search, but local sourcing, emissions, lighting, software, connectors, springs and body packaging can change the part. Facelifts may occur on a different timetable.

Require a Changan Mazda cross-reference or complete physical and functional comparison. Do not load non-market software or alter wiring to make an unverified sensor communicate.

Build an import-compatible parts record

Engine code defines the service plan

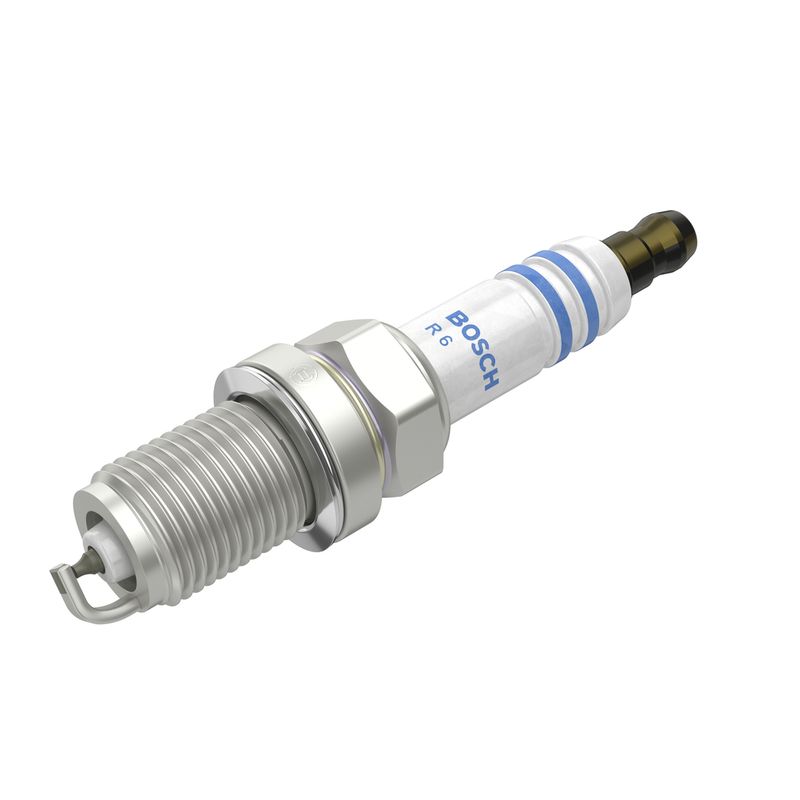

Skyactiv and other engine families can vary in capacity, compression, injection, emissions, timing and ancillaries. Use the exact code and build. Spark-plug reach, heat range and electrode design matter even when thread size agrees.

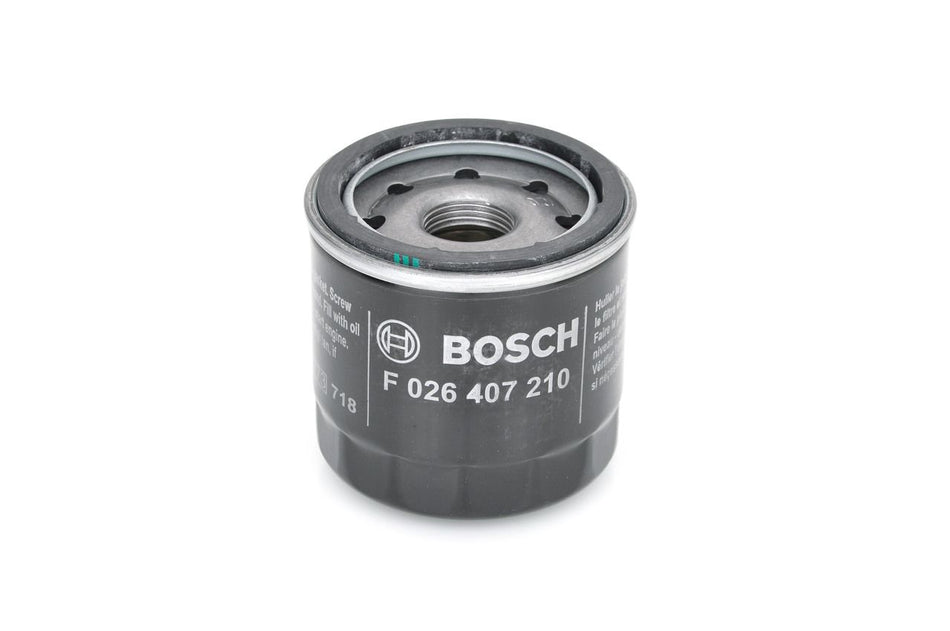

Record oil approval, filter and level procedure. Stop for pressure warnings and measure actual pressure rather than assuming a switch or sensor fault.

Combustion diagnosis must protect the catalyst

A misfire can result from compression, plug, coil, injector, high-pressure fuel, air leakage or mechanical timing. Save freeze-frame data and compare cylinders. Avoid repeated operation with unburned fuel entering the exhaust.

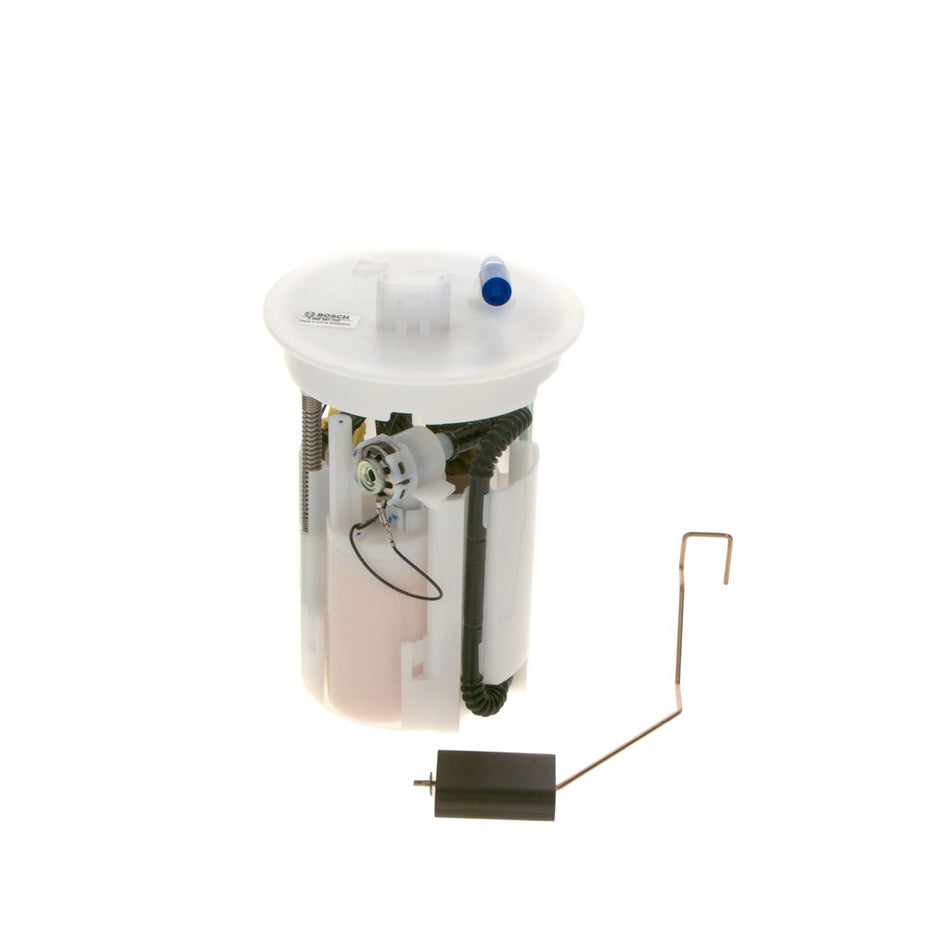

Direct-injection fuel remains under high pressure

Depressurise using the documented method and protect against injection injury. A suspected skin injection is a medical emergency. Keep fuel components exceptionally clean.

Cooling and thermal control need the exact hose map

Check radiator pack, cap, thermostat or controlled valve, pump, fans, heater and oil or transmission heat exchangers. A hose with the correct ends can still kink because its moulded path differs.

Use the approved coolant chemistry and diagnostic bleed where specified. Pressure-test cold and investigate repeat loss before another journey.

Fluids are assigned by component code

Automatic transmission faults require live conditions

Record cold and hot engagement, fluid temperature, voltage, engine torque faults and adaptation before reset. Harsh shifting can involve mounts, fluid, hydraulic control or internal wear.

Use the correct level method and selector sequence. A relearn cannot compensate for incorrect fluid or worn clutches.

All-wheel drive begins with four compatible tyres

Confirm size, construction, pressure and tread depth at every position. Different circumference can overwork a coupling or trigger stability intervention. Use axle and market-specific tyre data.

Binding or warning messages can also involve coupling control, wheel-speed sensing or mixed ratios. Do not continue tight-turn tests when load builds.

Brake fitment includes hub and encoder details

Measure disc diameter, thickness, height and hub bore; identify caliper, pad and electronic parking-brake arrangement. Wheel-bearing kits may incorporate a magnetic encoder whose orientation controls ABS operation.

Use service mode where required, protect sensor faces and complete diagnostic bleeding after hydraulic-control work. Verify pedal feel, balance and parking hold.

Wheel bearings must be installed through the correct race

Support the race receiving the interference fit and keep force away from rolling elements. Inspect hub and upright seats for fretting. Use the specified axle fastener and final tightening state.

After repair, check play, sensor data, noise and temperature. A damaged encoder can create warnings without mechanical looseness.

Suspension parts reflect body and market tune

Springs, dampers, bushes and anti-roll bars can vary with body, engine, driven axles and local specification. Match labels, dimensions and axle load. Replace axle pairs where uneven performance would remain.

Inspect arms, ball joints, steering ends, subframes and body mounts after impact. Tighten bonded bushes at the specified ride position and align afterward.

Tyres and wheels influence ADAS references

Use approved size, construction, load/speed rating, wheel offset and fastener seat. Incorrect rolling size changes ride height and speed signals. Inspect inner shoulders and impact damage.

Set pressures and geometry before driver-assistance calibration. A wheel that clears the caliper while lifted may contact during full steering or bump.

Electrical compatibility includes market software

Test battery and grounds under load because low voltage can create many module messages. Save all faults and hardware/software identity. Chinese-market infotainment or gateway configuration may not accept another region’s module.

Use supported coding and stable power. Do not overwrite the original configuration simply to remove a warning.

Camera and radar aim follow body geometry

Windscreen, mirror, grille, bumper and suspension work can disturb sensors. Confirm correct glass and brackets, body dimensions, ride height and alignment before calibration.

Use the specified target and software for the market build. Successful communication does not prove physical aim.

Battery management affects starting and calibration

Vehicles with idle-stop or energy-management systems need the correct 12-volt battery technology, capacity, venting and physical restraint. Test state of health and charging strategy rather than replacing by case size alone. Some replacements require battery registration or learning.

Low voltage can create unrelated-looking transmission, steering, brake and assistance messages. Stabilise supply, inspect grounds and save diagnostic evidence before controller replacement or calibration.

Body and lighting parts remain market-specific

Bumper skins can conceal different radar brackets, absorbers, tow-eye positions and cooling shutters. Windscreens may contain camera, antenna or acoustic features. Confirm the complete part and transfer only authorised fittings.

Headlamps need the correct traffic-direction beam, levelling system, connector and control unit. Rear lamps and fog-light arrangement can differ for China-market production. After replacement, verify aim and warnings rather than judging only that the lamp illuminates.

Import compliance must remain visible

Check headlamp dip, rear fog lamp, speed indication, tyres, glass marking and emissions equipment against the vehicle’s UK registration route. A replacement Chinese-market lamp may not meet the required beam pattern.

Keep approval and conversion records. Later repairers need to know which items were changed for UK use.

Use fault severity to control movement

Close the repair with dual-market documentation

Record both the original Chinese part number and any validated international supersession, including the evidence used. Preserve the pre-repair configuration, final software level and calibration report so a future regional update does not erase the correct market setup.

Recheck coolant and oil levels, wheel torque, tyre pressures and warnings after the first full drive. Import-specific work is most reliable when the mechanical and digital baselines remain together.

1. Confirm VIN, Chinese build and UK registration identity.
2. Record installed parts, dimensions and software.
3. Capture fluid, brake, tyre and geometry baselines.
4. Use market-validated references and exact fluids.
5. Restore shields, clips, seals and grounds.
6. Bleed and set mechanical systems.
7. Align before steering and ADAS calibration.
8. Verify lighting and emissions equipment.
9. Road-test progressively.
10. Retain cross-reference and compliance evidence.

UK MOT does not validate overseas fitment

The MOT checks defined roadworthiness items but does not prove a global Mazda part, software file or fluid is correct for Changan production. Safe brakes, steering, tyres, structure, lights, restraints and emissions remain continuous duties.

Declare powertrain, wheel, suspension, lighting and software changes to the insurer. Keep import and Individual Vehicle Approval evidence where applicable.

Practical Mazda (Changan) parts FAQs

Q: Does a European Mazda part automatically fit?
A: No. Verify Changan build and market details.

Q: Can Axela always be treated as a UK Mazda 3?
A: No. Production and equipment may differ.

Q: Is UK registration lookup always complete?
A: No. Use full VIN and physical evidence.

Q: Does plug thread alone select a spark plug?
A: No. Reach, heat range and design matter.

Q: Can direct-injection fuel lines be opened casually?
A: No. Depressurise using the correct method.

Q: Is automatic fluid selected by colour?
A: No. Use exact transmission data.

Q: Can different tyres upset AWD?
A: Yes. Rolling circumference must remain compatible.

Q: Does a new hub always fix an ABS fault?
A: No. Encoder orientation and wiring also matter.

Q: Are springs identical across global markets?
A: Not necessarily; body, axle and tune can differ.

Q: Can another region’s software be installed?
A: Only with validated compatibility and support.

Q: Does fault clearing calibrate a radar?
A: No. Physical calibration is separate.

Q: When should the vehicle be recovered?
A: For brake, steering, tyre, pressure, heat or engagement faults.

Q: Does MOT prove Chinese-market fitment?
A: No. Fitment evidence remains essential.
