ROLLS-ROYCE Car Parts

Chassis era is the first parts boundary

Classic Rolls-Royce cars and BMW-era Phantom, Ghost, Wraith, Dawn and Cullinan use different structures, hydraulics and networks. Model names within the modern era also span generations and options. The Spirit of the marque does not create mechanical continuity.

Record chassis/VIN, build date, derivative, engine, gearbox and driven axles. Add wheel, brake, suspension, seating/body and driver-assistance options, then confirm the fitted assembly.

BMW relationship does not authorise interchange

Modern Rolls-Royce vehicles can use BMW-related engine, transmission or electronic engineering. Mounts, cooling, exhaust, isolation, suspension, braking, body configuration and software remain vehicle-specific. A source-brand part number is only a clue.

Require an exact cross-reference or recognised supersession and inspect interfaces. Controllers also need correct security and vehicle-order data; matching pins do not establish compatibility.

Record evidence before disturbing trim

Classic hydraulic pressure remains after shutdown

Certain classic cars use engine-driven high-pressure braking and self-levelling circuits with accumulators. Pedal feel and component service differ from a simple vacuum-booster system. Pressure may remain with the engine stopped.

Use the chassis-specific depressurisation sequence, secure the vehicle and protect against injection injury. Open lines only in a clean work area and cap immediately. Randomly pressing the pedal is not a universal pressure-release method.

Hydraulic fluid chemistry is seal critical

Different chassis eras may specify distinct mineral/synthetic hydraulic fluids. Colour is unreliable after ageing or mixing. Introducing conventional glycol brake fluid into an incompatible system can damage seals and require extensive decontamination.

Classic levelling faults need pressure and linkage evidence

Incorrect rear height can involve springs, height-control valves, rams/struts, accumulators, lines or linkage adjustment. Measure static height, pressure retention and leakage before changing the control valve.

Never work under a vehicle supported by hydraulic levelling. Use independent stands at sound chassis points. After service, set linkage at the specified datum and verify braking because some hydraulic systems interact.

Modern model architecture divides duty

Modern V12 components follow engine installation

Engine ancestry does not establish sump, turbos, cooling, intake, exhaust, ignition or software. Phantom and Ghost/Wraith-era installations can differ, and model generations change ancillary routing. Use full engine and build codes.

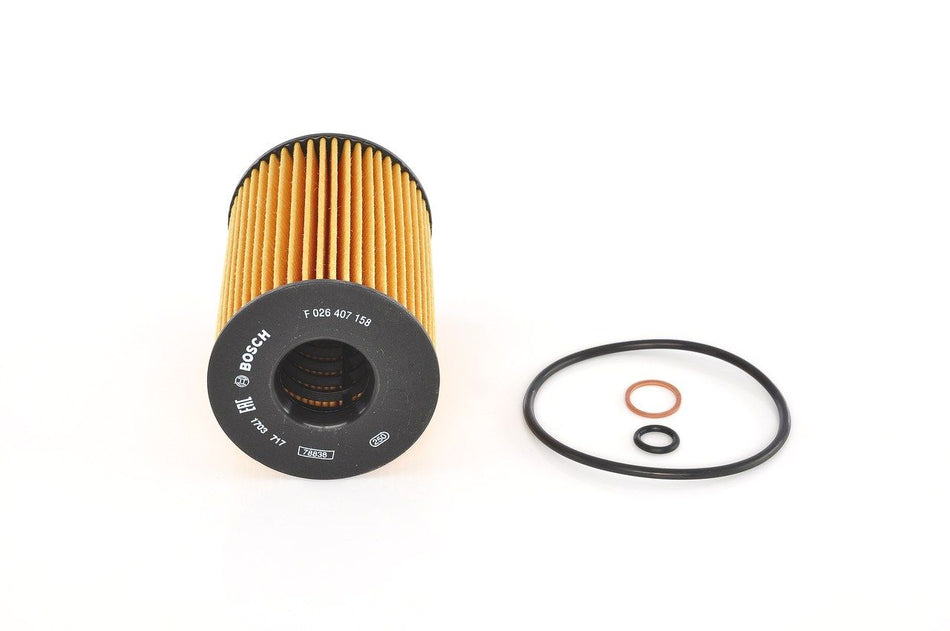

Select oil by exact approval and viscosity, then measure level under defined conditions. Investigate pressure loss, repeated consumption, fuel dilution and turbo supply. A red pressure warning requires immediate shutdown.

Thermal capacity depends on clean airflow

Large frontal heat-exchanger packs can collect debris between cores. Engine, charge-air, gearbox and cabin circuits may use separate pumps. Inspect shutters/ducts where fitted and restore every seal that forces air through the radiator.

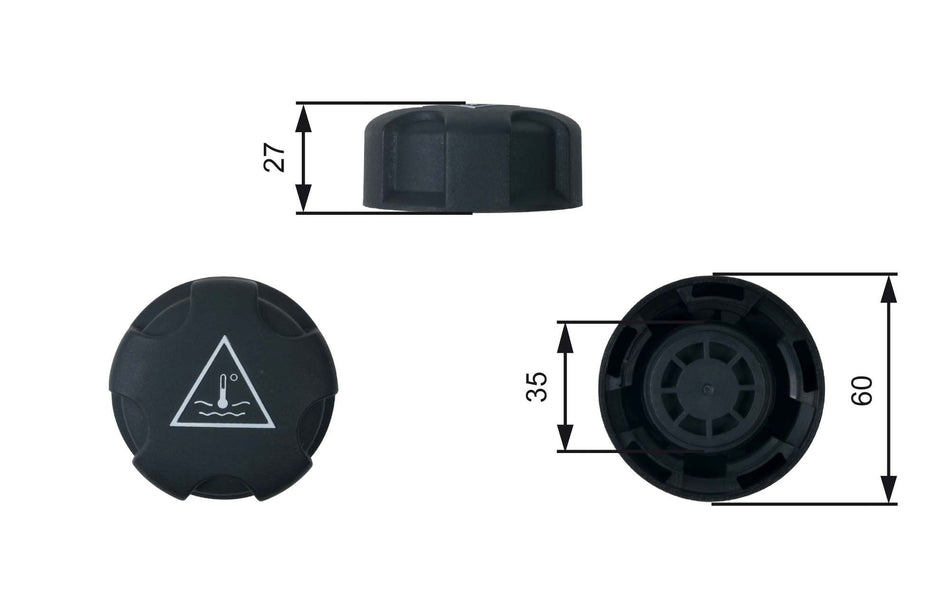

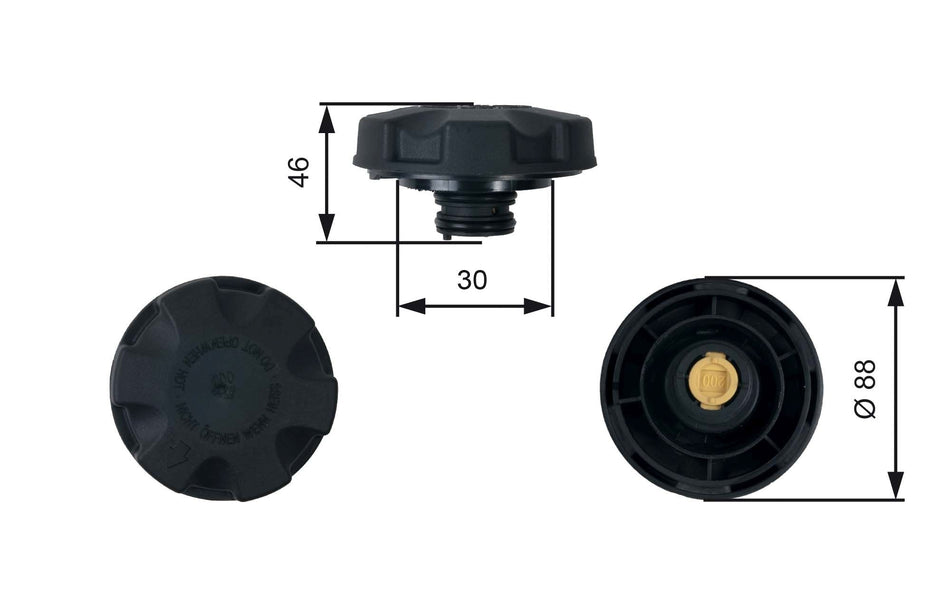

Use the correct coolant and bleed/activation process. Pressure-test cold. Steam, rapid level loss or temperature warning is a stop condition; do not open a hot cap.

Automatic gearbox service is temperature controlled

Gearbox generation, sump/filter and fluid approval follow VIN and unit label. Fill level can depend on precise temperature, selector cycle and vehicle attitude. Oil colour and number of ratios are not sufficient identifiers.

Shift faults can result from low voltage, engine torque control, mounts, fluid level, valve-body pressure or internal clutches. Save faults and learned data before reset. Adaptation cannot repair wear.

Cullinan and AWD variants add separate casings

All-wheel drive requires a transfer system, front shafts/differential and matching axle ratios. Each casing can specify different oil. Confirm propeller shaft, flange and front hub interfaces by build.

Closely matched tyre circumference, pressure and wear reduce continuous transfer correction. Diagnose binding with tyre measurements, wheel speeds, fluid and actuator command before mechanical replacement.

Air suspension stores pressure and vehicle mass

Modern air systems combine compressor, reservoir, valve blocks, struts/bags, dampers and height sensors. A vehicle that sinks at one corner supplies different evidence from one unable to rise anywhere. Record height over time.

Activate the required jack/service state, support independently and depressurise diagnostically. Heavy assemblies need rated lifting equipment. Recalibrate height and then align wheels and sensor aim.

Frequent compressor operation may be a symptom

A leak can make a healthy compressor overwork. Repair the pressure loss and check thermal protection before fitting a compressor alone. Dryers and intake filters also affect moisture control.

Electronic damping is an option-coded system

Dampers, body accelerometers, wheel-position inputs and control software work together. A damper that bolts in can have different valve response or connector. Match axle, generation and option.

Diagnose warning messages with supply, wiring, sensor and physical leakage/play checks. Do not install passive substitutes without an engineered, lawful complete conversion and insurer declaration.

Brakes must stop real operating mass

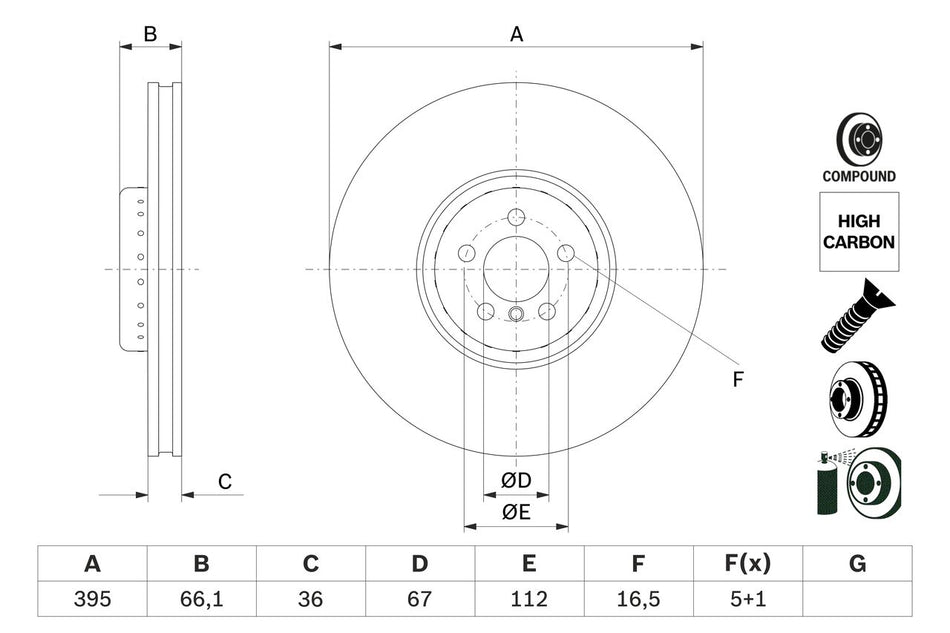

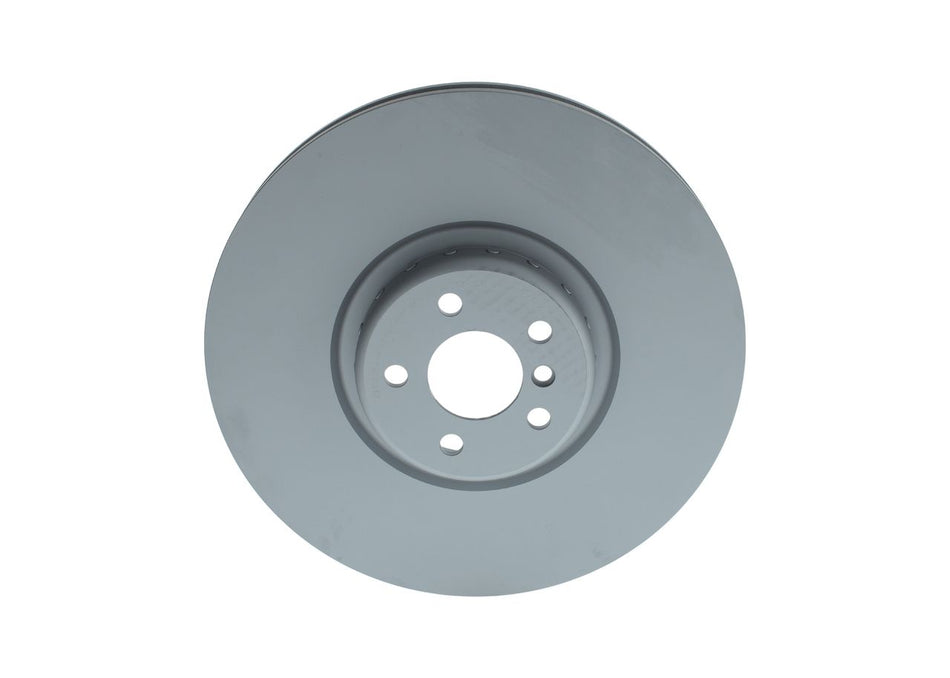

Disc diameter, thickness, offset, ventilation, caliper piston layout and pad compound vary by model/option. Use the correct electronic parking-brake service mode. Inspect cooling ducts and both disc faces.

Classic high-pressure brakes need their hydraulic procedure; modern ABS/actuator systems may require diagnostic bleeding. A low pedal, leak, warning or strong pull prohibits road testing.

Special wheel and tyre systems require exact pairing

Some generations use specialised run-flat or metric rim/tyre systems whose bead, pressure monitoring and mobility rules differ from conventional sizes. Read the actual sidewall and wheel markings rather than converting by approximate diameter.

Confirm load/speed rating, width, offset, fastener seat and torque. A conversion to conventional wheels needs brake clearance, tyre capacity, geometry, pressure-monitoring, mobility and insurance assessment.

Body electronics depend on stable voltage

Power doors, seats, lighting, suspension, gearbox and restraint controllers can all react to low supply. Test batteries and long positive/ground paths under load. Preserve position and fault data before disconnection.

Replacement modules may require vehicle-order coding and security. Added chauffeur, entertainment or security wiring should be fused and documented, with no interference in restraint or network circuits.

Battery-electric models create a high-voltage boundary

Where a traction battery, inverter and motors are fitted, shutdown of cabin displays is not electrical isolation. Trained staff must secure access, follow the model process, wait and prove absence of voltage.

Underbody impact, flooding, heat, odour or smoke calls for an exclusion area and specialist/emergency guidance. Do not charge or lift beneath a suspect pack. Low-voltage disconnection alone is insufficient.

Driver-assistance aim follows suspension calibration

Camera/radar systems depend on windscreen, brackets, tyre pressure, ride height and thrust angle. Correct body, wheel alignment and air-suspension calibration before setting sensors.

A controller may communicate while its sensor is mis-aimed. Retain the calibration report and assume assistance is unavailable with a warning.

Faults are prioritised by pressure, mass and control

Complete the repair against chassis and option records

1. Identify classic or modern era, VIN/chassis and build.
2. Record engine, gearbox, axle, hydraulic and suspension options.
3. Confirm installed labels, wheel/tyre system and module identity.
4. Measure pressure, height, fluids, voltage and fault state.
5. Control stored hydraulic/air pressure, mass and high voltage.
6. Use exact chemistry, seals, fasteners and torque sequence.
7. Restore ducts, shields, undertrays, pipe support and grounds.
8. Bleed/fill by chassis-specific temperature and pressure method.
9. Calibrate height, steering, tyre and assistance systems.
10. Verify progressively and reinspect after full settling.

Age and specification do not change roadworthiness

MOT condition includes tyres, brakes, steering, suspension, structure, lights, visibility, restraints, emissions and warnings. Historic exemption status, where applicable, must be checked for the individual vehicle and does not permit unsafe condition.

Declare wheel, suspension and powertrain changes to the insurer. A test pass does not validate hydraulic fluid, air-suspension calibration or electronic coding.

Practical Rolls-Royce parts FAQs

Q: Do BMW-related parts automatically fit Rolls-Royce?
A: No. Exact reference, option and coding must agree.

Q: Can classic and modern hydraulic data be combined?
A: No. Identify the chassis-specific system.

Q: Can classic hydraulic fluid be chosen by colour?
A: No. Chemistry must match seals and chassis.

Q: Does pressure disappear when a classic engine stops?
A: No. Accumulators can retain hydraulic energy.

Q: Can Ghost parts be assumed from Phantom?
A: No. Model and generation data remain essential.

Q: Is one oil suitable for gearbox, transfer and axles?
A: Not unless each exact specification matches.

Q: Does a low corner prove air-strut failure?
A: No. Test lines, valves, compressor and sensor.

Q: Can air suspension support workshop access?
A: No. Use independent rated support.

Q: Can metric and conventional tyre sizes be approximated?
A: No. Read exact rim and tyre system markings.

Q: Can a heavy wheel use any same-size replacement?
A: No. Load rating, offset and brake clearance matter.

Q: Does low battery voltage cause several warnings?
A: Yes. Test supply paths under load.

Q: Does low-voltage disconnection isolate an electric model?
A: No. Formal high-voltage isolation is required.

Q: Does MOT status validate hydraulic servicing?
A: No. Pressure and fluid work is separately verified.

Q: What confirms a Rolls-Royce repair?
A: Correct chassis data and stable, calibrated safe operation.
