MANN-FILTER Car Parts

MANN-FILTER and MANN+HUMMEL naming

MANN-FILTER is MANN+HUMMEL's replacement-filter brand. The official UK MANN-FILTER site is operated under the MANN+HUMMEL company name, and its products carry MANN-FILTER references. In this collection, titles use MANN & HUMMEL, while the parts correspond to the MANN-FILTER product identity. Understanding that relationship helps users search the reference printed on the filter or box without treating the names as competing manufacturers.

The range is broad but consistently filtration-led. Engine air, fuel and oil filters form the three largest groups. Cabin and secondary air filters follow, with meaningful coverage for operating hydraulics and automatic-transmission filtration. Compressed-air, air-dryer, crankcase-ventilation, urea, steering-hydraulic and coolant filters demonstrate that the collection extends beyond ordinary car servicing.

Engine air and secondary elements

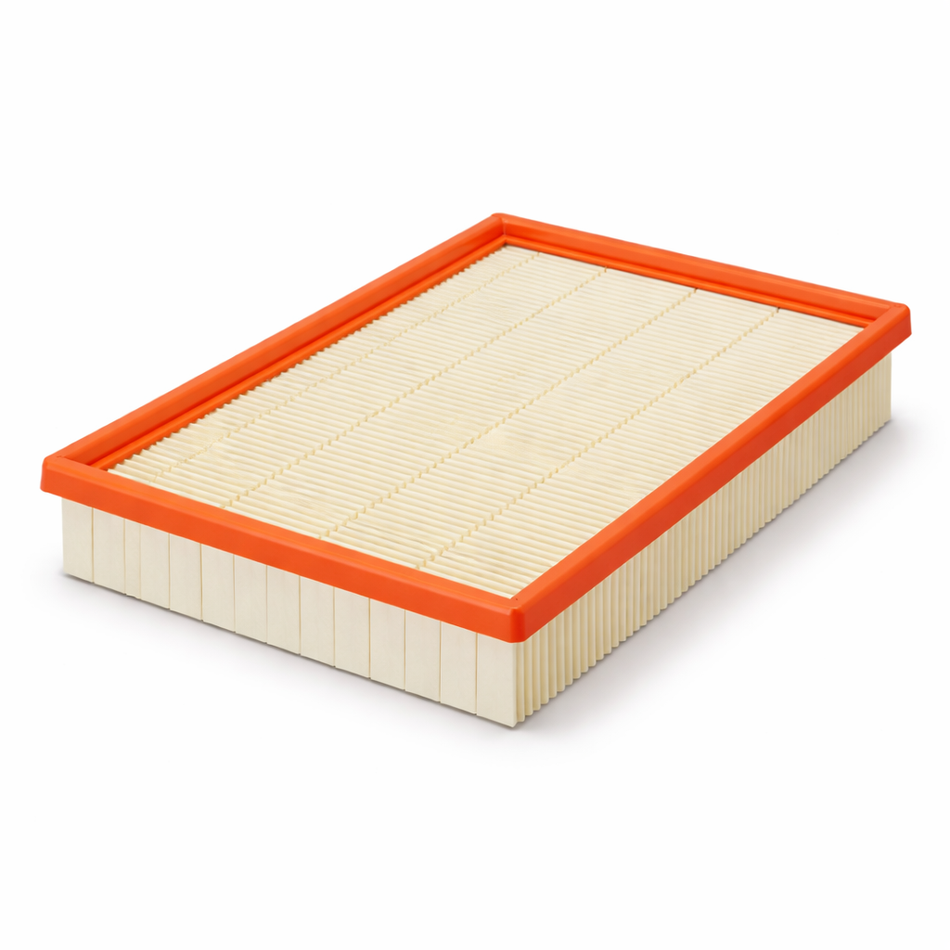

An engine air filter must pass the required airflow while retaining contaminants and sealing the dirty side from the clean intake. The actual MANN-FILTER examples here include flat inserts and cylindrical elements with substantially different heights and diameters. Some records name a recommended secondary element, showing that a primary and safety filter can be designed as a pair in commercial, agricultural or machine housings.

Do not replace a secondary element merely because it resembles the primary filter. Its purpose, construction and service rule can differ. In a two-stage housing, clean the casing by the approved method without allowing debris down the clean-air outlet. Check clamps, ducts, restriction indicators and seals; an excellent new element cannot protect an engine if unfiltered air bypasses through a split hose or poorly seated cover.

Replacement interval depends on the vehicle maker and operating environment. Dusty work can load an element sooner, while repeated removal for visual checking can damage its seal. Do not judge a modern filter solely by surface colour or attempt cleaning unless the applicable instructions explicitly permit it.

Oil-filter forms and functions

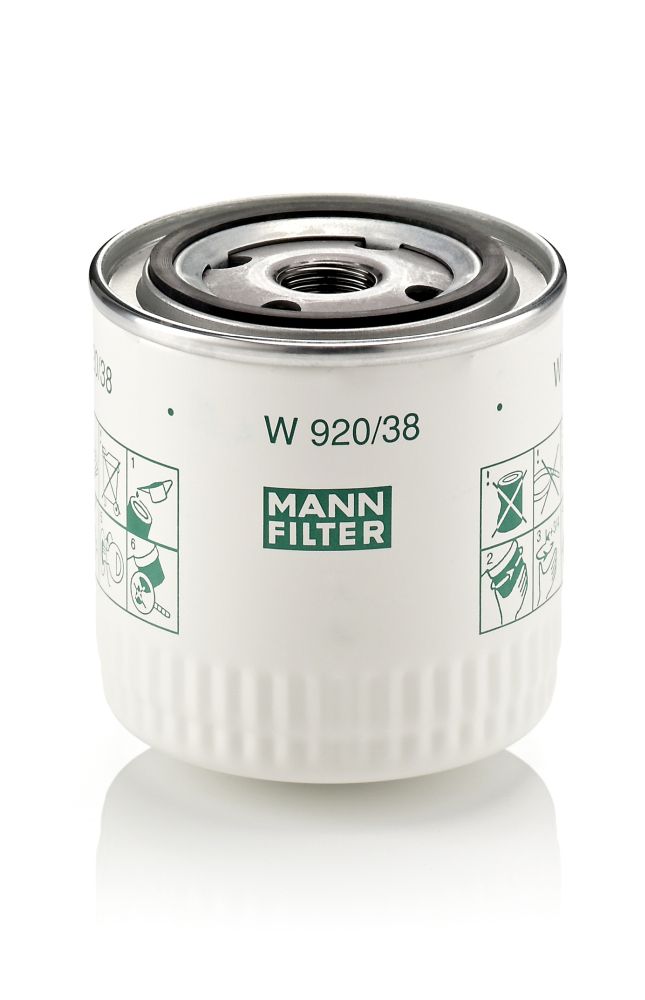

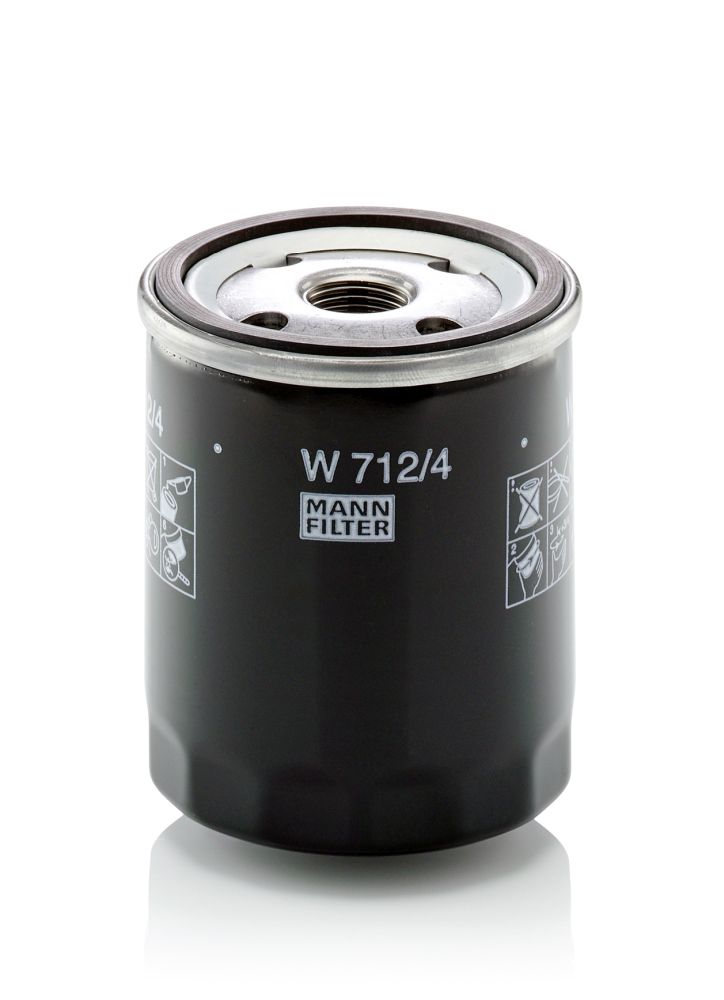

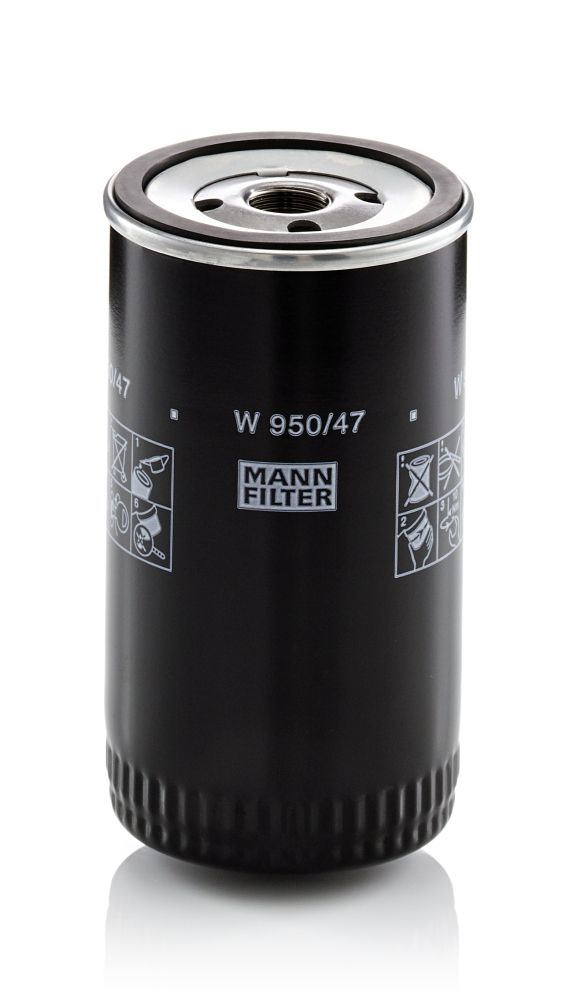

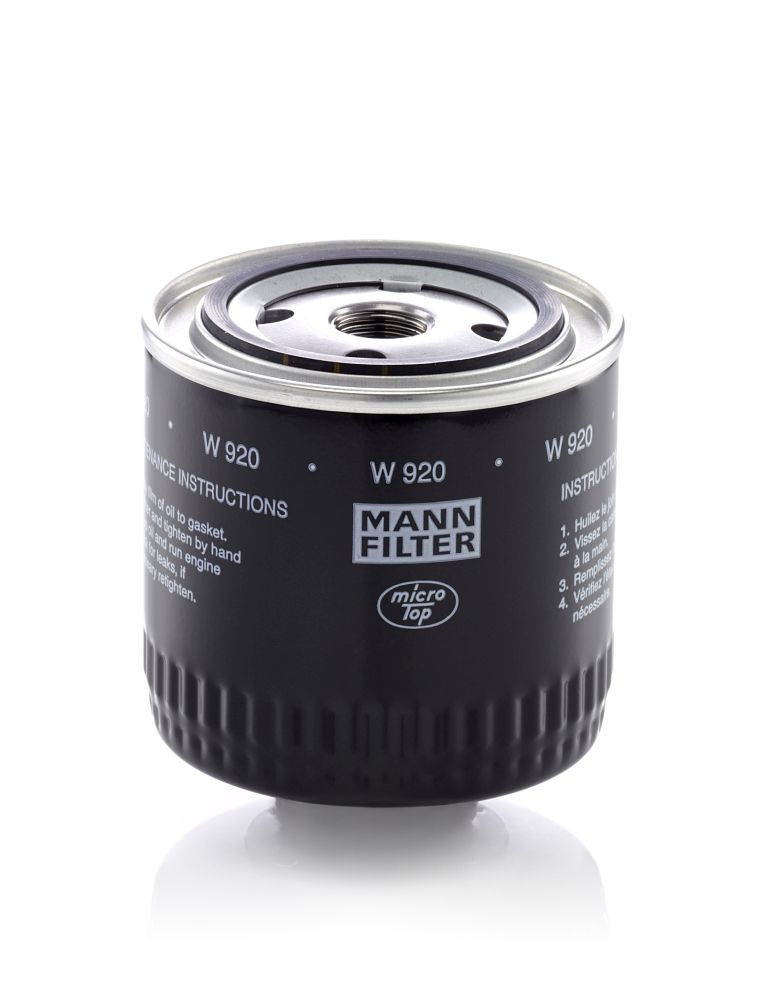

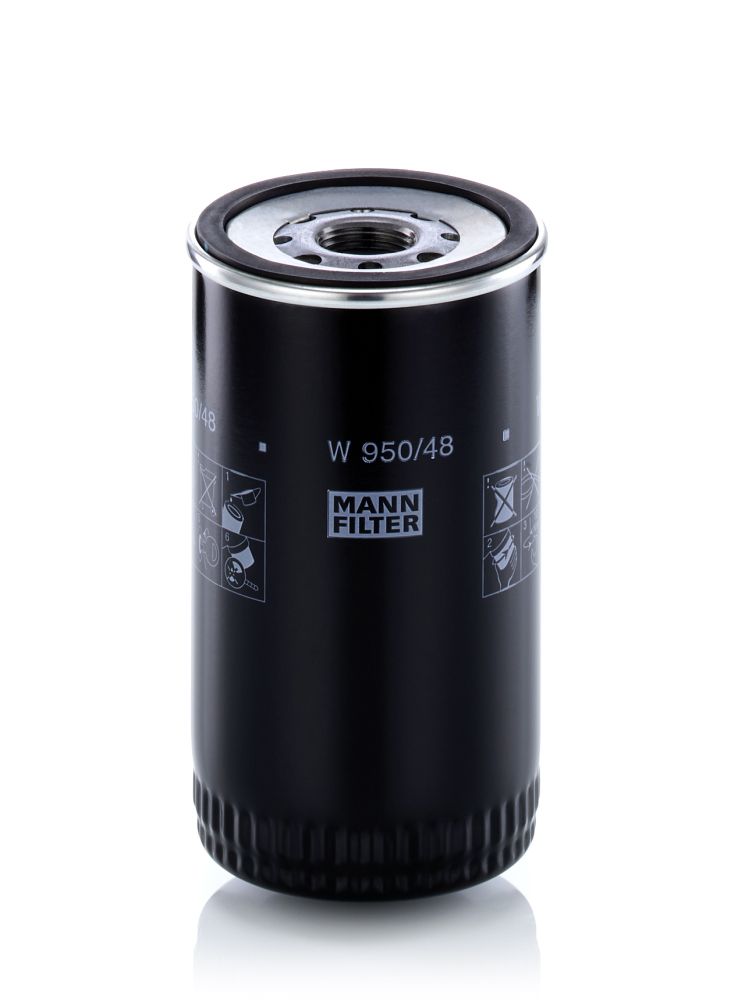

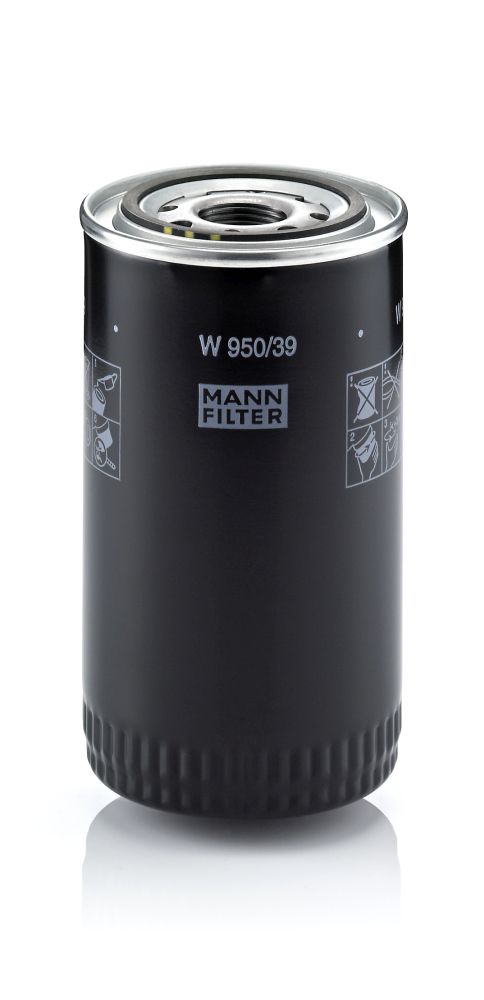

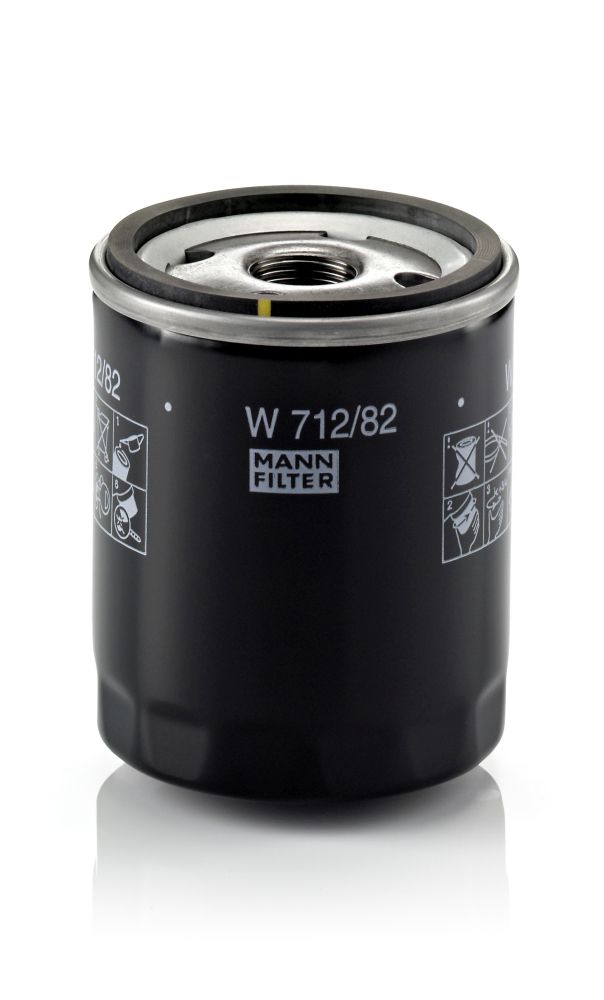

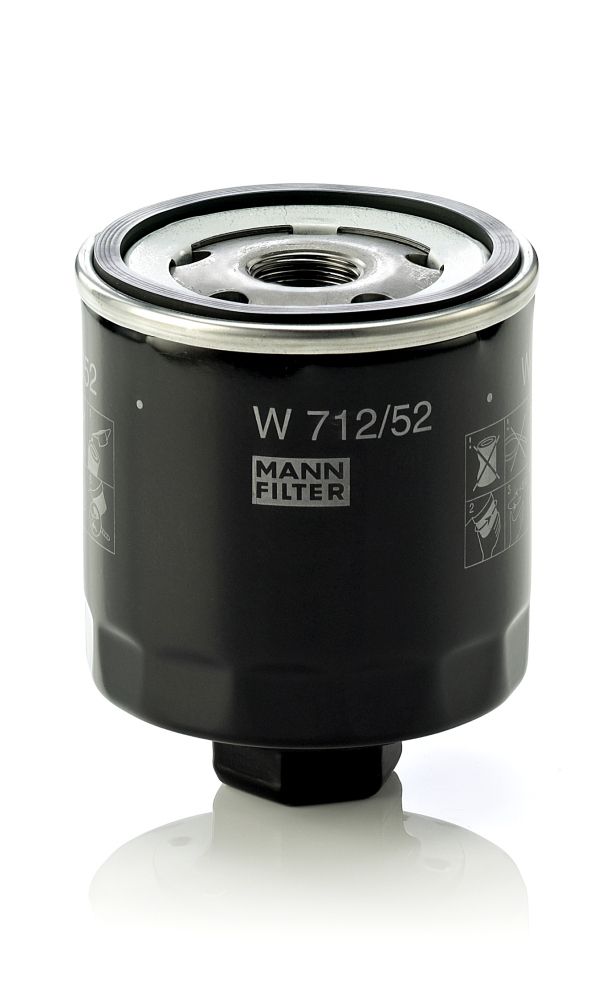

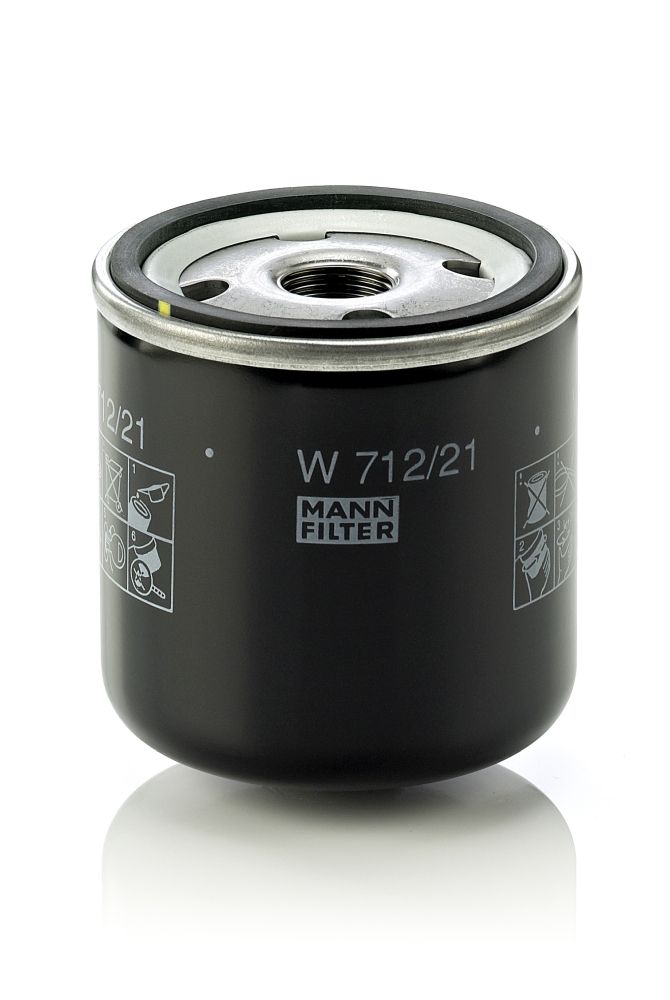

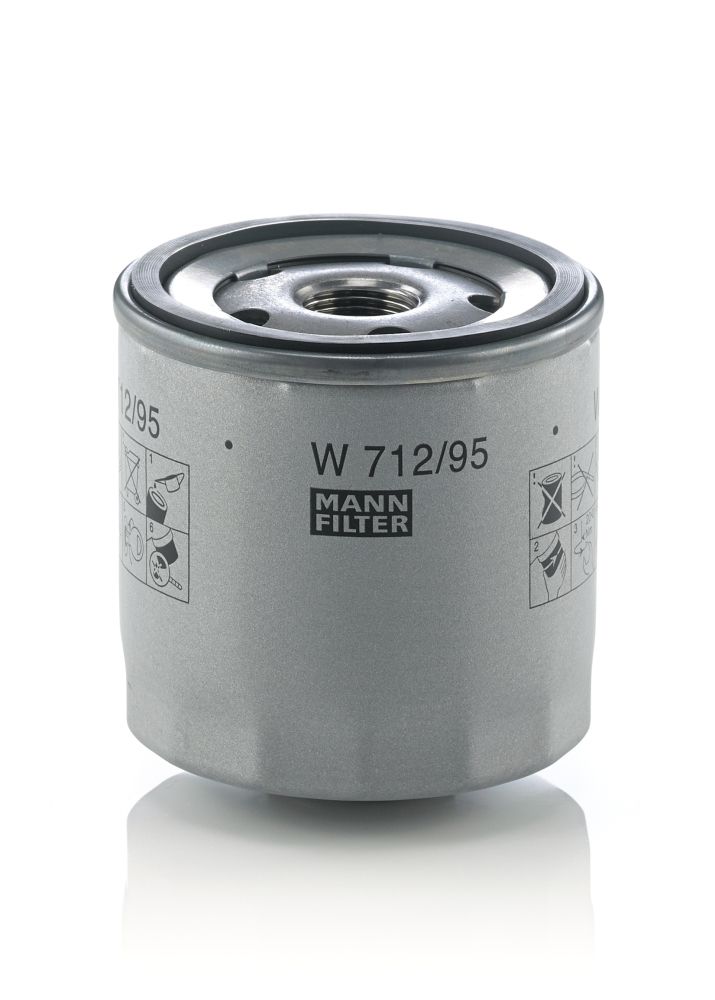

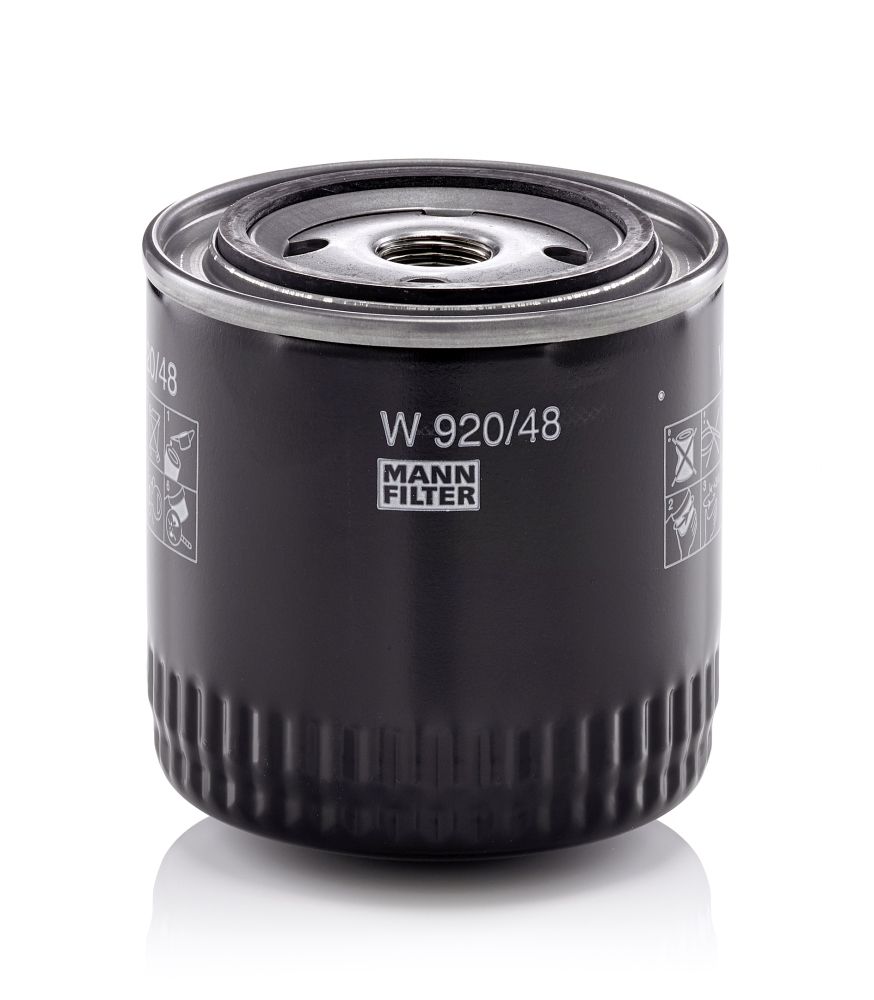

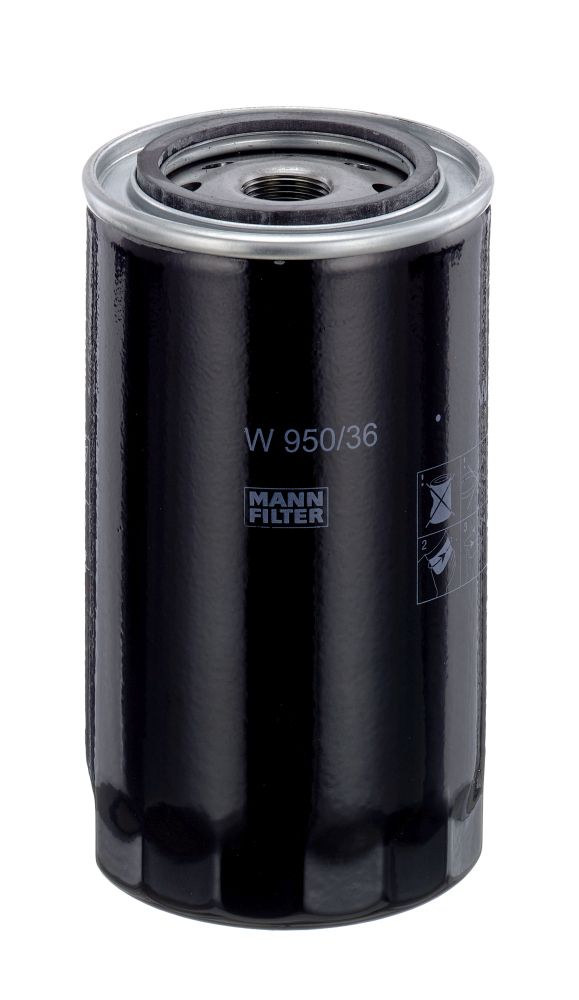

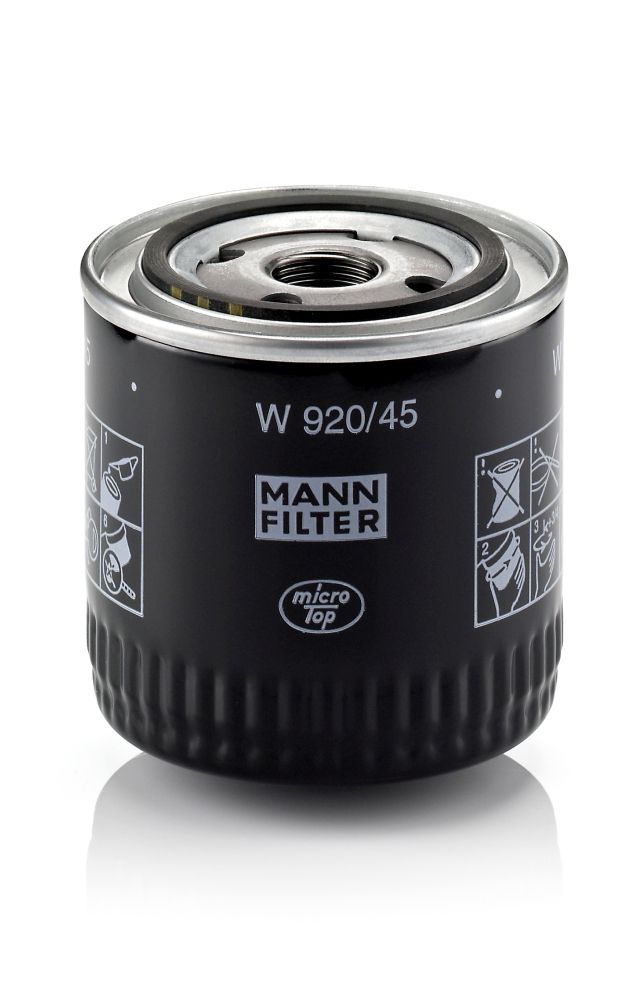

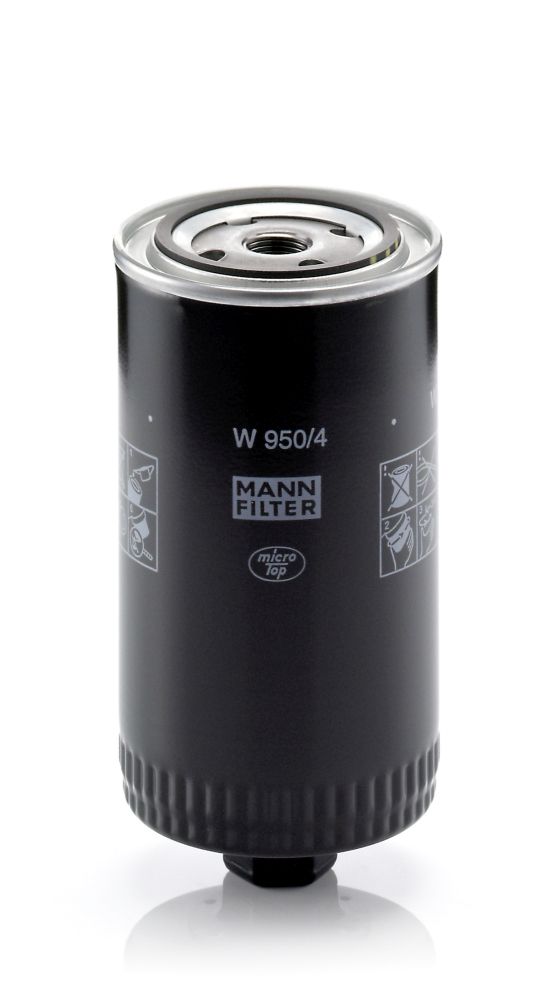

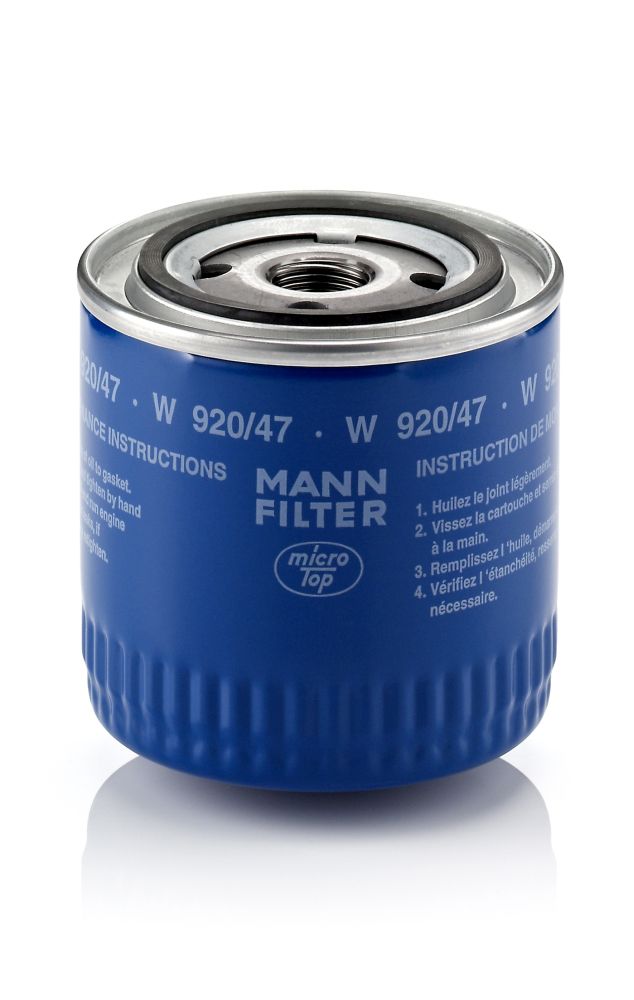

MANN-FILTER offers spin-on oil filters and replaceable elements. A spin-on unit combines media and housing, and may contain a non-return or bypass arrangement according to its application. An element fits a permanent cap or housing and is commonly supplied with one or more seals. These designs cannot be selected on external size alone because flow, pressure and valve behaviour belong to the engine's lubrication system.

The company's oil-filter information explains that applicable return-stop valves retain oil in the filter and channels after shutdown, while bypass valves can preserve lubrication when cold oil is too viscous to pass normally through the media. Those features must be confirmed for the exact part rather than assumed across every reference. A bypass valve is not an invitation to extend service intervals; it is a protective part of a specified system.

Fuel filters and water management

Fuel filtration protects fine clearances in pumps and injection equipment. Diesel systems may also require water separation. One sampled product in this range is an in-line filter with a water drain screw and unequal inlet and outlet diameters, illustrating why a generic canister is not enough. Other applications can integrate a sensor, heater, regulator or reusable housing.

Observe cleanliness closely. Cap open lines where appropriate, keep packaging closed until installation and do not introduce lint. Fit flow-direction markings correctly. Prime and bleed only by the manufacturer's procedure; prolonged dry cranking can be harmful in some systems, while uncontrolled pressure can damage housings. Petrol systems require precautions against vapour, ignition sources and residual line pressure.

A water warning should be investigated using the vehicle guidance. Draining a separator may be part of service, but recurring water can indicate contaminated fuel or a sealing issue. Fuel leakage after replacement is unacceptable: stop, depressurise safely and correct the connection before running the engine.

Cabin-filter media choices

A cabin filter treats air entering the passenger compartment through the heating and ventilation system. A basic particle filter targets dust and pollen. An activated-carbon layer also adsorbs certain gases and odours. MANN-FILTER's FreciousPlus design adds a biofunctional layer with a polyphenol coating and antimicrobial treatment. The official range identifies these as BASIC (CU), ADVANCED (CUK) and PREMIUM/FreciousPlus options.

Availability is application-specific. Do not assume an FP reference exists for every CU or CUK fitment, and do not choose a media grade while overlooking dimensions. Follow the airflow arrow, which may indicate direction rather than simply 'up'. Clean leaves from the housing and check that a distorted cover, blocked drain or blower fault is not the real reason for poor ventilation.

A heavily loaded cabin filter can reduce airflow and contribute to screen-demisting difficulty. That is a practical safety consideration, but filter replacement will not repair a failed blower, heater flap, air-conditioning fault or water leak. Diagnose the full ventilation system where symptoms persist.

Transmission, hydraulic and specialist filtration

Automatic-transmission filters operate with a specified fluid, housing or sump and pickup arrangement. Some services involve a filter alone, while others need a pan, gasket, bolts or temperature-dependent level procedure. Establish the transmission code; the vehicle model and engine do not uniquely identify the gearbox. Using the wrong fluid or level method can cause serious shifting and lubrication problems.

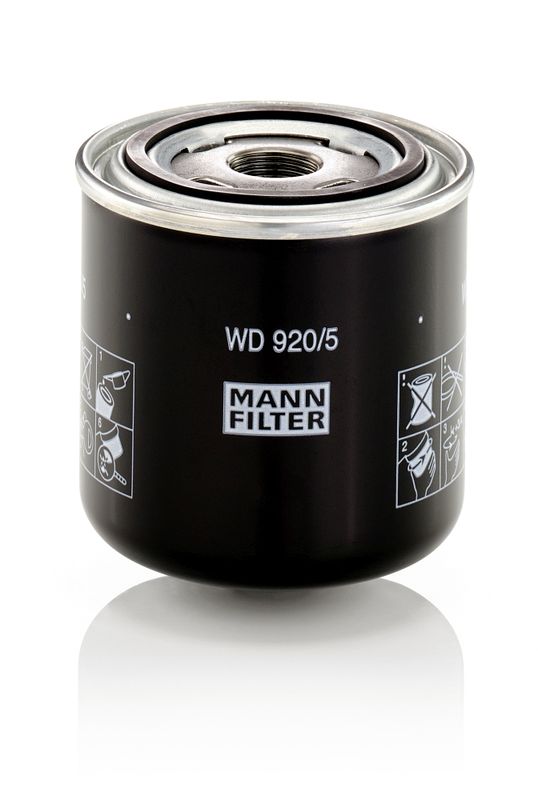

Operating-hydraulic and steering filters can be found on commercial vehicles, agricultural equipment, construction machinery and specialist systems. Pressure, flow direction, collapse resistance and cleanliness requirements differ. A filter of matching thread and approximate size may still be unsuitable. Likewise, compressed-air filters and air-dryer cartridges serve braking or auxiliary air systems that require trained handling and complete depressurisation.

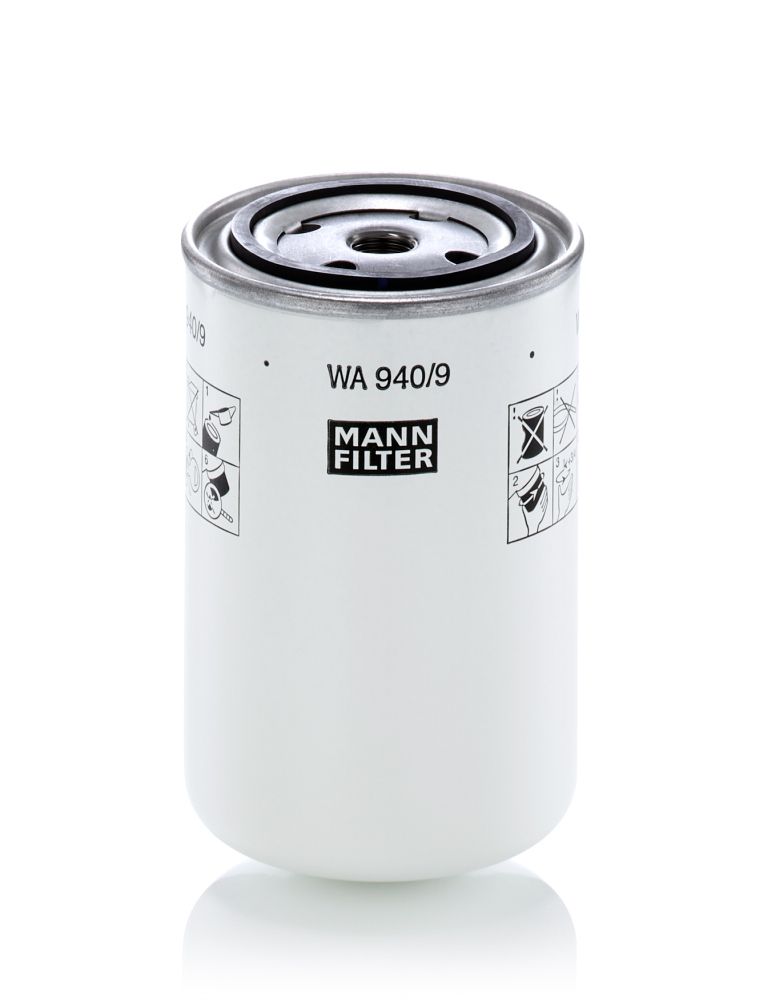

Urea filters belong to selective catalytic reduction dosing systems; coolant filters condition or clean a particular cooling circuit; crankcase-ventilation filters manage oil mist in blow-by gases. None should be substituted for a general engine filter. Use the equipment serial or chassis identity and the exact MANN-FILTER application reference.

Reading MANN-FILTER references and dimensions

MANN-FILTER references often use a letter family followed by numbers, and suffixes can identify a variation or supplied set. For example, the evidence includes C-series air filters and WK-series fuel filters, but the prefix is only an orientation. It does not prove fit. Preserve slashes, spaces and suffixes when searching because C 1112 and C 1112/2 need not be the same item.

Dimensional drawings may label more than one outside diameter for stepped elements. Measure the same points shown in the drawing, without compressing a flexible seal. For threaded products, record thread and sealing-gasket dimensions. For in-line filters, note inlet and outlet sizes separately. The removed part can confirm construction, yet it may itself be an earlier incorrect fit, so always reconcile it with application data.

Replacement practice

1. Confirm the service requirement and exact system before opening it.
2. Obtain the complete reference and every required seal, fluid or housing part.
3. Clean around the access area so dirt cannot fall into the clean circuit.
4. Compare new and removed items, including ports, arrows, suffixes and dimensions.
5. Lubricate seals only with the approved clean fluid where instructed.
6. Tighten housings and filters by the specified torque or contact-angle method.
7. Prime, bleed or set fluid level using the vehicle procedure.
8. Run the system, inspect carefully for leakage and recheck the final level.

Used engine oil, fuel, hydraulic fluid and contaminated filters require controlled disposal. Keep them out of drains and general liquid waste. A filter containing fuel or oil should be stored securely until transferred through an appropriate waste route.

Roadworthiness and service intervals

Most filters are not judged as standalone items in a Great Britain MOT, but their consequences can matter. An incorrect engine filter, fuel restriction or air leak can contribute to poor running or emissions faults. A blocked cabin filter may reduce demisting airflow. A leaking filter housing can create a fluid leak, fire risk or loss of lubrication.

Follow the vehicle or machine service schedule rather than a universal mileage. Time, distance, engine hours, fluid specification and operating conditions all influence maintenance. A filter that physically fits does not authorise a longer interval, and a premium media option does not override the equipment maker's servicing instructions.

Frequently asked questions

Q: Is MANN-FILTER different from MANN+HUMMEL?

A: MANN+HUMMEL is the company behind MANN-FILTER, its replacement-filter brand. Product references are commonly searched under the MANN-FILTER name.

Q: Are all products here passenger-car filters?

A: No. The range also includes commercial, agricultural, machinery, hydraulic and compressed-air applications.

Q: Can I choose an air filter by length and width?

A: Not safely. Height, seal shape, housing design, application and primary or secondary role also matter.

Q: What is a secondary air-filter element?

A: In relevant heavy-duty housings it is a safety element used with a primary filter. Its service method follows the equipment instructions.

Q: Are all spin-on oil filters internally alike?

A: No. Thread, seal, flow capacity and valve arrangement can differ even when cans look similar.

Q: Should an oil-filter housing cap be tightened as firmly as possible?

A: No. Use the specified torque and correct tool; excessive force can damage the cap, housing or seal.

Q: What does a water drain on a fuel filter indicate?

A: It provides a method to remove collected water on that design. Follow the relevant draining and priming instructions.

Q: Do all cabin filters contain activated carbon?

A: No. CU particle filters, CUK activated-carbon filters and FP biofunctional filters represent different media concepts.

Q: Can a cabin filter be fitted either way round?

A: Not where airflow is marked. Install it in the stated direction and ensure it seats without folding.

Q: Does a filter suffix matter?

A: Yes. A slash, suffix or final character can identify a different size, construction or supplied arrangement.

Q: Can an automatic-transmission filter be changed without identifying the gearbox?

A: No. Filter, pan, fluid and level procedure depend on the transmission code and version.

Q: What should be checked immediately after filter replacement?

A: Confirm correct level or priming, normal warning indications and operation, secure housings and complete absence of leaks.
