Trojan Battery: understand the range before choosing
Trojan Battery manufactures deep-cycle energy-storage products for motive, marine, recreational and equipment applications. The AutoMotoPart range combines sealed Trojan AES AGM models with flooded Signature-style batteries. Although every listing is lead-acid and deep-cycle oriented, technology, voltage, capacity rating, case, terminal and maintenance needs differ and must match the complete battery system.
AutoMotoPart currently lists 12 Trojan Battery items. The largest Trojan Battery groups are 12 maintenance entries. Trojan Battery totals can change, so a category count is orientation rather than proof that a particular reference suits a vehicle, workplace or job. The exact Trojan Battery listing, its current technical information and the item in front of you must agree.
What the Trojan Battery page actually covers
| Product group in this range | Current entries | Selection focus |
|---|---|---|
| Maintenance | 12 | Match nominal battery and bank voltage before comparing any amp-hour figure. |
The twelve-product range spans 6V, 8V and 12V units from 150Ah to 390Ah as titled. Four AES suffix models are sealed AGM batteries; the other eight are flooded formats. T105 and T875 names appear in both technologies, showing why the full suffix matters. Capacity and voltage do not establish case size, terminal, charger or bank compatibility.
Build a reliable shortlist
Record every existing battery label and draw the current series and parallel connections before disconnecting anything. Note system voltage, total units, charger make and profile, load duty, compartment dimensions, terminal orientation and cable condition. Then compare the complete Trojan datasheet, not just the largest amp-hour number.
| Check | Why it matters | Useful evidence |
|---|---|---|
| Nominal voltage | One wrong 6V, 8V or 12V unit changes bank operation | Equipment diagram, charger output and complete battery label |
| Technology | Flooded and AES AGM products need different care and charge control | Series suffix, construction and Trojan charging data |
| Capacity rate | Amp-hours vary with discharge duration and test conditions | C5, C10, C20 or other like-for-like datasheet value |
| Case and restraint | Large batteries differ in footprint, height and mass | Measured tray, hold-down, access and published dimensions |
| Terminals | Post type, polarity and torque affect cable fit and resistance | Terminal drawing, lug stack, covers and torque value |
| Bank condition | Mixed age or capacity can unbalance series and parallel strings | Service history, measured condition and replacement policy |
A higher Ah label may increase charging time, cable demand, mass or bank imbalance even when voltage is unchanged. Any proposed capacity change should be checked against charger current, compartment rating, equipment controller and all parallel strings.
AES AGM and flooded construction

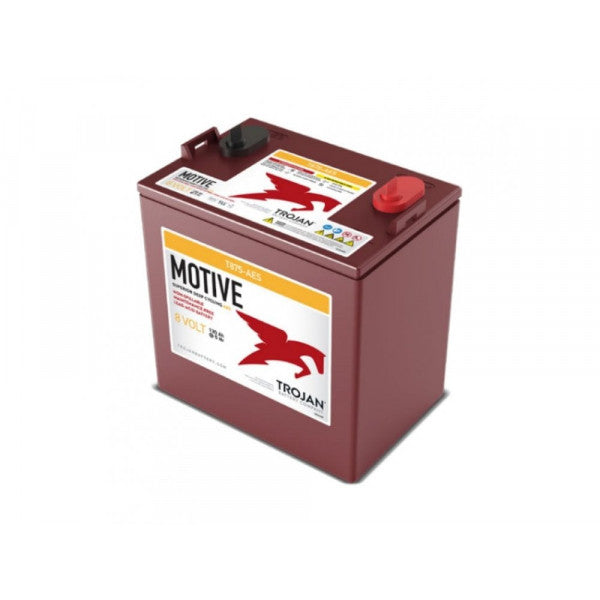

J305-AES, L16-AES, T105-AES and T875-AES are valve-regulated absorbent-glass-mat batteries. Trojan identifies them as non-spillable and maintenance-free in the sense that watering is not required. That does not remove the need for ventilation, clean tight terminals, temperature-aware charging, secure restraint and periodic condition checks. The sealed vents must not be removed and no water, acid or additive should be introduced.
The L16G-UT, LPT and AP listings are flooded lead-acid batteries. Electrolyte is free-flowing, so they normally require upright orientation and the inspection and watering routine in Trojan's flooded guide. Wear face, hand and body protection and use only the specified water at the specified point in the charge cycle. Never lean over a battery while making a live connection or create sparks near a venting bank.
Voltage, capacity and bank layout

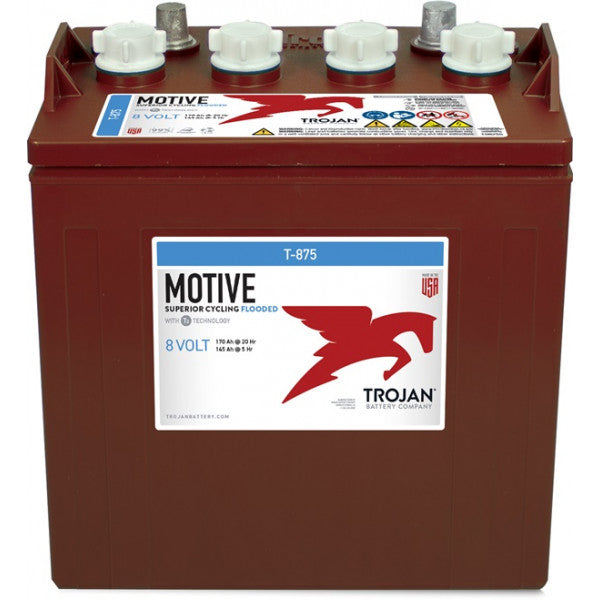

Most products here are 6V, while T875 variants are 8V and T1275-LPT is 12V. A machine may reach its system voltage by connecting several identical batteries in series, and may use parallel strings for capacity. Preserve the engineered layout, cable sizes and symmetry. Reversing one battery or bridging the wrong posts can create a short circuit, damage controls and cause severe injury.
The Ah figures in titles are useful identifiers but require a stated hour rate. Trojan publishes the J305-AES as 279Ah at the 20-hour rate and the L16-AES as 355Ah at that rate, while both show different figures at other rates. Estimate runtime from the equipment duty cycle, discharge limit, temperature and conversion losses rather than multiplying a title value by voltage and treating the result as fully usable energy.
Charging profile and temperature
Before charging, verify that the charger is configured for flooded or AES AGM construction as appropriate and for the bank's nominal voltage. Trojan warns that both overcharging and undercharging reduce life and recommends temperature compensation for AGM batteries. Charger settings must come from the current Trojan data and charger instructions, not a voltage copied from an unrelated battery family.
Charge in a clean, accessible and well-ventilated location. Do not charge a frozen battery or continue if the case swells, becomes abnormally hot, vents unexpectedly or connections heat. Fully isolate before changing configuration. Following use, restore charge by the recommended process rather than deliberately flattening a lead-acid battery; these products do not need a full discharge to avoid memory effect.
Installation, cables and terminal care
Measure the compartment in three dimensions and include terminal and cable-bend clearance. Check that its structure and hold-down can carry the battery mass under braking, vibration or equipment movement. Trojan allows certain AES orientations but specifies how horizontal placement is done; that permission must not be transferred to flooded models or improvised mounting positions.
Disconnect power in the equipment maker's sequence and prevent tools touching an opposite terminal or grounded frame. Clean corrosion using the approved method, replace damaged lugs and position washers exactly as Trojan describes so the cable has direct terminal contact. Tighten to the terminal-specific value and fit insulating covers. Excessive torque can damage posts, while a loose joint creates resistance and heat.
Inspection, storage and recycling
Inspect cases for cracks, bulging, leakage and impact before installation. Keep tops clean and dry, and investigate unusual odour, heat, rapid self-discharge or unequal bank voltages. Do not use a simple open-circuit reading as the sole health test; state of charge, rest period, temperature and load performance all matter. Bank diagnosis should be conducted with appropriate instruments and isolation controls.
For storage, fully charge by the correct profile, disconnect unintended loads and monitor at the interval Trojan specifies, more often in heat. Protect batteries from freezing when discharged and from conductive material across terminals. Lead-acid units are heavy and recyclable; use mechanical help where needed, keep them upright where required and transfer them through an authorised battery collection route rather than household waste.
From identification to a checked result
| Stage | Good practice for this range | Mistake to avoid |
|---|---|---|
| Survey | Record bank diagram, voltage, technology, capacity rate and terminal | Photographing only the front label |
| Match | Check exact series, case, charger, cables, hold-down and duty | Selecting the largest Ah number that fits |
| Isolate | Shut down loads and chargers, protect terminals and use insulated tools | Disconnecting a live bank casually |
| Install | Secure cases, confirm polarity, connect in sequence and torque correctly | Mixing old and new technologies in one bank |
| Commission | Apply the proper charging profile and verify temperature and balance | Using a generic charge setting without monitoring |
Update the bank diagram after installation with product codes, serial or batch records, commissioning date and measured baseline values. Keep charging and maintenance records together so drift between units is detected before a service interruption.
Reading real Trojan Battery references
The Trojan Battery names below are examples from the current range and show why the complete description matters. They are not universal Trojan Battery recommendations and should not be treated as a fitment list. Within Trojan Battery, a shared family word can conceal a different dimension, connector, material, pack format, operating condition or installation side.
| Example listing | What to verify beyond the name |
|---|---|

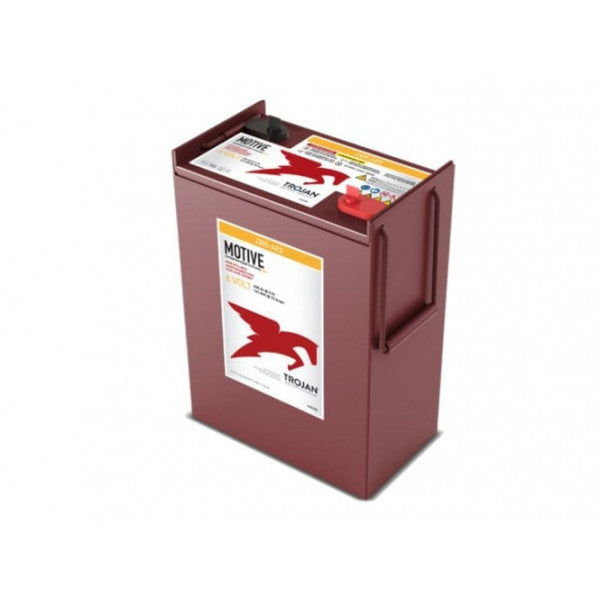

| Trojan J305-Aes Battery 6V 279AH | Complete Trojan model, suffix, nominal voltage and construction |

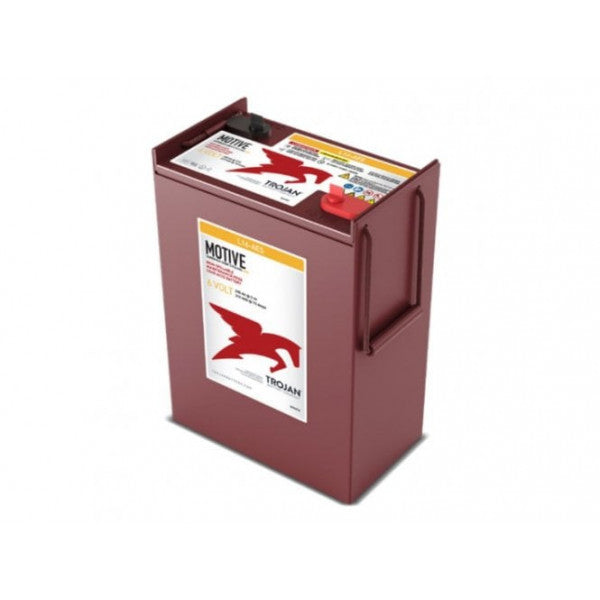

| Trojan L16-Aes Battery 6V 355AH | Capacity rate, duty cycle, discharge limit and system energy need |

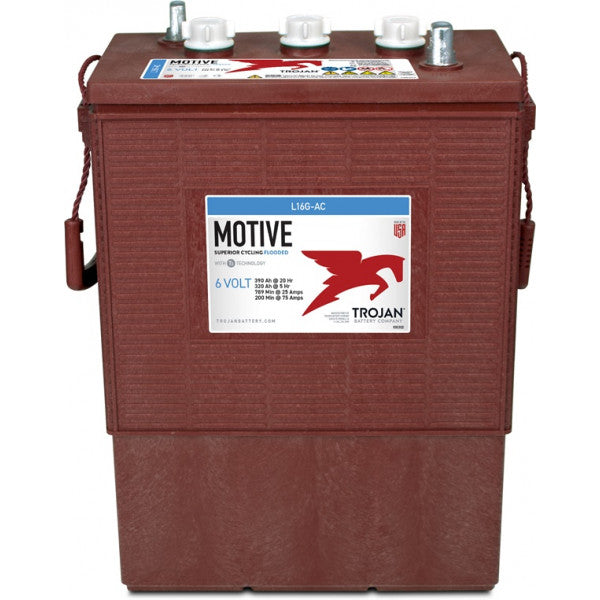

| Trojan L16G-Ut Battery 6V 390AH | Case group, dimensions, weight, orientation, restraint and terminals |

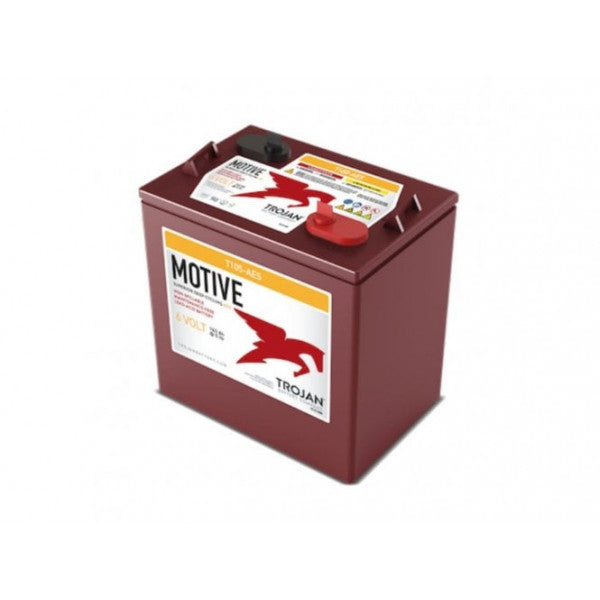

| Trojan T105-Aes Battery 6V 207AH | Charger profile, temperature compensation, ventilation and bank matching |

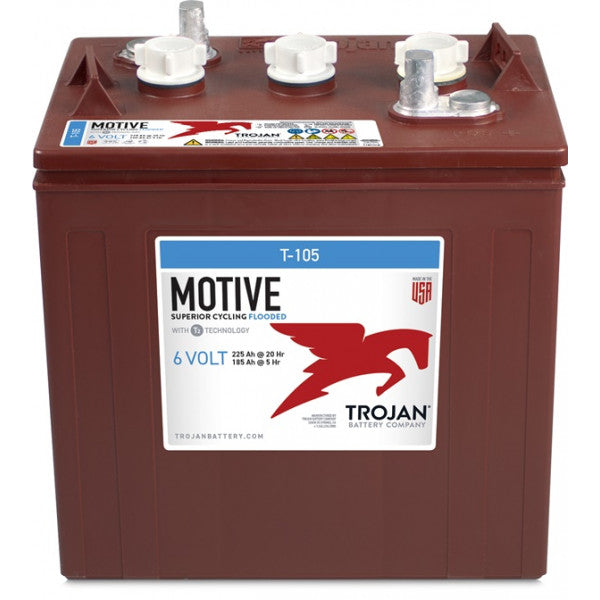

| Trojan T105-Lpt Battery 6V 225AH | Complete Trojan model, suffix, nominal voltage and construction |
| Trojan T105PLUS-Lpt Battery 6V 225AH | Capacity rate, duty cycle, discharge limit and system energy need |
| Trojan T125-Lpt Battery 6V 240AH | Case group, dimensions, weight, orientation, restraint and terminals |

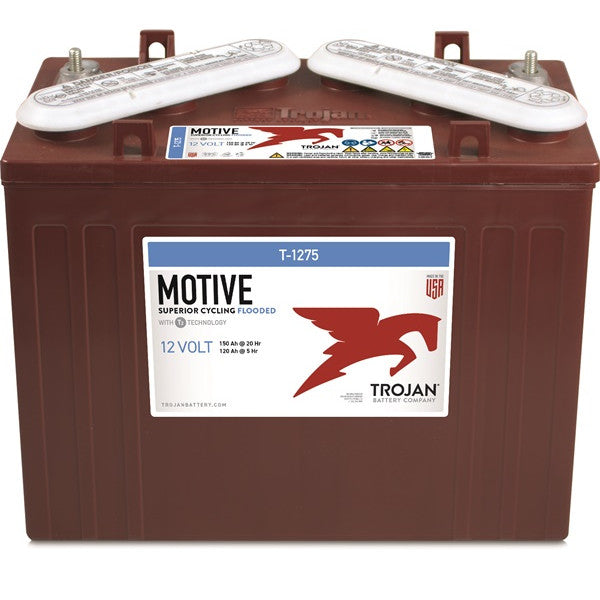

| Trojan T1275-Lpt Battery 12V 150AH | Charger profile, temperature compensation, ventilation and bank matching |
T105 and T875 occur in both AES AGM and flooded forms, and similar capacities do not imply identical construction. Retain the full code including AES, LPT, UT, AP or PLUS throughout ordering, installation and service records.
Common errors around Trojan Battery products
- Choosing a battery only by amp-hours without matching voltage and capacity test rate.
- Mixing flooded and AES AGM batteries or different capacities in one bank.
- Using a flooded charging profile on an AGM bank or vice versa.
- Adding water to a sealed Trojan AES AGM battery or opening its vents.
- Working with conductive jewellery, uninsulated tools or exposed adjacent terminals.
- Installing a large battery without checking weight, restraint, orientation and terminal clearance.
- Replacing one tired bank member without assessing the age and condition of the others.
- Discarding a lead-acid battery through general waste instead of authorised recycling.
Trojan Battery questions and answers
Q: What voltages are available in this Trojan range?
A: The listings include nine 6V batteries, two 8V models and one 12V model.
Q: Which Trojan products here are AES AGM?
A: J305-AES, L16-AES, T105-AES and T875-AES are the four sealed AES AGM listings.
Q: Are the remaining Trojan batteries flooded?
A: The current non-AES LPT, UT and AP listings are evidenced as flooded lead-acid products; verify the exact datasheet.
Q: Can amp-hour figures be compared directly?
A: Only when the discharge rate, end voltage and test temperature are the same.
Q: Can a 6V battery replace an 8V unit?
A: No. Match nominal battery and total bank voltage exactly to the equipment and charger.
Q: Can flooded and AGM batteries share a bank?
A: Do not mix technologies unless an engineered system and both manufacturers explicitly approve it.
Q: Should water be added to an AES battery?
A: Never. Trojan states that AES AGM batteries must not be watered or have their vents removed.
Q: What charger should be used?
A: Use a charger and program approved for the exact technology, bank voltage, capacity and temperature conditions.
Q: Can one battery in a series string be replaced?
A: Assess the whole bank; mixing new and aged units can cause imbalance and premature failure.
Q: Why does terminal torque matter?
A: Loose connections create heat and excessive torque can damage the post; use the terminal-specific published value.
Q: Can every AES battery be mounted in any direction?
A: No. Follow Trojan's permitted orientation and the equipment's restraint and ventilation requirements.
Q: How should an old Trojan battery be disposed of?
A: Keep terminals protected and use an authorised lead-acid battery recycling or collection service.
