An Abarth must be identified in its current state
Performance-oriented vehicles are often modified during service life. Factory model data establishes a baseline, but installed turbo, calibration, suspension, brakes and exhaust may no longer match it. Selection should reconcile build data with physical evidence.
Photograph labels, record software or tuning documentation and note wheel and tyre specifications before dismantling. Do not treat an unsupported power claim as a parts specification.
Vehicle families separate the first decision
Compact 500-, 595- and 695-based vehicles share a general architecture but can use different outputs and chassis packages. Punto-based Abarth applications belong to another body and suspension family. Within either group, production and emissions revisions change sensors and calibration.
Use the VIN and model series, then engine and gearbox code. A model-name badge can be changed and is not primary evidence.
Build data and fitted evidence should agree
| Evidence source | Useful information | Reason to cross-check |
|---|
| VIN/build data | Platform, date and factory configuration. | Later modifications or assembly swaps. |
| Engine/gearbox code | Core mechanical and control family. | Turbo and emissions variants may still differ. |
| Turbo plate/casting | Installed compressor/turbine assembly. | Can differ from factory after repair or upgrade. |
| Caliper/disc measurement | Actual brake package at each axle. | Edition labels do not prove current hardware. |
| Damper/spring marks | Chassis component specification. | Lowering kits can change ride height. |
| ECU data/documentation | Calibration identity where accessible. | Remap changes boost and diagnostic baseline. |
Turbo heat links several maintenance systems
The turbocharger shares engine oil and, on relevant units, coolant. Exhaust heat affects hoses, wiring, catalysts and nearby shields. Low oil level, incorrect approval, restricted feed or an unsuitable shutdown routine after severe use can shorten bearing life.
Inspect feed and return pipes, breather pressure and heat shields before replacing a turbo. Oil in the intake can come from normal mist, overfill, breather control or internal wear and must be interpreted by quantity and symptom.
Boost faults need a pressure-path map
Air flows through filter, compressor, charge pipes, intercooler, throttle and manifold. A split hose, loose clamp, bypass valve, wastegate actuator, sensor or calibration can create similar underboost or overboost codes.
Smoke testing stays within a safe limit
Use the system's specified low test pressure and valve state. Do not pressurise crankcase or turbo seals with unrestricted workshop air. Read requested and actual boost under controlled conditions.
Ignition condition matters under cylinder pressure
A plug or coil can operate at idle yet misfire under boost. Match plug type, heat range, gap and tightening to the exact engine and calibration. Do not fit a colder competition plug solely because the car is badged or remapped.
Investigate injector balance, compression, fuel pressure and intake leakage before replacing repeated coils. Continued boost misfire can damage catalyst and turbo through unburned fuel.
Service fluids are approval-led
| Fluid area | Selection evidence | Common mistake |
|---|
| Engine oil | Engine, emissions stage, viscosity and approval. | Choosing only by a performance label. |
| Coolant | Specified inhibitor technology and mixture. | Mixing by colour. |
| Manual gearbox | Transmission code and synchroniser requirement. | Using generic differential oil. |
| Automated-manual hydraulic circuit | Exact actuator fluid and bleed process. | Confusing it with gearbox lubricant. |
| Brake/clutch fluid | Required specification and service condition. | Using a high dry-boiling claim without compatibility. |
| Air-conditioning refrigerant/oil | Vehicle label and compressor system. | Mixing refrigerants or lubricants. |
Gearbox type changes clutch and control parts

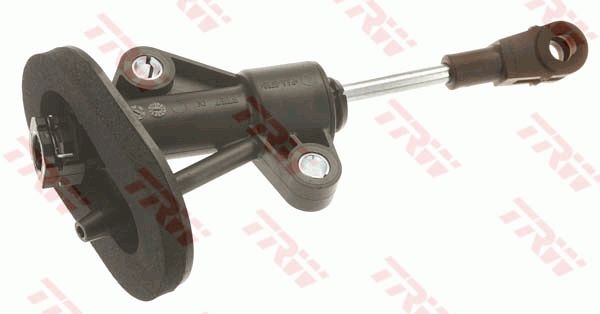

Manual and automated-manual applications can share some gears while using different clutch actuation, selectors and control procedures. Identify the gearbox and actuator separately. A clutch replacement may require calibration or self-adjusting cover tooling.
Clutch slip on a tuned engine can reflect torque beyond the original duty, but oil contamination, release preload, flywheel condition and driving heat must still be diagnosed.
Brake packages cannot be chosen from wheel diameter

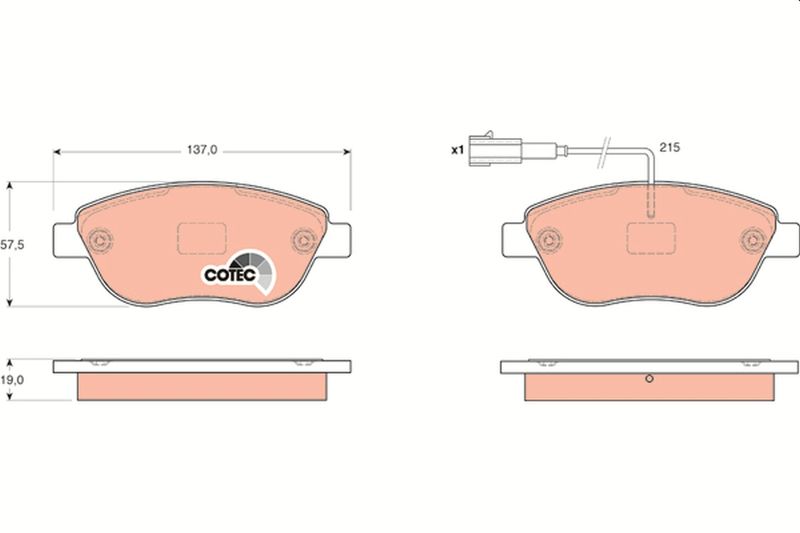

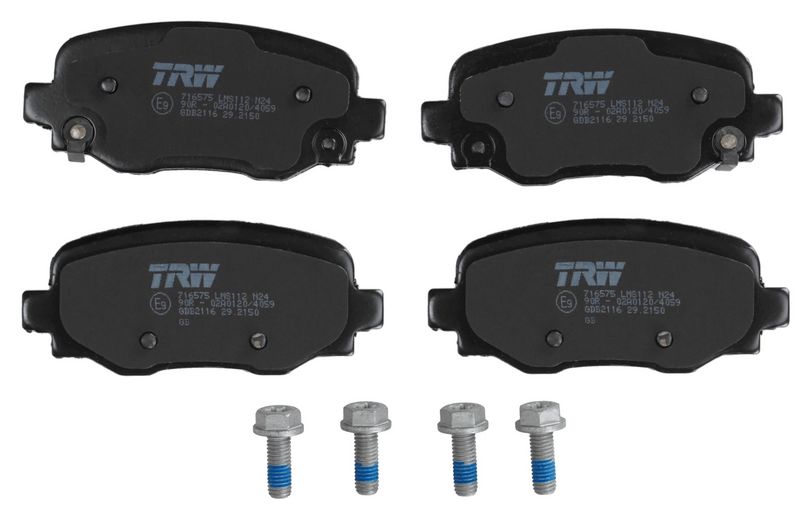

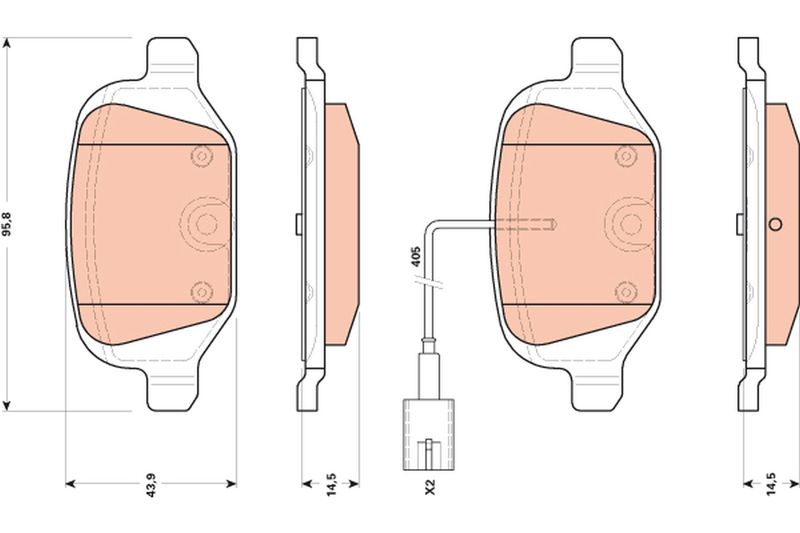

A large wheel may cover several caliper designs. Measure disc and identify caliper manufacturer, piston layout, carrier and pad hardware. Directional discs and specific pad shims must be installed on their correct side.
| Brake check | What to record | Risk if omitted |
|---|
| Disc | Diameter, thickness, height and vent direction. | Contact or poor heat management. |
| Caliper | Fixed/sliding type, piston and carrier. | Wrong pad or hydraulic volume. |
| Pad hardware | Shape, pins, springs, shims and wear lead. | Noise, movement or lost warning. |
| Hose | Length and routing at lock/droop. | Twist, strain or tyre contact. |
| Wheel clearance | Spoke, barrel and balance-weight space. | Caliper collision. |
| Fluid condition | Specification, age evidence and contamination. | Fade or seal damage. |
Performance use increases brake inspection demand
Repeated high-energy stops raise disc, pad and fluid temperature. Inspect cracks, heat spotting, thickness, pad taper, boot condition and fluid state. Competition friction material may not provide appropriate cold response, noise or approval for road use.
Use axle-balanced, road-appropriate parts and bed them by the exact friction-system process.
Suspension changes need a measured baseline
Record ride height at defined body points, spring markings and damper adjustment. Compare top mounts, bump stops and anti-roll links. A low vehicle may be factory-specified, modified or simply have sagging springs.
After replacement, verify bump and droop travel, drive-shaft angle and tyre clearance. Tighten bonded bushes at the stated ride position and align all four wheels.
Wheels must clear brakes without improvised spacing
Wheel offset and spoke profile govern caliper clearance. A spacer changes stud/bolt engagement, bearing load and tyre coverage. Use only an approved complete arrangement with correct hub centring and fasteners.
Check load and speed rating and use the correct bolt-seat shape. Retorque only where the wheel and vehicle instructions require it.
Cooling and intake systems need every shield and duct
Turbocharged compact engine bays depend on controlled airflow. Missing undertrays, intercooler ducts or turbine heat shields can raise temperatures elsewhere. A larger intercooler that blocks radiator area can trade one temperature problem for another.
Pressure-test cooling only when cold. Stop for a temperature warning, steam or coolant loss and allow complete cooling before opening.
Modified exhausts remain subject to emissions and noise rules
Catalysts, oxygen sensors and applicable particulate filters must remain correct and monitored. Exhaust diameter, leak-tightness and sensor position affect boost and fuelling. Removing aftertreatment or fixing a valve open is not a responsible performance method.
Declare modifications to the insurer and maintain acceptable noise. An MOT pass does not legalise every operating mode or prove emissions compliance outside the test.
Electrical warnings begin with loaded voltage tests
Small high-output vehicles can place significant demand on battery and charging systems. Low voltage creates steering, gearbox, ABS and body warnings. Test battery, charging command, cable drops and grounds before replacing modules.
When a battery is replaced, match type and capacity and complete registration or calibration where the system requires it.
Engine and transmission mounts control more than vibration
Compact powertrain packaging leaves little clearance between exhaust, intake, driveshafts, hoses and bodywork. A collapsed mount can create knocks, exhaust strain, gear-selection movement or contact that resembles a suspension fault. Inspect each mount under controlled load and check torque reaction without placing hands near a moving belt, fan or hot turbocharger.
Mount stiffness also affects wheel hop and cabin vibration. A rigid competition-style insert can transmit greater load into brackets and should not be treated as a routine cure for a torn bush. Match the installed transmission, bracket revision and road-use requirement, renew specified fasteners and verify exhaust, hose and shaft clearance after tightening.
A disciplined repair sequence protects the calibration
- Identify platform, engine, gearbox and factory chassis package.
- Record every installed performance modification.
- Save faults, live data and measured mechanical evidence.
- Match parts to both vehicle and present system interfaces.
- Use exact fluids, filters, plugs and thermal hardware.
- Control fuel, turbo, brake, spring and electrical hazards.
- Renew specified locking fasteners and seals.
- Restore ducts, shields, clips and underbody panels.
- Align, calibrate and bed systems as required.
- Road-test progressively and reinspect hot and cold.
MOT and insurance checks must reflect modifications
Inspect tyres, brakes, lamps, steering, suspension, emissions controls, leaks and warning lamps. Confirm wheel coverage, ground clearance and exhaust security. Document tuning and parts so future service does not assume standard limits.
A safety fault remains urgent regardless of performance intent. Do not drive with brake imbalance, tyre contact, fuel leakage, heavy misfire or uncontrolled boost.
Practical Abarth parts FAQs
Q: Does the badge identify the brake package?
A: No. Inspect caliper, disc and build data.
Q: Is registration lookup enough?
A: No. Confirm codes and installed modifications.
Q: Can remapped cars use standard assumptions?
A: No. Record calibration and changed component loads.
Q: Is any performance oil suitable?
A: No. Match viscosity and exact engine approval.
Q: Does underboost prove turbo failure?
A: No. Test hoses, valves, sensors and control.
Q: Can plugs be selected only by heat range?
A: No. Type, gap, engine and calibration must match.
Q: Are manual and automated-manual clutch parts identical?
A: Not necessarily; actuation and calibration differ.
Q: Can large wheels prove caliper clearance?
A: No. Spoke profile and offset must be checked.
Q: Is lowering measured by appearance?
A: No. Record defined ride-height points and geometry.
Q: Can emissions devices be removed for performance?
A: No. Preserve required controls and monitoring.
Q: Must modifications be declared?
A: Declare performance and chassis changes accurately.
Q: Can a hot cooling cap be opened?
A: No. Allow the system to cool fully.
Q: Does an MOT pass approve a remap?
A: No. Insurance and wider legal duties remain.
Q: What confirms a successful repair?
A: Measured normal operation with no leaks, warnings or contact.
