GREAT WALL Car Parts

Great Wall fitment starts with market and configuration

The Great Wall badge has appeared on pick-ups and SUVs with different engines, transmissions, transfer systems and axles. Corporate or brand links to GWM, Haval, Ora or Tank do not establish shared hardware.

Record VIN, build, market, body, plated weights, engine, gearbox, transfer case, axle, brakes and installed numbers. Note conversion equipment and previous powertrain changes.

Registration date may not equal engineering phase

Import, storage and registration timing can separate the number plate from the production revision. Sensors, belts, filters, brake dimensions and emissions equipment can change within a named model.

Use build evidence and a VIN-supported reference, then compare dimensions, connector pinout, calibration, material and capacity. Retain the old component until the working test is complete.

Build a load and driveline identity sheet

Engine oil protects the emissions system too

Identify petrol or diesel engine and its emissions stage. Use the required viscosity, formal approval, capacity, filter and level method. A DPF-equipped diesel may need low-ash oil to limit permanent filter residue.

Check for dilution where regeneration is frequent. Oil-pressure warnings, rising level, fuel leakage, heavy smoke or overheating require shutdown and diagnosis.

Diesel fuel service requires cleanliness and pressure control

Water separation, correct filter installation, seals and priming protect high-pressure pumps and injectors. Clean the work area and cap open lines immediately.

Common-rail pressure can penetrate skin

Follow the specified depressurisation and test method. Never search for a leak with a hand; fluid-injection injury requires urgent medical care even when the puncture looks small.

Use measured rail data, leak-off tests and electrical checks rather than replacing a pressure-control valve solely from a code.

DPF diagnosis begins upstream

Evaluate coolant temperature, air filter, boost hoses, EGR, injectors, differential-pressure pipes and exhaust temperature sensors. Calculated soot describes combustible loading; ash accumulates permanently.

A controlled regeneration needs known loading, correct prerequisites and a clear hot-exhaust area. It cannot repair a failed thermostat, boost leak or injector, and cannot burn away ash.

Timing and auxiliary drives need engine-specific geometry

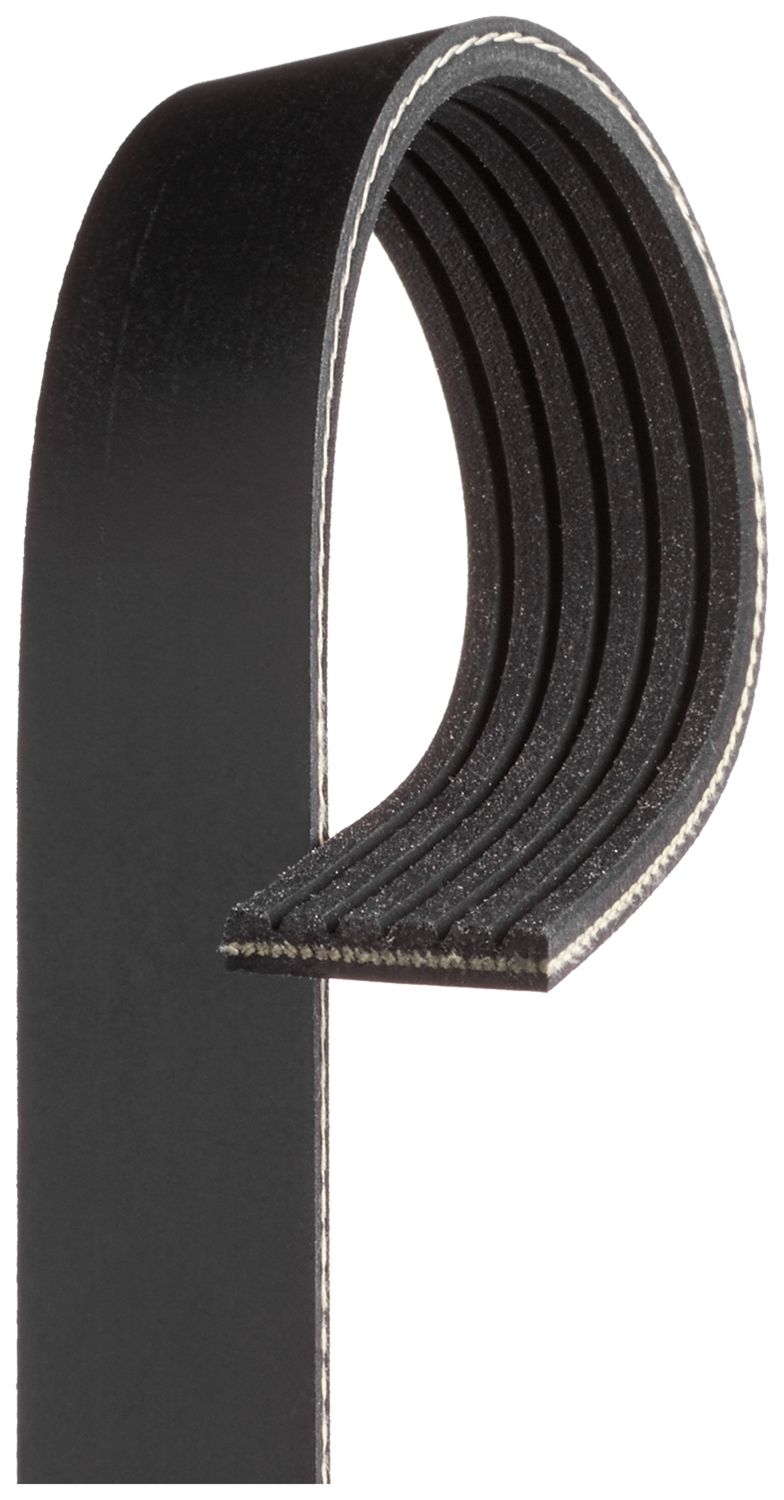

Confirm belt or chain system, tooth/profile, tensioner, idlers, water pump involvement and timing tools. Auxiliary belts also depend on alternator, air-conditioning and pulley arrangement.

Repair oil or coolant contamination first. Rotate an uncertain timing installation manually through full cycles before using the starter.

Each driveline unit has separate fluid data

Four-wheel drive needs matched rolling circumference

Check tyre make, construction, size, wear and pressure across the vehicle. Confirm selected transfer mode and differential-lock status. Part-time four-wheel drive can bind on a high-grip surface when used outside its intended conditions.

A tyre mismatch, wrong axle ratio or internal transfer fault can produce similar wind-up. Stop tight-turn testing until the cause is established.

Shafts and hubs transmit towing and off-road loads

Inspect prop shafts, universal or CV joints, sliding sections, centre bearings, flanges, CV boots, wheel bearings and seals. Mark shaft phase and support components during removal.

Lift or suspension changes alter angles and plunge. Confirm fastener grade, guard clearance and freedom through steering and suspension travel.

Brakes must be matched to axle and duty

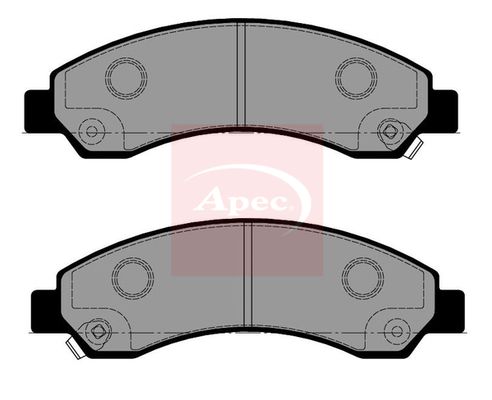

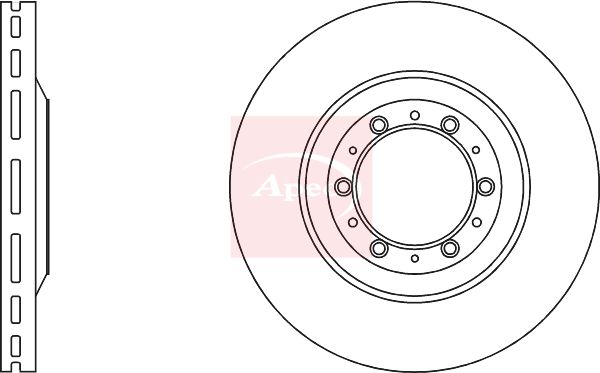

Measure discs or drums, pads or shoes, caliper or cylinder operation, hoses, pipes, parking system and bearings. Pick-up rear brakes may differ by payload, axle or market.

Use diagnostic actuation where ABS bleeding requires it. Verify pedal reserve, balance, parking hold and wheel temperature after a representative controlled test.

Payload is constrained by every plate

Read gross, axle and train weights, then include occupants, fuel, tools, load, accessories and tow-ball load. One axle can exceed its limit even when total mass is below gross.

Springs, air helpers or higher-rated tyres do not increase authorised weights. Use a weighbridge where distribution is uncertain.

Chassis inspection follows harsh duty

Inspect rails, crossmembers, suspension and steering mounts, cab/body mounts, load-bed supports, towbar fixings and recovery-point attachments. Look for cracks, impact, corrosion, displaced seams and stretched fastener holes.

Check brake and fuel lines where mud traps moisture. Clean sufficiently to assess metal, preserve drainage and use an engineered repair rather than plating over an unknown crack.

Tyre and wheel capacity must cover real axle load

Use approved size, construction, load/speed rating and pressure for the duty. Inspect cuts, bulges, tread, inner walls and heat damage after low-pressure off-road use.

Wheel offset, capacity, centre and fastener seat matter. Clean faces, apply the specified torque condition and follow the correct recheck policy after disturbance.

Electrical diagnosis includes added equipment

Test battery, alternator, starter cables and grounds under load. Winches, lighting, tow electrics and trackers require fused rated circuits and documented isolation.

Scan codes are evidence, not component instructions. Check supply, ground, signal and mechanical cause before fitting a sensor or control valve.

Towing loads cooling, brakes and stability together

Confirm the approved braked and unbraked trailer limit, train mass, coupling and tow-ball limits for the exact vehicle. Include passengers, accessories and load when calculating axle weights. Trailer nose load can overload the rear axle before gross or train mass is reached.

Inspect coupling, fasteners, breakaway system, electrics, mirrors, tyres and trailer brakes as applicable. Select the correct transfer and gearbox operating mode and observe any reduced-speed or temperature guidance. Rising coolant or transmission temperature, brake fade or instability requires load and speed to be reduced safely and the cause investigated.

Cooling packs must be cleaned without damage

Mud, seeds and insects can block stacked condensers, intercoolers and radiators. Separate and inspect layers where the procedure permits; forcing high-pressure water through delicate fins can fold them closed or damage electrical equipment.

Check fan speed, shrouds, thermostat, pump, cap, hoses and coolant flow after cleaning. An auxiliary light, winch or grille can reduce airflow, so modification assessment includes its position at road and towing load.

Off-road protection must not hide leaks

Remove guards sufficiently to inspect engine, transfer, axle, brake and fuel systems after a strike. Refit every shield with correct fasteners and clearance. A bent plate touching a sump or exhaust can transmit impact, noise or heat rather than provide protection.

Electrified vehicles need a different safety boundary

If the exact vehicle uses a traction battery, trained staff must secure charging and wake-up, follow model isolation and prove de-energisation. Do not transfer diesel lifting or coolant assumptions to it.

Underbody impact may involve the battery

Deformation, leakage, abnormal heat, odour, hiss, smoke or an isolation warning requires quarantine. Approved structural points and rated equipment are essential for lifting.

Symptoms define the release limit

Return to service under known load

1. Confirm VIN, market, powertrain and plates.
2. Record duty, faults, tyres and modifications.
3. Control fuel pressure, lifting and high voltage.
4. Use unit-specific fluids and axle-rated parts.
5. Restore guards, lines, clips and shields.
6. Measure brakes, wheels, shafts and geometry.
7. Verify emissions and thermal readiness.
8. Test transfer modes only in suitable conditions.
9. Increase load and temperature progressively.
10. Recheck leaks, heat, torque and pressure.

MOT does not approve loading or modifications

The applicable UK test follows the recorded vehicle class, age and use. A pass does not authorise excess axle weight, unsafe towing, disabled emissions equipment or known structural damage.

Declare suspension, wheel, powertrain, tow and software changes to the insurer and relevant authorities. Commercial operators must maintain defect reporting and safe daily condition.

Practical Great Wall parts FAQs

Q: Is registration year enough for Great Wall parts?
A: No. Use VIN, build and component identity.

Q: Do GWM-related brand parts automatically interchange?
A: No. Verify the exact vehicle.

Q: Can a DPF regeneration remove ash?
A: No. Ash is non-combustible residue.

Q: Is a rail-pressure code proof the valve has failed?
A: No. Test supply, pressure and control.

Q: Is common-rail leakage safe to feel by hand?
A: No. High-pressure fluid can penetrate skin.

Q: Can part-time 4WD be used on any dry road?
A: Only as the exact system permits.

Q: Do different tyre sizes cause driveline binding?
A: Yes. Rolling circumference matters.

Q: Do stronger springs increase legal payload?
A: No. Plate limits remain.

Q: Can a towbar use a recovery point automatically?
A: No. Each attachment needs its rated purpose.

Q: Should wheel torque be recorded?
A: Yes. Follow the specified recheck policy.

Q: Is a silent electrified vehicle safe?
A: Not until isolation is proven.

Q: When should a Great Wall be recovered?
A: For brake, steering, fuel, binding, structure or HV hazards.

Q: Does MOT confirm a safe payload?
A: No. Actual axle and gross weights decide.
