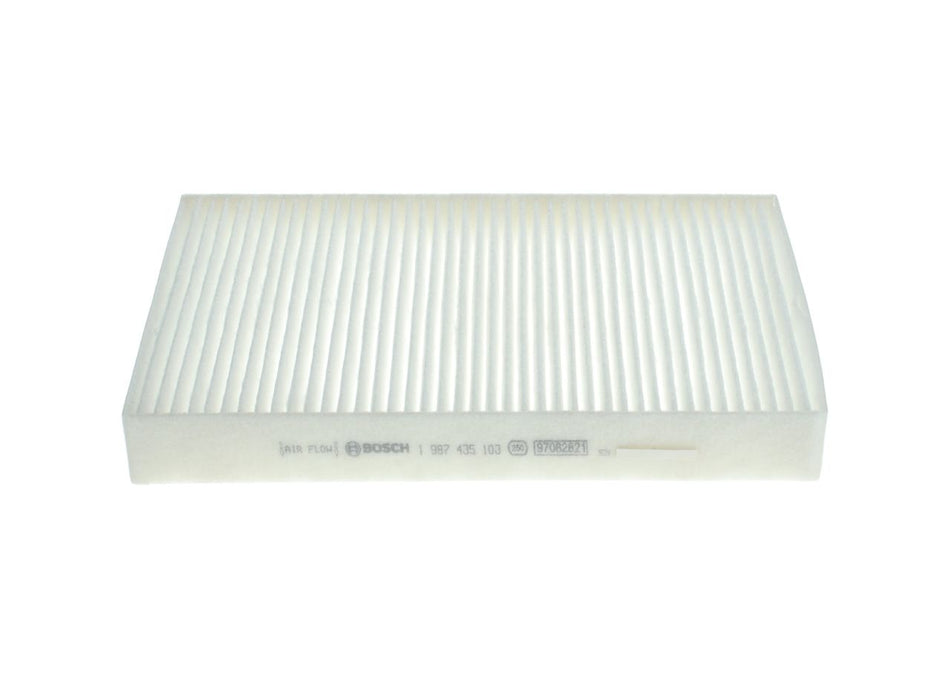

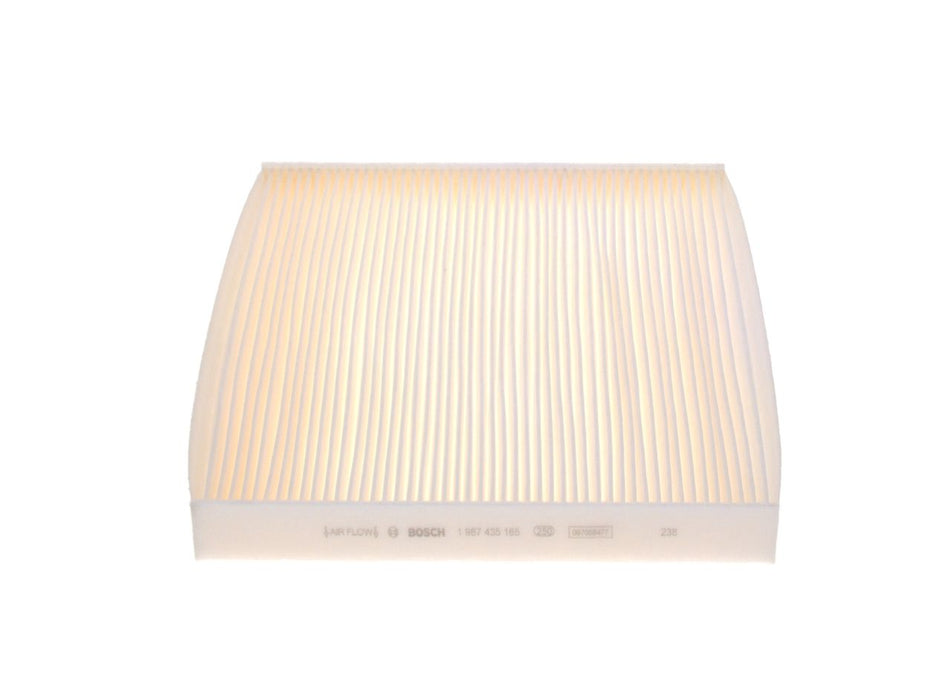

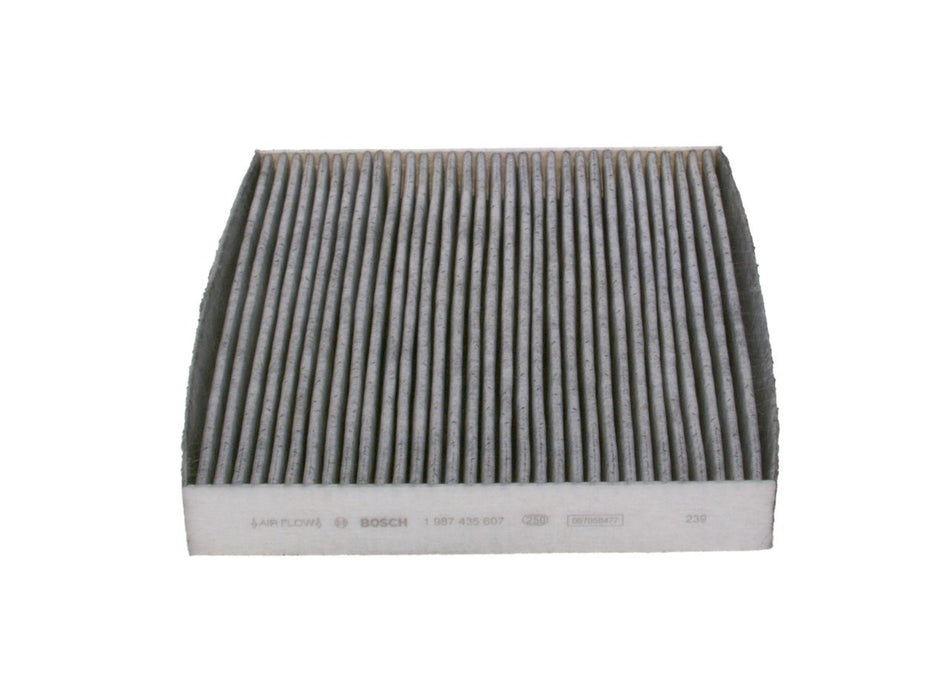

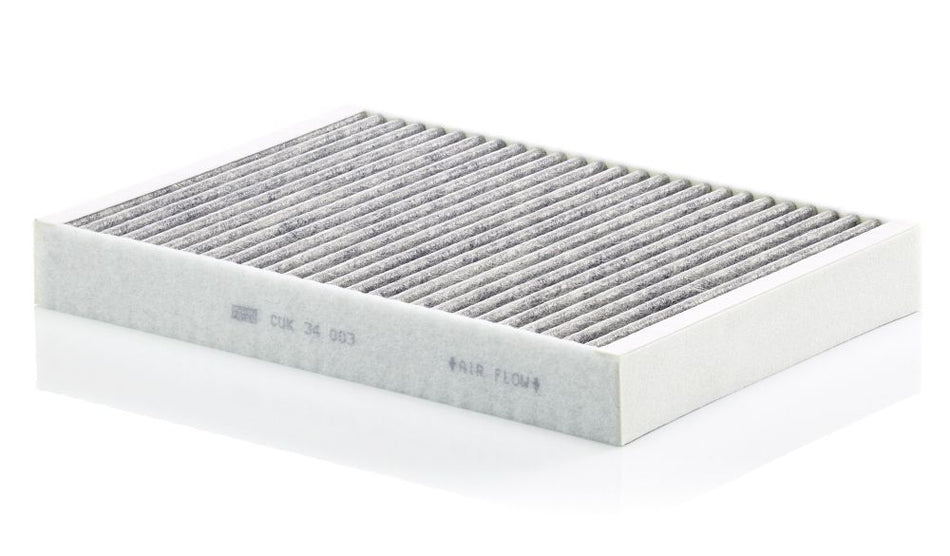

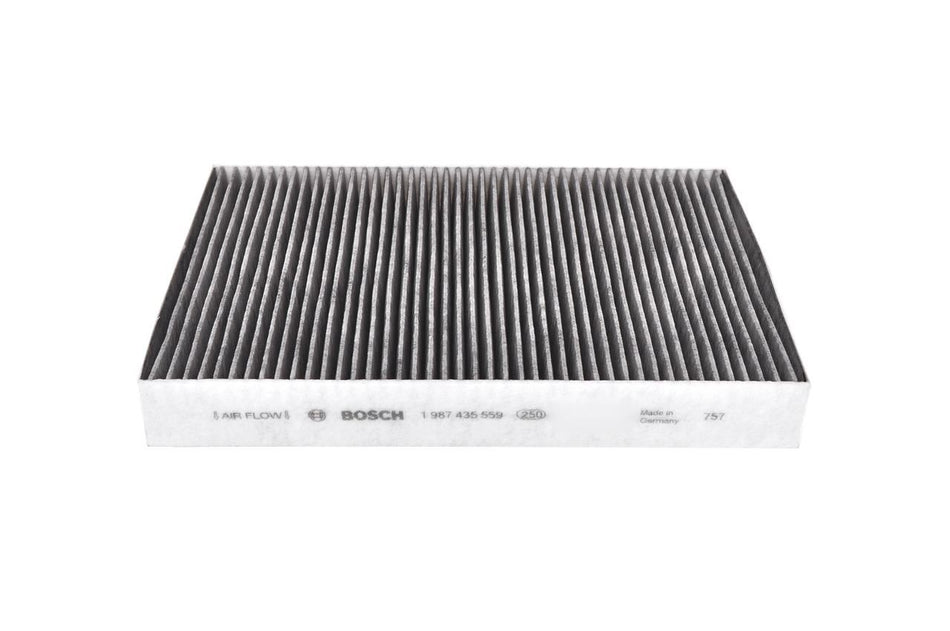

Polestar 1 and the battery-electric range need different plans

Polestar 1 combines a combustion engine, electric drive and high-voltage battery. Polestar 2, 3 and 4 are battery-electric vehicles but do not form one interchangeable platform. Motor arrangement, pack, charging hardware, brakes, suspension and electronics vary by model and option.

Identify the full VIN, build period, market, motor count, driven axles, battery/charging version and performance package. A registration description may omit the option that changes brakes or dampers.

Software and hardware identity must agree

Modern components can be physically identical yet use different internal firmware, connector pinning or vehicle configuration. Record the old part number, diagnostic hardware identity and software state before removal.

Use supported programming and stable low-voltage supply. Do not install a used controller or sensor solely because the plug fits; security, calibration and network compatibility must be established.

Capture an electrically complete vehicle record

High-voltage isolation is a proven state

Only competent trained personnel should isolate the traction system. Secure charging leads and keys, prevent remote wake-up, follow the model-specific shutdown and wait period, then prove the test instrument, test the circuit and re-prove the instrument.

Silence does not mean de-energised

Contactors can close automatically and capacitors can retain energy. Establish an exclusion zone and an isolation record. Do not touch orange conductors or open drive units based on a display message alone.

Battery packs combine electrical, chemical and lifting hazards

Inspect the underbody after impact, grounding or incorrect jacking. Look for enclosure deformation, coolant leakage, unusual odour, noise, smoke or temperature. Move a suspect vehicle only under an appropriate emergency plan.

Pack removal needs a level rated table, approved supports, balance control and enough vertical clearance. Do not use general transmission jacks or place stands against the enclosure.

Thermal circuits must remain chemically separate

Cooling faults can limit charge or propulsion

Reduced power or charging can follow coolant loss, pump or valve failure, blocked heat exchanger, sensor error or refrigerant problem. Read the complete thermal system and compare requested and actual temperatures.

Open only when electrically and mechanically safe. Use dedicated clean filling equipment and activate pumps or valves as specified. Repeated fault clearing cannot remove air or repair leakage.

Charging hardware is an electrical and mechanical interface

Inspect the inlet for impact, water, heat discolouration, bent contacts and damaged locking parts with the vehicle safely isolated. A cable that will not latch can involve the lead, inlet actuator, foreign material or vehicle state. Never force a connector or defeat its interlock.

Charge interruption can originate in the external supply, cable, inlet temperature sensing, onboard charger, DC charging path, thermal limits or battery controls. Record whether the fault occurs on AC, DC or both and at what state of charge and temperature. This distinction is more useful than repeated connection attempts.

Replacement inlet or charger work can require high-voltage isolation, cooling service, coding and electrical safety tests. Restore seals and drainage so water cannot enter the body or high-voltage connection. Confirm protective-earth and insulation results using the prescribed procedure before returning the vehicle to charging.

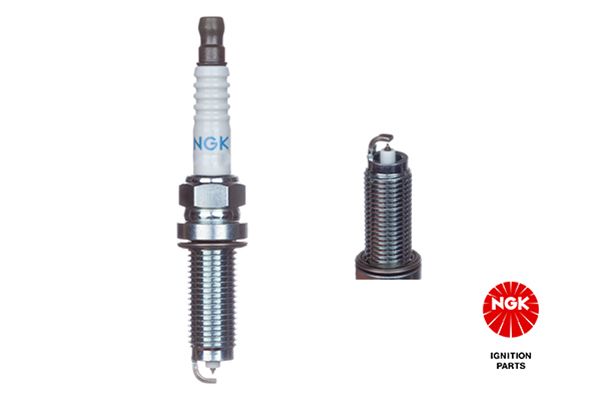

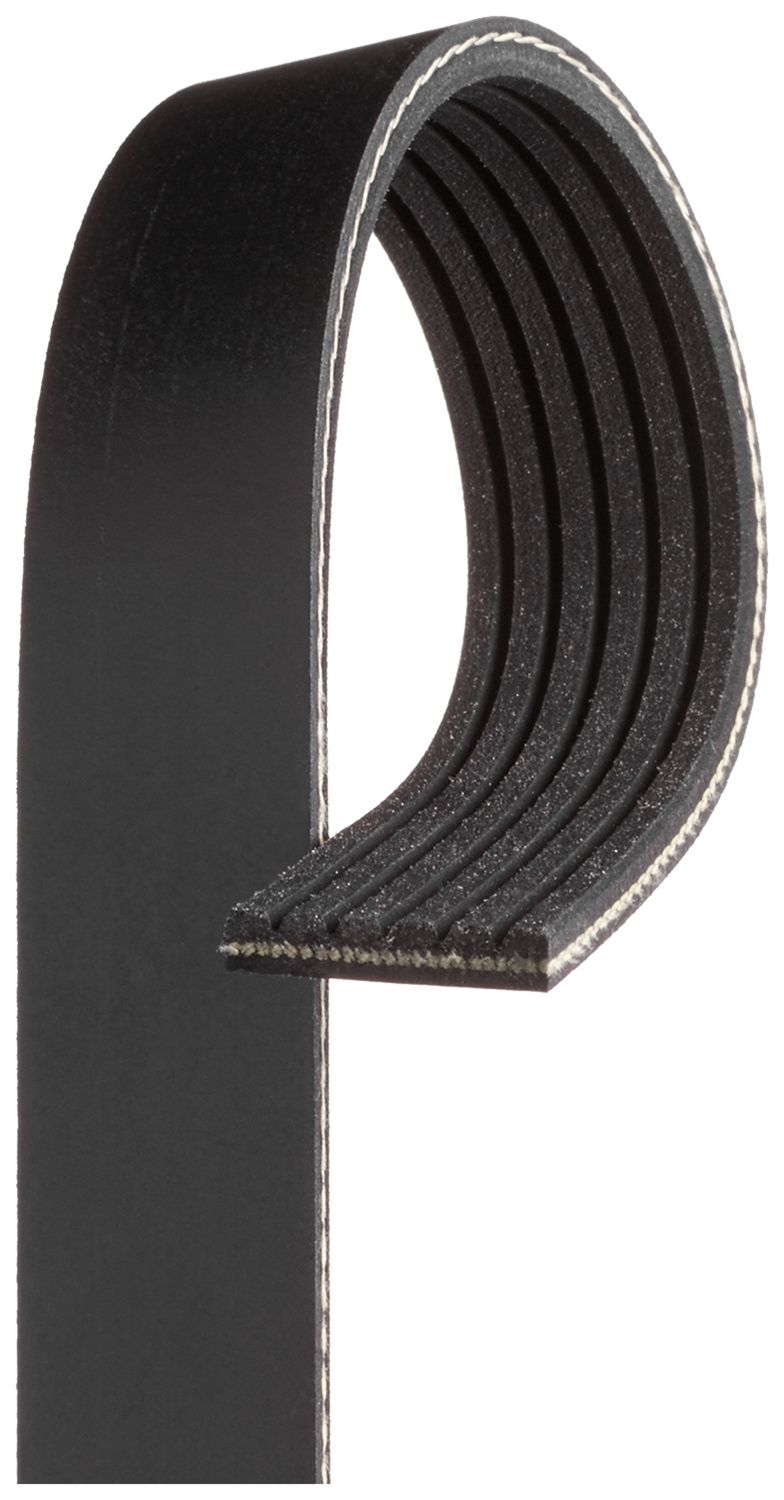

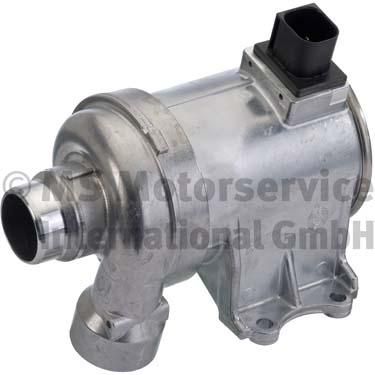

Polestar 1 adds combustion-engine maintenance

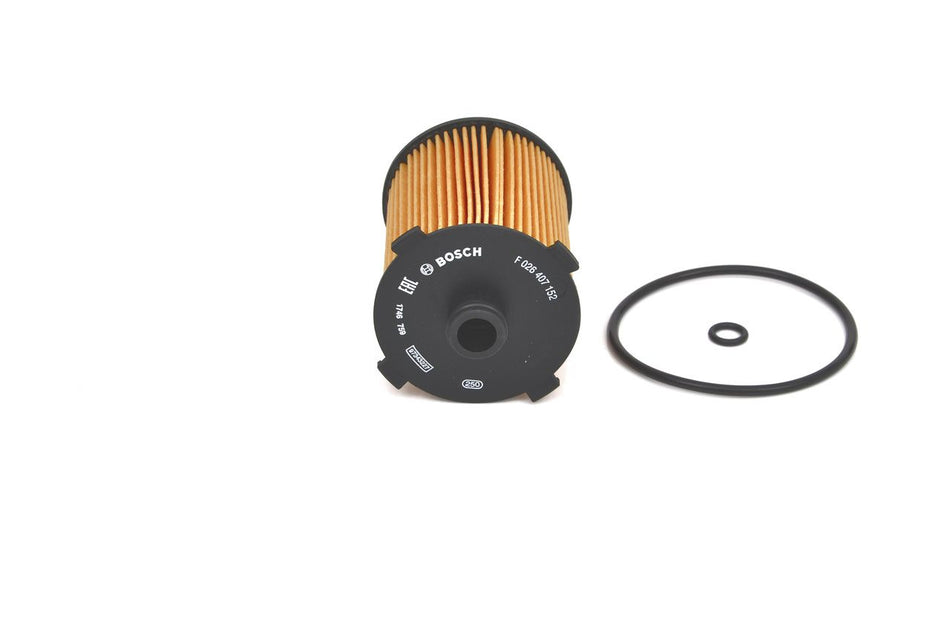

Use the exact engine oil approval, filter, coolant and fuel-system procedures. Hybrid operating patterns can start the engine unexpectedly unless the vehicle is secured in the correct workshop mode. Exhaust and turbo components remain hot after apparent electric running.

Engine, hybrid and rear-drive faults can interact through torque control. Scan all relevant modules and distinguish a mechanical engine fault from a high-voltage limitation.

Drive-unit noise needs load and speed context

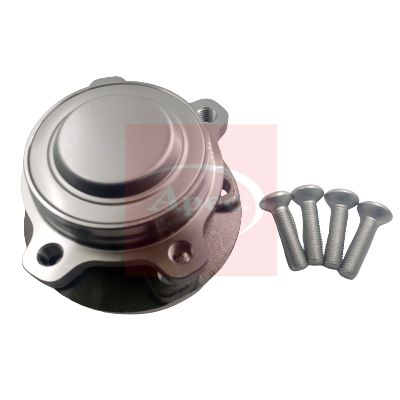

Whine or vibration can originate in tyre tread, wheel bearing, shaft, mount, reduction gear or electric machine. Compare coast, drive, regeneration, steering angle and road surface. Do not open a sealed unit until external sources are excluded.

Check for oil leakage and metal debris using the specified service method. Correct mounting torque and subframe alignment are part of noise control.

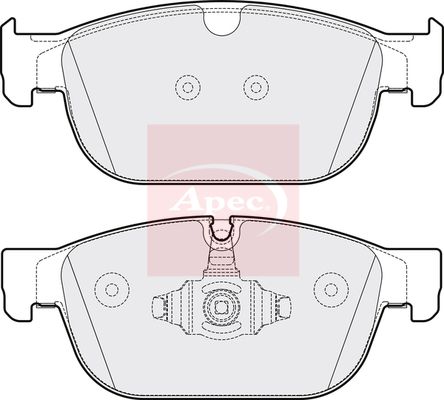

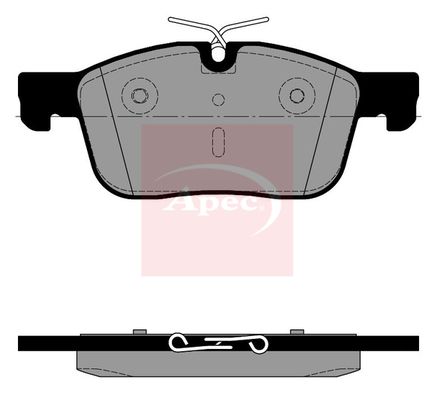

Regeneration does not maintain friction brakes automatically

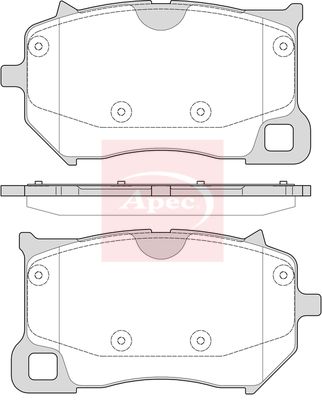

Light pedal use can leave discs corroded and pads reluctant in their carriers. Inspect both faces, slider or piston movement, pad thickness, hoses and shields. Follow the electronic parking-brake service state.

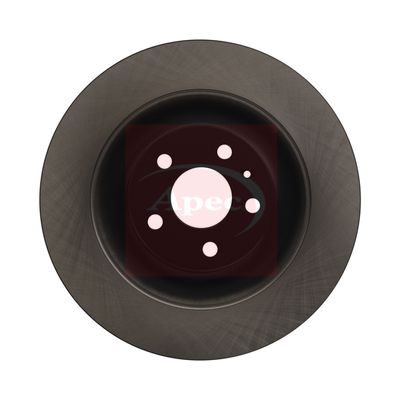

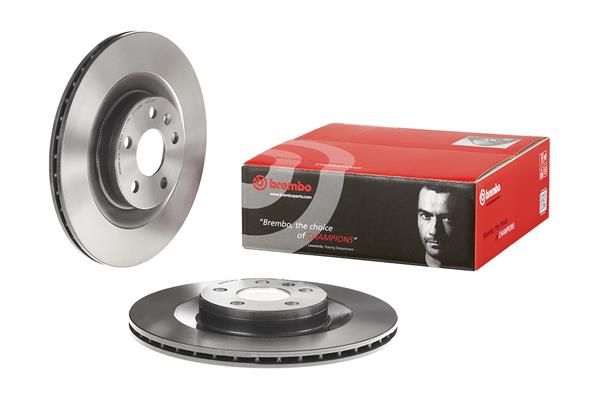

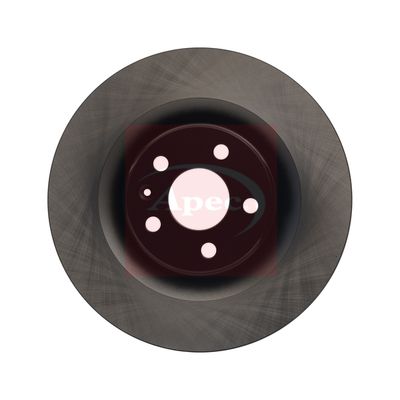

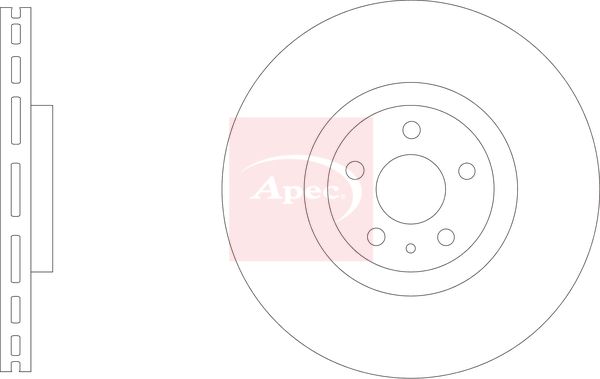

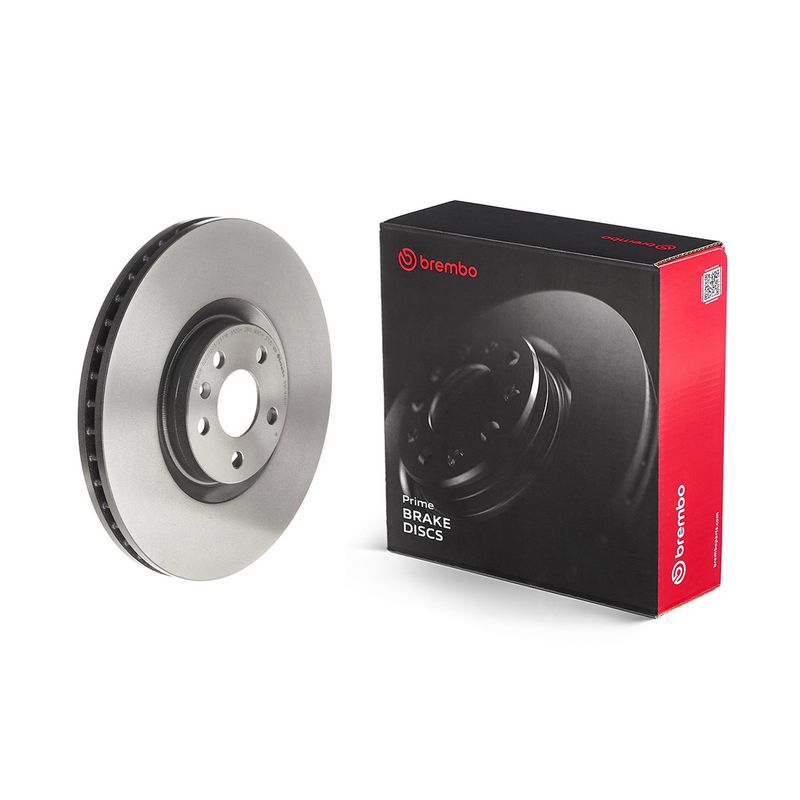

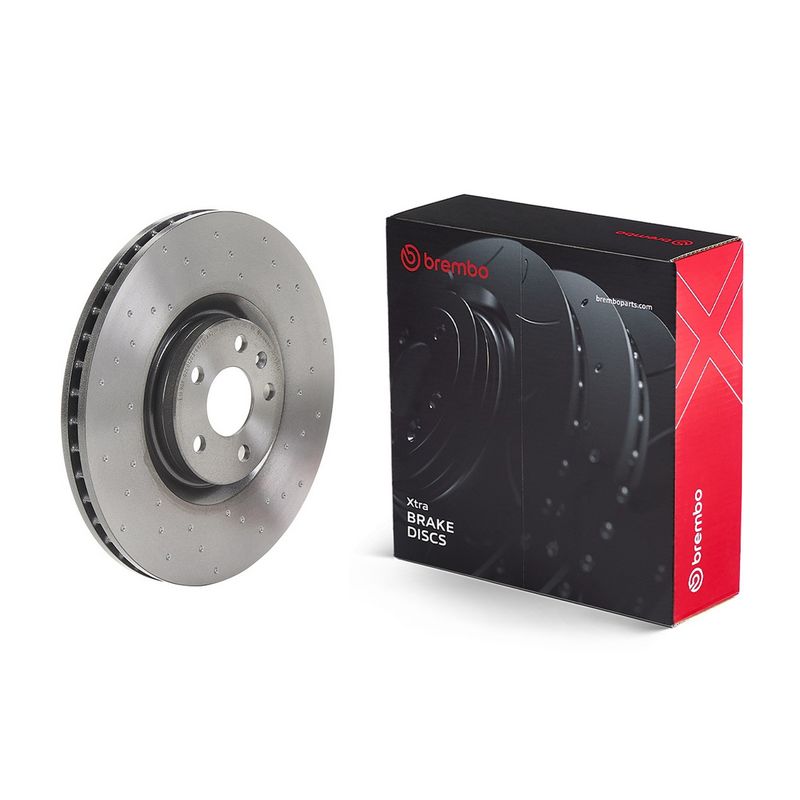

Match disc dimensions, caliper and approved pad to the option build. After hydraulic work, use the specified bleed routine and verify blended braking without warnings.

Suspension options alter parts and setup

Standard, performance, adaptive or air-suspension equipment where fitted has different dampers, springs, sensors and calibrations. Record ride heights and option data before removal. Support air-suspended vehicles independently and release pressure as documented.

Set bush preload and geometry at the required vehicle state. Alignment should precede camera or radar calibration.

Tyres carry mass and immediate electric torque

Use the designated size, construction, load/speed rating and pressure for the axle. Some vehicles use staggered dimensions. Keep tread and rolling circumference suitably matched, particularly across driven axles.

Inspect inner shoulders, sidewalls, acoustic inserts where fitted, wheel runout and impact damage. A repaired puncture must be assessed against tyre location, size, speed rating and manufacturer criteria.

Wheel removal requires correct lifting and fasteners

Confirm the approved jacking points; the battery enclosure is not a lifting pad. Inspect wheel bolts or nuts, seats and threads and torque clean, correctly seated fasteners to specification. Recheck unusual vibration before increasing speed.

Low-voltage supply controls the high-voltage vehicle

A weak 12-volt battery can prevent contactor closure and create multiple network messages. Test battery condition, DC-DC charging, grounds and supply drops before replacing high-value controllers.

Remote connectivity and sleep behaviour complicate drain diagnosis. Follow the defined vehicle shutdown time and measure current without waking the networks.

ADAS repair starts with physical references

Cameras and radar depend on correct glass, brackets, body dimensions, tyre pressures, ride height and wheel alignment. Inspect for impact or bracket distortion before calibration.

Use the specified targets, floor conditions and software process. A cleared message does not prove sensor aim or functional performance.

Choose the response from the risk signal

Finish with electrical and mechanical evidence

1. Confirm VIN, platform, motor and option build.
2. Save diagnostic and software identity.
3. Establish high-voltage and remote-wake controls.
4. Use approved lifting for vehicle and battery mass.
5. Keep coolants, refrigerant and oils circuit-specific.
6. Restore underbody shields, seals and cable protection.
7. Bleed, evacuate or fill using diagnostic activation.
8. Set brakes, ride height and geometry.
9. Calibrate assistance systems as required.
10. Reinspect for leaks, heat, warnings and isolation integrity.

UK roadworthiness extends beyond the MOT

The MOT examines defined brakes, steering, tyres, structure, lights, visibility, restraints and warnings, but it does not certify battery health, charging safety, software provenance or complete ADAS calibration.

Suspension, wheel, power or software modifications should be engineered, documented and declared to the insurer. High-voltage repairs also need competent workplace controls and waste handling.

Practical Polestar parts FAQs

Q: Is Polestar 1 a battery-only vehicle?
A: No. It combines combustion and high-voltage drive systems.

Q: Are Polestar 2, 3 and 4 parts interchangeable?
A: No. Treat each platform and build separately.

Q: Does a shared group platform prove Volvo fitment?
A: No. Hardware, software and calibration must all agree.

Q: Is the high-voltage system safe when silent?
A: No. Isolation must be performed and proven.

Q: Can a battery pack be supported by a normal jack?
A: No. Use the approved balanced lifting fixture.

Q: Can battery and engine coolant be mixed?
A: No. Identify and service each separate circuit.

Q: Do regenerative brakes eliminate pad inspection?
A: No. Corrosion and seizure can increase with light use.

Q: Can a weak 12-volt battery stop the car starting?
A: Yes. It controls network and contactor operation.

Q: Is a charging fault always the traction battery?
A: No. Supply, inlet, charger and thermal causes exist.

Q: May the battery enclosure be used as a jacking point?
A: No. Use only the marked structural locations.

Q: Is wheel alignment enough after camera disturbance?
A: No. Perform the specified ADAS calibration too.

Q: When should a Polestar be quarantined?
A: After battery impact, heat, smoke, leakage or isolation warnings.

Q: Does an MOT assess battery state of health?
A: No. That requires separate diagnostic evidence.
