Engine, gearbox and final drive form one identity
Subaru fitment is rarely resolved by model name alone because the gearbox and all-wheel-drive mechanism influence shafts, hubs, differentials and electronics. Impreza, Forester, Outback and XV each cross several mechanical generations. BRZ follows a different rear-wheel-drive layout.
Record VIN, build date, engine code, transmission label, final-drive ratios and brake/suspension options. Inspect the installed parts where a gearbox, engine or differential may have been replaced.
Ratio data matters as much as physical mounting
| Record | What it controls | Failure if assumed |
|---|
| VIN/build range | Platform, original drivetrain and equipment. | Mixing components across a production change. |
| Engine code | Block, timing, fuel and oil specification. | Wrong gasket, sensor or service drive. |
| Gearbox code | Manual/CVT unit, clutch and transfer mechanism. | Incorrect fluid, shafts or control parts. |
| Final-drive ratio | Front/rear rotational relationship. | Driveline bind or mechanical damage. |
| Differential option | Open, limited-slip or driver-controlled behaviour. | Wrong oil or electronic calibration. |
| Tyre measurements | Actual rolling circumference at each corner. | Continuous AWD correction and heat. |
Boxer layout changes access, not service fundamentals
Horizontally opposed cylinders lower the engine package but place spark plugs, cam covers and cylinder heads close to the chassis rails. Access methods, torque angles and sealant locations follow engine generation. Tight space is not permission to cross-thread plugs or omit shields.
Support the engine only at approved points and protect exhaust and cooling components. On turbo variants, remove and restore charge pipes, heat shields and oil/coolant lines without imposing strain.
EJ, FB and FA families have different timing decisions
Many EJ applications use a timing belt with engine-specific idlers, tensioner, water-pump relationship and interval. Later FB and FA applications generally use chain architectures with separate guides, tensioners and cam control. Diesel boxer engines form another family.
Full engine code is essential. Do not use paint marks as datum. For chain correlation or rattle, assess oil pressure, control solenoids, cam gears, guides and sensors before assuming elongation.
Rotate the boxer engine manually after timing work
Follow the precise crank and cam sequence, especially where valve spring loads can move sprockets. Renew specified bolts, remove locking tools correctly and turn through the stated cycle. Stop if resistance appears rather than using the starter.
Oil condition should be interpreted with measured consumption
Use the exact viscosity, approval and capacity for the engine and emissions system. Turbo bearings and cam control depend on clean supply. Record level at consistent temperature and position when investigating consumption; sporadic checks cannot establish a rate.
Look for cam-cover, crank seal, turbo-line and sump leakage, crankcase ventilation faults, smoke and plug deposits. A red pressure warning requires shutdown and mechanical pressure testing. A thicker oil is not a repair for bearing wear or ring sealing.
Turbo diagnosis includes the entire air and oil path
Impreza, Forester, Outback and other turbo applications vary in turbo, intercooler, wastegate, bypass and fuelling. Oil residue alone does not prove a turbo has failed. Inspect crankcase ventilation, compressor movement, charge leaks and return restriction.
Compare requested and actual boost, airflow, fuel pressure, ignition correction and exhaust control under safe load. Uncontrolled boost, heavy oil smoke, detonation or fuel leakage is a stop condition.
Symmetrical AWD describes layout, not one mechanism
| Driveline type | Torque-control principle | Service focus |
|---|
| Manual AWD | Centre differential with model-specific limiting/locking. | Gearbox code, ratio, viscous/control unit and oils. |
| Automatic AWD | Generation-specific centre differential or transfer clutch. | Fluid, solenoid, pressure and tyre matching. |
| Lineartronic AWD | CVT with electronically managed transfer according to model. | CVT fluid, front differential and control data. |
| Performance/DCCD | Driver-adjustable electronic/mechanical centre control. | Exact controller, sensors and differential hardware. |
| e-Boxer | Hybrid motor integrated with model-specific AWD drive. | High voltage, CVT and thermal system together. |
| BRZ | Rear-wheel drive with no Subaru AWD centre system. | Rear gearbox/differential application only. |
Front and rear ratios must remain compatible
A differential or gearbox that bolts into place can still have the wrong ratio. Front and rear mismatch forces continuous wind-up and can damage gears, bearings or clutches. Verify transmission code, crown-wheel ratio and tyre circumference before installation.
Binding on turns also can result from tyre mismatch, transfer clutch control or differential faults. Compare wheel speeds and temperatures rather than assuming the centre unit is mechanically seized.
Tyres are active AWD components
Use approved size, load/speed rating and compatible construction. Match make/model and wear across all four positions where the vehicle guidance requires it. Nominal sidewall size does not guarantee equal rolling circumference between designs.
Set cold pressures and measure tread. Follow temporary-spare speed, distance and fit-position rules exactly. Continuing with one underinflated or smaller tyre can overheat the transfer system even if no dashboard warning appears.
Lineartronic fluid and differential oil are not interchangeable
The CVT uses a calibrated fluid for belt/chain, pulley and hydraulic control. The front differential can have a separate oil cavity close to the transmission. Identify fill and drain plugs positively; putting gear oil into the CVT or CVT fluid into the differential can cause immediate damage.
Level is unit and temperature specific. CVT judder or overheat needs fluid state, cooler flow, pressure, valve control, chain/pulley condition and engine torque data. Additives and generic universal fluids are inappropriate.
Manual gearbox and differential service also separates fluids
Some manual arrangements share a lubricant between gearbox and front final drive, while other components remain separate. Rear differentials can be open or limited slip and may specify another oil. Read each exact procedure rather than generalising from one generation.
Check that the fill plug opens before draining. Inspect magnetic debris, seal lips, breather and driveshaft surfaces. Overfill can foam and leak; low level damages bearings.
e-Boxer adds high voltage to the drivetrain
Hybrid applications combine a traction battery, motor, inverter and DC-DC control with the engine and transmission. Parts require model-specific voltage, chemistry and software identity. Chassis springs and braking may also reflect hybrid mass and regeneration.
Orange wiring remains hazardous after shutdown. Trained staff must isolate, wait and prove dead. A low 12-volt battery can cause a no-ready state, but disconnecting it does not discharge every traction component.
Cooling service must remove trapped air
Boxer-engine coolant passages, heater, turbo and reservoir routing depend on model. Use the named coolant chemistry and bleed position, with diagnostic pump operation where required. Air can create local overheating despite an apparently full reservoir.
Pressure-test only when cold. Inspect cap, radiator seams, hoses, water pump and combustion-gas evidence. Never open a hot cap or continue through a temperature warning.
Wheel bearings and ABS encoders need directional inspection
A humming noise can travel through the body and seem to come from the opposite side. Compare loaded road behaviour, hub play, roughness and temperature. Some bearings or hub units include an encoder whose orientation and air gap affect ABS.
Use correct pressing support so force does not pass through rolling elements. Torque axle nuts with the wheel state and staking process specified; impact tightening can produce the wrong preload.

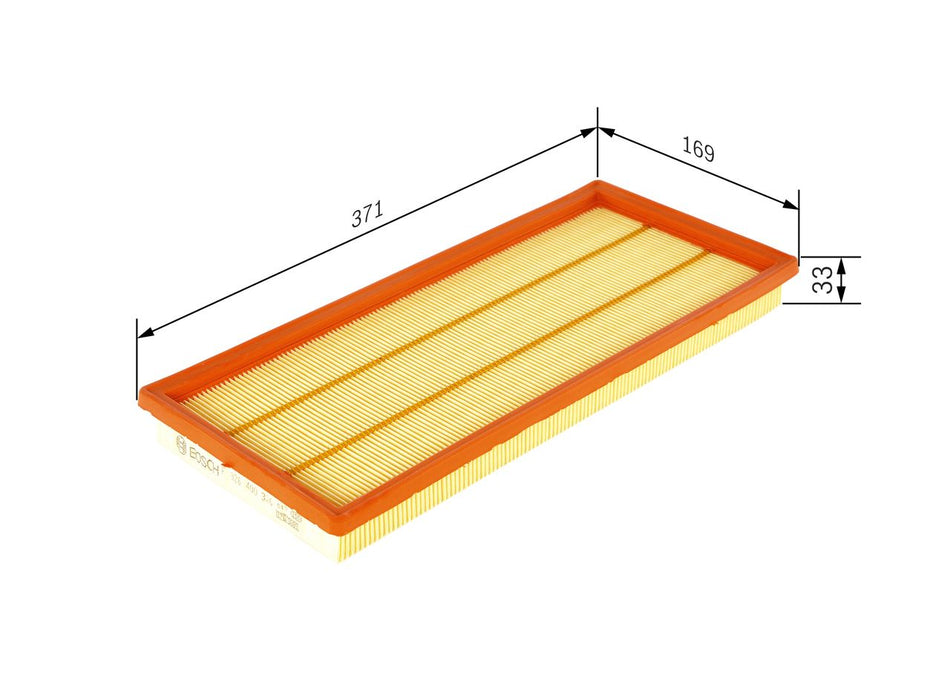

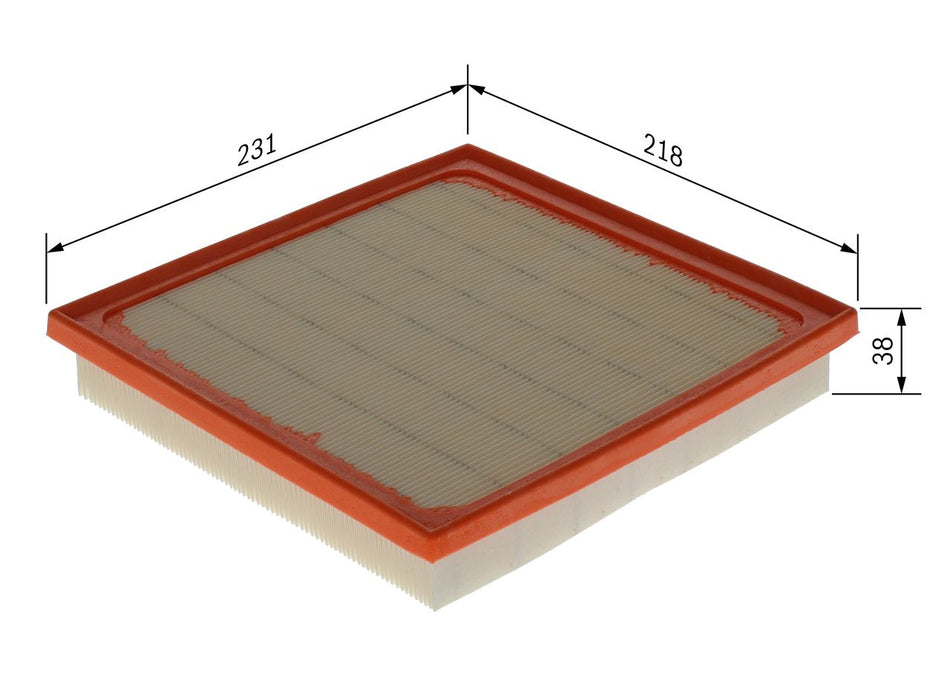

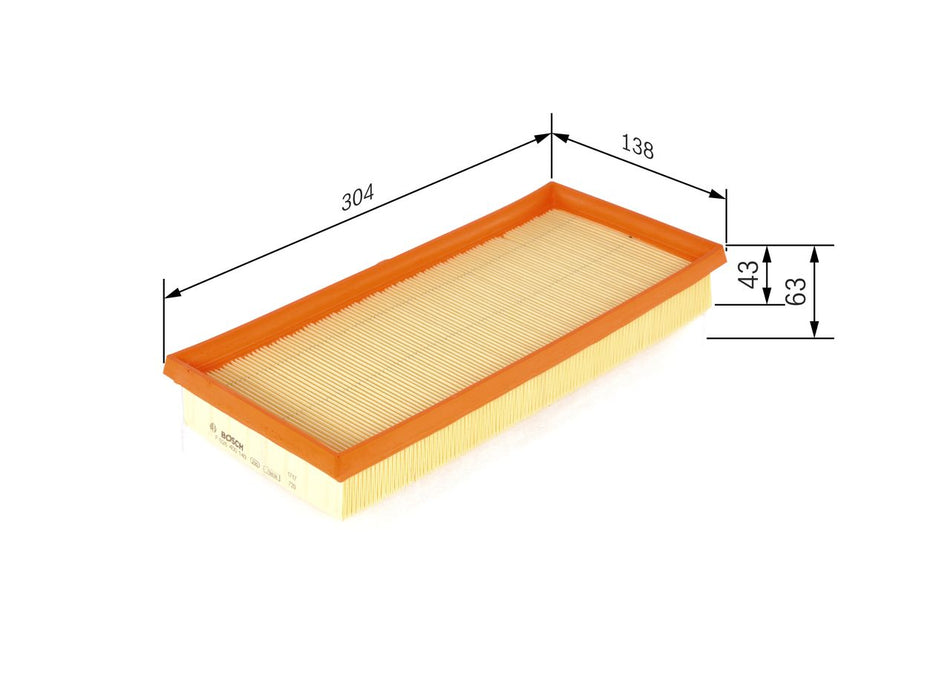

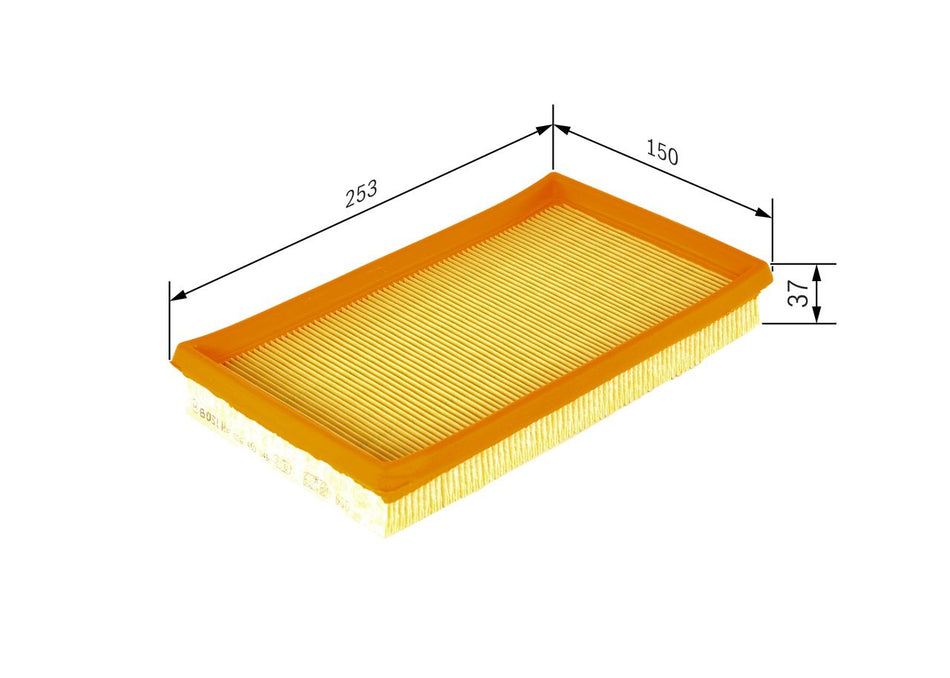

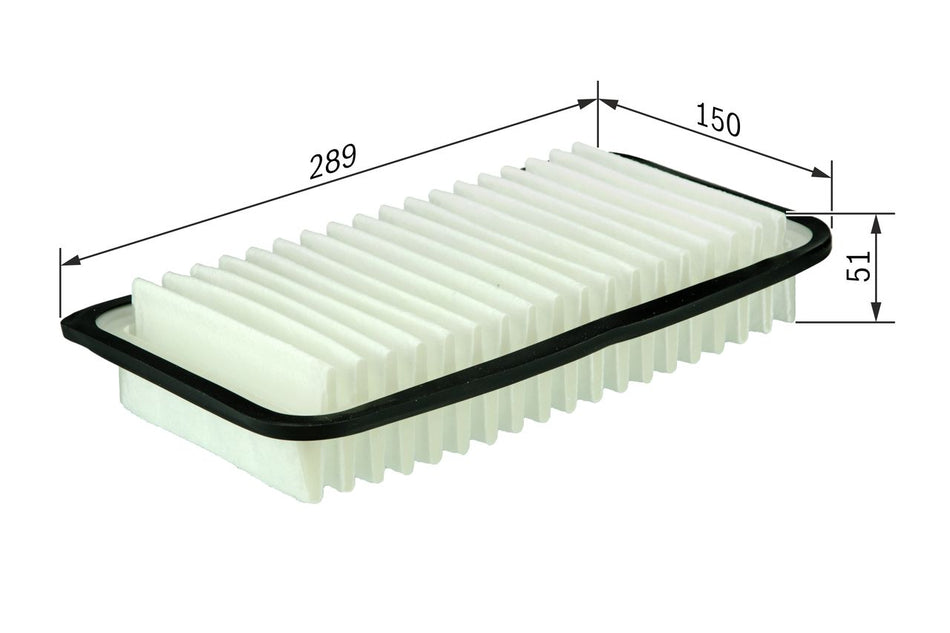

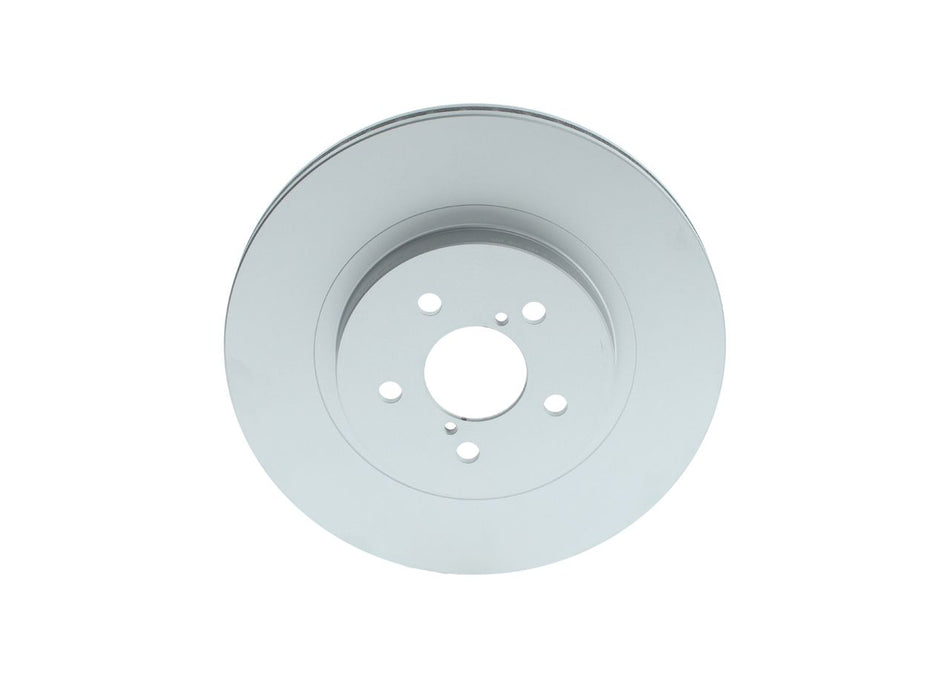

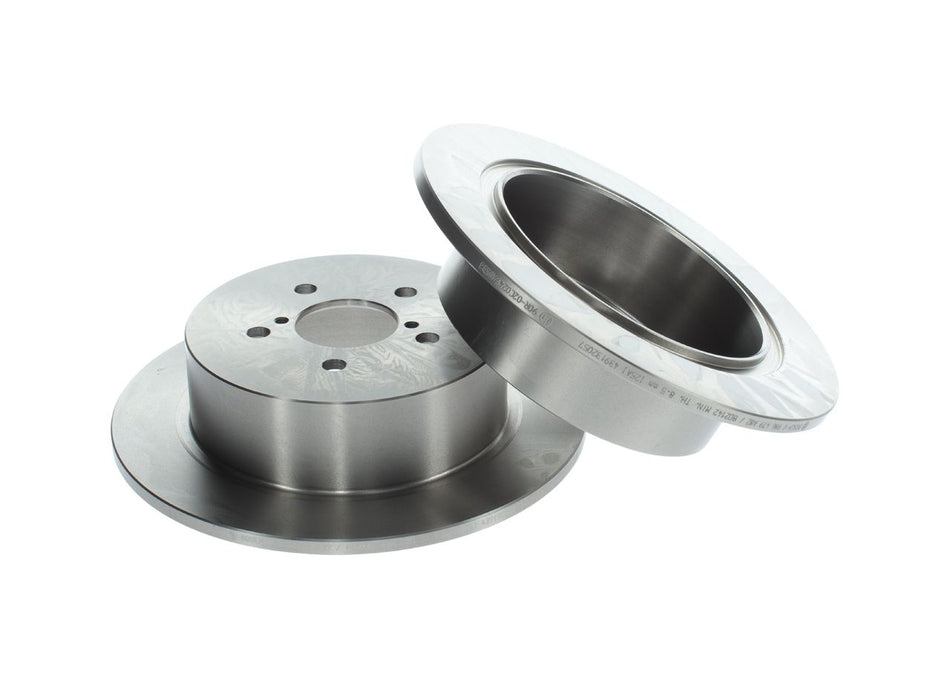

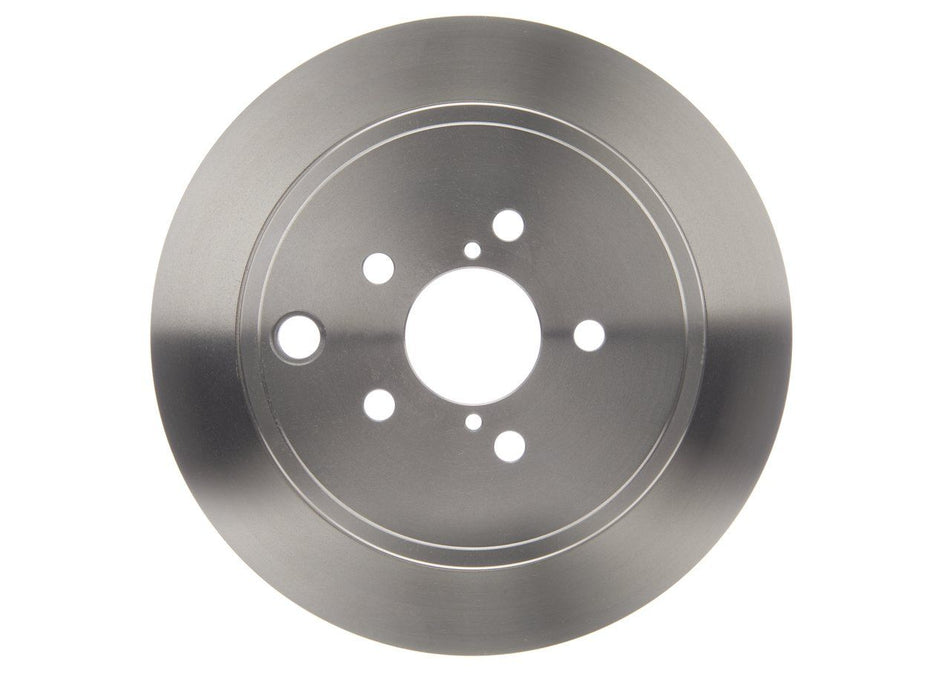

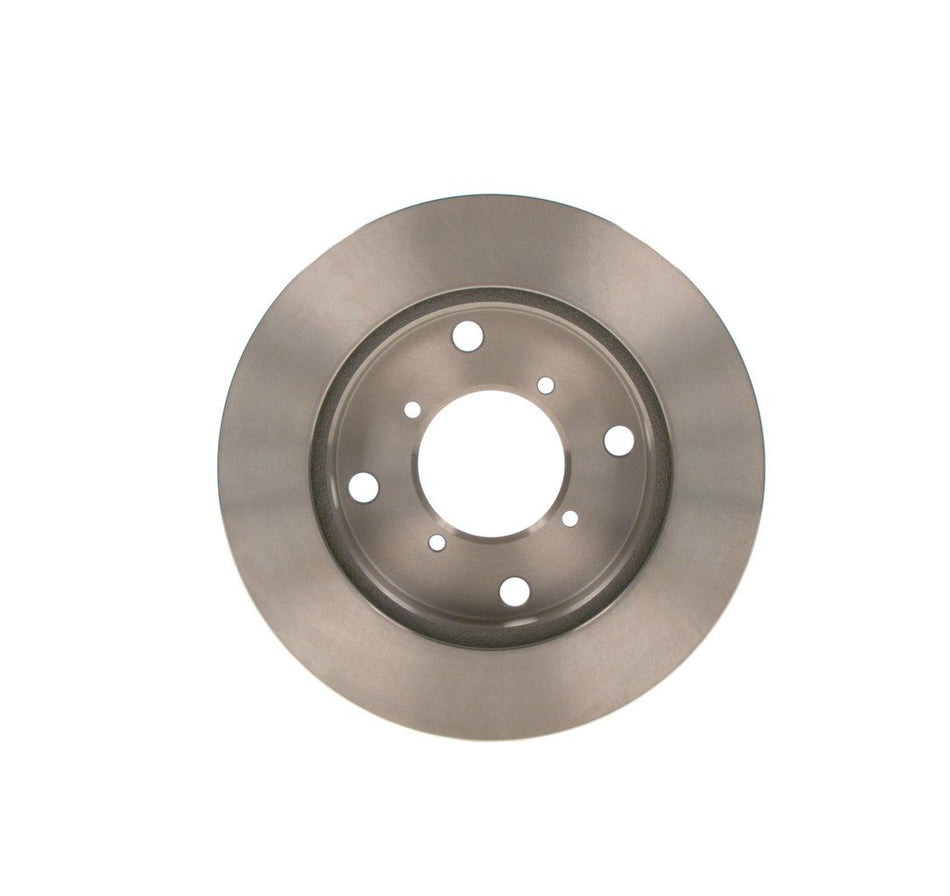

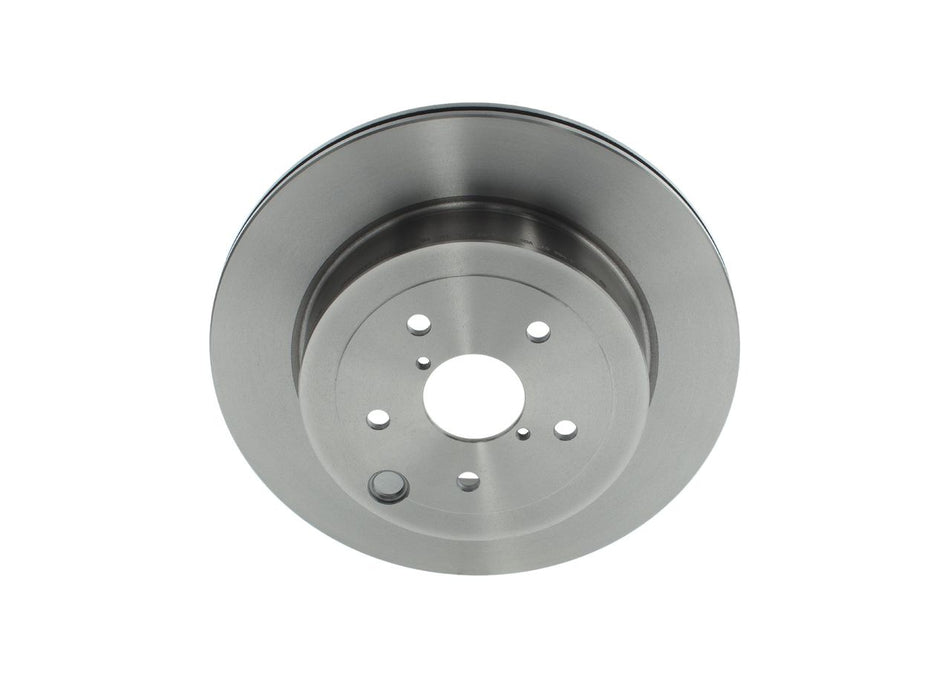

Brake package follows performance and axle
Disc diameter, thickness, offset, ventilation and caliper piston arrangement vary widely between base and performance Impreza applications, crossovers and BRZ. Pads need the matching contour, friction area and hardware.

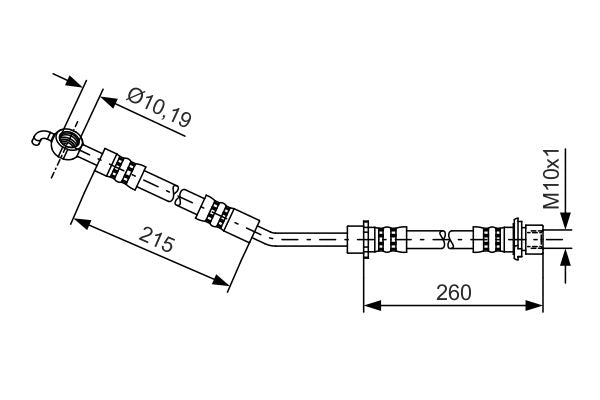

Clean the hub and measure run-out. Inspect caliper release and hose routing. Electronic parking brakes, where fitted, require service mode and initialisation. Brake imbalance or fluid loss prevents road testing.
Suspension work must preserve ride height and thrust line
Forester, Outback and XV ride height differs from Impreza or BRZ, and springs change with engine, hybrid mass and equipment. Match damper stroke, top mount and bump stop. A lowering spring can exceed driveshaft or damper travel before obvious body contact.
Tighten bushes at defined ride position and complete four-wheel alignment. On AWD vehicles, rear thrust error can be misinterpreted as front steering pull. Calibrate steering-angle and assistance systems after geometry changes.
EyeSight needs clear optics and correct vehicle attitude
Stereo-camera systems depend on windscreen optical properties, camera mounting, ride height and alignment. Use correct glass and follow calibration requirements after replacement, camera removal, collision or relevant suspension work.
Keep the camera field clean without coating interference
Obstruction, condensation, stickers or unsuitable coatings can affect view. Do not touch lenses casually. A warning means assistance may be unavailable; the driver must maintain full control and stopping distance.
Symptoms should be connected to systems
| Symptom | Tests to connect it | Urgency |
|---|
| AWD binding | Tyres, pressures, ratios, wheel speeds and transfer command. | Avoid tight/high-load operation. |
| CVT warning | Temperature, exact level, cooler, pressure and codes. | Stop if drive becomes unstable. |
| Oil-pressure lamp | Level, leakage and mechanical pressure. | Switch off immediately. |
| Wheel-bearing hum | Loaded direction, play, roughness and tyre noise. | Severe play requires recovery. |
| Brake pull | Hydraulics, friction, calipers, tyres and alignment. | Unsafe for road test. |
| EyeSight unavailable | Glass, obstruction, camera mount, codes and calibration. | Assume assistance is absent. |
Complete the repair as a driveline system
- Record VIN, engine, gearbox, differential and ratio data.
- Measure all four tyres and confirm installed component labels.
- Save fault data, fluid state, pressures and mechanical condition.
- Match timing, capacity, ratio and calibration, not only fit.
- Control spring, brake, fuel and high-voltage hazards.
- Use exact engine, CVT, gearbox and differential fluids.
- Restore shields, undertrays, clips and cooling airflow.
- Set levels, preload and fasteners by unit procedure.
- Align, adapt and calibrate disturbed control systems.
- Test progressively while watching temperature and binding.
MOT condition and AWD health are separate checks
UK roadworthiness includes structure, tyres, brakes, steering, suspension, lighting, visibility, restraints, emissions equipment and warning lamps. Required catalysts and filters should remain. An MOT pass does not verify matching differential ratios or correct CVT fluid.
Declare wheel, suspension, engine and software changes to the insurer. Do not drive with oil pressure loss, brake or steering defects, severe tyre damage, dangerous binding or exposed hybrid damage.
Practical Subaru parts FAQs
Q: Is every Subaru model all-wheel drive?
A: No. BRZ is a notable rear-wheel-drive application.
Q: Does symmetrical AWD identify one centre differential?
A: No. Mechanisms vary by gearbox and model.
Q: Can an EJ timing kit fit every EJ engine?
A: No. Engine code and production details remain essential.
Q: Do all later boxer engines use the same chain parts?
A: No. FB, FA and other families differ.
Q: Can front and rear differential ratios be mixed?
A: No. Mismatch can create immediate driveline wind-up.
Q: Is Lineartronic fluid ordinary automatic fluid?
A: No. Use the exact Subaru CVT specification.
Q: Can differential oil enter the nearby CVT fill?
A: No. Identify every plug before draining or filling.
Q: Do four matching tyre sizes guarantee equal circumference?
A: No. Design, wear and pressure also matter.
Q: Does a turbo oil film prove turbo failure?
A: No. Check ventilation, leaks, return and shaft condition.
Q: Can a wheel-bearing noise come from the other side?
A: Yes. Confirm with loaded tests and physical inspection.
Q: Is e-Boxer safe when ignition is off?
A: No. Formal high-voltage isolation remains required.
Q: Must EyeSight be considered after windscreen work?
A: Yes. Correct glass and calibration may be required.
Q: Does an MOT pass verify AWD fluid and ratios?
A: No. Driveline maintenance is a separate responsibility.
Q: What proves a Subaru repair is complete?
A: Correct ratios, fluids, geometry and stable measured operation.
