Borg & Beck: understand the range before choosing

Borg & Beck's official commercial-vehicle steering and suspension programme includes drag links, tie rods, torque rods, stabiliser links, V-stays and associated tie-rod ends. The selection on this page is narrower and especially linkage-led: centre rods, long tie rods and tie-rod ends account for most entries, with several suspension arms and stabiliser links completing the range.

AutoMotoPart currently lists 67 Borg & Beck items. The largest Borg & Beck groups are 23 centre rod assembly entries, 22 tie rod entries, 13 tie rod end entries, 5 control/trailing arm, wheel suspension entries. Borg & Beck totals can change, so a category count is orientation rather than proof that a particular reference suits a vehicle, workplace or job. The exact Borg & Beck listing, its current technical information and the item in front of you must agree.

What the Borg & Beck page actually covers

Twenty-three centre rod assemblies and twenty-two tie rods dominate the current page, followed by thirteen tie-rod ends. Five control or trailing arms and four stabiliser links make up the remainder. Published examples range from rods under one metre to one listing over two and a half metres, and tube diameters also vary, showing why the complete Borg & Beck reference and dimensional record matter more than a generic linkage label.

Build a reliable shortlist

Map the linkage before ordering. On a multi-axle or commercial chassis, several rods can connect steering arms, axle components or suspension points while looking similar in a cropped image. Note what each end connects to, the steering or suspension position it controls, and whether the rod is fixed or adjustable. Use a known-correct removed component only as a secondary comparison.

If length, threads or mountings disagree with the current Borg & Beck data, stop rather than transferring old ends or modifying the new rod. A previously fitted incorrect component, a changed axle or an application split may explain the conflict. Resolve it through the vehicle and component records before dismantling makes comparison harder.

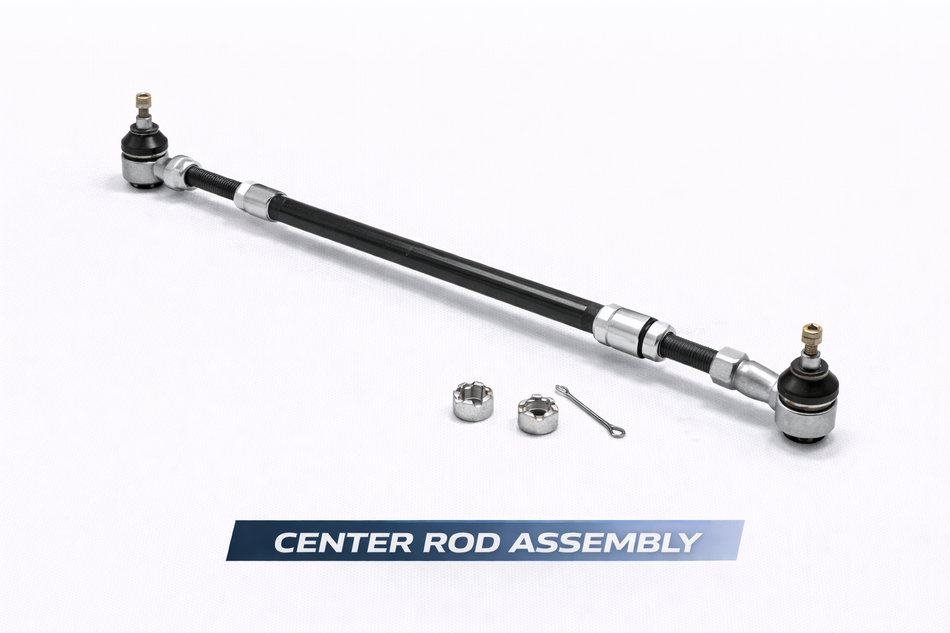

Centre rods and long steering links

A centre rod can carry steering movement across a substantial chassis width or between intermediate steering arms. Borg & Beck examples here include push-rod descriptions, several tube diameters and different thread combinations. Their working geometry depends on the ball-joint centres and end orientation, not simply the metal tube length. A rod that is only slightly wrong can disturb steering-centre position or joint articulation even if the bolts can be started.

Inspect the full load path for loose relay or idler arms, worn tapers and cracked or distorted brackets. Movement observed at one end can be amplified by wear elsewhere. Before releasing a long link, mark its installed orientation for reference and support it so its weight does not damage threads, boots or adjacent pipes. Do not use the old adjustment as the final geometry setting after assembly.

Tie rods, tie-rod ends and threaded adjustment

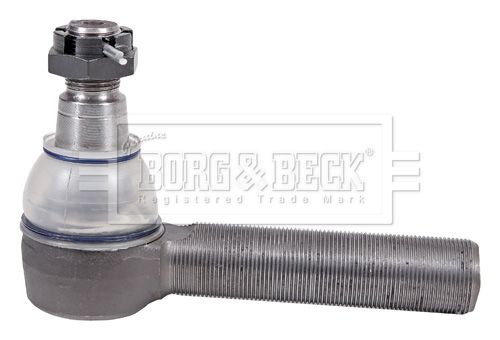

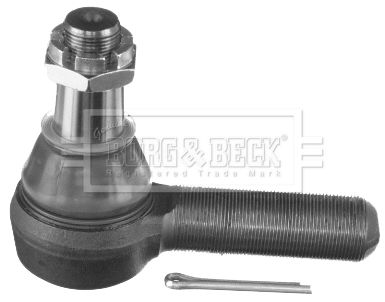

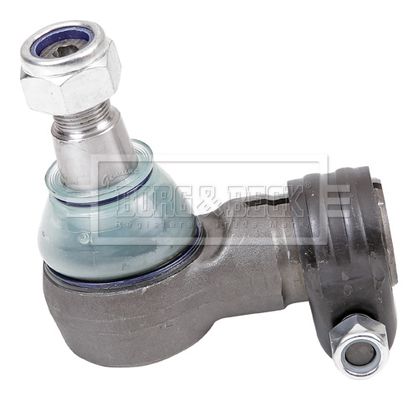

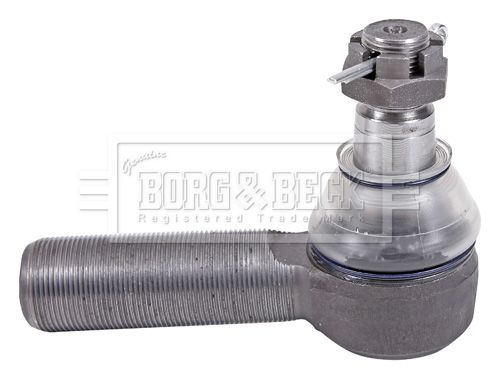

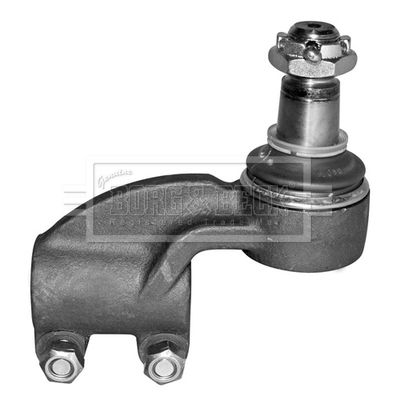

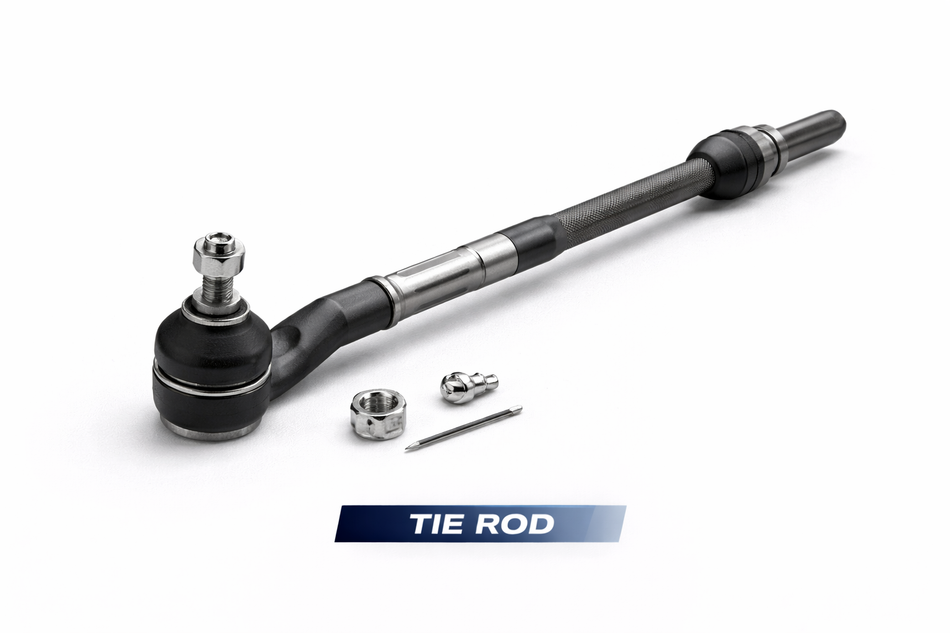

Tie rods transmit steering input while threaded sections provide controlled geometry adjustment where the design allows. The evidence includes fixed rods and items described as adjustable on one side, so adjustability must be confirmed rather than inferred from the presence of a threaded end. Left-hand and right-hand threads can be paired to change effective length as a sleeve turns; forcing the wrong handed thread will damage both parts.

Clean exposed threads sufficiently to read markings and assess condition without removing useful reference evidence. Counted turns or measured positions may provide a starting point only when the repair procedure permits. Maintain the specified thread engagement and clamp orientation, and never extend an assembly beyond its documented adjustment range to compensate for a wrong component or bent linkage.

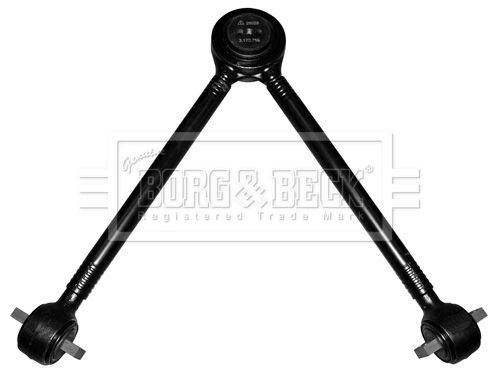

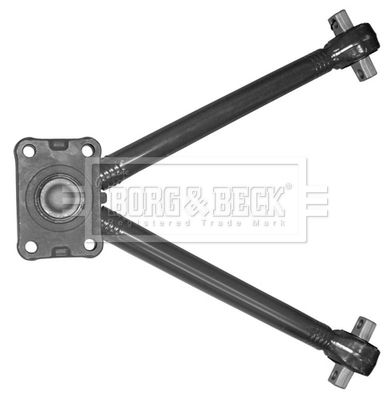

Suspension arms and stabiliser links

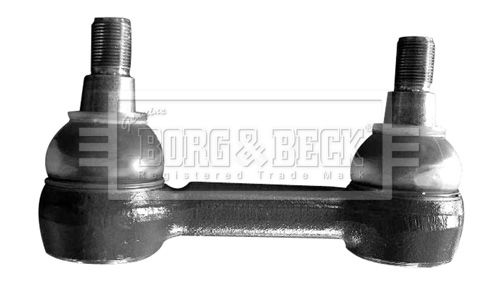

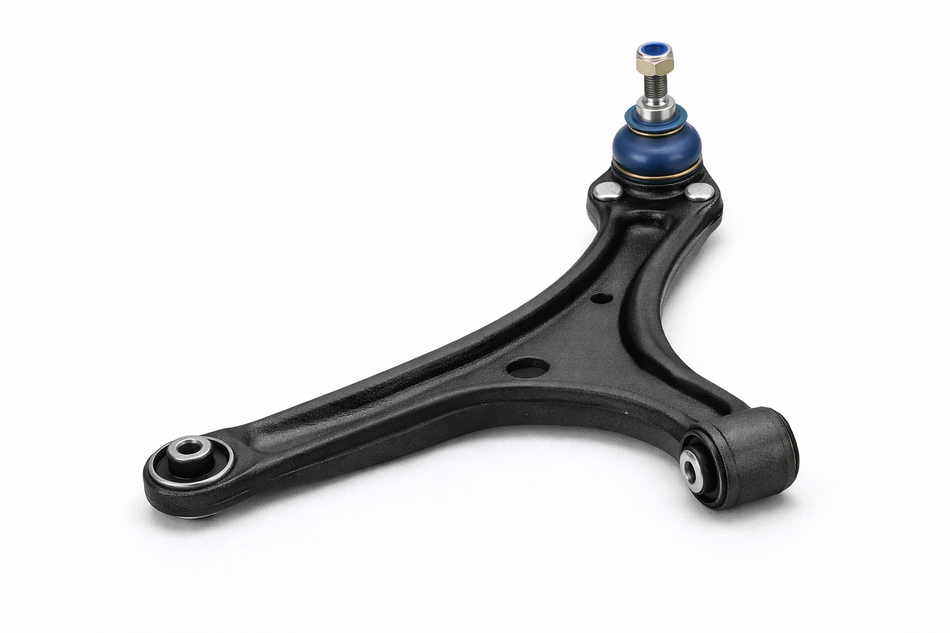

Control and trailing arms guide wheel or axle movement through pivots, bushes and sometimes an integral joint. Borg & Beck arm selection must capture side, axle, mounting spacing and the exact bush or joint arrangement. A visually similar arm can place a pivot a few millimetres differently or use a bush designed to work at another angle, changing alignment and stressing mountings.

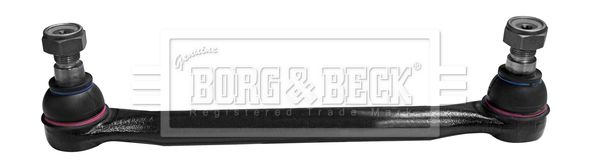

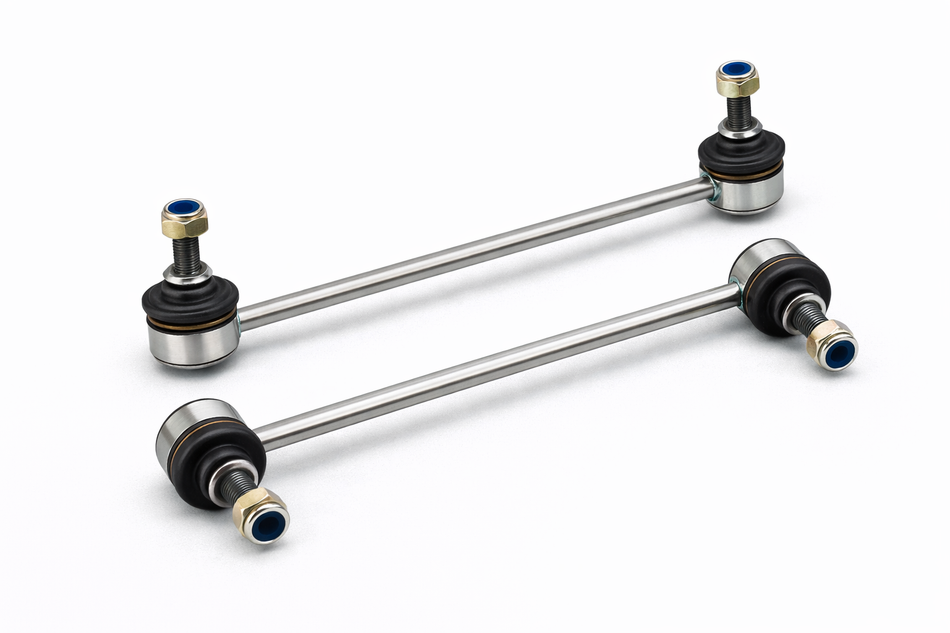

Stabiliser links transfer anti-roll-bar movement and can knock when their joints or bushes wear. Noise position alone is not conclusive because a loose bracket, spring seat or shock mounting can sound similar through the body. Hold or load the suspension as the inspection procedure requires, then watch each interface. Tighten bonded bushes at the stated suspension position so the rubber is not permanently twisted at normal ride height.

Separation, fasteners and controlled assembly

Use approved lifting points and secure the vehicle before working beneath it. A joint separator should act on the intended faces and leave the taper, steering arm and dust boot undamaged. Avoid uncontrolled hammering, spreading a clamp beyond its limit or applying heat to steering and suspension components. Protect brake hoses, wheel-speed wiring and air lines from tools and falling rods.

Clean mating tapers as instructed, renew specified locking nuts, split pins and clamps, and follow the exact torque or torque-plus-angle data. Do not lubricate a dry taper or thread unless the repair information calls for it because lubrication changes clamping behaviour. After tightening, verify that boots have not twisted, pins have seated correctly and all locking features are present.

Alignment, steering movement and follow-up

Changing a tie rod or wheel-locating arm can alter toe or other geometry. Arrange the wheel-alignment checks required for that repair and investigate a reading that cannot be adjusted into specification. Bent brackets, incorrect ride height, tyre differences or the wrong linkage part can all prevent a sound result. Alignment equipment does not replace a physical security and free-play inspection.

With the vehicle safely settled, move the steering through its permitted range and check that joints articulate without binding or boot stretch. Confirm clearance from tyres, chassis, pipes and cables at the relevant suspension positions. Recheck fasteners where the repair schedule requires it, and respond promptly to a displaced steering wheel, pull, new knock or changing tyre-wear pattern rather than assuming a new component must be correct.

From identification to a checked result

Keep the complete Borg & Beck reference, fitted position and key measurements with the work record until steering movement and wheel geometry are confirmed. On a large linkage with several related rods, this traceability also prevents left/right or centre-position references being mixed during later inspection.

Reading real Borg & Beck references

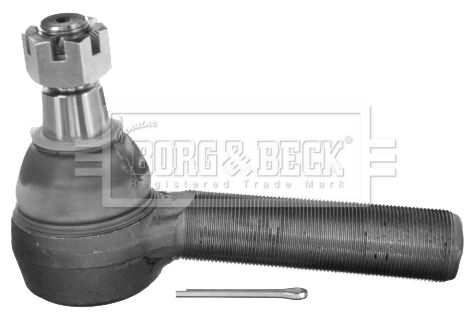

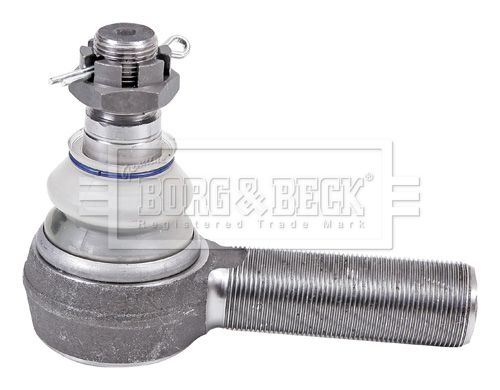

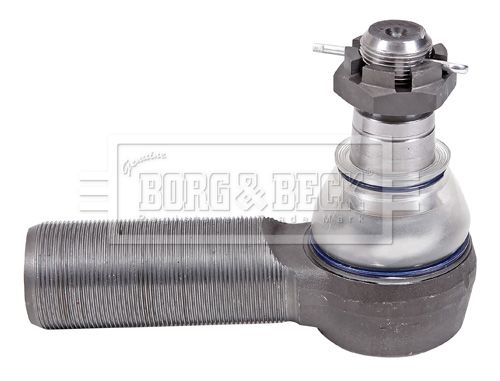

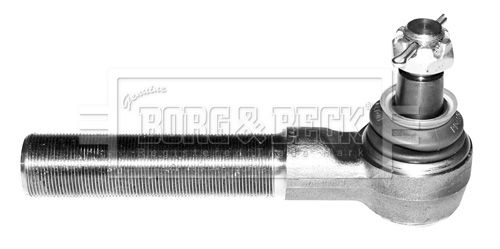

The Borg & Beck names below are examples from the current range and show why the complete description matters. They are not universal Borg & Beck recommendations and should not be treated as a fitment list. Within Borg & Beck, a shared family word can conceal a different dimension, connector, material, pack format, operating condition or installation side.

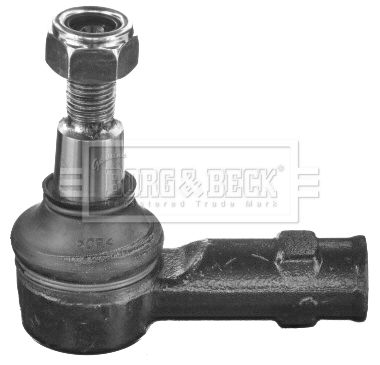

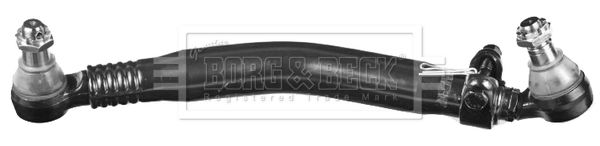

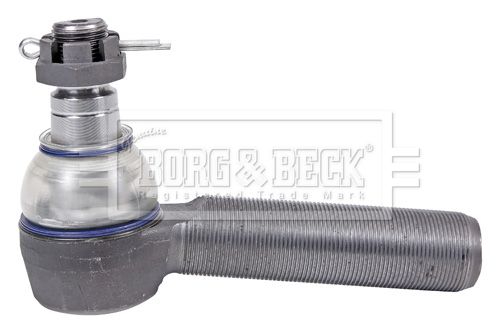

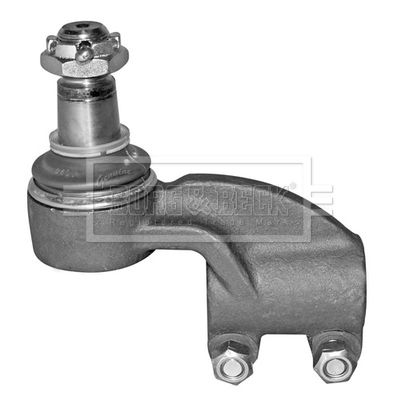

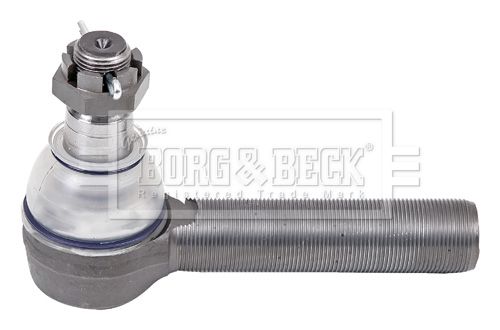

The sample BDL and BTR references span both tie rods and centre rod assemblies, so a prefix cannot safely replace the function description. Read the complete Borg & Beck specification and application record for each number before comparing dimensions or dismantling the vehicle.

Common errors around Borg & Beck products

• Selecting a Borg & Beck rod from length while overlooking the end joint and thread arrangement.
• Assuming every threaded linkage is adjustable at both ends.
• Starting a right-hand thread into a left-hand threaded sleeve.
• Pulling an incorrect joint taper into its arm with excessive nut torque.
• Heating or bending a steering link to overcome an alignment problem.
• Damaging a joint boot with a separator and fitting the part without correcting it.
• Tightening a bonded arm bush at the wrong suspension position.
• Returning the vehicle to use without the geometry check appropriate to the repair.
