FIRST LINE Car Parts

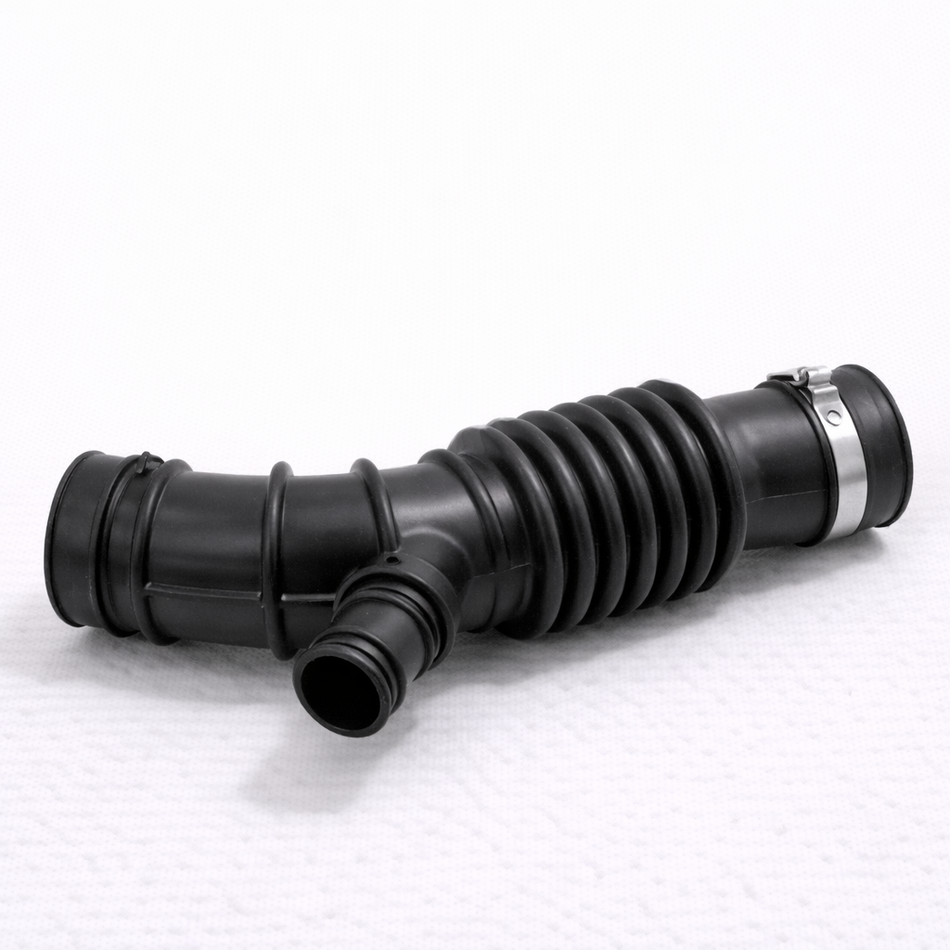

First Line supplies aftermarket parts across chassis, engine and braking systems. This collection has a particularly strong cable range: handbrake cables form the largest group, followed by manual-transmission gear cables, accelerator cables and clutch cables. It also contains driveshaft bellow kits, engine and gearbox mounts, coolant thermostats and caps, stabiliser-link repair kits, suspension arms, strut mounts and bearings, wheel-bearing kits, coolant flanges and selected intake or charge-air hoses.

Correct identification depends on the component's exact position and layout. For a handbrake cable, record whether it serves the front, centre, left rear, right rear or both rear sides, then compare inner and outer lengths, end fittings, adjuster, support brackets and routing. Some application data divides parts by construction date, VIN or braking equipment. Gear-control cables may be supplied singly or as a pair and must match the selector-end and gearbox-end joints as well as length.

For a CV boot, establish inner or outer joint location, driveshaft diameter, joint-neck diameter, boot height and retention method. Inspect the joint while access is available: a split boot can release grease and admit water or grit, and fitting rubber around a worn or contaminated joint does not restore it. Cooling parts need engine code, housing style, opening specification, seal and connector details checked. Suspension and mount parts require side, axle, dimensions and any included bearings or fixings to be confirmed from current application data.

Work method matters as much as selection. Parking-brake components affect a system examined at MOT, coil springs contain dangerous stored energy, and a vehicle must be securely supported before underbody access. Follow the vehicle maker's routing, adjustment, torque, coolant filling and wheel-alignment procedures. Renew specified single-use hardware, keep friction surfaces clean, and perform a functional check after assembly. The First Line products below cover repairs where the reference and installation details have been fully matched.

FIRST LINE official brand logo

Your Current Vehicle

Or

Select Your Vehicle

Car Parts Categories

Browse the main catalogue areas in which this brand has matching products.

1/2in. Copper Brake Pipe 22g x 25ft

Brakes

362 matching products

Aluminium Flange Rivets 3/16 x 3/4 - Pack of 20

Transmission

217 matching products

Apec AAS1001 Air Spring, suspension - 1

Suspension & Steering

103 matching products

Apec ACK4006 Timing Chain Kit - 1

Engine

93 matching products

Apec ATH1001 Thermostat, coolant - 1

Cooling System

48 matching products

Apec AST0002 Ball Joint - 1

Suspension

28 matching products

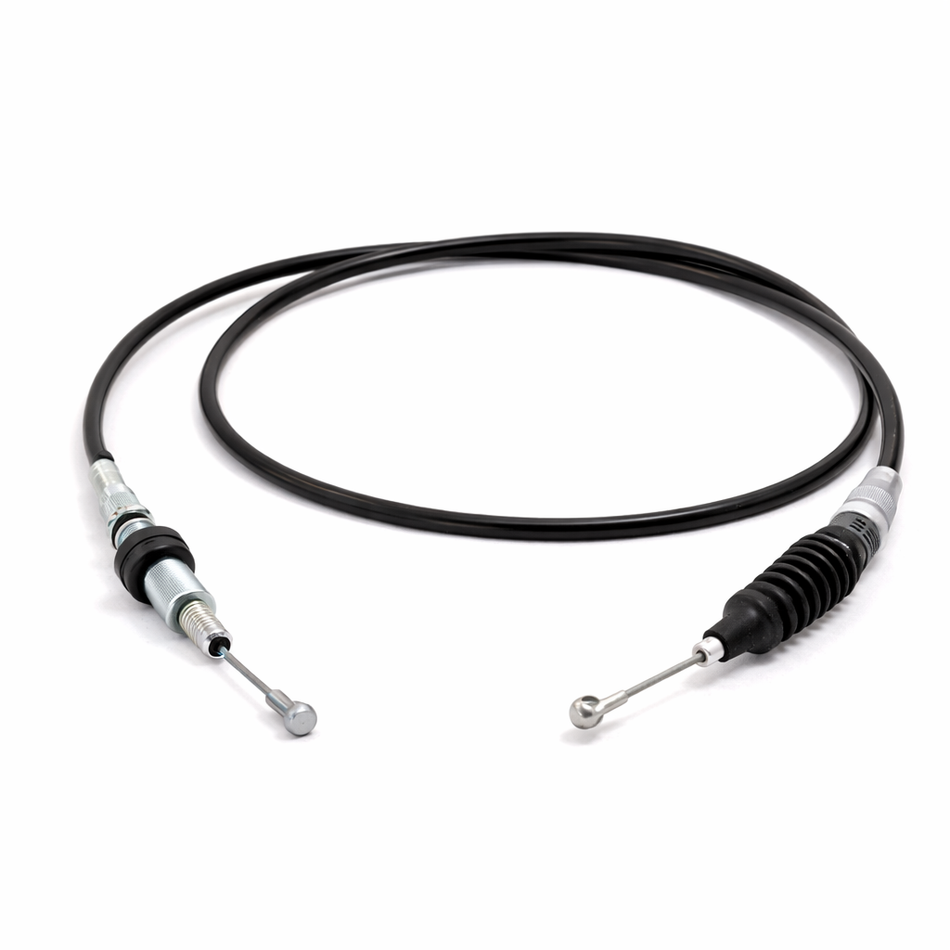

Clutch Cable

Clutch Cable

8 matching products

Steering Racks

Steering Racks

3 matching products

027 FAHREN Battery - 52Ah - 500CCA EN

Electrics

2 matching products

Bosch 2434619055 Spring - 1

Injection System

2 matching products

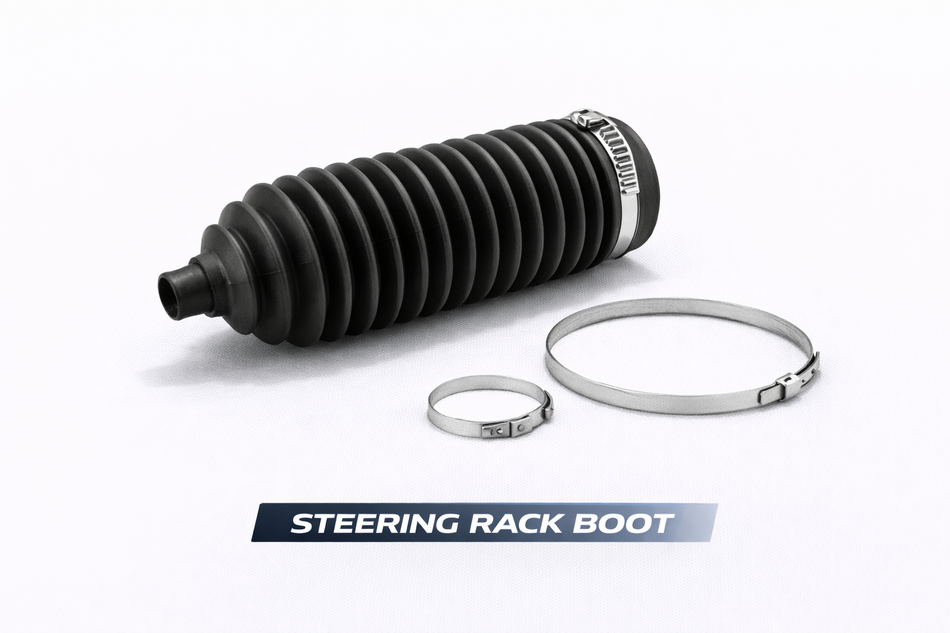

Apec ACB3001 Bellow Kit, steering - 1

Steering

6 matching products

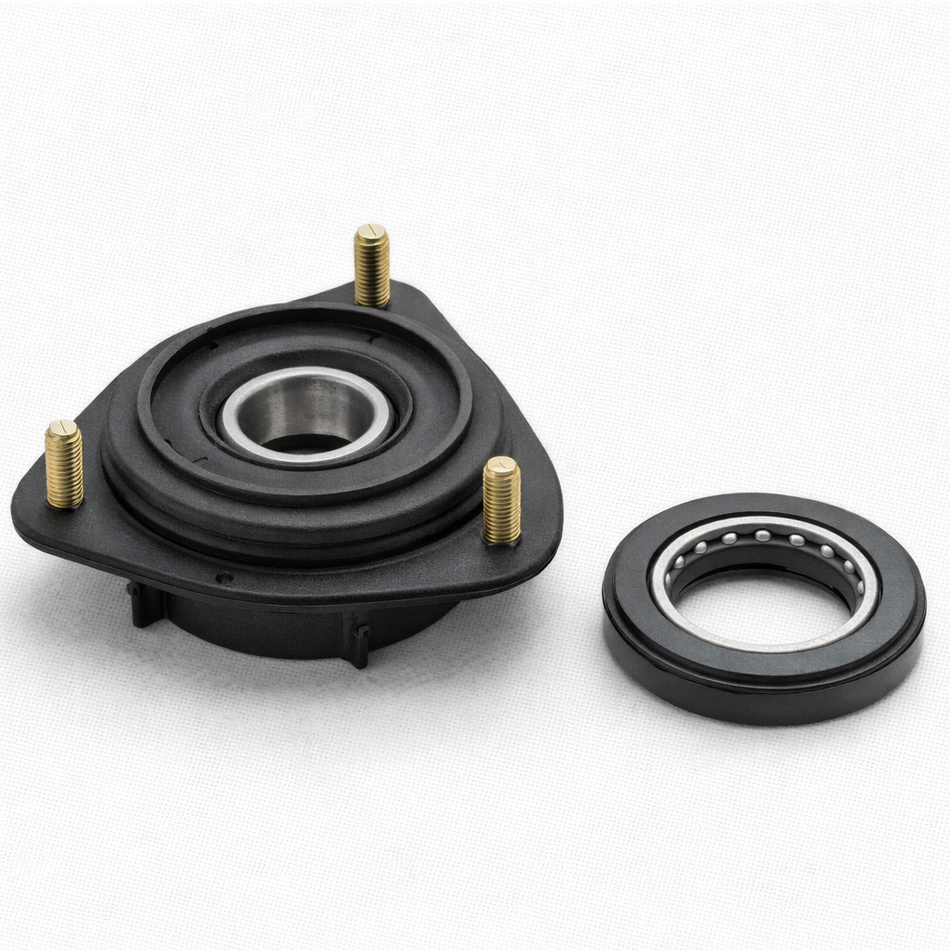

Top Strut Mount & Bearing

Top Strut Mount & Bearing

10 matching products

Filter products

The highest price is £254.23
£
£

480 Products

First Line replacement cables and vehicle components

First Line's official portfolio spans steering and suspension, cables, cooling, wheel bearings, hoses, boots and gaiters, plus other chassis, engine and braking lines. The products in this collection give that broad description a clear practical emphasis: most are parking-brake cables, gear-control cables and driveshaft bellow kits, supported by engine mounts, thermostats, suspension pieces and smaller cooling parts.

The official catalogue material stresses application identification and uses layout drawings for products including brake cables and engine mountings. That approach suits this range. A cable or mount is often difficult to distinguish from a near-match when it is still on the vehicle; fitting position, length, attachment geometry and vehicle-production split need to be recorded before ordering.

What this First Line collection covers

FamilyExamples presentInformation neededRelated inspection
Parking brakeFront, centre, left, right and shared rear cable applicationsVIN, build date, brake type, position, lengths, ends and bracketsLevers, equaliser, guides, calipers or drums and adjustment
Transmission controlManual gearbox cable pullsGearbox code, cable count, selector layout, end joints and adjustmentSelector mechanism, bushes, mounts and gearbox oil leaks
Driveshaft protectionInner and outer CV bellow kitsJoint side, shaft and joint diameters, height, material and clipsJoint play, grease loss, corrosion and shaft condition
Powertrain mountingEngine, gearbox and control-arm mountingsLocation, bracket shape, bush type, orientation and drivetrainOther mounts, exhaust flex, hoses and driveshaft angles
CoolingThermostats, coolant caps, flanges and selected hosesEngine, temperature, housing, seal, pressure and connection layoutLeaks, circulation, fan operation and coolant condition
Chassis and hubsArms, stabiliser repairs, strut mounts, bearings and wheel-bearing kitsAxle, side, dimensions, hub/ABS details and supplied contentsGeometry, joint play, spring condition and sensor routing

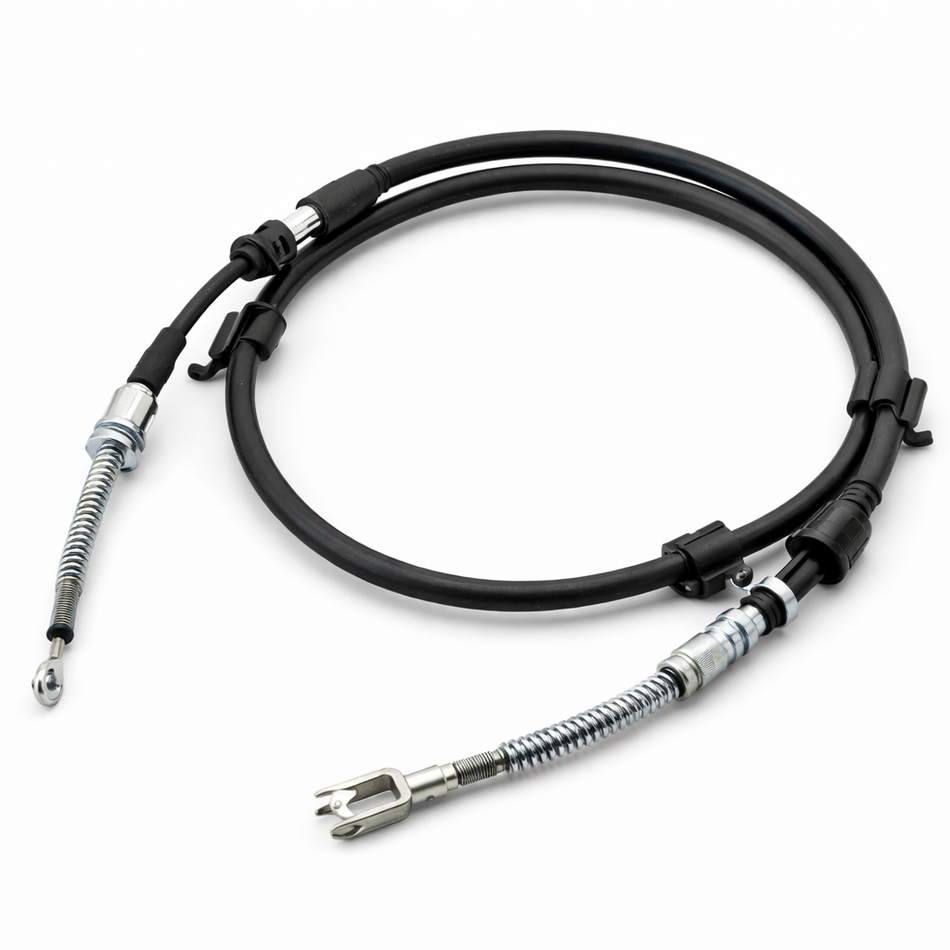

Handbrake cable identification

The evidence for this collection shows cable records with specific rear-side positions, parts that serve both rear sides, different nominal lengths and applications bounded by build date or VIN. Those distinctions are functional. A cable that is only slightly too short can hold a brake on or prevent correct equaliser adjustment; excess length can create poor routing, contact or lost lever travel.

Begin with the full registration and VIN, then establish the brake arrangement at the relevant axle. Record whether the parking brake acts through rear calipers, shoes inside a disc drum, or a conventional drum mechanism. Identify every cable section from the hand lever or pedal to the wheel end. Compare the First Line reference, cable sheath length, exposed inner length, threaded adjuster, nipples, clips, brackets and protective sleeves with reliable application data and the removed part.

Left and right cables can appear almost symmetrical while bracket orientation or end geometry differs. Lay them in their installed direction rather than comparing a coiled new part with an old cable still routed around the tank or suspension. If one side has seized, inspect its partner and the equaliser for comparable corrosion and travel. Replacement on both sides may be appropriate when condition and the repair procedure support it, but do not assume every listing is sold as an axle pair.

Cable diagnosis, routing and adjustment

SymptomPossible cable-related causeOther cause to exclude
Parking brake will not holdStretched, detached or incorrectly adjusted cableWorn shoes or pads, seized mechanism, excessive drum clearance
One rear brake dragsCorroded inner wire or damaged sheath on that sideCaliper lever, piston, shoe spring or hydraulic fault
High lever travelLost motion at cable, equaliser or end fittingSelf-adjuster not operating or friction material worn
Gear lever stiff in one planeRestricted cable or damaged end jointSelector tower, gearbox or clutch-release problem
Poor gear-centre returnCable drag or routing strainSelector centring spring or worn linkage
Accelerator does not return freelyFrayed cable, tight bend or liner contaminationPedal, throttle body, return spring or floor mat obstruction

First Line's official technical discussion notes that gear cables select and engage ratios and can become restricted when lubricant performance deteriorates or debris enters in hostile conditions. Diagnose before removal: disconnect the cable at an appropriate point and compare free movement of cable, lever and selector separately. Never force a stiff gear lever, because additional load can break a cable or damage plastic end joints.

Follow the original route through every guide and heat shield. Avoid tighter bends than the factory path and make sure the sheath seats fully in each bracket before adjustment. Some gear-cable systems need a locking pin, neutral datum or defined selector procedure; improvising the adjustment can leave one or more gears difficult to engage. Check reverse-lockout operation and all ratios with the engine off before a controlled running test.

Parking-brake adjustment comes after the wheel-end mechanism is correctly assembled and its own adjustment is set. Using the cable adjuster to compensate for seized levers or excessive shoe clearance can cause drag and reduce reserve travel. Apply and release the control repeatedly, confirm both wheels rotate and hold as intended, and verify cable clearance through suspension movement.

CV boots and driveshaft joint condition

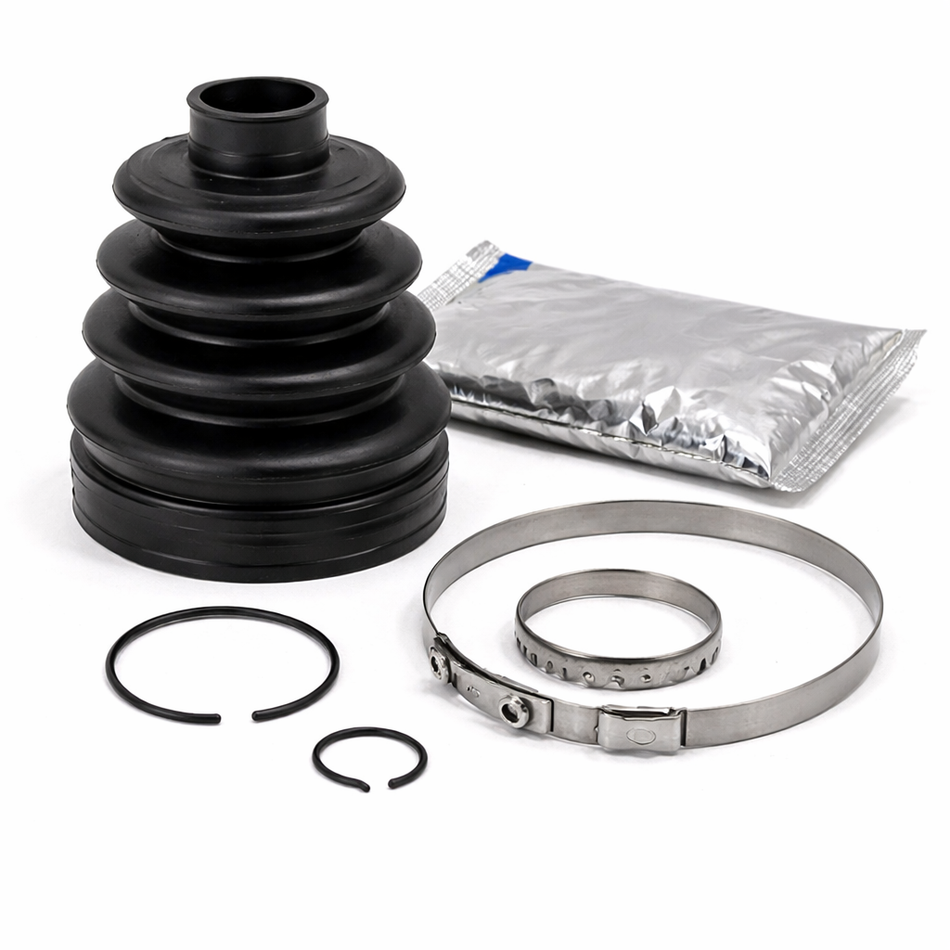

A driveshaft bellow keeps lubricant around the constant-velocity joint and excludes road contamination. Outer boots flex with steering as well as suspension; inner boots accommodate plunging movement and changing shaft angle. A kit must match the correct joint and shaft dimensions, and its clips and grease must be suitable for that design. Do not infer inner or outer use solely from a photograph.

Before dismantling, inspect where the split occurred and how long grease may have escaped. Clicking on lock commonly directs attention to an outer joint, while vibration under acceleration can have several driveline causes, including inner-joint wear, but symptoms require confirmation. Clean the exposed joint enough to assess tracks, rollers or bearings according to its construction. Grit, rust, blueing, rough articulation or excessive play can justify joint or shaft replacement rather than a boot-only repair.

Measure the shaft and joint neck at the clamping lands, not over rust, old clip impressions or the widest casting. Compare boot height and convolution shape so it will not stretch, collapse or rub at the extremes of steering and suspension. Use the specified quantity and type of joint grease; general chassis grease is not an automatic substitute. Keep sealing lands clean, fit clips with the intended tool and equalise air pressure inside the boot where the procedure instructs.

Engine mounts, thermostats and cooling connections

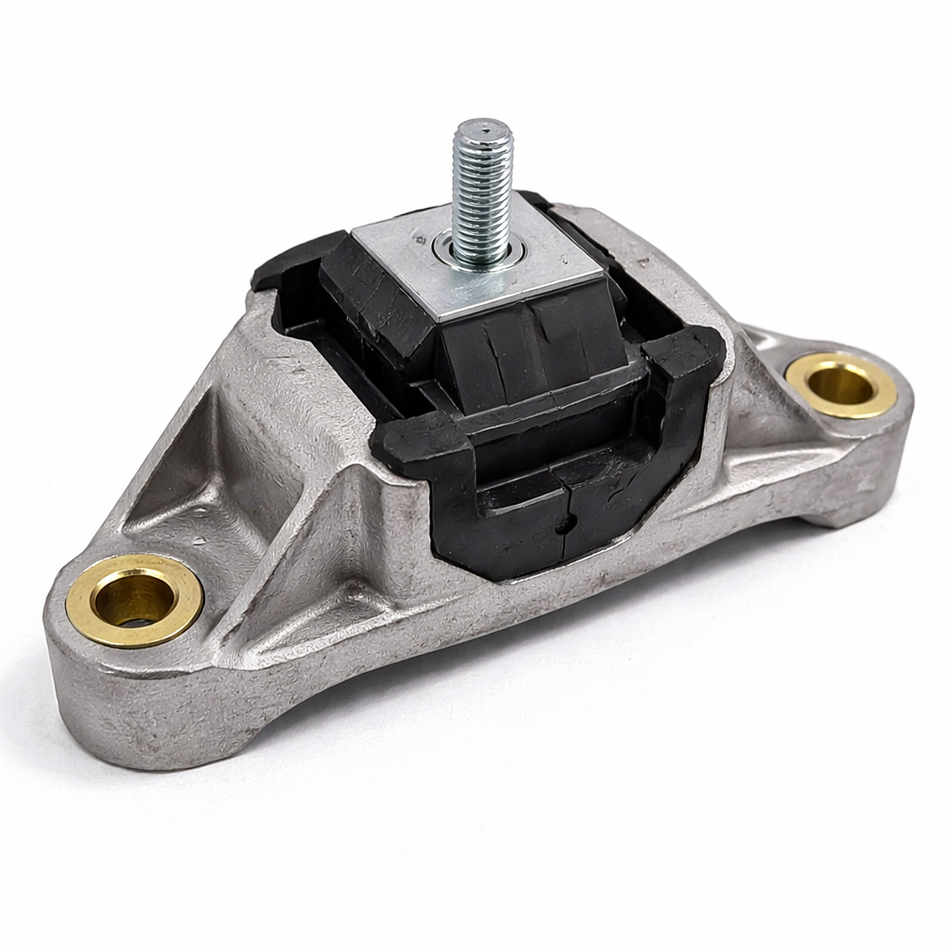

Engine and gearbox mounts manage powertrain position while isolating vibration. Identify each mount by drivetrain combination and installed location. Brackets can look alike but place the rubber element at a different angle or height. Support the engine or transmission at an approved point before releasing a mount, and never place any part of the body beneath an unsupported assembly.

A failed mount may show separated rubber, leaked hydraulic fluid where that construction is used, excessive movement or metal-to-metal contact. Yet vibration can also arise from poor engine running, exhaust contact, an incorrectly fitted mount or another mount carrying abnormal load. Inspect the complete mounting set, torque reaction link, exhaust flexible section, hoses, wiring and driveshaft clearances before assigning the symptom to one component.

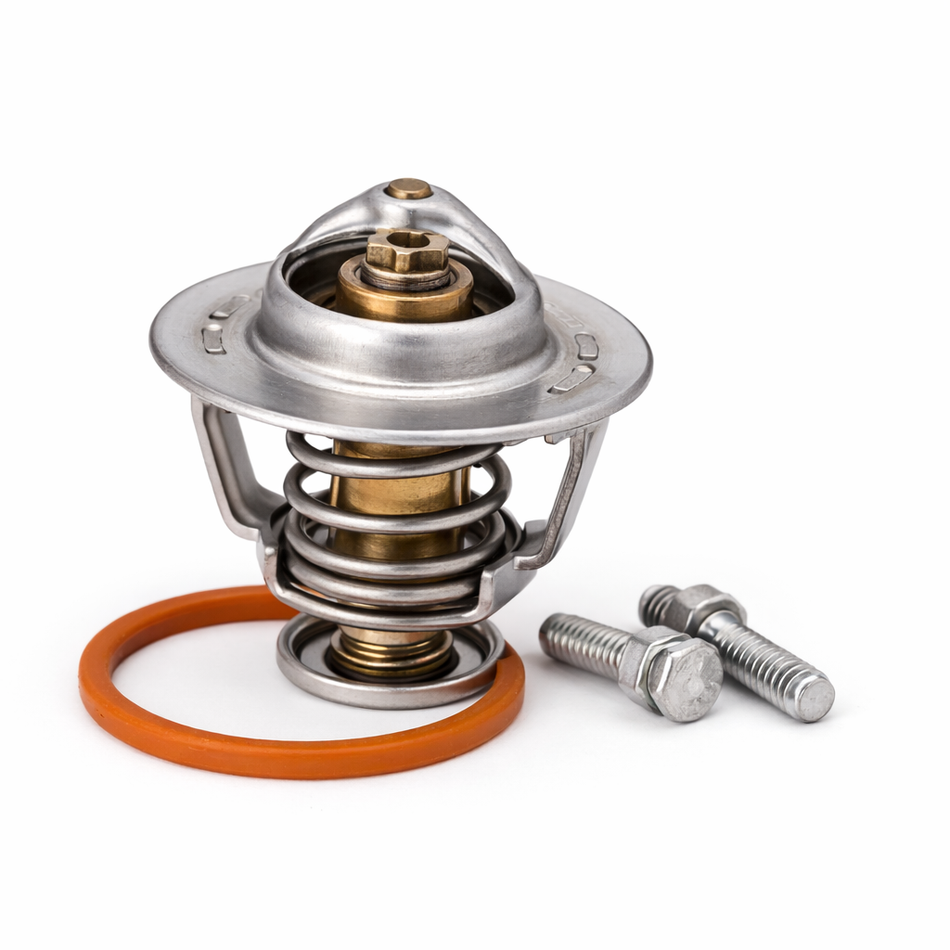

Thermostat selection should use engine code, housing arrangement, opening-temperature specification and any seal or electrical connection. Some replacements are inserts; others form part of a housing. Do not fit the old seal by habit or use excessive sealant that can enter the cooling circuit. Work only on a cool depressurised system, identify the correct coolant, inspect mating surfaces and bleed using the vehicle procedure. Stable temperature, cabin heat, fan control and absence of leaks need confirming afterwards.

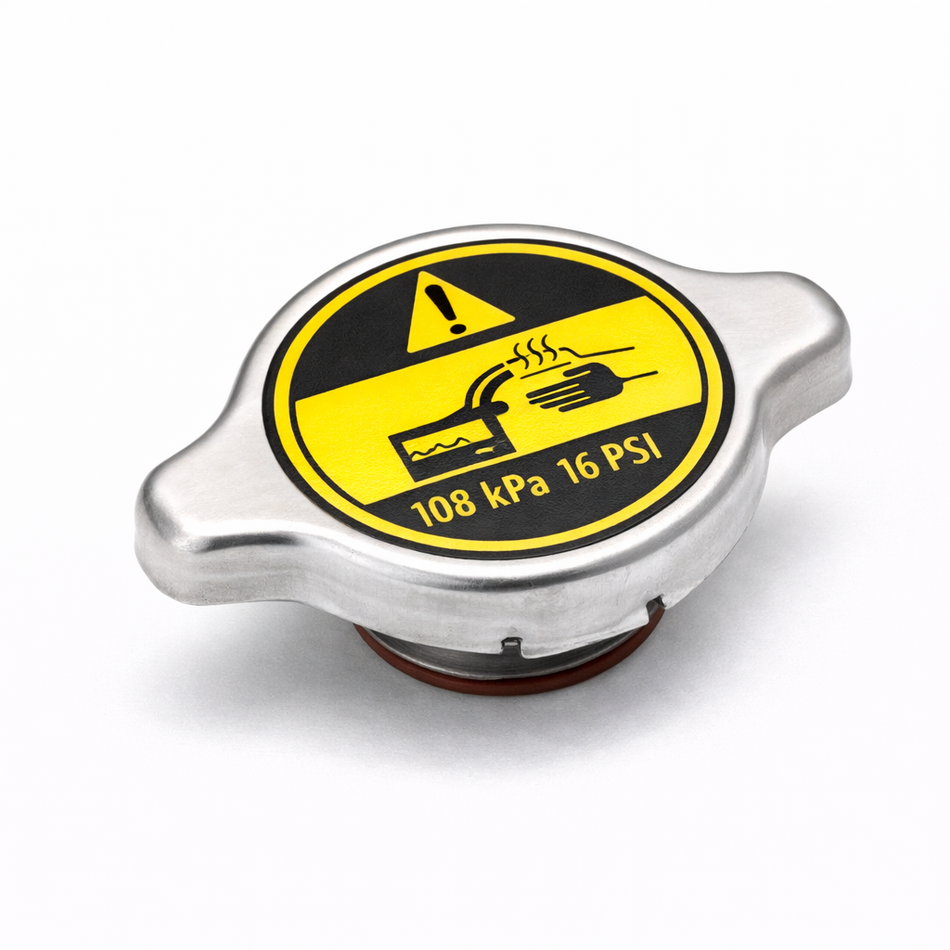

Coolant expansion-tank caps are pressure-control components, not decorative covers. Match the application and stated pressure rather than choosing by thread appearance. A weak or unsuitable cap can change boiling margin or hose behaviour, while an apparent cap leak may result from overfilling, combustion gas or overheating. Coolant flanges and hoses likewise require port layout, sensor provision, diameter and routing checks.

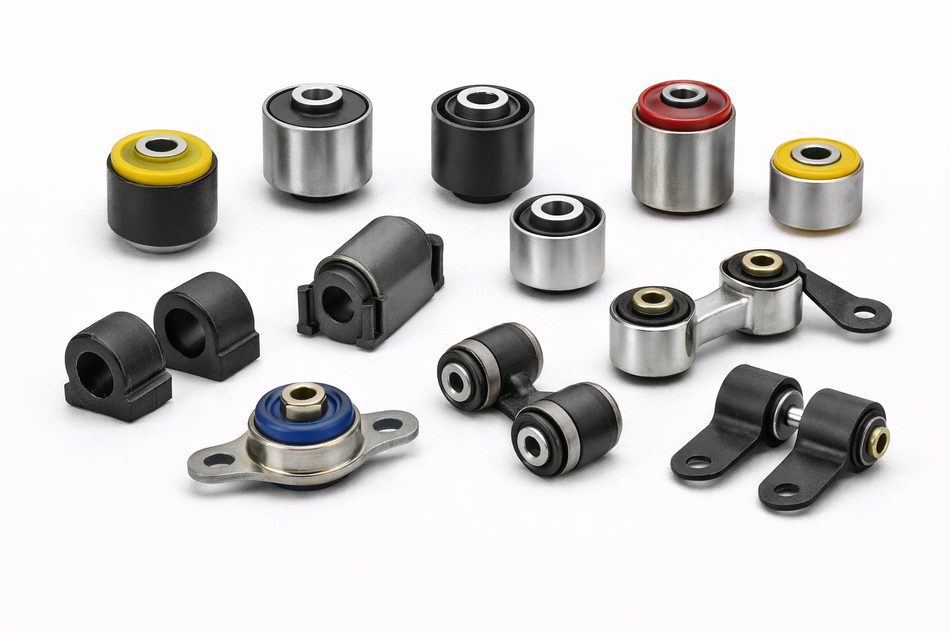

Suspension arms, strut mounts and wheel bearings

PartSelection detailsInstallation controlFinal verification
Control or trailing armAxle, side, ball-joint arrangement, bush dimensions and build splitSupport hub; renew specified locking hardware; tighten bonded bushes at prescribed positionAlignment, full movement and fastener witness check
Stabiliser-link repairBar diameter, link type, bushes, washers and sleeve orderReproduce stack orientation without crushing bushes excessivelyNo contact, looseness or noise over controlled articulation
Strut top mountFront/rear, side, bearing inclusion and orientation marksUse a suitable spring compressor and protect the damper rodSmooth steering return, correct ride height and secure upper fixing
Separate top bearingDimensions and relationship to spring seat and mountFit in correct direction on clean seating facesNo graunching, binding or spring wind-up
Wheel-bearing kitHub design, axle, ABS encoder or ring and kit contentsApply load through the correct race and use specified torqueNormal sensor signal, no play and quiet road test

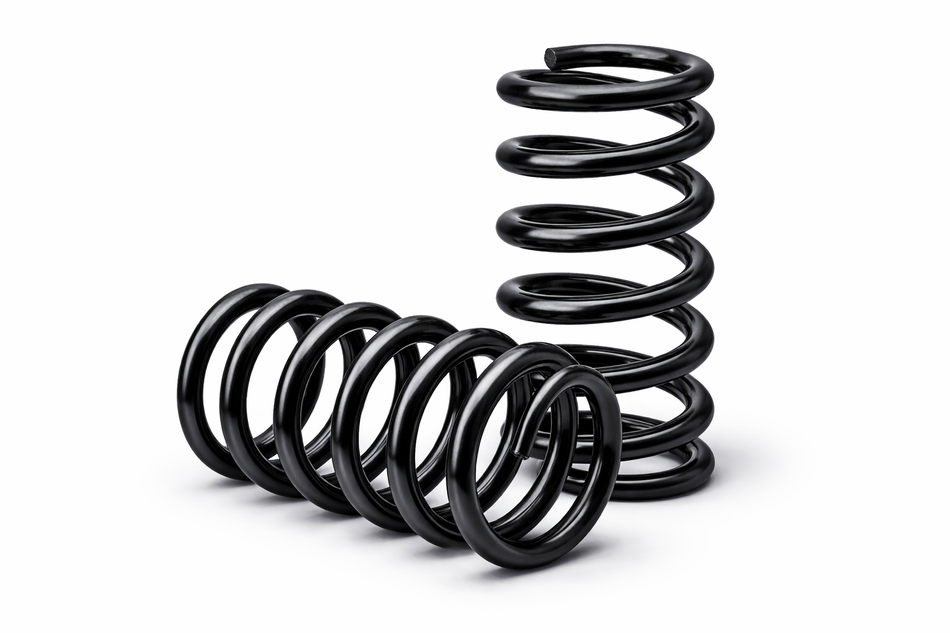

Compressed road springs store enough energy to cause severe injury, so strut work requires the correct spring compressor and competent use. Note the order and orientation of spring seat, bearing, mount, washers and nut before dismantling. Avoid gripping a polished damper piston rod with tools that mark it. After chassis work, check brake hoses and wheel-speed sensor leads remain correctly clipped and free through steering movement.

A wheel bearing can be damaged during installation by pressing through the wrong race or applying the vehicle's weight before the hub fastener is correctly tightened. If the bearing incorporates a magnetic encoder, establish which face must point towards the sensor and keep magnetic debris away. Noise diagnosis should also exclude tyre pattern, brake contact and transmission sources.

MOT relevance and workshop finish

The current Great Britain MOT manual examines parking-brake performance and condition, driveshaft joint gaiters where applicable, suspension arms and joints, wheel bearings and cooling-system security where a defect creates a risk. An MOT result is a minimum roadworthiness check at one moment, not a replacement for diagnosis or the vehicle maker's repair limits. A cable that technically holds today but has broken strands or a damaged sheath still needs proper assessment.

Record the installed reference, torque and adjustment where relevant. Remove tools and supports, restore undertrays and clips, then test first in the workshop and finally on a controlled road route when appropriate. Investigate any binding, fluid loss, warning lamp, altered steering position, abnormal temperature or new vibration before returning the vehicle.

Avoidable First Line selection errors

  • Choosing a handbrake cable by overall length without checking side, ends and brackets.
  • Missing a VIN or construction-date break within one model generation.
  • Adjusting a new cable before the wheel-end brake mechanism is free and correctly set.
  • Buying one gear cable where the application uses a distinct paired set.
  • Installing a CV boot over a joint already damaged by contamination or lubricant loss.
  • Using generic grease or reusable clips when the joint procedure specifies kit materials.
  • Replacing one mount without checking powertrain alignment and the remaining supports.
  • Pressing a wheel bearing through the rolling elements or facing its encoder away from the sensor.

First Line questions and answers

Q: Can a First Line handbrake cable be selected by vehicle registration alone?

A: Registration is a starting point; confirm VIN or build split, brake system, fitted position, lengths and attachment layout.

Q: Do left and right rear cables have to be identical?

A: No. Their brackets, bends, lengths or wheel-end fittings may be handed even when the basic construction looks similar.

Q: Why can a new parking-brake cable still leave high lever travel?

A: Shoe clearance, caliper levers, equaliser position or incorrect adjustment may be responsible rather than cable stretch.

Q: What should be checked on a manual gearbox cable?

A: Verify gearbox and selector application, cable count, both end joints, bracket locations, route and prescribed neutral adjustment.

Q: Is a split CV boot always a boot-only repair?

A: No. Assess lubricant loss, contamination, noise, articulation and joint wear before deciding whether the joint remains serviceable.

Q: Can any grease be packed into a CV joint?

A: Use the lubricant type and quantity specified for the joint or supplied for the correctly identified kit.

Q: How should an engine mount be compared?

A: Match drivetrain, installed position, bracket geometry, orientation and any hydraulic or electrical features shown by the application data.

Q: Does a thermostat's opening temperature fully identify it?

A: No. Engine code, housing, physical dimensions, seal, bypass arrangement and electrical connection can also differ.

Q: Must wheel alignment be checked after replacing a suspension arm?

A: Geometry should be measured and adjusted where the repair or vehicle procedure requires it, especially after disturbing locating points.

Q: Can a strut top mount be changed with general spring clamps?

A: Use a suitable, secure spring compressor designed for the assembly and follow the specified safe dismantling method.

Q: Why does wheel-bearing encoder direction matter?

A: A magnetic encoder must face the wheel-speed sensor; incorrect orientation can cause loss of its signal.

Q: Is the job finished when the replacement physically bolts on?

A: It also needs correct torque or adjustment, restored routing, system-level inspection and a successful functional check.
