JVC: understand the range before choosing
JVC manufactures car audio receivers in CD, short-body mechless and touchscreen formats. The five AutoMotoPart products match distinct models: KD-DB922BT, KD-T822BT, KD-X182DB, KD-X561DBT and KW-M27DBT. Their fascia size, chassis depth, DAB, Bluetooth, USB, camera and display interfaces differ, so the exact model code must remain attached to every feature and installation decision.
AutoMotoPart currently lists 5 JVC items. The largest JVC groups are 5 audio visual entries. JVC totals can change, so a category count is orientation rather than proof that a particular reference suits a vehicle, workplace or job. The exact JVC listing, its current technical information and the item in front of you must agree.
What the JVC page actually covers
| Product group in this range | Current entries | Selection focus |
|---|---|---|
| Audio Visual | 5 | Choose KD-DB922BT where CD playback, DAB+, Bluetooth, front USB and a full-depth single-DIN chassis suit the installation. |
Four products are single-DIN units and KW-M27DBT is double DIN. Two single-DIN models play CDs; three are mechless. Four models have DAB+, four have Bluetooth, but the sets are not identical: KD-T822BT lacks DAB, while KD-X182DB lacks evidenced Bluetooth. Only KD-X561DBT and KW-M27DBT have screen and camera-input functions in the live evidence.
Build a reliable shortlist
Read the current factory-radio part number and inspect the dash, harness and antenna connectors before ordering. Record vehicle year and trim, amplified or passive speakers, steering controls, parking sensors, factory camera, USB ports and any information display that depends on the original head unit.
| Check | Why it matters | Useful evidence |
|---|---|---|
| Model | Similar JVC names can differ by one letter yet remove DAB, Bluetooth or CD | Complete KD or KW code on product and JVC manual |
| Aperture | Single and double DIN still need a vehicle fascia and secure mounting | Dashboard kit, cage or brackets and usable depth |
| Wiring | ISO at the receiver does not preserve every vehicle CAN or amplifier function | Vehicle-specific harness, interface and pinout |
| Antenna | FM, DAB and powered factory aerials use different connectors and feeds | Aerial type, adaptor, phantom power and DAB solution |
| Phone and USB | Bluetooth profiles, mirroring and file support vary by model and device | Current JVC compatibility and approved cable |
| Camera | An input does not ensure factory-camera voltage or video compatibility | Camera signal, trigger, power, format and adaptor |
Do not choose KW-M27DBT solely because the dash appears double DIN. Confirm the fixed screen remains visible and does not obstruct vents, switches or sightlines, and verify brackets support the shallow body without stressing trim.

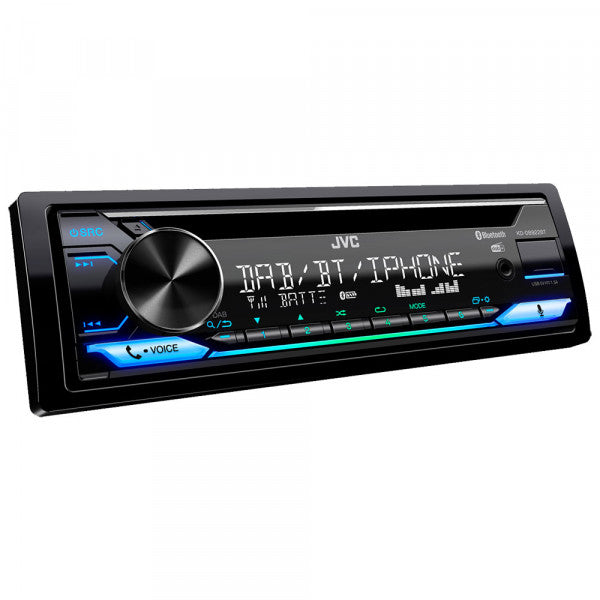

KD-DB922BT and KD-T822BT CD receivers
KD-DB922BT combines CD, DAB+, Bluetooth hands-free and streaming, front USB and auxiliary input in a conventional single-DIN body. Its official dimensions show a deeper chassis than the short-body receivers. Allow rear clearance for the harness, antenna plugs and ventilation without crushing cables or forcing the unit against ducting.

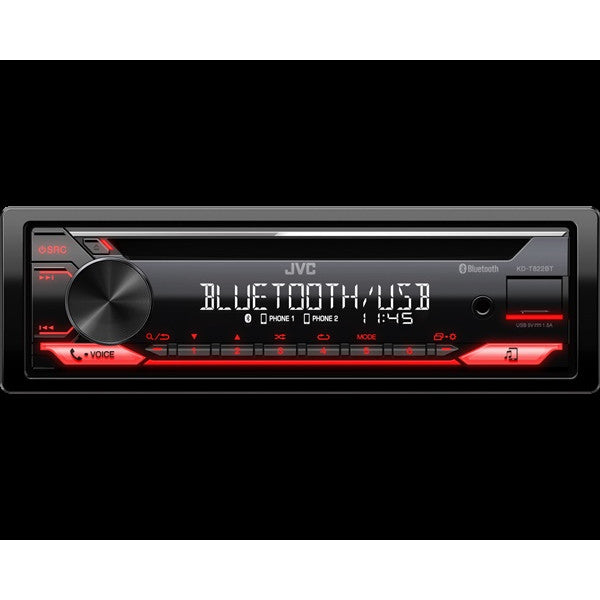

KD-T822BT is also a Bluetooth CD receiver, with front USB and auxiliary input, red key illumination and its own output layout. JVC's comparison data does not list DAB for this model, so a DAB feature in another title must not be assumed. Check whether its single pre-out arrangement supports the planned amplifier or subwoofer before purchase.

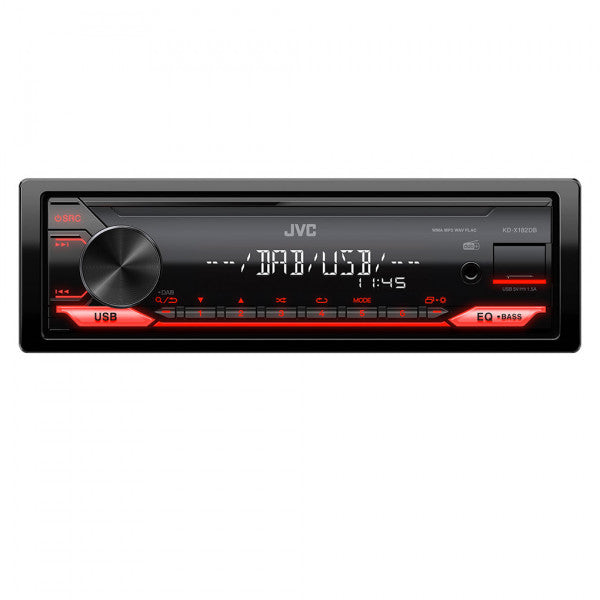

KD-X182DB shallow mechless DAB receiver
KD-X182DB removes the CD mechanism to provide a shorter single-DIN chassis and includes DAB+, conventional radio, front USB and auxiliary input. The evidenced and official specifications do not present it as a Bluetooth model. It can suit a shallow dashboard where digital radio and wired media are sufficient, but still needs correct rear support and cable clearance.
No DAB aerial is included in the live description. Determine whether the vehicle already has a usable DAB antenna, needs a powered windscreen aerial or requires an approved splitter. Route any new cable clear of curtain airbags and heated-screen elements, provide the specified earth and power, and configure antenna power only for hardware designed to receive it.

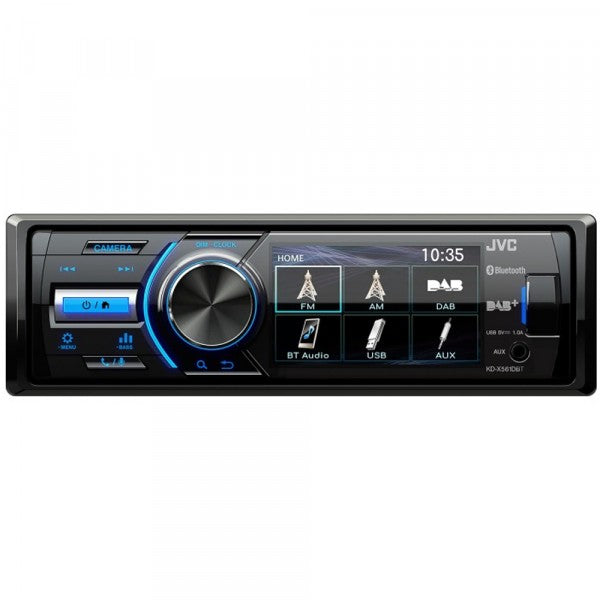

KD-X561DBT single-DIN 3-inch display
KD-X561DBT adds a 3-inch QVGA display, Bluetooth, DAB+, supported video and image playback and rear-view camera input to a short single-DIN chassis. The small display can show a compatible camera image but does not replace direct observation. Confirm viewing angle and position, and do not play distracting video where the driver can watch it while moving.
Its three pre-out pairs and DSP functions provide more system-expansion options than the simplest receivers, but gain, crossover and time alignment need measured setup. Match amplifier input sensitivity and speaker limits. A reverse-camera installation requires fused power, safe trigger connection and weatherproof routing; never connect to an unknown multiplexed lamp circuit without the required interface.

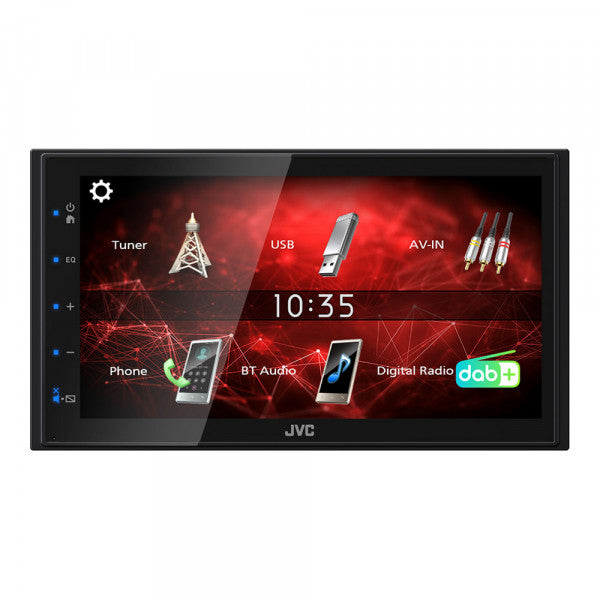

KW-M27DBT 6.8-inch touchscreen receiver
KW-M27DBT uses a fixed 6.8-inch capacitive display in a double-DIN format with DAB+, Bluetooth, Android USB mirroring, rear USB, three pre-out pairs and rear-camera input. It is an archived model on JVC's current site, so use the linked installation manual and supported-device information for that exact receiver rather than assuming current wireless CarPlay or Android Auto features.
Wired Android mirroring depends on a compatible phone, operating system, permissions and cable; it is not the same as Android Auto. Position the rear USB extension where it cannot chafe and where the driver does not need to reach dangerously. Calibrate and clean the screen only as directed and retain access to dashboard controls and hazard switches.
Installation, configuration and verification
Obtain the vehicle shutdown procedure, radio code and trim-removal instructions. Disconnect the correct battery terminal only when safe for the vehicle, and protect airbag and high-voltage wiring. Use a fascia, brackets and loom designed for the vehicle; fuse permanent and switched supplies and provide a sound earth. Insulate unused outputs individually rather than bundling exposed conductors.
Before final assembly, test memory retention, ignition control and parasitic shutdown. Set region and tuner, pair calls, verify microphone clarity and confirm the steering interface maps each command correctly. Play every speaker at low volume to check polarity and distortion. Test reverse camera with a spotter, then secure cables and refit trim without pinching. Retain the model manual and interface part numbers with the vehicle record.
From identification to a checked result
| Stage | Good practice for this range | Mistake to avoid |
|---|---|---|
| Survey | Record factory unit, aperture, depth, harness, antenna and retained functions | Ordering from DIN size alone |
| Match | Select exact JVC model and vehicle fascia, loom and interfaces | Transferring features between similar KD codes |
| Isolate | Preserve codes and shut down power and SRS-sensitive areas correctly | Cutting factory wiring live |
| Install | Mount securely, fuse circuits and route USB, microphone and camera safely | Twisting and taping bare connections |
| Verify | Test every source, speaker, control, camera and sleep current | Refitting dash trim after only a power-on check |
Record the JVC model, serial, firmware where relevant, fascia, harness, steering interface, antenna adaptor and camera parts. This prevents future diagnosis from treating the installation as a generic aftermarket radio.
Reading real JVC references
The JVC names below are examples from the current range and show why the complete description matters. They are not universal JVC recommendations and should not be treated as a fitment list. Within JVC, a shared family word can conceal a different dimension, connector, material, pack format, operating condition or installation side.
| Example listing | What to verify beyond the name |
|---|---|
| JVC KD-DB922BT MP3 CD Player with Bluetooth, DAB Tuner, AUX and USB | KD-DB922BT, KD-T822BT, KD-X182DB, KD-X561DBT or KW-M27DBT exact model |
| JVC CD Tuner, Bluetooth | Single or double DIN opening, body depth, brackets and fascia |
| JVC Shallow Mount, Mechless DAB+ Media Player | Vehicle loom, CAN retention, amplifier, speaker impedance and steering controls |
| Mechless DAB - Bluetooth Media Player - Single Din - 3 inch Screen | FM/DAB aerial, USB device, microphone, camera signal, trigger and model manual |
| JVC Shallow Mount, Mechless DAB+ Media Player with Bluetooth Phone and Audio streaming | KD-DB922BT, KD-T822BT, KD-X182DB, KD-X561DBT or KW-M27DBT exact model |
KD-X182DB and KD-X561DBT are both shallow DAB receivers, but only KD-X561DBT has evidenced Bluetooth, 3-inch display and camera input. Keep the full suffix throughout selection.
Common errors around JVC products
- Assuming KD-T822BT includes DAB because KD-DB922BT does.
- Assuming KD-X182DB has Bluetooth because other mechless JVC products do.
- Buying a single or double-DIN receiver without checking fascia, brackets and rear depth.
- Connecting ISO plugs without verifying vehicle CAN, amplifier and antenna-power functions.
- Expecting a DAB receiver to include or work with every factory aerial automatically.
- Treating Android USB mirroring on KW-M27DBT as wireless Android Auto or CarPlay.
- Connecting a factory camera without checking signal format, voltage and reverse trigger.
- Refitting the dash before testing steering controls, memory, all speakers and battery sleep current.
JVC questions and answers
Q: Which JVC models are in this range?
A: The five models are KD-DB922BT, KD-T822BT, KD-X182DB, KD-X561DBT and KW-M27DBT.
Q: Which models play CDs?
A: KD-DB922BT and KD-T822BT contain CD mechanisms; the other three are mechless.
Q: Which models have DAB+?
A: KD-DB922BT, KD-X182DB, KD-X561DBT and KW-M27DBT; KD-T822BT is not listed with DAB.
Q: Does KD-X182DB have Bluetooth?
A: The evidenced and official feature set does not list Bluetooth for that model.
Q: Which model has a 3-inch screen?
A: KD-X561DBT is the single-DIN receiver with a 3-inch QVGA display.
Q: Which model has a 6.8-inch screen?
A: KW-M27DBT is the shallow double-DIN 6.8-inch capacitive receiver.
Q: Does KW-M27DBT support wireless Android Auto?
A: No such feature is evidenced; it supports specified wired Android USB mirroring.
Q: Is a DAB aerial included?
A: The live KD-X182DB and KW-M27DBT descriptions state that no aerial is included; verify every pack.
Q: Will ISO wiring make installation plug-and-play?
A: Not necessarily. Vehicle CAN, amplifier, controls and antenna functions may need dedicated interfaces.
Q: Can the factory reversing camera be reused?
A: Only with compatible video, voltage, trigger and an approved adaptor where required.
Q: Can steering-wheel controls be retained?
A: The models are ready for supported wired interfaces, but the vehicle-specific adaptor must be selected.
Q: What should be tested after installation?
A: Test power memory, all sources, calls, speakers, controls, DAB/FM, USB, camera and vehicle sleep current.
