SACHS is a ZF Aftermarket product brand associated here mainly with manual-transmission clutch and damping components. The collection is led by clutch kits and flywheels, with concentric and external slave cylinders, master cylinders, release and pilot bearings, clutch discs, pressure plates, release forks and selected actuators. It also includes telescopic shock absorbers for road suspension and commercial-vehicle cab suspension, plus a small number of related bellows and fitting products.
A clutch kit must match the exact engine, gearbox, input-shaft spline, friction diameter, pressure-plate design and release system. Check whether the application uses a conventional release bearing and fork or a concentric slave cylinder, and whether the flywheel is dual-mass or another specified design. Kit contents vary, so verify the listed components rather than assuming that a flywheel, hydraulic unit, pilot bearing, bolts or alignment tool is included. Record the complete SACHS number from each removed component before the old assembly is separated.
Diagnosis before dismantling reduces repeat labour. Clutch slip, judder, drag, noise or heavy pedal operation can arise from contamination, flywheel condition, release-system wear, hydraulics, engine or gearbox oil leaks, mount movement or installation error. ZF advises inspecting the complete actuation system and checking clutch-disc lateral run-out before assembly. A dual-mass flywheel requires the applicable SACHS test data and method; free movement by itself is not a universal pass or fail test.
Shock absorbers need confirmation of axle, side where handed, mounting design, operating type and application parameters. Some records in this range specify oil-pressure telescopic dampers with eye or pin mountings, while others are for driver-cab suspension. Dampers serving the same road axle should be assessed as a pair, and spring-strut work requires proper spring-compression equipment. Follow current torque, bleeding, alignment and test procedures, keep clutch friction surfaces uncontaminated and resolve every leak before reassembly. The SACHS parts below are intended for carefully identified driveline or suspension repairs.
Your Current Vehicle
Or
Select Your Vehicle
Popular Part Types
Only part types stocked for this brand are shown.
Car Parts Categories
Browse the main catalogue areas in which this brand has matching products.
Other popular manufacturers of aftermarket automotive parts
Explore established alternatives with related products in the current catalogue.
SACHS clutch, flywheel and damping components
SACHS is part of ZF Aftermarket's portfolio. Official SACHS information covers clutch systems, dual-mass flywheels, hydraulic release components and shock absorbers for passenger cars, light commercial vehicles and heavier applications. The collection here closely follows those strengths: clutch kits are the largest family, followed by flywheels, clutch cylinders and release parts, with a distinct group of road and cab dampers.
These are high-labour and often safety-relevant repairs. Selection needs drivetrain codes and technical features, while diagnosis must consider the whole system. Replacing a friction set without finding an oil leak, or a damper without checking its mount and spring, can leave the original symptom untouched.
Identify the exact SACHS product family
| Product | Function | Key identifiers | Adjacent items to inspect |
|---|---|---|---|
| Clutch kit | Couples engine torque to a manual transmission and permits disengagement | Engine and gearbox codes, diameter, spline, pressure plate, release design and kit contents | Flywheel, seals, fork, guide tube, pilot bearing and hydraulics |
| Dual-mass flywheel | Filters torsional vibration between engine and transmission | Exact application, starter ring, sensor detail, bolt pattern and SACHS test specification | Clutch, crank seal, starter engagement and engine running condition |
| Concentric slave cylinder | Combines hydraulic slave action and release bearing around the input shaft | Transmission, connection, mounting, bearing height and fluid specification | Master cylinder, pipe, pedal mechanism and clutch kit |
| External master or slave cylinder | Creates or applies clutch hydraulic pressure | Bore, ports, pushrod, flange and vehicle build split | Hose, damper, reservoir, fork and pivot |

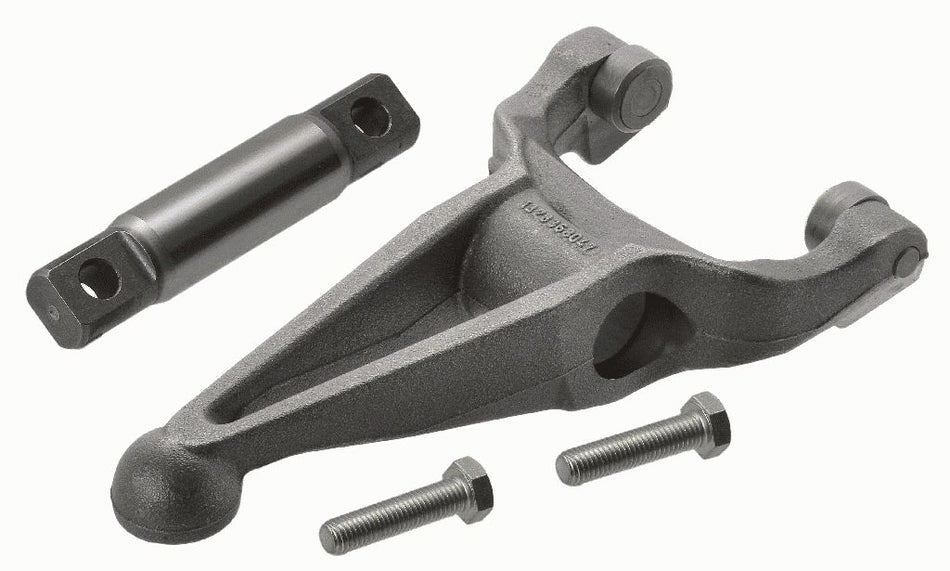

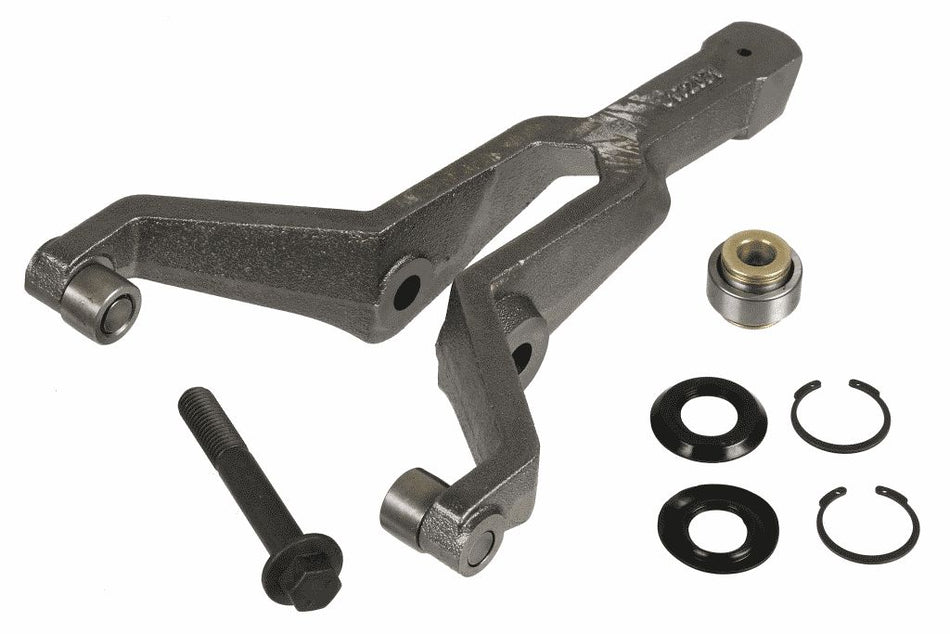

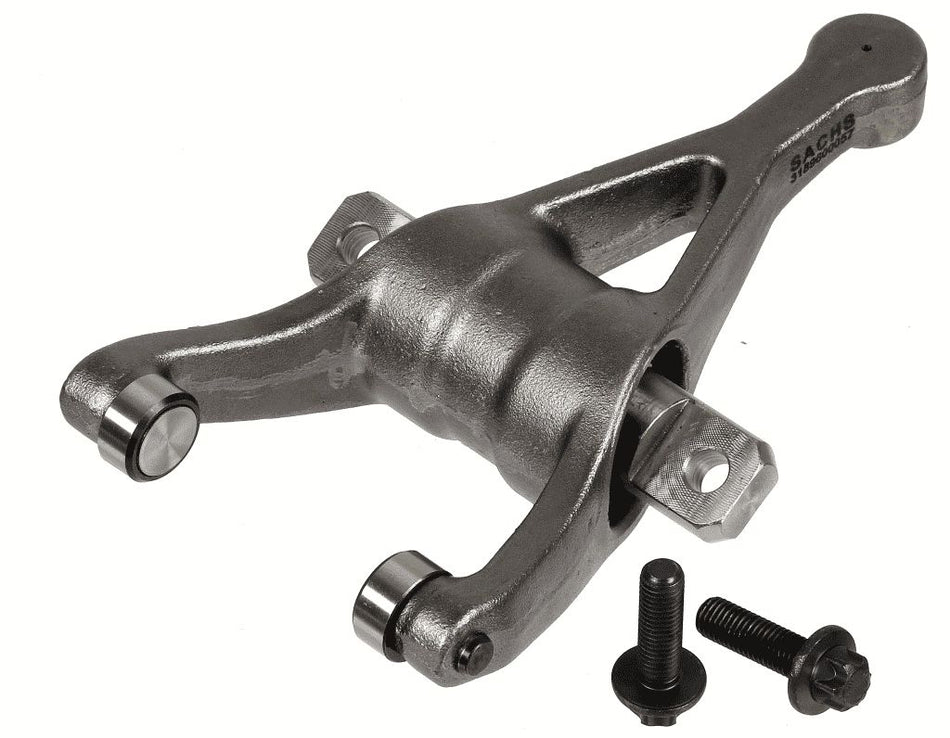

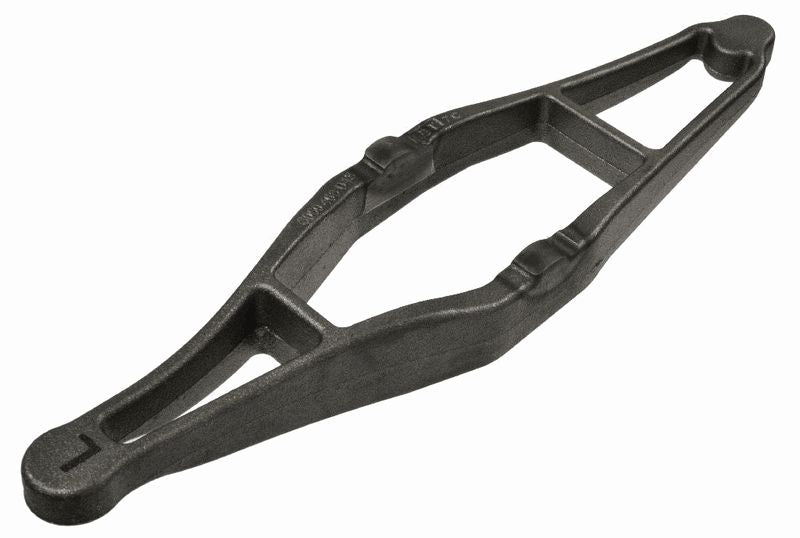

| Release component | Transfers pedal movement to the diaphragm spring | Bearing face, carrier, fork, pivot, guide and actuation type | Wear grooves, alignment and lubrication points |
| Shock absorber | Controls suspension or cab oscillation | Location, eye/pin mounts, dimensions, damping type and parameter code | Spring, bushes, top mount, bump stop, tyres and alignment |

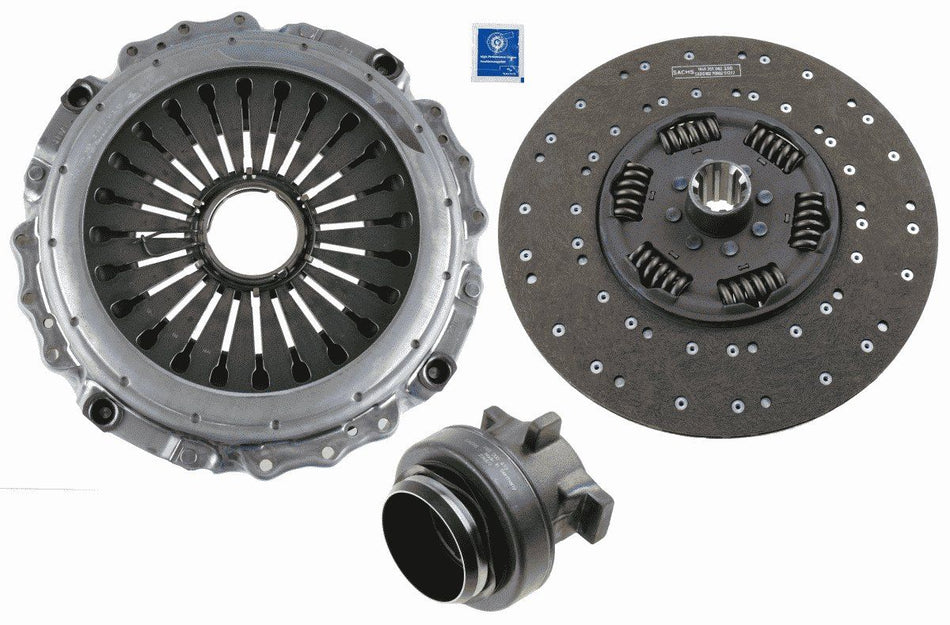

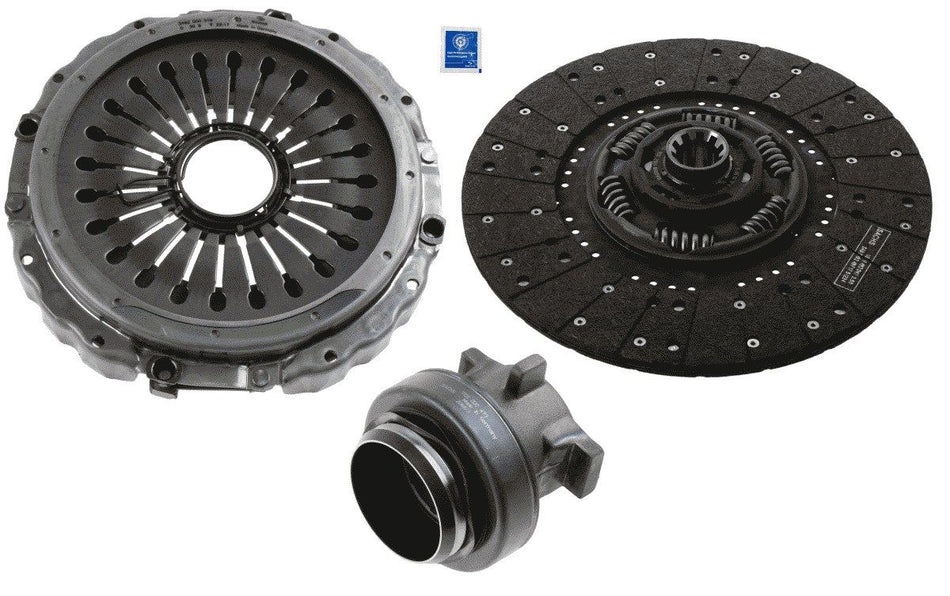

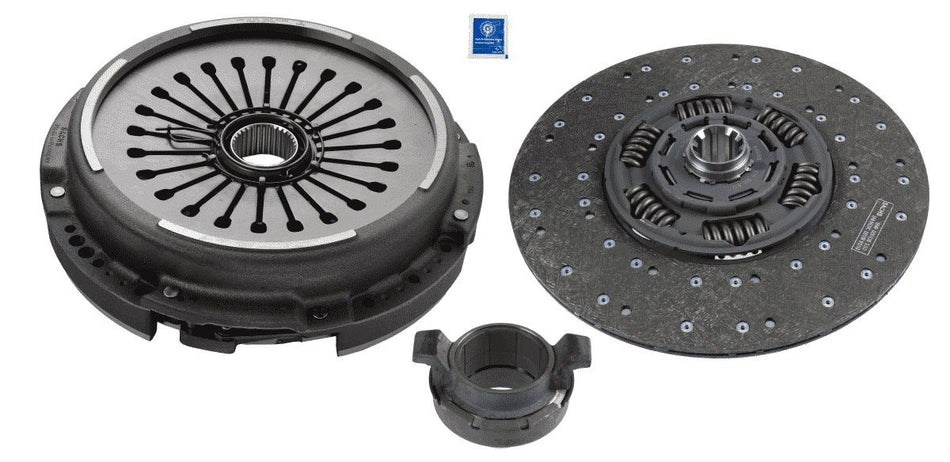

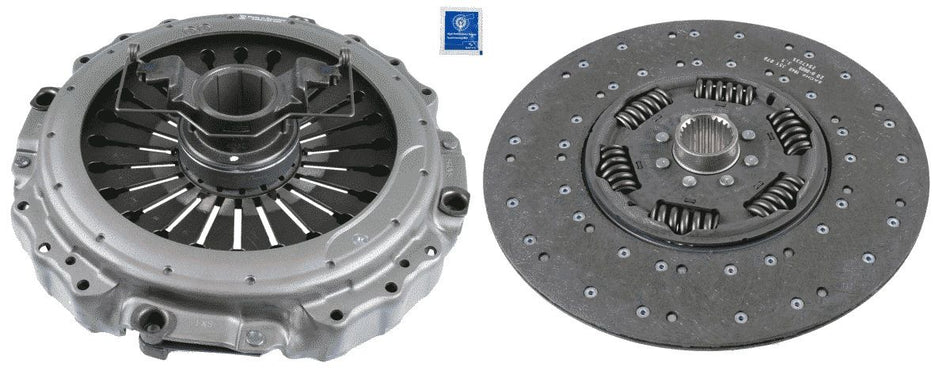

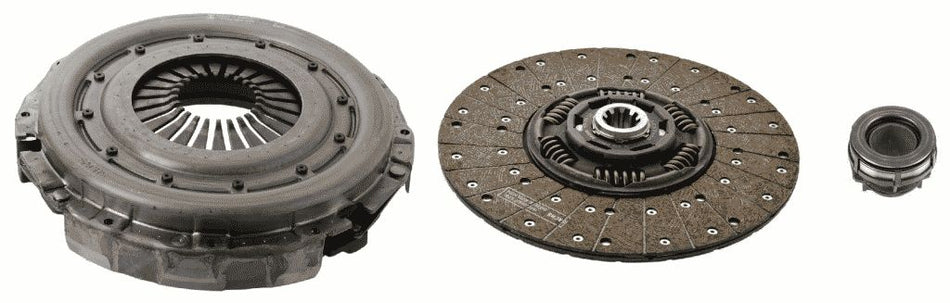

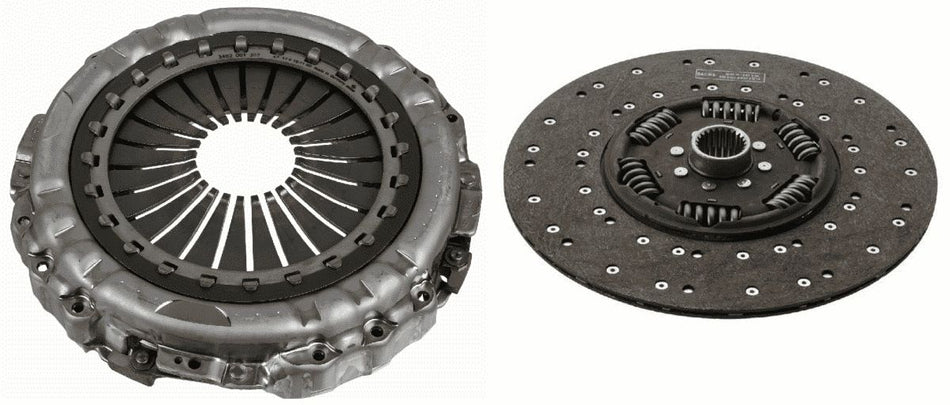

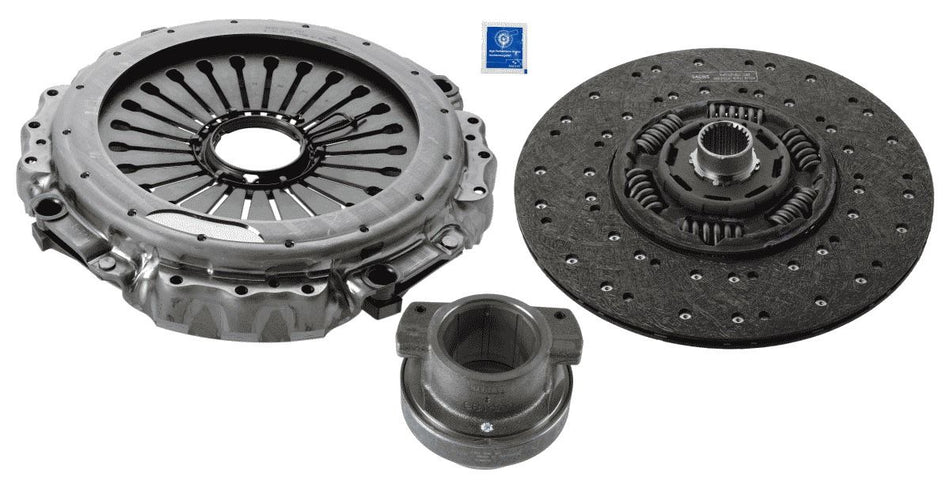

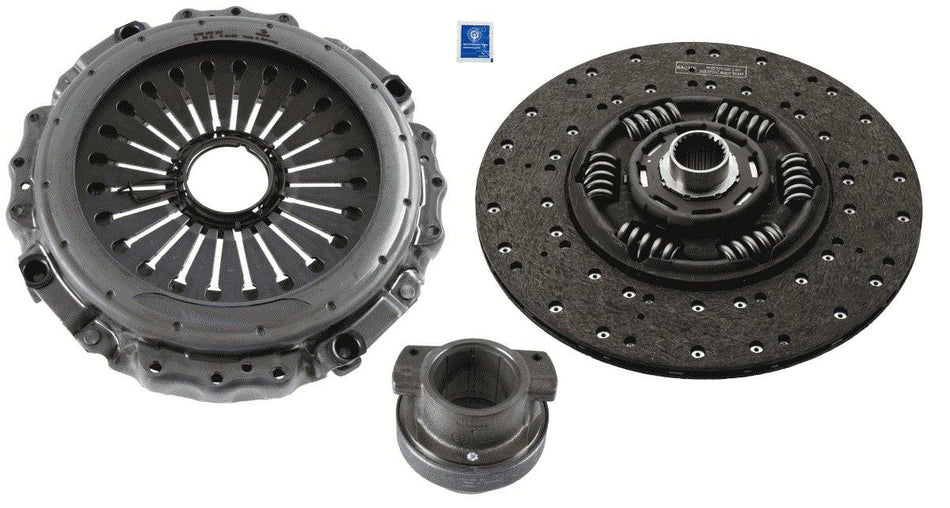

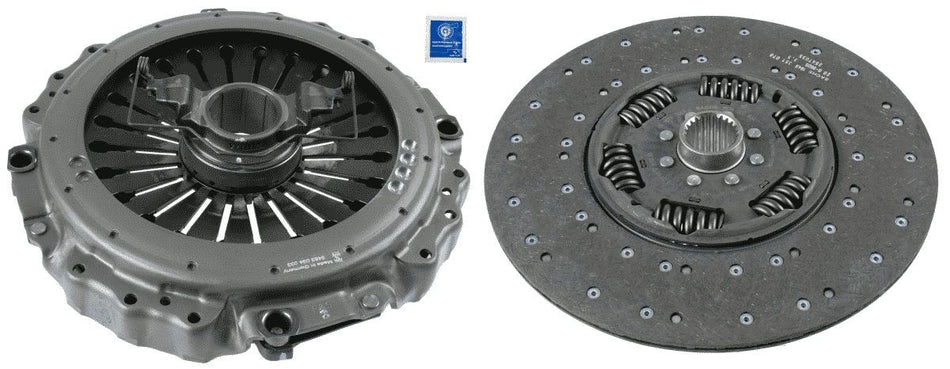

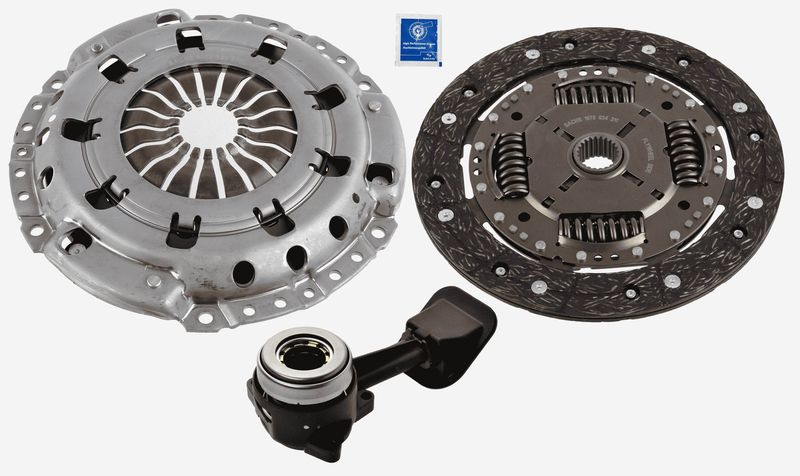

Clutch-kit specification and contents
Use the VIN plus exact engine and transmission identity. One model can combine different friction diameters, hub splines, flywheels and release arrangements. Compare the complete SACHS reference with current application information. If the removed clutch is believed correct, record numbers from the pressure plate, disc and flywheel before cleaning them; however, a previously fitted conversion or mismatched assembly should not become the sole basis for another order.
Read the bill of contents. A basic kit may comprise disc, pressure plate and release bearing, while another can include a concentric slave cylinder or dual-mass flywheel. Bolts and pilot bearings may be application-dependent. ZF's official range includes kits with DMF and SACHS XTend self-adjusting pressure-plate technology, but that does not mean every SACHS kit uses either feature. An XTend unit must be handled and installed using its specific instructions so its adjustment mechanism is not disturbed.
Friction diameter and spline data describe only part of compatibility. Clamp load, release travel, cover height, driven-plate offset and torsional characteristics are engineered for a drivetrain. Mixing individually plausible parts can create poor disengagement or vibration. Treat the matched reference and application record as primary, with dimensions as confirmation.
Diagnose clutch symptoms before removal
| Complaint | Potential causes | Evidence to gather |
|---|---|---|
| Slip under load | Worn or contaminated lining, inadequate clamp, release preload or engine output issue | Operating conditions, free movement, leak source and friction condition |
| Will not disengage | Hydraulic travel loss, warped disc, seized spline, pilot bearing or release fault | Pedal travel, fluid loss, slave movement, disc run-out and input-shaft condition |
| Judder on take-up | Friction variation, contamination, flywheel surface, mount movement or misalignment | Hot/cold behaviour, leak pattern, run-out and mounting condition |
| Rattle or knock | DMF, release bearing, gearbox, engine accessory or loose component | When noise occurs, engine speed, pedal position and isolated component checks |
| Heavy pedal | Cable or hydraulic fault, release geometry, fork/pivot wear or pressure-plate issue | Actuation load at separated stages and signs of binding |
| Fluid loss | Master, hose, joint, external slave or concentric slave leak | Reservoir trend, wet locations, bellhousing evidence and pressure test |
A clutch named by a diagnostic symptom is not automatically the failed part. For example, a dragging clutch may result from insufficient hydraulic stroke, a release fork worn at its pivots, a pilot bearing gripping the input shaft or excessive driven-disc run-out. Record when the fault appears and whether pedal position changes it. Inspect engine and gearbox mounts because drivetrain movement can influence take-up and linkage behaviour.
Fluid inside the bellhousing must be identified. Engine oil, gearbox oil and hydraulic fluid point to different causes, and all can threaten the new friction lining. Replacing only the contaminated clutch without rectifying the leak invites recurrence. Check crankshaft and gearbox input areas in accordance with the repair procedure while access is available.

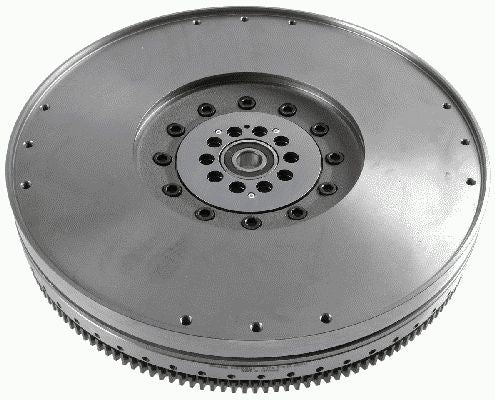

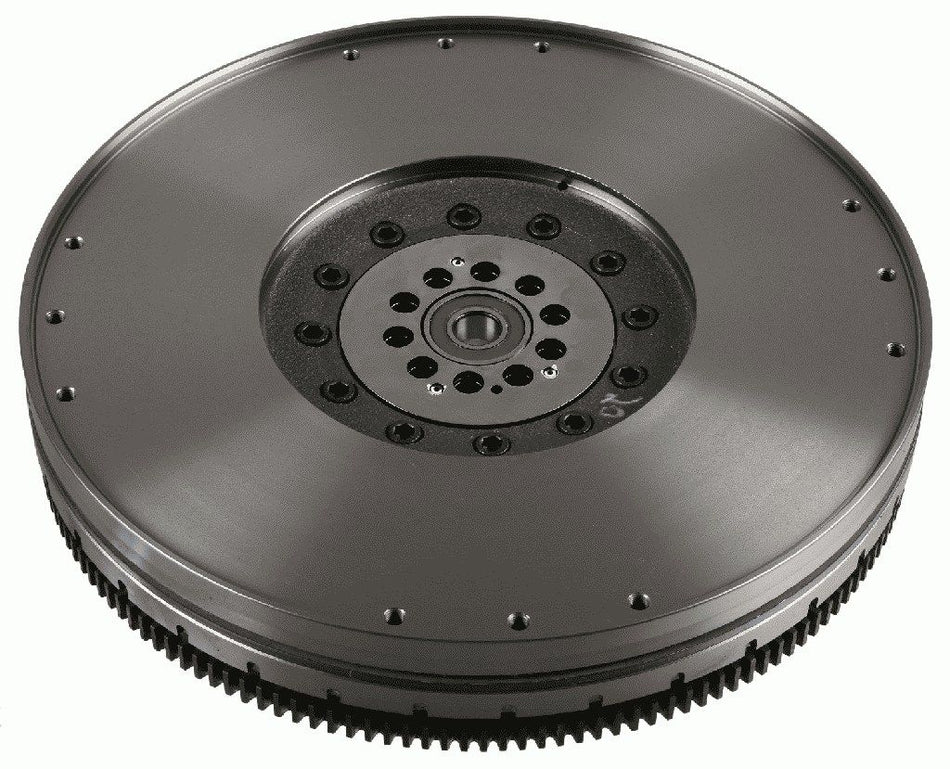

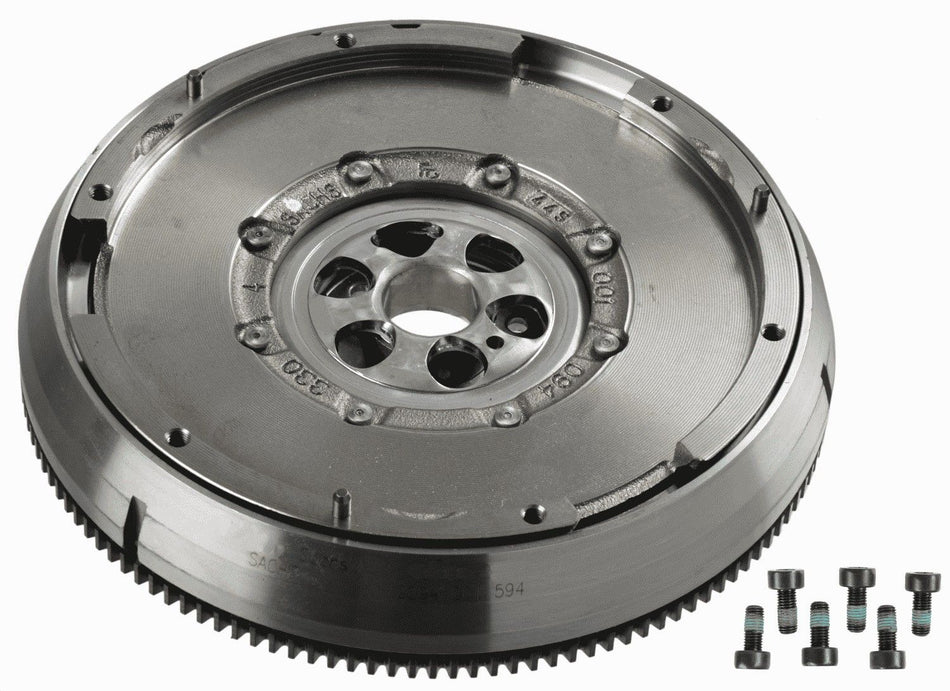

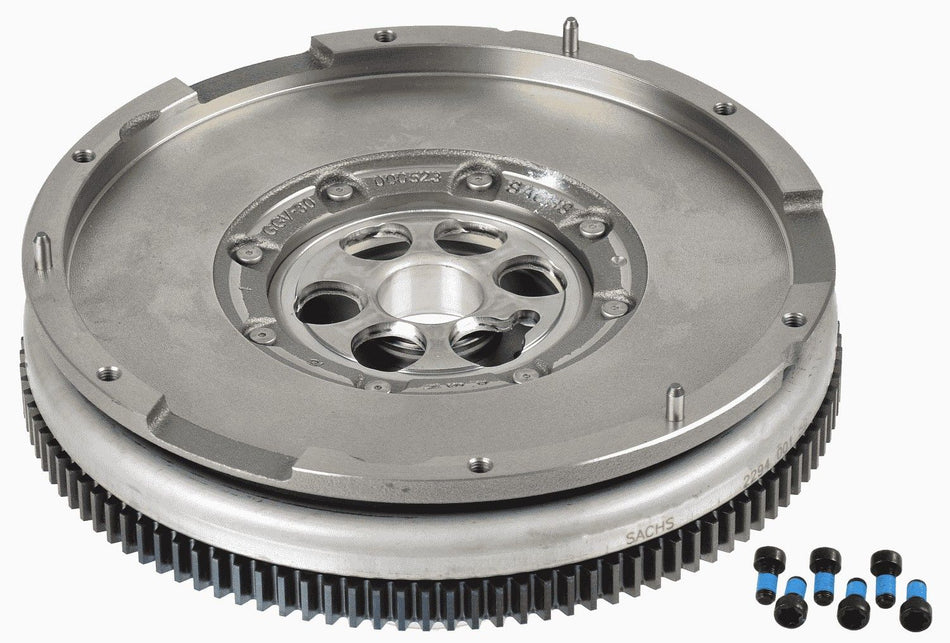

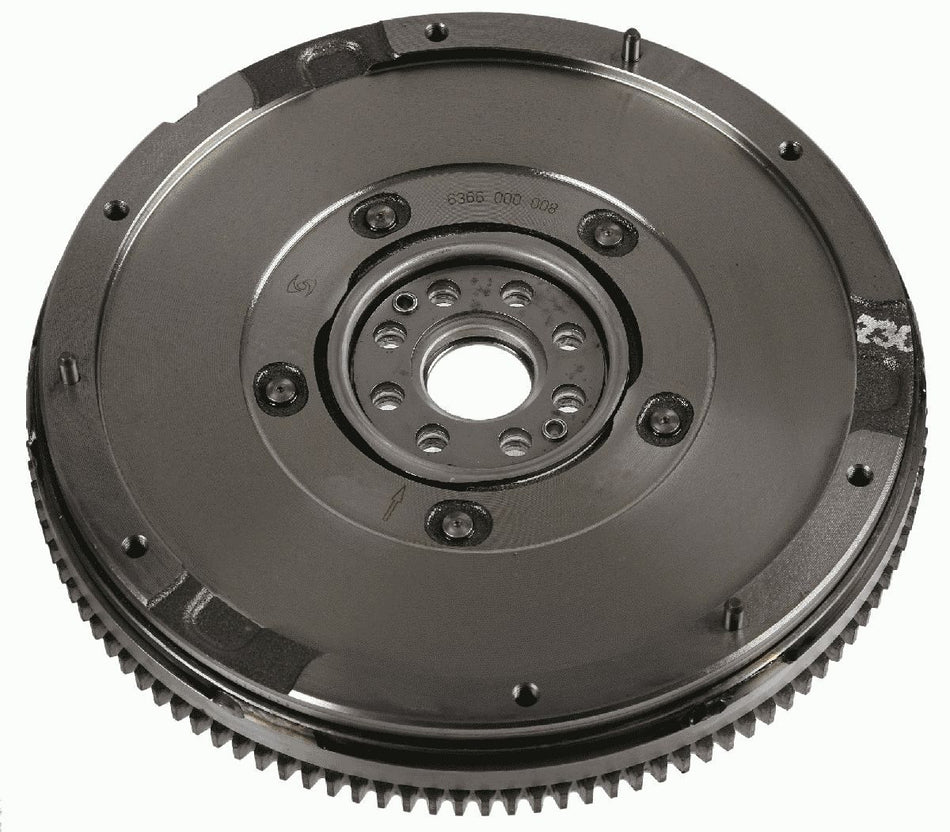

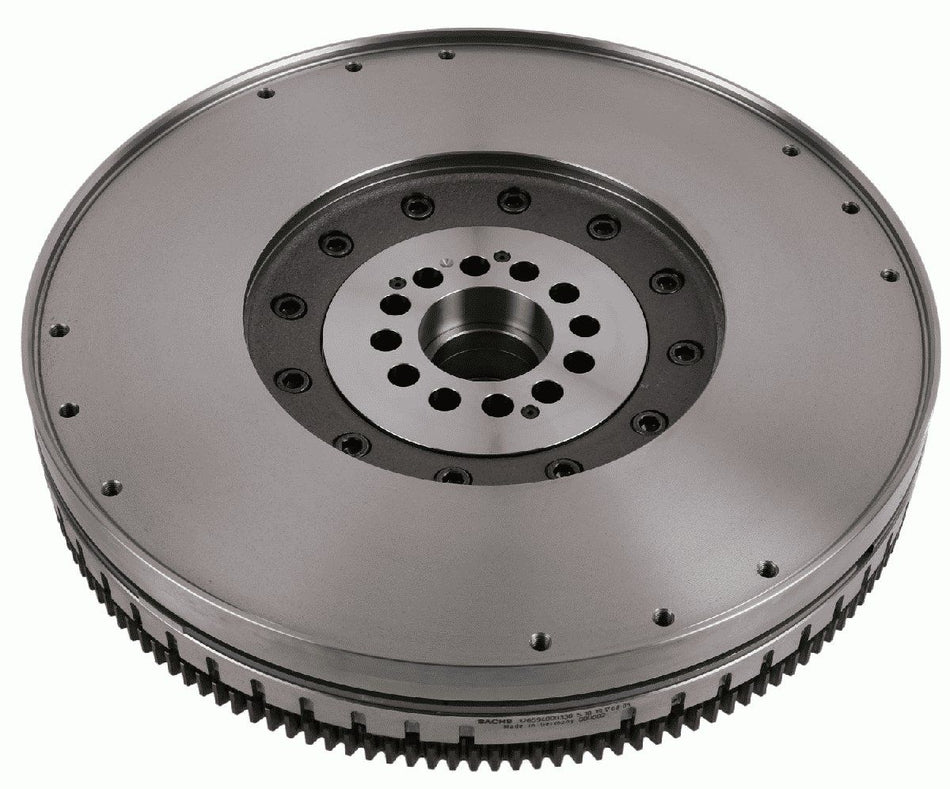

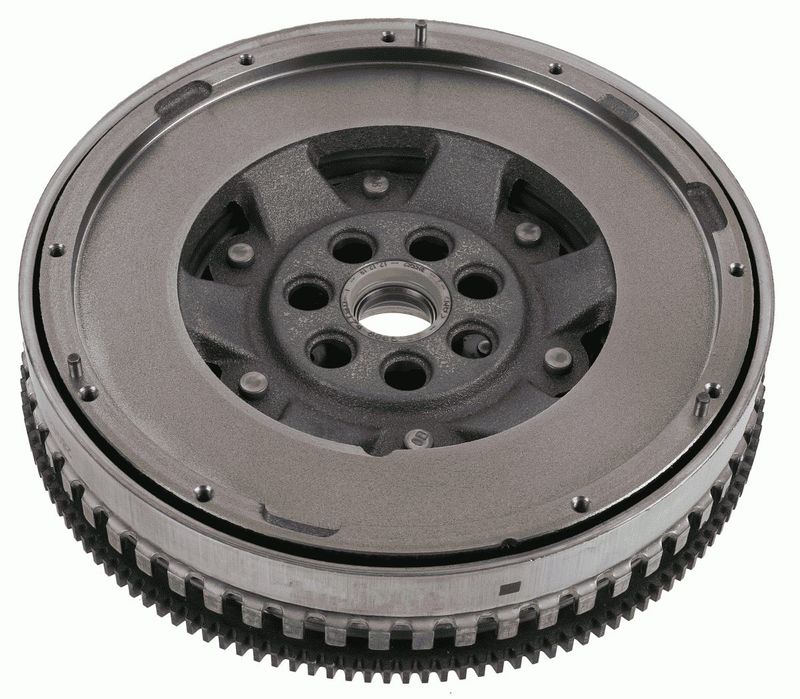

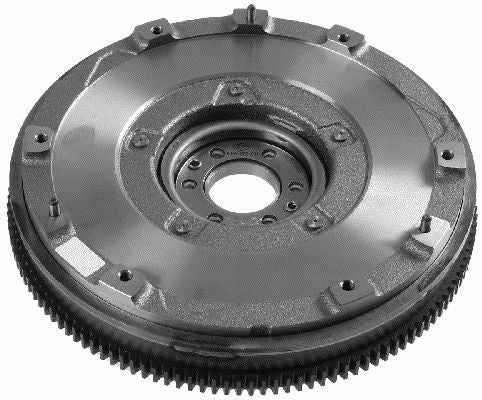

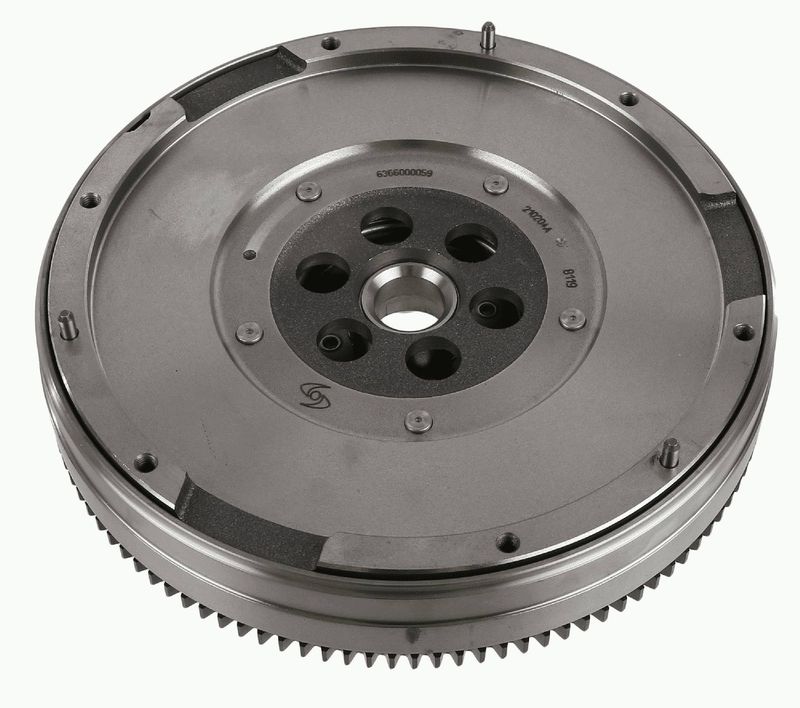

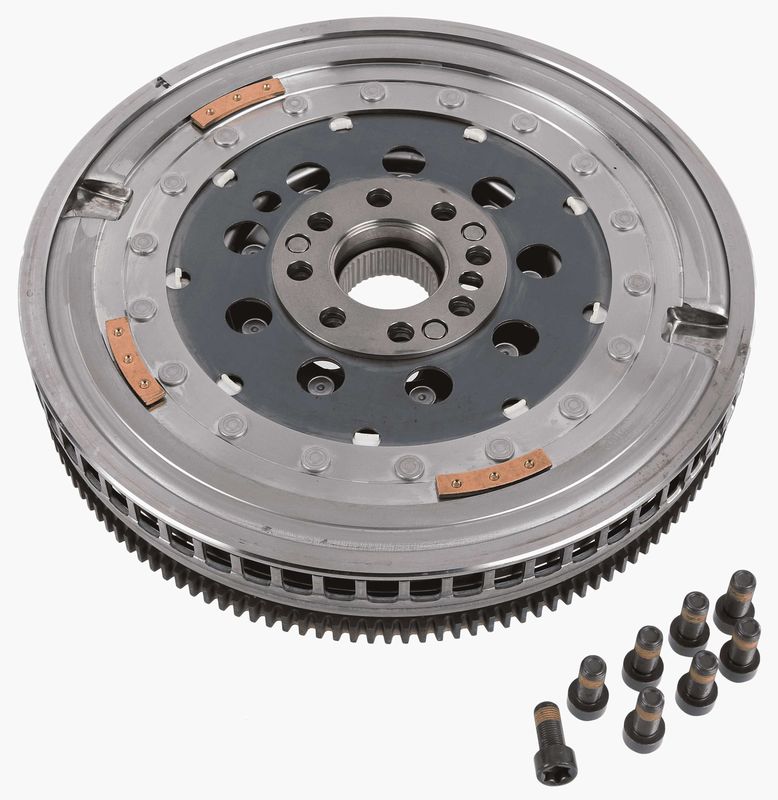

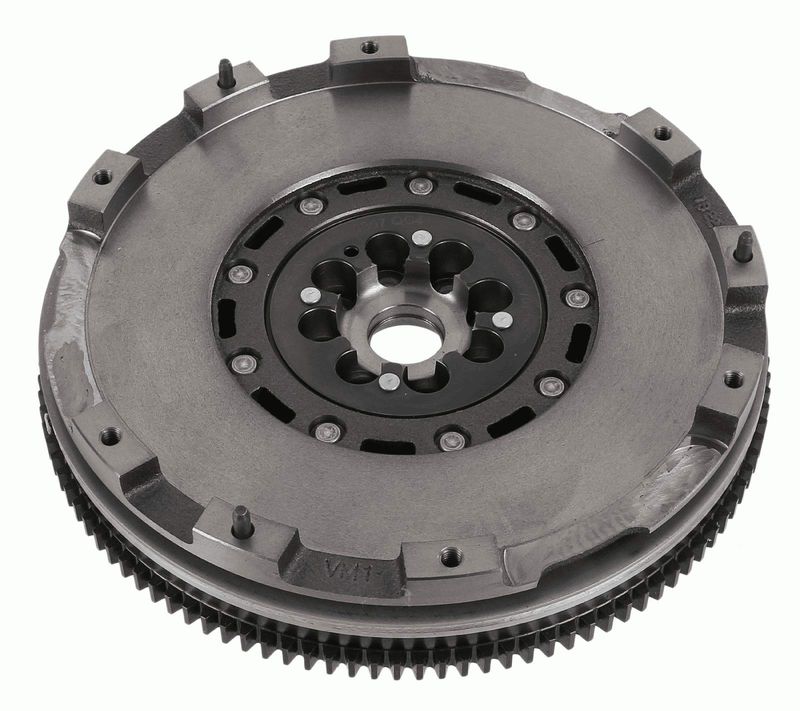

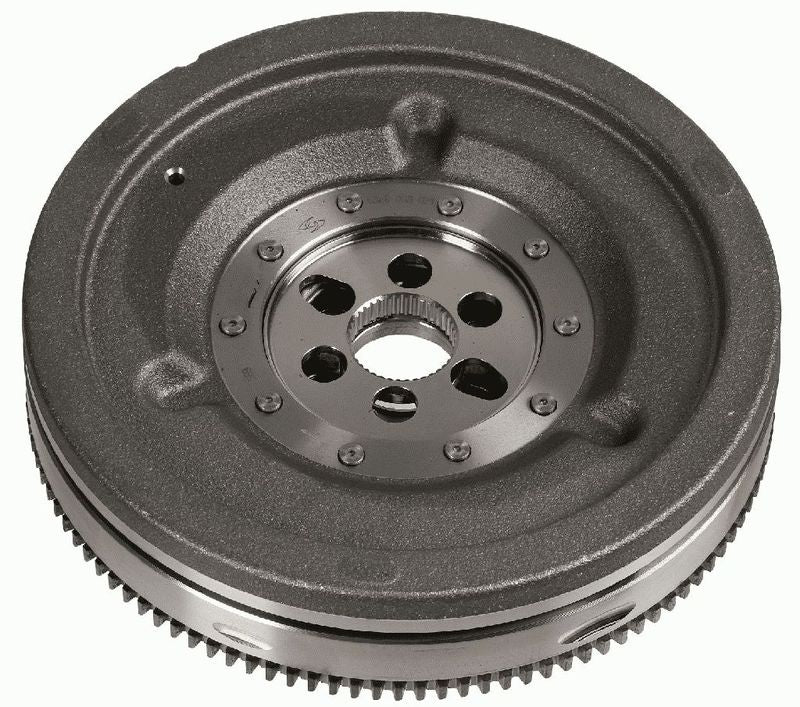

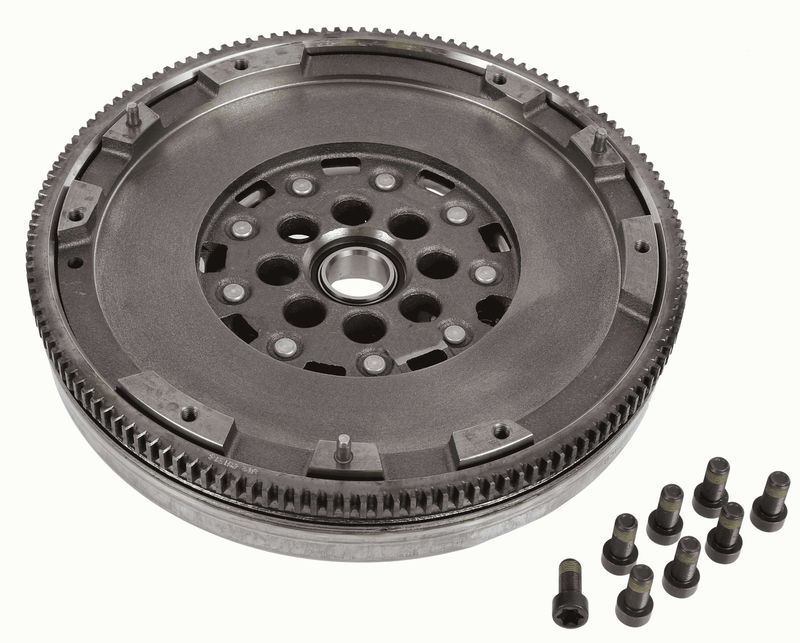

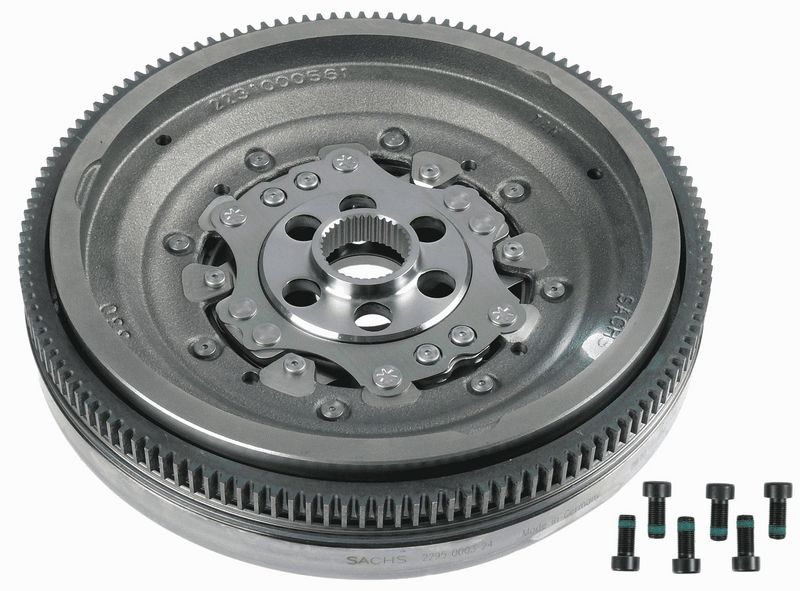

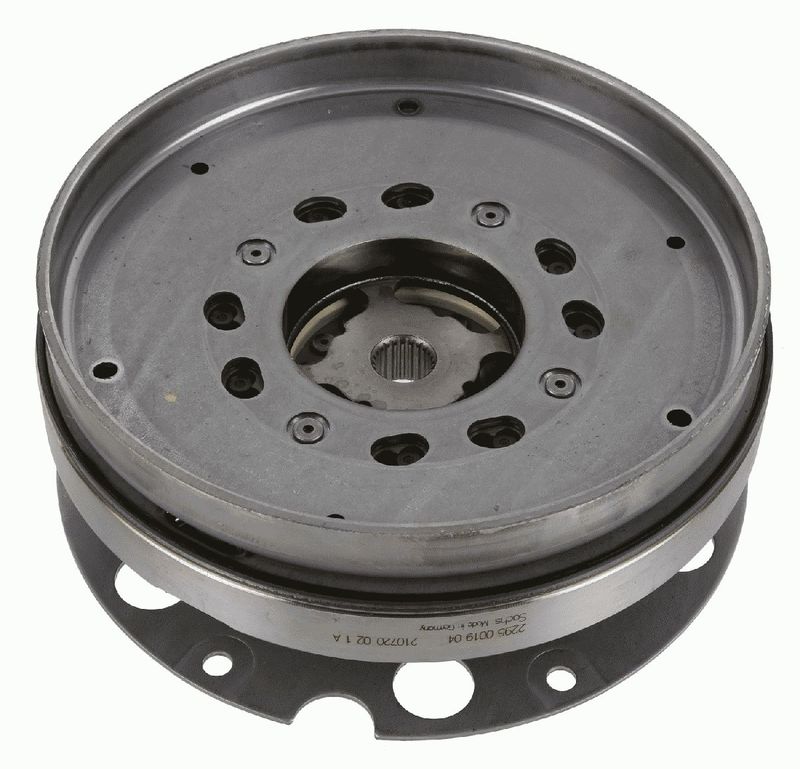

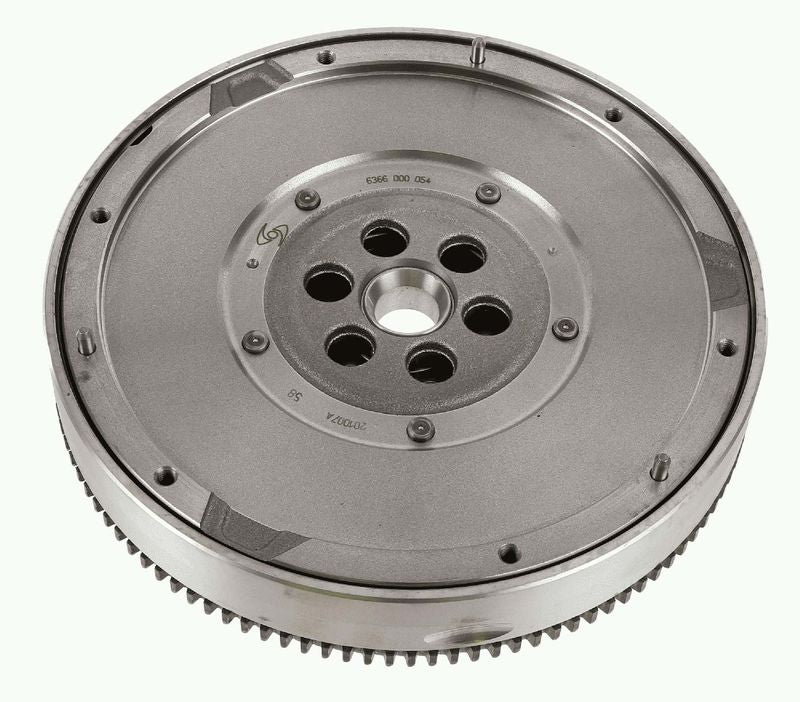

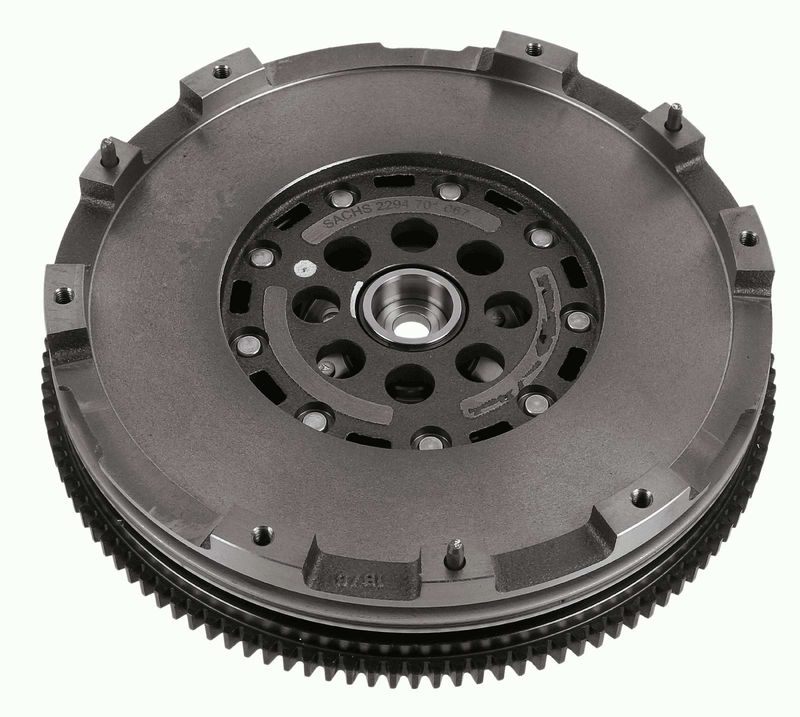

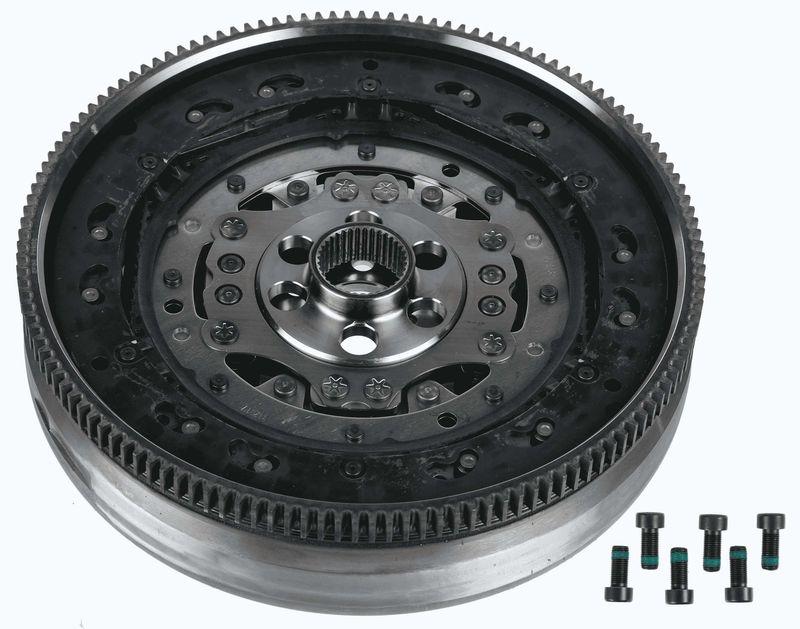

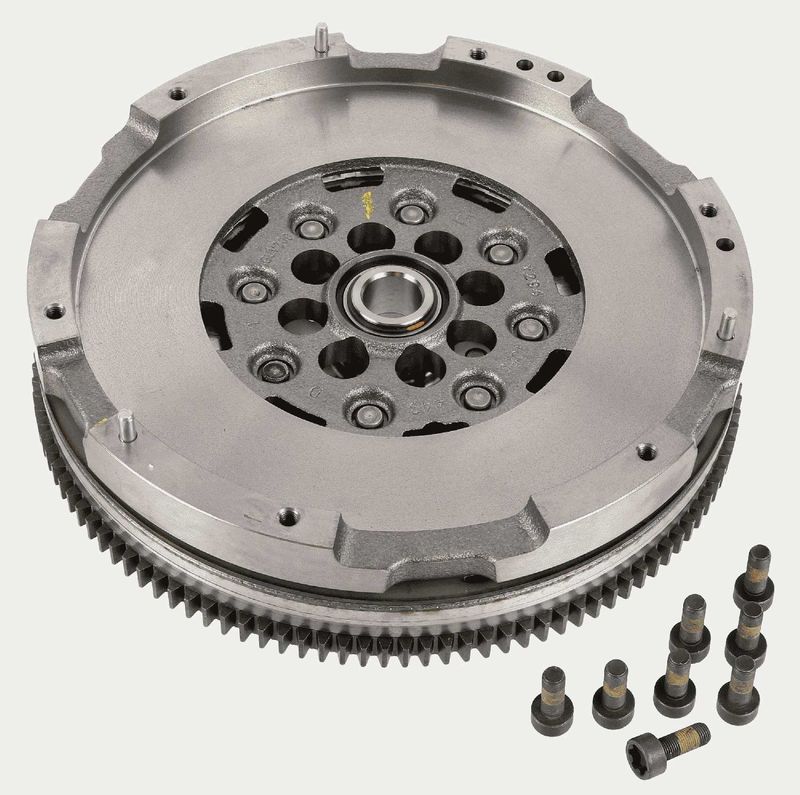

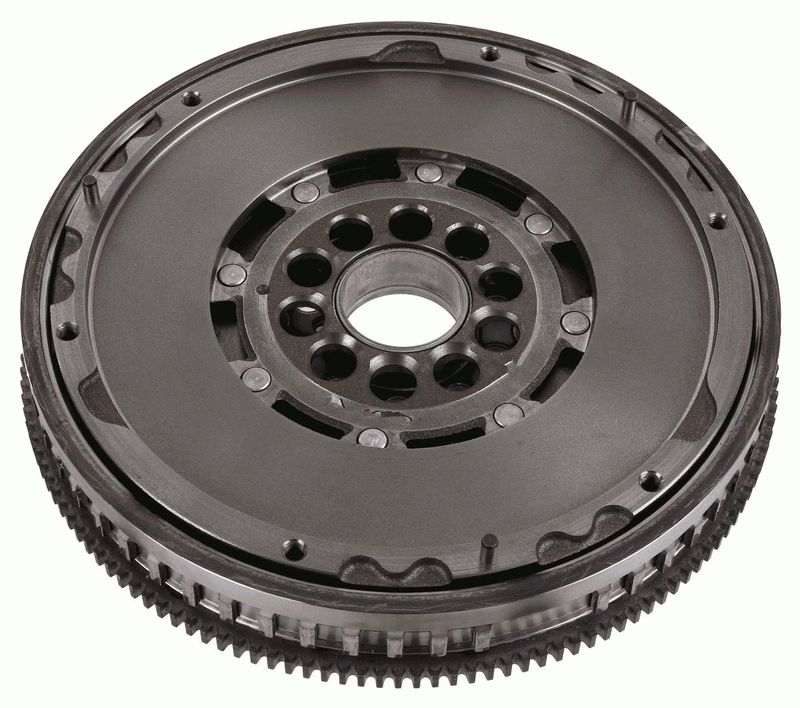

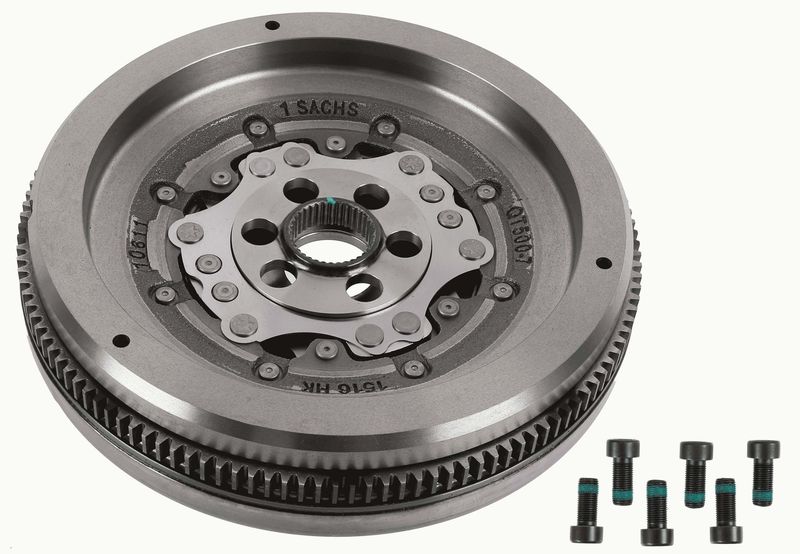

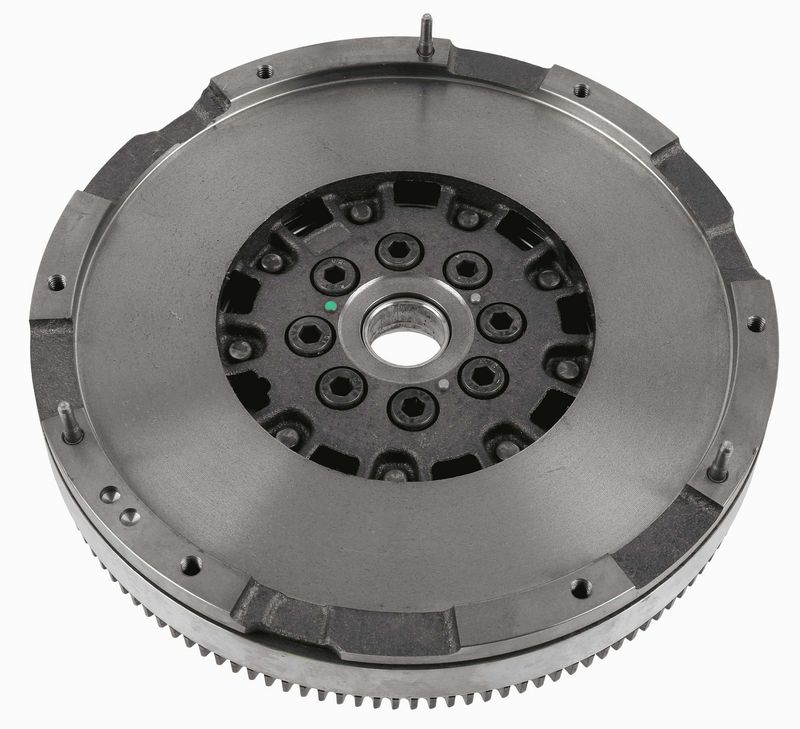

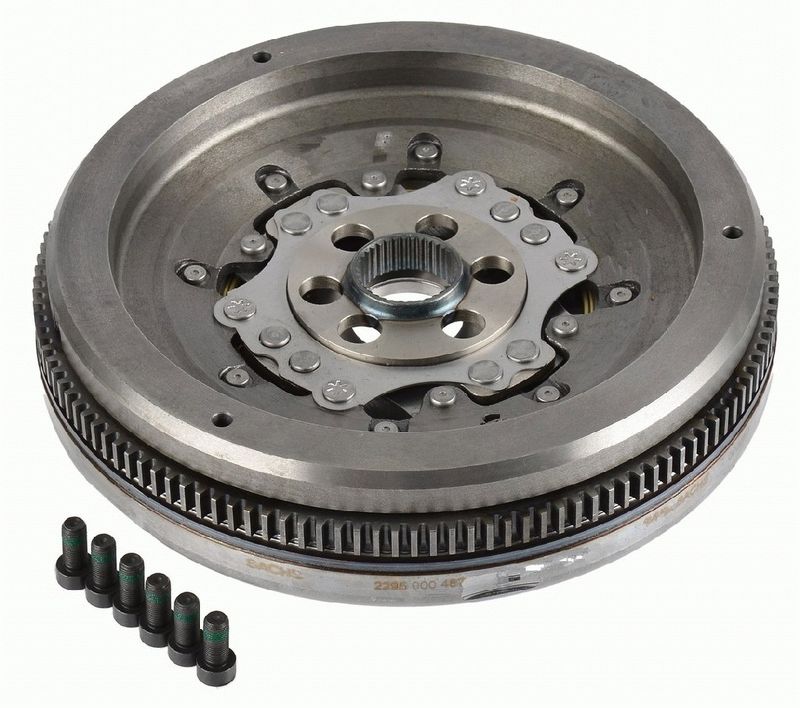

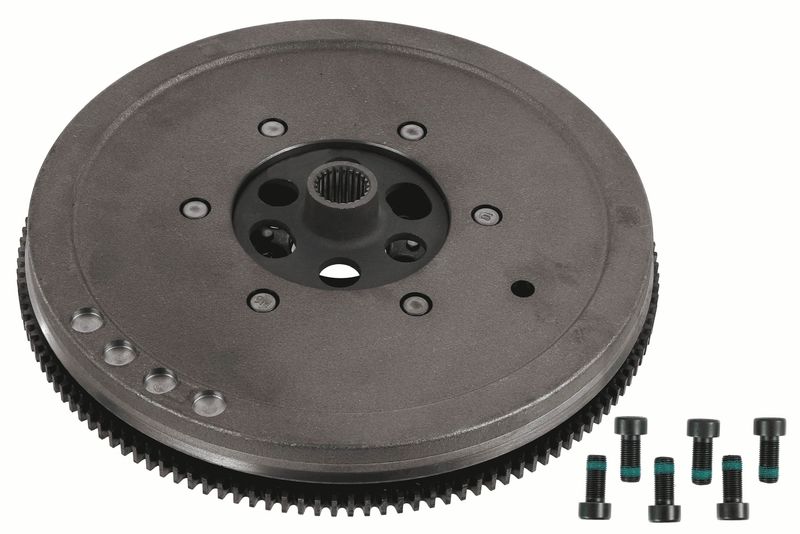

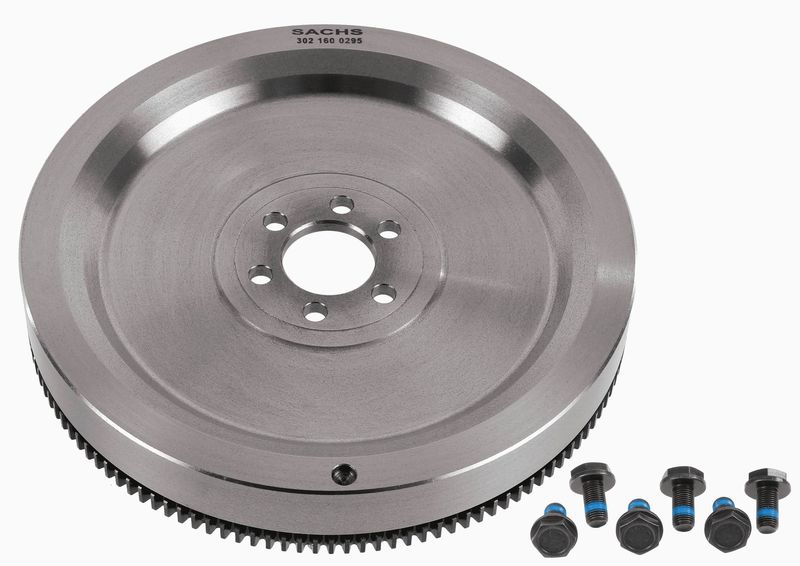

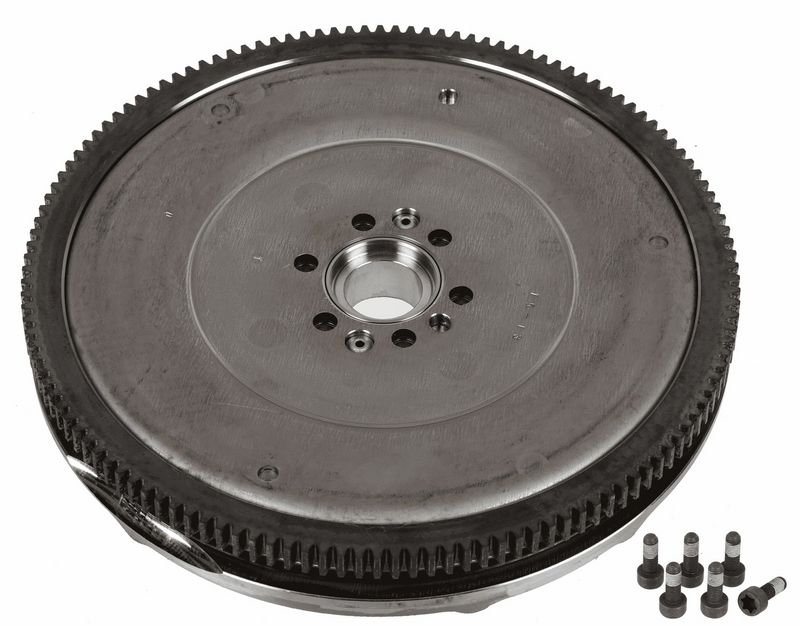

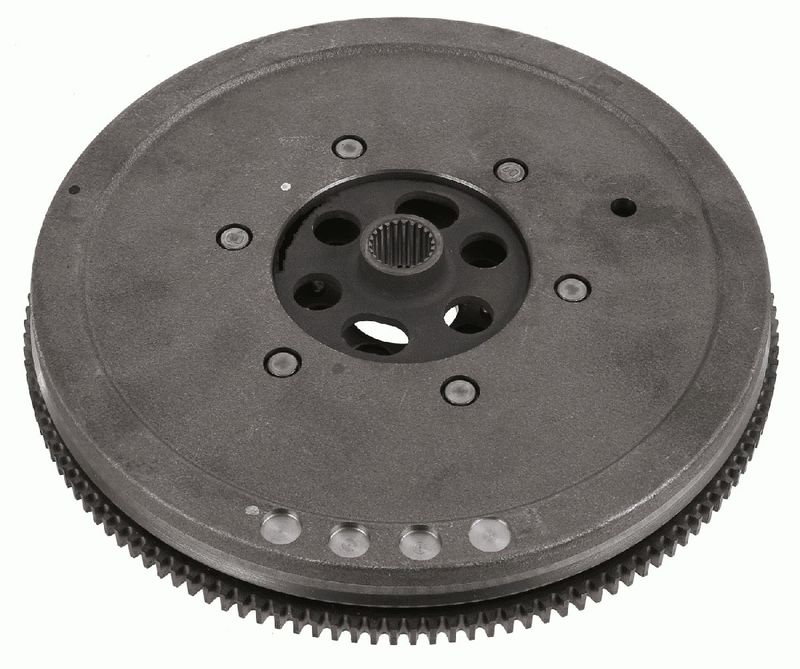

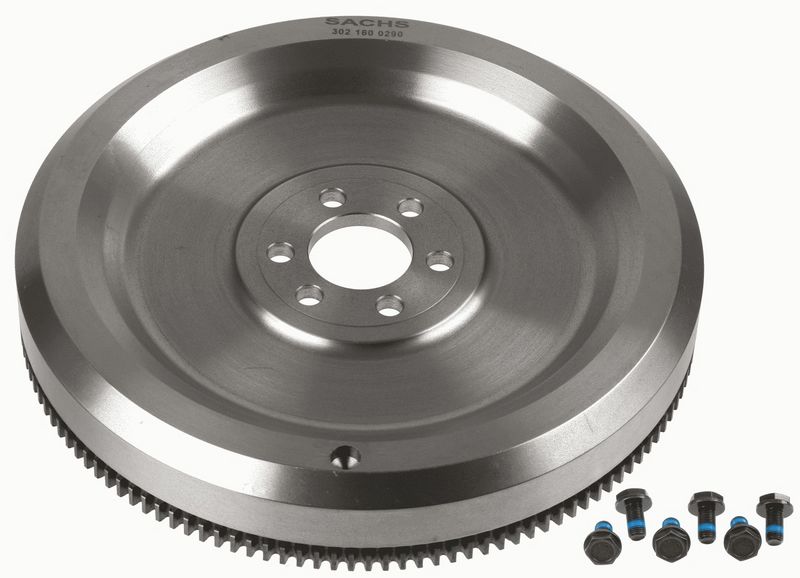

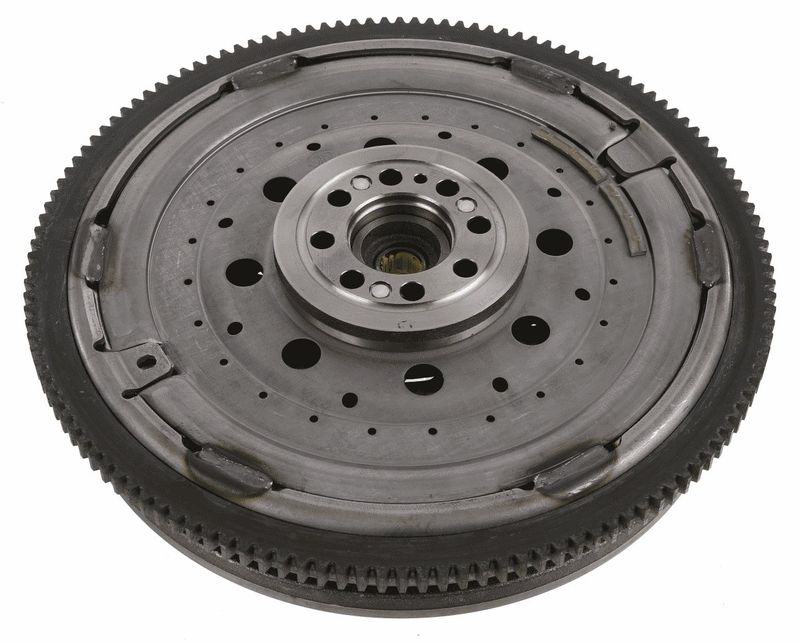

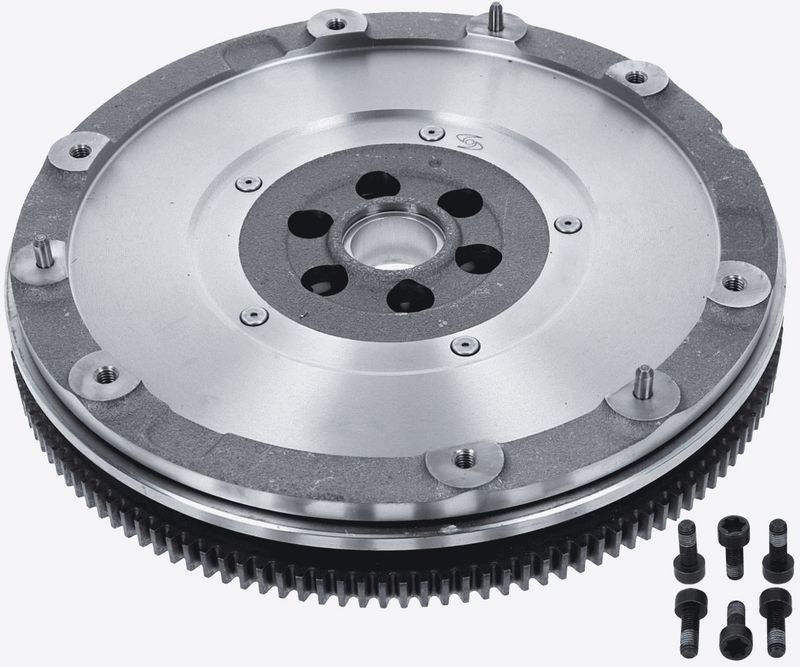

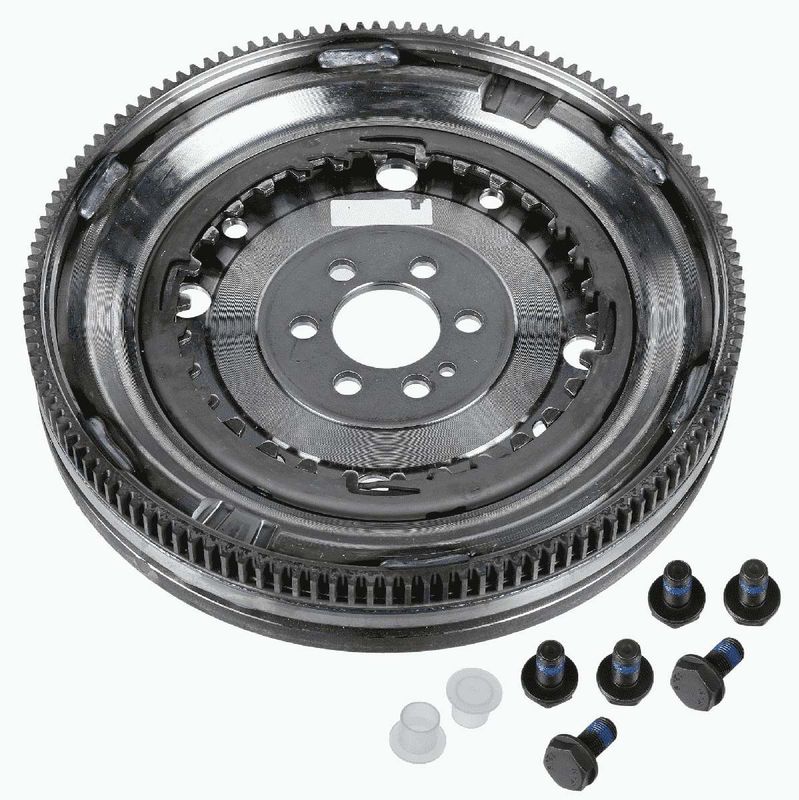

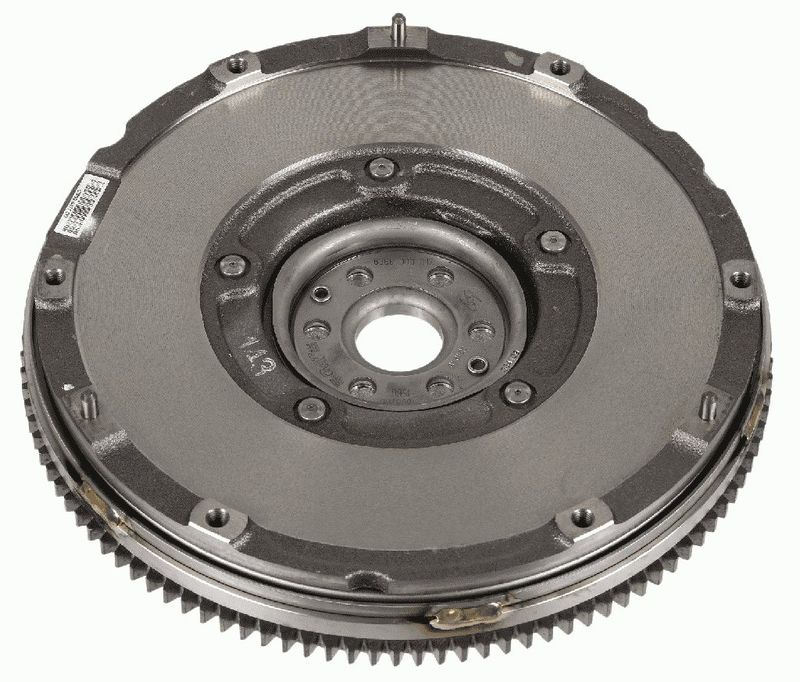

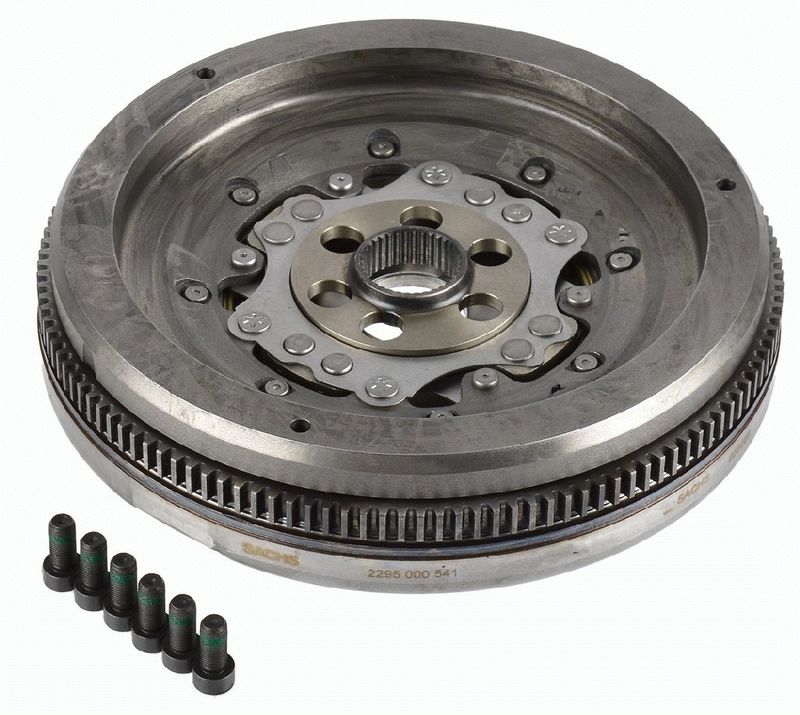

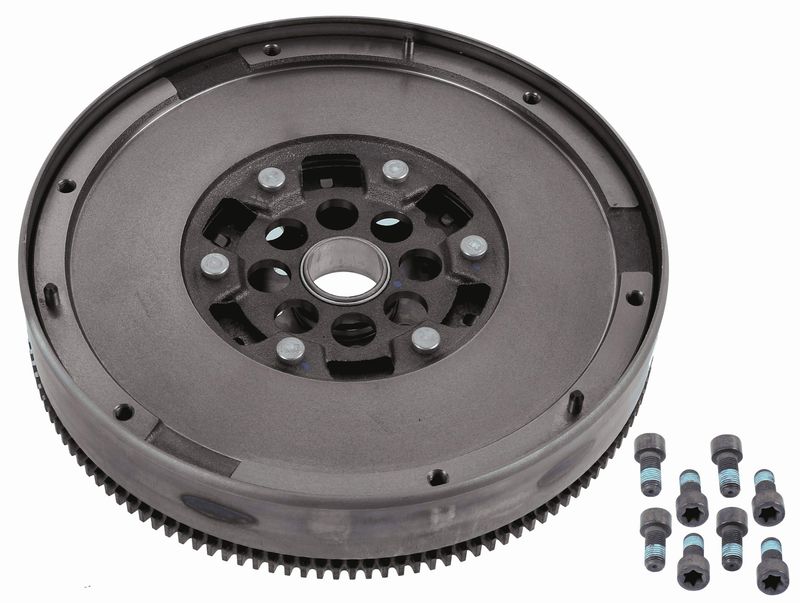

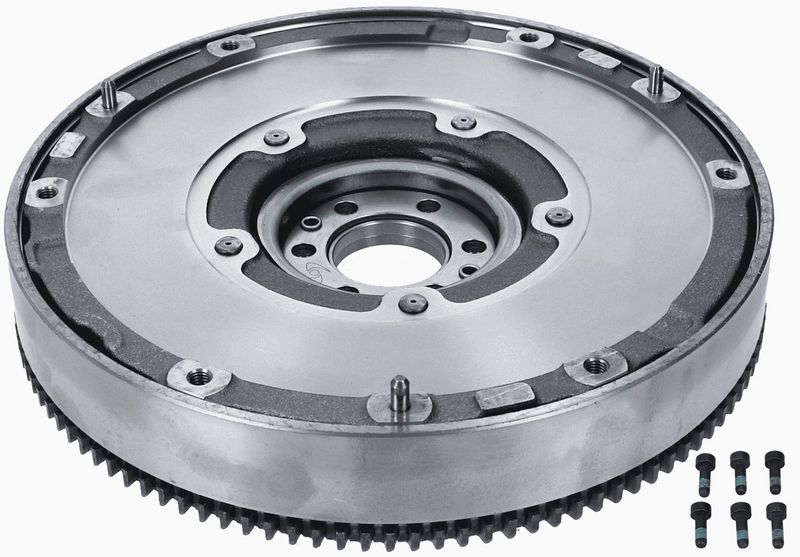

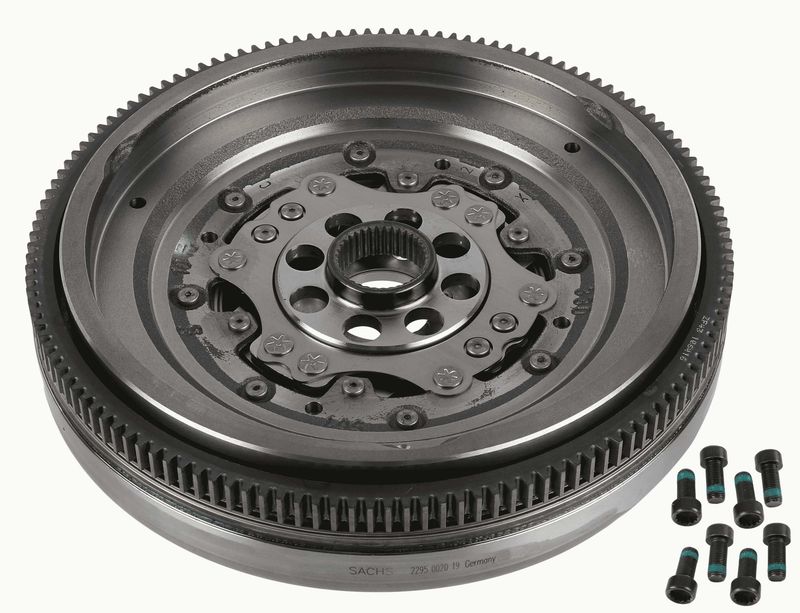

Dual-mass flywheel assessment
A dual-mass flywheel contains primary and secondary masses connected through a torsional damping system. Its purpose is to reduce the engine's rotational irregularities before they reach the gearbox. Some rotational free travel is inherent in the design, so a simple observation that the secondary mass moves does not condemn it. Equally, absence of obvious external damage does not establish serviceability.
Use the current SACHS test method and limits for the exact DMF. ZF's dedicated tool checks features including torsional-damper free travel, spring-force behaviour, axial bearing condition and radial-bearing displacement. The manufacturer also warns that its tool and limits apply to defined SACHS flywheels, not automatically to other designs, transfer-plate assemblies or double-clutch flywheels.
Look for abnormal grease loss, thermal discolouration, cracks, damaged teeth, excessive bearing movement and friction-surface condition. Before attributing noise to the flywheel, exclude poor engine running, injection irregularity, starter faults, accessory drives, exhaust contact and gearbox noise. Use new flywheel and clutch fasteners wherever the repair information specifies single-use hardware, and follow the prescribed tightening sequence and angle.
Clean assembly and clutch alignment
ZF's SACHS workshop procedure calls for cleaning the bellhousing, release fork, bearing guide and transmission input spline so wear is visible. Examine the fork contact pads, pivot, guide tube and shaft splines for steps or corrosion. A new release bearing cannot compensate for a deeply worn guide or misaligned actuation system.

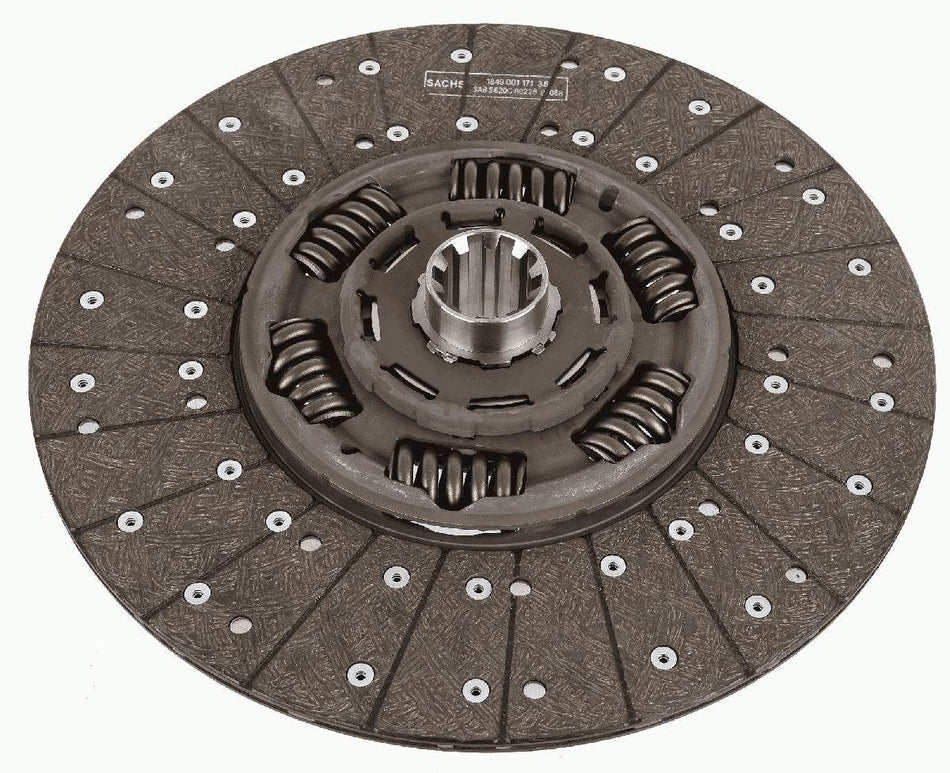

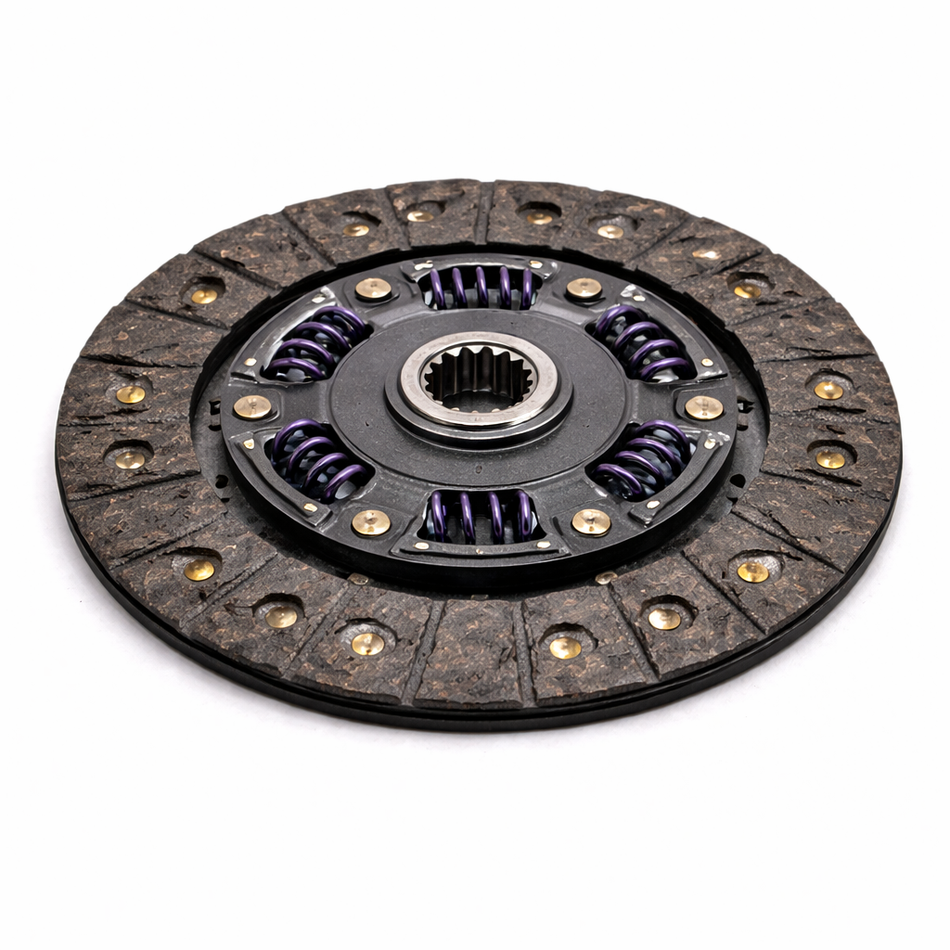

Check the driven disc's lateral run-out before installation. ZF gives 0.5 mm as the level the axial run-out should not significantly exceed in its general SACHS fitting guidance; the exact service information remains controlling. Centre the disc accurately so the gearbox input shaft enters without carrying the transmission's weight through the hub. Pulling a reluctant gearbox into place with bellhousing bolts can bend the disc or damage the spline.
Apply only the specified light film of suitable grease to the hub spline, move the disc over it to distribute lubricant and remove excess. Keep flywheel, pressure-plate and lining faces completely clean. More grease is not better: material thrown onto the friction surface can cause slip or judder. Observe markings such as gearbox side or flywheel side and tighten the cover progressively in the stated sequence.
Clutch hydraulics and release systems
A concentric slave cylinder sits around the gearbox input shaft and usually requires transmission removal to replace. ZF recommends renewal of the CSC with clutch repair to avoid a worn hydraulic release component causing another major strip-down. Confirm that the selected kit actually includes it. Never depress a loose CSC without the prescribed restraint, as over-extension can damage its seal.
Use only the fluid specified for the vehicle and protect painted surfaces. Flush contamination according to the repair method rather than forcing dirt into a new cylinder. Check pipe connectors and retaining clips are fully seated, and do not lubricate hydraulic seals with an unapproved substance. Bleeding procedures vary; some systems require pressure equipment or a particular cylinder orientation to release trapped air.
For external cylinders, compare pushrod length, flange, port location and bore. Inspect pedal pivots, master-cylinder attachment, flexible hose, release fork and return behaviour. A pedal that slowly sinks, remains low or changes with repeated pumping provides useful hydraulic evidence that should not be erased by indiscriminate parts replacement.
SACHS shock absorbers and cab dampers
| Check | Road-suspension damper | Cab-suspension damper |
|---|---|---|
| Application | Vehicle, axle, suspension option and side if handed | Truck cab model, suspension arrangement and installed position |
| Mounting | Strut, eye, pin or clamp dimensions and brackets | Upper and lower eye/pin form, bushes and orientation |
| Condition around part | Spring, top mount, bump stop, gaiter, arm and tyre | Cab bellows, bushes, height control and surrounding brackets |
| Safe access | Support suspension and contain coil-spring energy where present | Secure the cab and release system energy by the defined method |
| Completion | Torque, cable and hose routing, alignment and road test | Mount security, cab travel, hose clearance and controlled function check |
The collection contains oil-pressure telescopic dampers with combinations of eye and pin mountings, some identified by SACHS parameter codes, plus products specifically described for driver-cab suspension. A shared external shape does not make parameter codes interchangeable. Use the exact reference and application; stroke, damping curve and mounting details affect control throughout travel.
ZF advises replacing road-vehicle shock absorbers in axle pairs to maintain balanced handling. Its fitting guidance also instructs workshops to vent applicable new dampers before installation by moving the piston rod in its operating direction. Follow the instructions for the selected part, because not every damper construction is handled identically.
Support the wheel suspension before releasing a damper. A MacPherson strut encloses a loaded spring and requires a suitable compressor positioned securely on sound coils. Keep wheel-speed sensor wiring, brake hoses and wear leads out of strain. Tighten mountings to vehicle data at the specified suspension position, then check alignment where geometry has been disturbed.
Inspection, MOT context and return to service
The Great Britain MOT manual examines suspension components, including shock absorbers, for security, condition and operation. It is not a scheduled replacement interval and does not measure every aspect of damping performance. Oil mist is not necessarily the same as an active leak, while reduced damping can exist without dramatic fluid loss. Assess tyre cupping, bounce control, noise, bush condition and comparative axle behaviour.
After clutch work, verify pedal feel, biting behaviour, gear selection, starter operation and absence of leaks or warning messages. Observe any bedding or calibration instructions and conduct the first test without maximum load. After damper replacement, check fastener security, hose clearance, ride height, steering centre and abnormal noise before a progressive road test.
Mistakes that add avoidable labour
- Ordering a clutch from engine size while overlooking the gearbox and release system.
- Assuming every kit contains a flywheel, CSC, pilot bearing or new bolts.
- Condemning a DMF because it has designed rotational movement.
- Installing a new friction set without repairing engine, gearbox or hydraulic leakage.
- Using bellhousing bolts to force a misaligned transmission onto the clutch hub.
- Applying excess spline grease that can migrate onto the linings.
- Operating an unrestrained concentric slave cylinder before assembly.
- Replacing one road-axle damper and leaving a materially worn partner in service.
SACHS questions and answers
Q: Does every SACHS clutch kit contain a dual-mass flywheel?
A: No. Check the exact reference and contents; kits range from core clutch components to combinations with CSC or DMF.
Q: What vehicle data is needed for clutch selection?
A: Use VIN, engine and gearbox codes, friction dimensions, spline, flywheel design, release type and current application data.
Q: Is rotational free play proof that a DMF has failed?
A: No. Designed movement is normal; assess the exact flywheel with SACHS procedures and reference-specific limits.
Q: Should a concentric slave cylinder be considered during clutch replacement?
A: Yes. It is a wearing release component inside the bellhousing, and ZF recommends replacing it during clutch repair.
Q: Why check clutch-disc lateral run-out?
A: Excess distortion can prevent clean disengagement and make gear selection difficult even with otherwise new components.
Q: How much grease belongs on the input spline?
A: Apply only the specified light film, distribute it through the hub and remove excess so none reaches friction surfaces.
Q: Can the gearbox be drawn into place with its bolts?
A: It should mate without force once correctly aligned and supported; pulling it in can damage the disc hub or input shaft.
Q: Does pumping the clutch pedal prove the master cylinder is faulty?
A: It suggests a hydraulic or travel issue, but leaks, hose expansion, slave condition and trapped air also require tests.
Q: Are all SACHS shock absorbers gas-pressure units?
A: No. The represented records include oil-pressure telescopic designs, so the exact product specification must be read.
Q: Why replace dampers in axle pairs?
A: Comparable damping on each side supports balanced wheel control, braking stability and predictable handling.
Q: Is slight oil film on a damper always a failure?
A: Not automatically. Clean and assess it using the manufacturer's leakage guidance, operation and wider condition evidence.
Q: What completes a clutch or damper installation?
A: Correct torque, restored hoses and wiring, required bleeding or alignment, leak inspection and a controlled functional test.
