TX1, TXII and TX4 require separate build evidence

LTI taxis evolved through different diesel engines, transmissions, emissions stages and electrical systems. Body familiarity can hide a major mechanical change. Registration date is also an imperfect guide when a working taxi has been stored, re-engined or converted.

Record VIN/chassis, build plate, exact engine and gearbox, axle, steering and brake arrangement. Check installed labels and document non-standard accessibility, CCTV, payment or fleet equipment without assuming it is factory wiring.

Taxi duty is a load cycle, not just a mileage figure

Long idle periods, low-speed steering, repeated braking, speed humps, kerb contact and short thermal cycles can age parts faster than motorway miles. A maintenance plan should consider hours, fuel use, route and defect history.

Compare tyre wear, brake temperatures and ride height across the vehicle. Repeated replacement of one joint or tyre indicates an unresolved geometry, mounting or duty problem.

Build a commercial-service condition record

Powertrain parts follow the installed engine

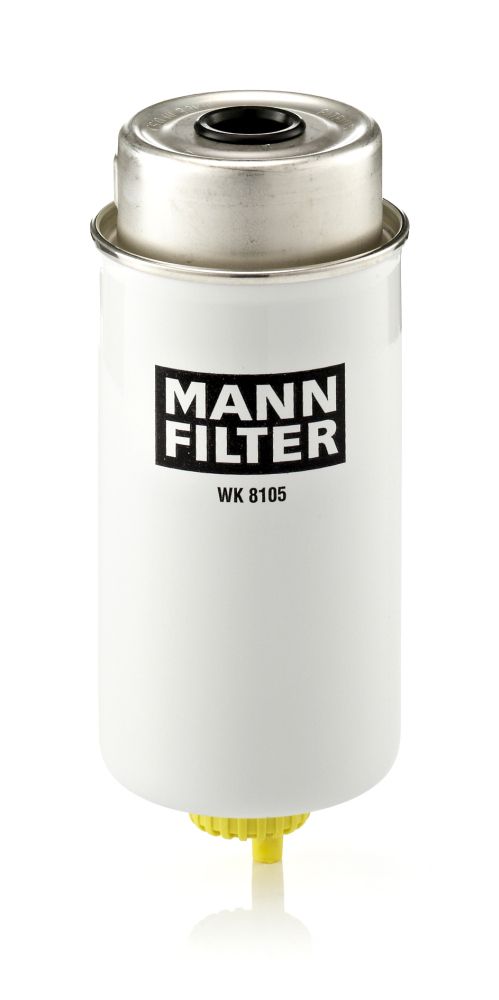

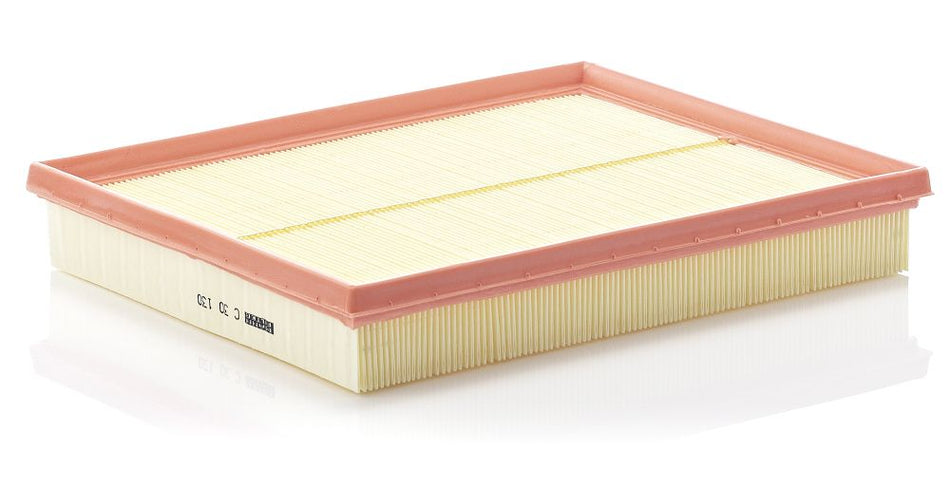

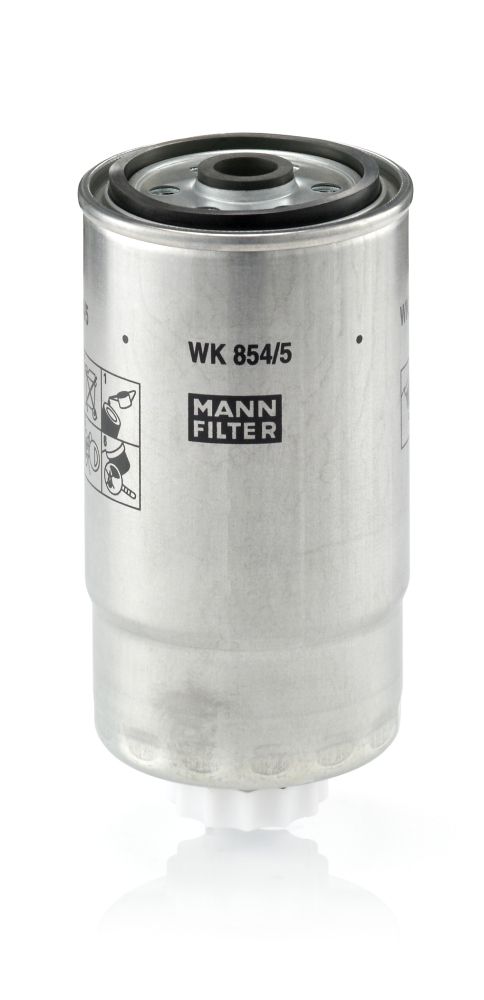

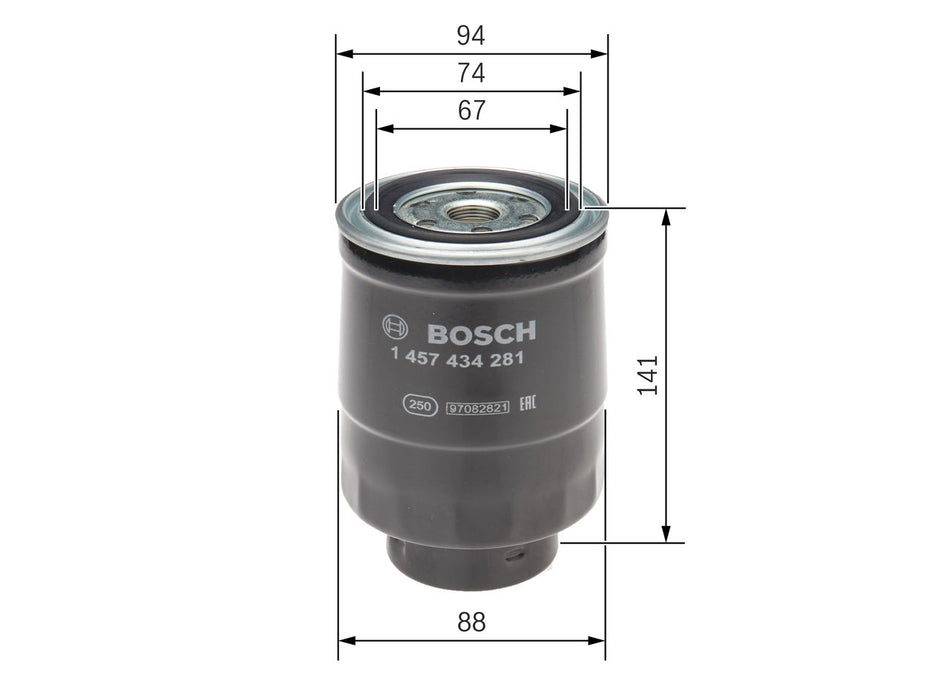

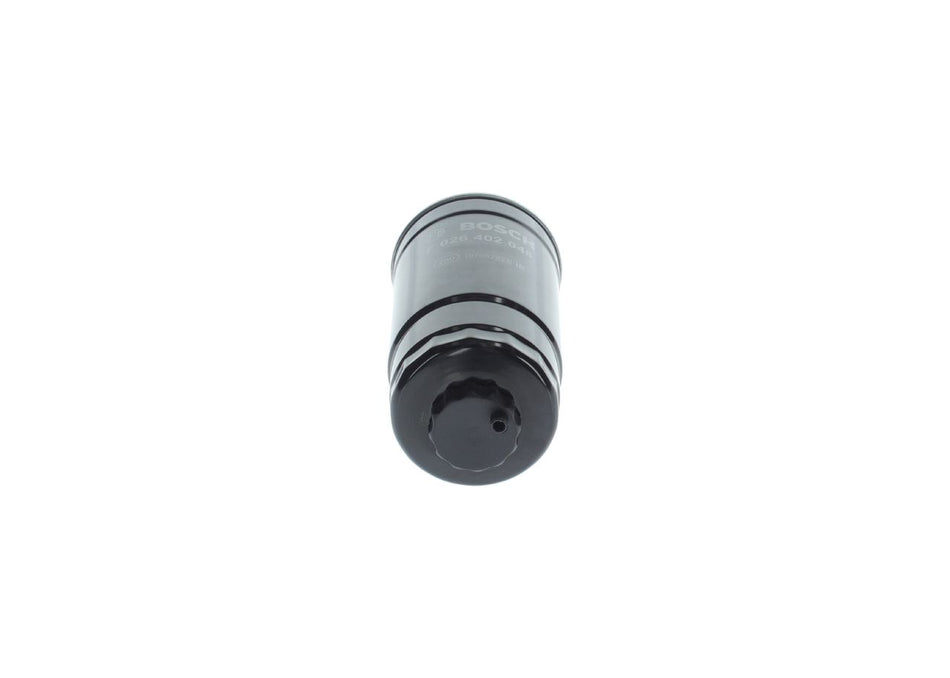

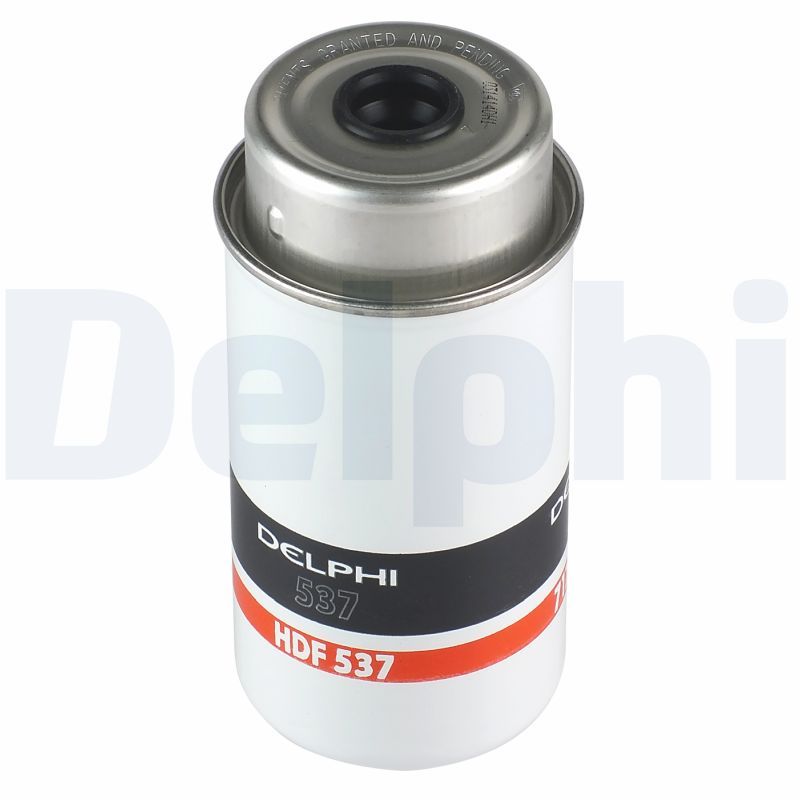

Different TX generations use unrelated diesel engine families. Filters, belts or chains, pumps, injectors, turbo hardware, sensors, mounts and cooling parts cannot be selected from “London taxi” alone. Read engine markings and compare connections.

A replaced or reconditioned engine may use ancillaries from more than one build phase. Photograph belt routing, pulleys, thermostat housing, fuel connectors and emission equipment.

Oil choice must account for emissions equipment

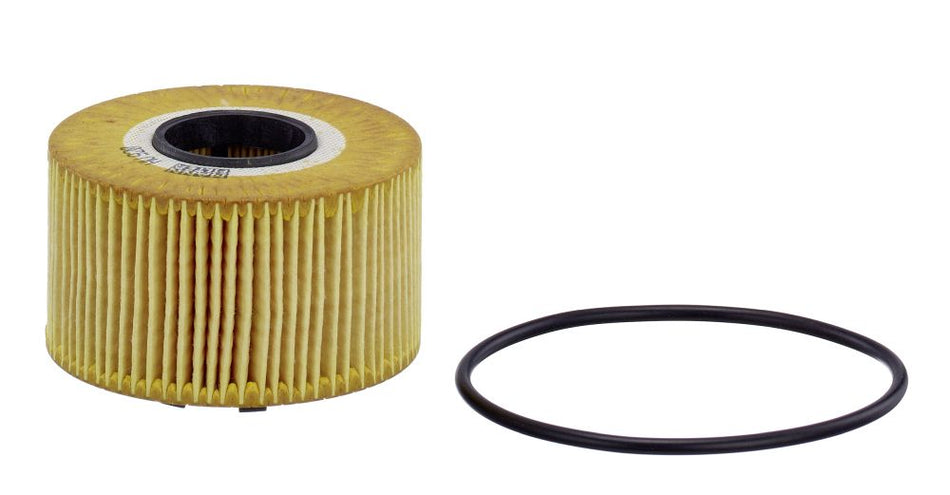

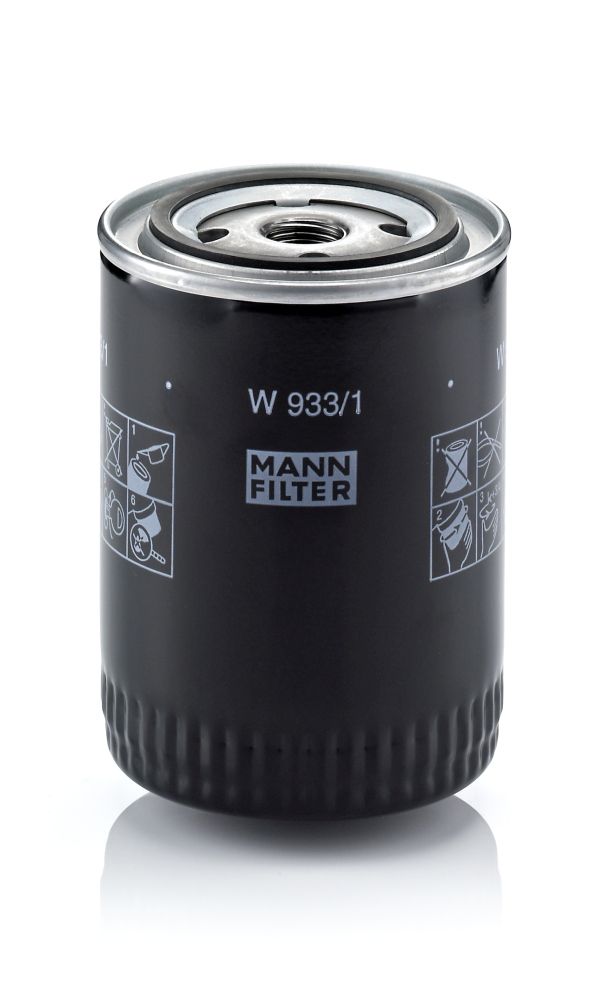

Use the exact viscosity, approval, filter and capacity for the engine and aftertreatment. A low-ash specification may be required to limit non-combustible DPF residue. Frequent top-ups need leak, breathing, turbo and combustion diagnosis.

Stop immediately for oil-pressure warnings. Prolonged idling can dilute oil or extend warm-up; follow condition and service data rather than guessing a longer interval because mileage is low.

Cooling must work at idle with little ram air

Test radiator cleanliness and flow, fan current and direction, relays, thermostat, pump, cap and heater circuit. Monitor actual coolant temperature while stationary and under controlled road load. A gauge that appears normal can be damped.

Cabin heat and engine cooling share evidence

Poor heater output may indicate low coolant, air, restricted matrix or circulation trouble. It is not only a passenger-comfort fault. Pressure-test cold and investigate repeated coolant loss before returning the cab to service.

Aftertreatment faults need cause-and-effect diagnosis

DPF loading depends on soot production, exhaust temperature and accumulated ash. Check thermostat operation, boost leakage, air measurement, EGR, injectors, pressure pipes and temperature sensors. Verify oil level for diesel dilution.

Regeneration is appropriate only when prerequisites and calculated loading allow it. A forced burn can create extreme heat and will not remove ash or fix the engine fault that generated excessive soot.

Match every fluid to its unit and duty

Brakes require thermal and balance evidence

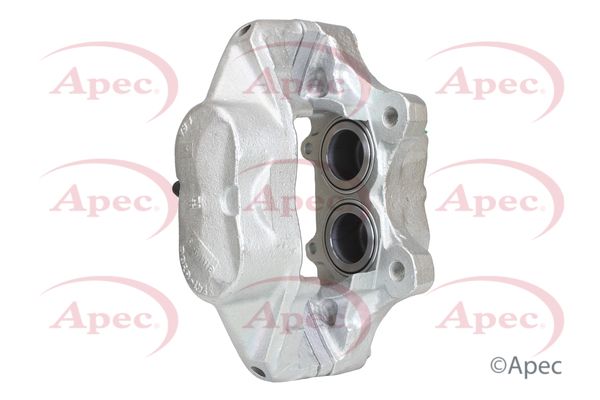

Urban cycles can overheat a dragging caliper or poorly adjusted rear brake. Measure disc/drum condition, pad/shoe thickness, piston movement, hose restriction, wheel-cylinder leakage and parking mechanism. Compare hub temperatures after a controlled test.

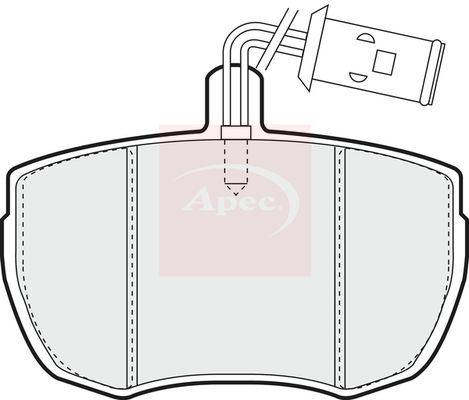

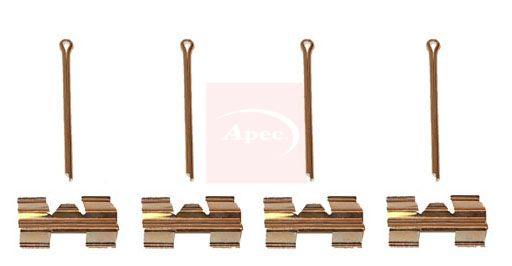

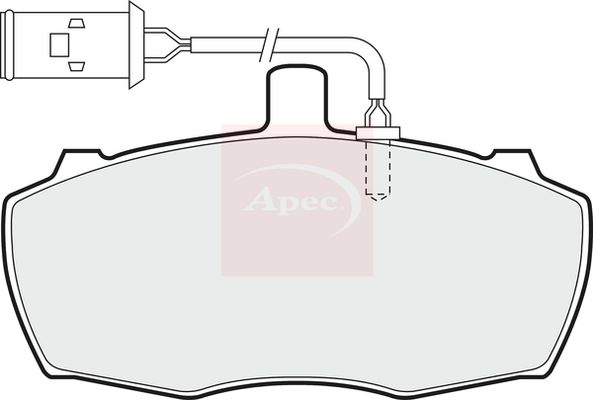

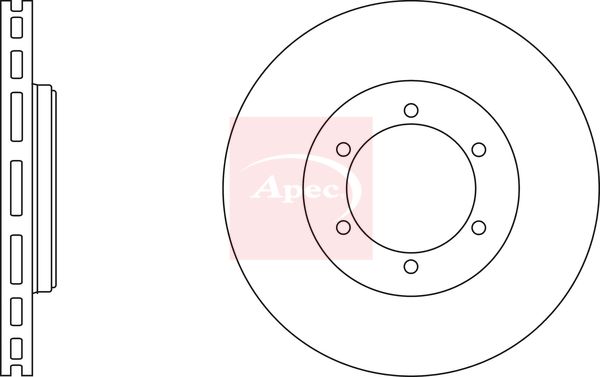

Use matching friction material across each axle and the correct disc dimensions and hydraulic bores. Bleed thoroughly and verify pedal reserve, servo assistance, imbalance and parking hold before carrying passengers.

Kerb strikes travel through the steering system

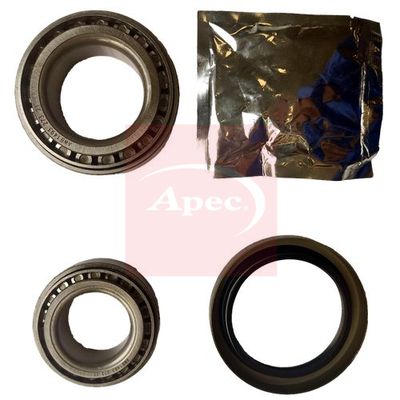

Inspect tyre sidewall, wheel, bearing, hub, steering arm, joints, wishbone, damper, spring and chassis attachment after an impact. Do not align a bent assembly to make the steering wheel appear straight.

Check lock-to-lock clearance and turning-circle components. Excessive play, binding or cracked mountings require the vehicle to remain out of service.

Suspension condition protects passenger stability

Springs carry constant commercial load while bushes and dampers manage frequent low-speed inputs. Compare ride height under a stated load and inspect spring seats, bump stops and damper leakage. A sagging corner changes headlamp aim and brake response.

Tighten rubber-bushed joints at the specified position. After replacement, set tyre pressures, align the chassis and confirm steering self-centring.

Tyres and wheels must respect plated loads

Use the stated size, construction, load and speed rating and duty pressure. Passenger and luggage loading must stay within gross and axle limits. Inspect inner shoulders, bead damage and sidewall pinch marks from kerbs.

Wheel refurbishment must not hide cracks or excessive material loss. Confirm centre location, offset and fastener seat, then torque correctly.

Charging systems work hard at low engine speed

Cabin equipment, fans, lighting, payment systems and communications can create high idle load. Test battery capacity, alternator output, belt drive and voltage drop with accessories operating. An alternator rating alone does not prove adequate cabling.

Protect added circuits with correct fuses, cable size, routing and isolation. Trace parasitic drain systematically instead of fitting a larger battery.

Accessibility equipment belongs in the safety inspection

Inspect ramp or step hinges, latches, anti-slip surfaces, wheelchair restraints, occupant belts, anchorage bolts, swivel/ tip-up seat locks and door interlocks. Follow the fitted equipment manufacturer’s inspection and replacement criteria.

Passenger restraints cannot be improvised

Do not drill a convenient panel for an anchor or replace a rated fitting with general hardware. Corroded or distorted anchorage structure needs a designed repair and documented proof.

Body and chassis corrosion affect commercial release

Inspect sills, floors, crossmembers, suspension and steering mounts, seat and belt anchorages, door apertures and jacking points. Repeated door misalignment can indicate hinge wear or structural movement.

Repair to sound metal while preserving drainage and protecting fuel, brake and electrical routes. Underseal is not evidence of structural thickness.

Use defects to decide whether the shift can continue

A taxi repair needs a return-to-service checklist

Record the released tyre pressures, wheel torque, brake figures, fluid levels and any outstanding non-safety advisory. A second check after real stop-start duty can reveal heat or loosening that a brief workshop test misses.

1. Confirm TX generation and fitted powertrain.
2. Record hours, mileage, warnings and duty history.
3. Inspect structure and impact evidence before alignment.
4. Use exact fluids and duty-rated matched parts.
5. Restore heat shields, pipe clips and loom protection.
6. Bleed, adjust and measure braking.
7. Set geometry and tyre pressures under stated load.
8. Function-test doors and accessibility equipment.
9. Complete emissions readiness and controlled road checks.
10. Record results and recheck after a working heat cycle.

MOT and taxi licensing are overlapping, not identical

A UK MOT addresses national test items. Taxi licensing authorities can impose additional age, condition, accessibility, equipment and inspection requirements. The applicable licence conditions depend on the operator and authority.

Passing either inspection does not allow a known defect to remain in service. Drivers and operators should record daily safety checks and withdraw the cab when braking, steering, tyres, structure, visibility or passenger safety is compromised.

Practical LTI taxi parts FAQs

Q: Are TX1, TXII and TX4 engine parts interchangeable?
A: No. Identify the installed engine family and build.

Q: Is mileage enough to set a taxi service interval?
A: No. Hours, idle time and short cycles also matter.

Q: Does a DPF warning mean the filter must be replaced?
A: No. Measure loading and diagnose the cause.

Q: Can repeated forced regeneration cure ash loading?
A: No. Ash does not burn away.

Q: Is a kerb strike fixed by wheel alignment?
A: Not until tyre, wheel, hub, arms and mounts are sound.

Q: Can hot-wheel smell be ignored until the shift ends?
A: No. Stop and inspect for brake or bearing heat.

Q: Should rear brake adjustment be done by cable alone?
A: No. Correct the service-brake mechanism first.

Q: Can taxi equipment share any convenient power feed?
A: No. Use designed, fused, rated circuits.

Q: Is general hardware suitable for wheelchair anchors?
A: No. Only the specified rated restraint system is acceptable.

Q: Does an MOT pass satisfy every taxi rule?
A: No. Local licensing requirements may add further checks.

Q: Can a taxi work with a coolant leak if topped up?
A: No. Diagnose and repair it before service.

Q: When must an LTI taxi be withdrawn?
A: For safety-critical vehicle or passenger-equipment defects.

Q: Does a new part reset the duty history?
A: No. The connected system and use cycle still need assessment.
