Identify range, mission and completed body

A Renault Trucks model is a chassis-cab, tractor or completed vehicle in a defined mission. T range commonly serves long-distance operations, C range covers heavy construction or mixed road/site work, and D range is configured around distribution and vocational bodies. Within each range, cab, wheelbase, engine, axles, suspension and braking can vary.

Begin with complete VIN, production date and range/type code. Add cab version and wheelbase, right- or left-hand drive, powertrain unit numbers, axle count/drive, suspension and options. Include weight plates, body-builder identity, completion and lifting-equipment data. Compare unit tags and physical installation because a gearbox, axle, PTO or body component may have been changed after delivery.

Treat Master as a documented exception

Master may appear in historical or market-specific Renault Trucks material, but it does not inherit medium/heavy T, C or D systems. Use it only where VIN and original model records establish the vehicle. Its hydraulic brakes, light-commercial mass, electrical voltage and front/rear-drive variants require their own manual. Never select a T/C/D valve or 24-volt part from the badge alone.

Control gross, train and axle mass independently

A vehicle can remain below gross mass yet overload one axle. Long rear overhang, tail-lift, crane or trailer imposed load shifts distribution. Calculate using real body, fuel, driver, tools and normal equipment, then use a suitable weighbridge by axle. A body modification or auxiliary tank added later consumes payload even if the VIN plate is unchanged.

Tyres and wheels must match approved dimensions and carry the axle’s load at the specified pressure. Twin tyres need compatible size, wear and pressure with adequate spacing. Check wheel seating, nut condition and torque/recheck procedure. Corrosion, paint or dirt between mating faces can relax clamp load.

Understand the truck air system before releasing a pipe

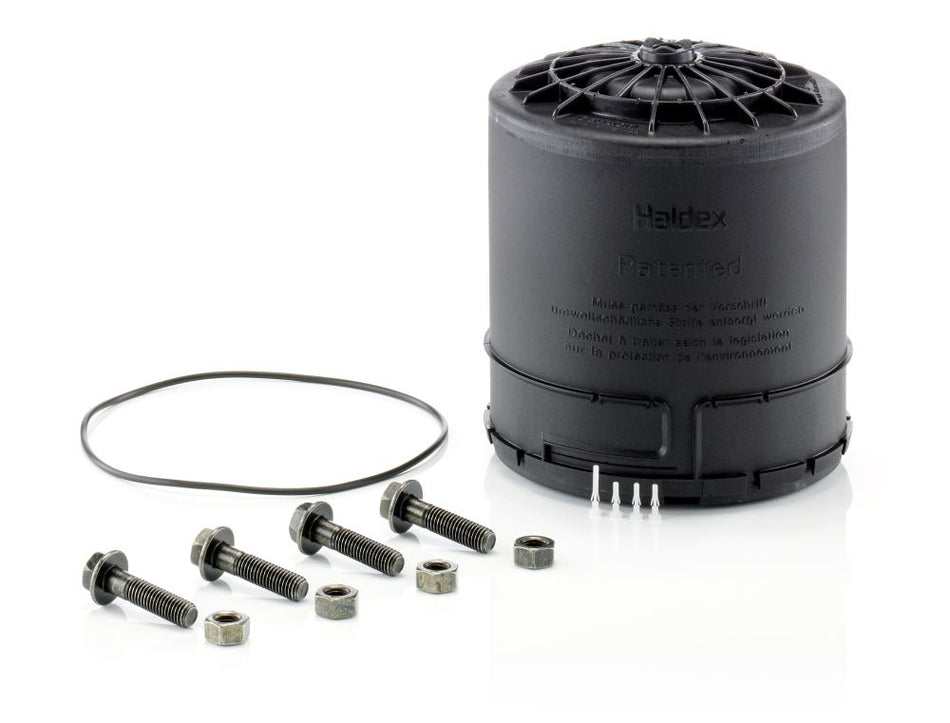

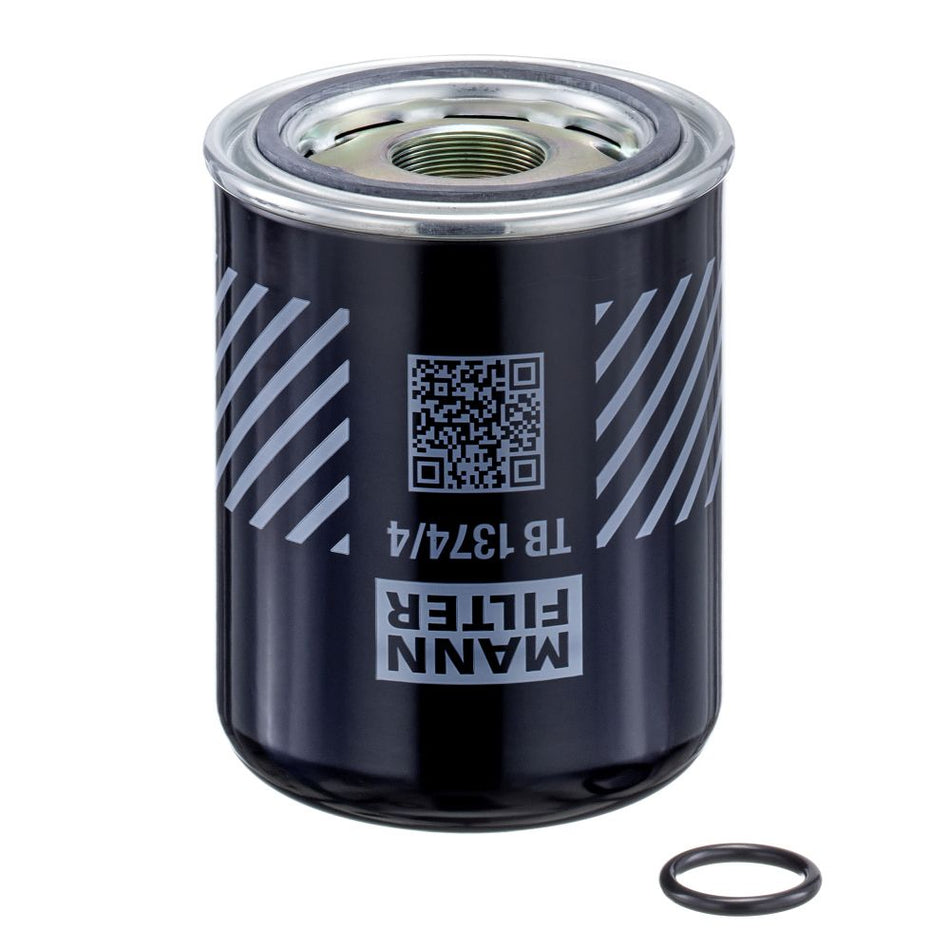

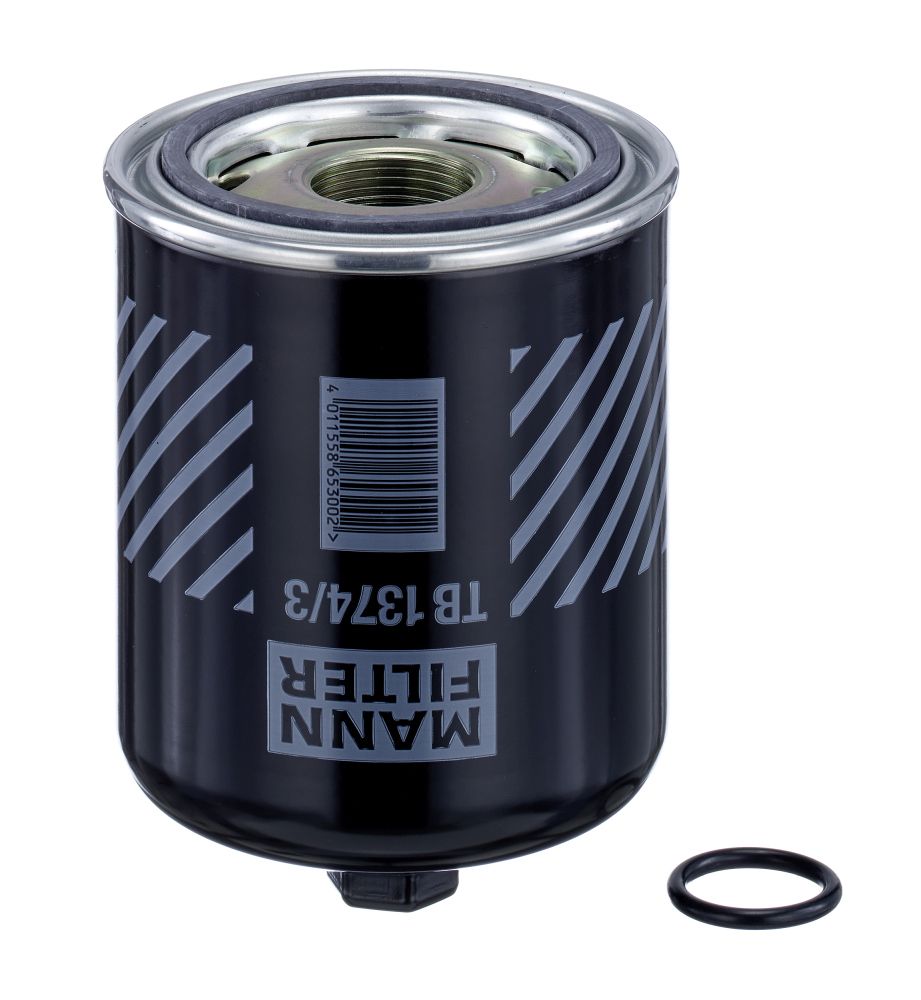

T, C and D applications can use engine-driven compressor, air treatment, reservoirs, protection circuits, electronic braking, relay/modulator valves, service chambers and spring parking brakes. Air may also operate suspension, gearbox selection, differential locks, cab or body equipment. Identify circuits from diagrams and pipe markings rather than opening the nearest line.

Stored pressure and spring force remain after shutdown. Chock the vehicle, prevent automatic levelling and exhaust the relevant circuit through the stated process. A spring-brake chamber can contain lethal mechanical energy; do not open a non-serviceable chamber. Use rated stands beneath approved points, never air suspension or a raised body alone.

Brake warnings need pneumatic measurements

Slow pressure build, repeated compressor cycling, unequal chamber stroke, leaks or excessive lining clearance can affect braking. Scan EBS/ABS but also measure supply and delivery pressure, leakage and foundation-brake movement. A modulator fault code does not prove the valve is defective if air supply, wiring or a seized caliper is wrong.

Map 24-volt supplies and body-builder interfaces

Medium and heavy Renault Trucks vehicles normally use a 24-volt architecture, often with two 12-volt batteries connected in series. Verify labels and diagrams before jump-starting, charging or selecting lamps. A light-commercial Master context can differ. Taking a 12-volt feed between the paired batteries causes imbalance unless the approved installation includes an equaliser; use the designated converted supply.

Test batteries as a matched system and inspect series links, chassis/engine earths and isolator contacts. High resistance can create low crank speed and multiple network faults. Body systems may use converters, dedicated battery banks or separate fuseboards. Trace tail-lift, fridge, beacon or crane supplies through body-builder information.

Power take-off interlocks can depend on parking brake, neutral, engine speed, body position and vehicle speed. Unexpected engagement or a bypassed interlock is dangerous. Secure body movement, release hydraulic pressure and use mechanical props before work.

Identify engine, aftertreatment and thermal package

Full engine code and emissions step select injection, filters, turbocharger, lubrication and aftertreatment. Diesel configurations can combine recirculated exhaust, particulate filtration and SCR/AdBlue dosing. Exact layout, sensor position and software vary with D/T/C generation and market. Do not use engine capacity alone.

An AdBlue/SCR message can result from fluid quality, tank/line heating, pressure, injector, temperature or NOx sensing. A DPF warning requires pressure, temperature, soot/ash estimate, oil level and engine-condition evidence. Forced regeneration creates high exhaust heat and must not be attempted with unsafe soot loading, oil dilution or combustible material nearby.

Cooling packs may stack radiator, charge-air cooler, condenser, gearbox/retarder cooler and body refrigeration equipment. Inspect between cores and verify fan command, coolant pressure, thermostat, pump and airflow. Body additions and debris can cause high-load overheating. Stop for a red temperature indication rather than attempting to finish the route.

Use gearbox, axle and retarder identifiers

Manual, automated-manual and conventional automatic units can appear across Renault Trucks ranges. Identify code, torque capacity, clutch or converter, PTO and retarder. An automated selector does not make the gearbox a conventional automatic. Clutch or actuator work can require learned-value setup and a controlled calibration.

Axles vary in ratio, hub reduction and differential-lock equipment. Multi-axle vehicles need the correct leading/trailing and driven axle parts. A lock engagement fault can originate in air supply, solenoid, position sensor or wiring. Do not engage locks outside manufacturer conditions or use a replacement axle without confirming ratio.

Engine oil, gearbox lubricant, retarder oil, axle fluid, steering/hydraulic oil, coolant and body hydraulic fluids are separate specifications. Use the Renault Trucks fluid application data for exact engine, gearbox, duty and maintenance profile. Record each component serviced, not simply driveline oil.

Turn walk-round defects into maintenance evidence

Drivers should report lamps, tyres, wheel security, leaks, air build, couplings, load security, mirrors/cameras and body equipment according to the operation. Record the defect and completed repair. Repeated low-air, DPF or overheating reports need conditions and load data, not routine clearing.

Maintenance frequency depends on VIN, duty profile, mileage, engine/PTO hours, mass and environment. Urban distribution, site dust and long haul affect components differently. Combine current Renault Trucks schedules with body-builder and legally required inspection regimes. A dashboard service reset cannot certify brake measurement, coupling inspection or tail-lift maintenance.

Apply UK operator and test rules to the actual vehicle

Plated mass, body and use determine testing, operator licensing, tachograph, driver-hours and specialist-equipment obligations. Obtain current official guidance for the actual T, C, D or documented Master vehicle. This page cannot decide exemptions or inspection frequency without operational facts.

Every vehicle must remain roadworthy and inside each plated gross, combination and individual-axle value. Between tests, examine braking operation, wheel/tyre condition, steering and suspension, lighting, structural areas, couplings, warnings and exhaust controls. Body lifts and cranes may have separate examination requirements.

A test certificate records the statutory assessment at that time. It does not replace the next walk-round, prove payload, validate conversion wiring or complete preventive maintenance. Keep defect, repair, inspection and load records proportionate to the operation.

Renault Trucks identification FAQs

Q: Is a T, C or D range name enough for parts?
A: No. Use VIN, model, cab, engine, gearbox, axles, plates and body data.

Q: Can Master be treated like a heavy Renault truck?
A: No. Include it only with exact documentation and use its light-commercial system data.

Q: Does gross mass prove every axle is legal?
A: No. One axle can exceed its plate while total mass remains lower.

Q: Can air-brake work begin after switching off?
A: No. Chock, support, isolate and release stored pressure using the stated process.

Q: Is a spring-brake chamber harmless when vented?
A: No. Its powerful internal spring requires the approved handling method.

Q: Can 12-volt equipment be connected across one truck battery?
A: Only where an approved converter/equalised supply is specified; otherwise it unbalances the pair.

Q: Does an SCR warning only mean low AdBlue?
A: No. Quality, heating, dosing, sensors and catalyst operation can contribute.

Q: Is forced regeneration the default DPF repair?
A: No. Quantify filter load, inspect lubricant dilution and sensor data, then diagnose why normal regeneration failed.

Q: Is every automated gearbox a conventional automatic?
A: No. Identify manual-based automated units, clutch, controls and fluid separately.

Q: Can one axle oil suit every differential?
A: No. Match the axle tag, reduction, lock type and approved lubricant.

Q: Does a tail-lift reduce payload?
A: Yes. It adds permanent mass and usually affects rear-axle loading.

Q: Does a passed annual test replace walk-round checks?
A: No. Roadworthiness and defect reporting continue on every operating day.

Q: Can model name decide operator obligations?
A: No. Plated mass, construction, equipment and actual use determine requirements.
