Northwood: understand the range before choosing
Northwood Hygiene Products is a UK supplier of away-from-home paper and washroom systems. This collection contains two wall-mounted commodity dispensers: one for centrefeed wiping rolls and one for folded hand towels. Northwood's current catalogue uses newer dispenser and refill codes, so the compatibility references printed in these live listings must be checked against the physical dispenser rather than treated as proof of interchangeability with today's range.
AutoMotoPart currently lists 2 Northwood items. The largest Northwood groups are 2 janitorial & hygiene entries. Northwood totals can change, so a category count is orientation rather than proof that a particular reference suits a vehicle, workplace or job. The exact Northwood listing, its current technical information and the item in front of you must agree.
What the Northwood page actually covers
| Product group in this range | Current entries | Selection focus |
|---|---|---|
| Janitorial & Hygiene | 2 | Choose the centrefeed or folded-towel format by the task, then match every refill to the exact physical dispenser code, internal dimensions and loading instructions. |
The two listings share an ABS case, locking access and fill window, but serve different paper systems. The centrefeed entry names six refill references; the hand towel entry names four. Current Northwood web pages use newer codes, so historic catalogue references should not be silently mapped to current products or substitutes.
Build a reliable shortlist
Identify whether the user needs wiping roll or hand-drying paper, then inspect the installed unit or unopened dispenser label. Record its code, aperture, maximum roll or stack space, paper format, key type, mounting position and the exact compatible refill list before purchase.
| Check | Why it matters | Useful evidence |
|---|---|---|
| Paper format | Centrefeed roll and folded hand towel systems work differently | Task, dispensing direction and exact refill construction |
| Reference code | Similar Northwood products may belong to different catalogue generations | Physical dispenser label and supported refill list |
| Size | Paper width, roll diameter or folded stack may exceed the housing | Measured internal space and refill technical data |
| Mounting | A loaded dispenser applies leverage to wall fixings | Substrate, concealed services and suitable fixing method |
| Access | Users and service staff need comfortable reach and cover clearance | Actual room layout, accessibility review and opening arc |
| Hygiene | Paper can be contaminated by wet storage, hands or an unclean case | Protected stock, scheduled cleaning and controlled loading |
Do not infer compatibility from colour, case shape or a partly matching code. If the installed label is missing, measure the relevant paper path and ask the manufacturer or supplier to confirm the exact refill in writing before committing to stock.
Separate centrefeed wiping from hand drying
A centrefeed dispenser presents paper from the middle of a compatible roll and is commonly used for general wiping. Its paper path, core preparation and roll capacity are specific to that format. A hand towel dispenser presents folded sheets from a stacked refill. Putting folded towels in a roll case, or a roll product in a folded-towel case, is not a workable substitution even where the case dimensions look close.
HSE workplace guidance says workers should have toilets and hand basins with soap and towels or a hand dryer. A towel dispenser can form part of that provision only when it is accessible, stocked, clean and paired with suitable washing facilities. The dispenser itself does not establish that the quantity, placement or wider welfare arrangement is adequate for a particular site.
Use exact refill evidence and resolve old codes
For the centrefeed listing, retain the recorded compatibility references AXC00100, AXC00101, AXC00181, AXC00182, C2B157FN and C2W159FN. For the hand towel model, retain HMG130, CGT28801, CBT28801 and CWT24002. Treat punctuation and every digit as significant. Where a proposed refill uses a new code, a similar prefix or a claimed supersession, obtain an explicit cross-reference rather than assuming it is the same product.
Northwood's current website lists newer commodity dispensers such as DCWCFW and DCWHTW and a changing selection of current paper codes. That proves the manufacturer still supports centrefeed and hand towel systems, but it does not prove the older-looking catalogue items here accept every current refill. Check the physical product, dated technical sheet and current manufacturer advice together.
Survey the mounting point before drilling
The live centrefeed data records approximately 240 by 360 by 240 mm and the hand towel entry approximately 290 by 380 by 140 mm, but field order and packaging context should be verified. Use the delivered unit as the authority for hole centres, cover movement and true installed depth. Do not convert catalogue dimensions into a drilling template or assume the supplied fixings suit brick, tile, plasterboard, partition or panel walls.
Locate pipes, cables and other concealed services, follow the site's permit and isolation procedures and choose fixings for the substrate and loaded mass. Position the unit away from direct splash where practical. Check that doors, grab rails, taps and waste bins do not obstruct users or servicing, and include accessibility needs in the site assessment instead of applying a universal mounting height.
Load paper without creating jams or contamination
Wash and dry hands or use the site's hygiene procedure before touching clean refills. Remove only the packaging needed for loading and keep remaining stock sealed in a dry, clean location. Do not place refill wrappers or loose paper on a wet basin. For centrefeed, remove or open the core only where the specific roll instructions require it, identify the correct lead sheet and thread it without tearing the aperture.
For folded towels, keep the prescribed fold orientation, avoid crushing the stack and do not force extra packs under the lid. After closing and locking the case, dispense several sheets and check that one usable portion is presented consistently. A jam may indicate wrong format, excess fill, damp paper, a folded edge or damage; investigate the cause instead of pulling hard enough to damage the paper path.
Build cleaning and replenishment into the service plan
The viewing window can support quick stock checks, but it cannot show paper condition, internal dirt or mechanism damage. Set inspection frequency from usage, contamination risk and the consequences of running empty. Clean high-touch areas and the internal case using a method approved for the ABS and any transparent panel. Do not use an unsupported solvent, abrasive pad or excessive liquid that can craze plastic or wet the refill.
Check the lock, hinge, aperture and mounting security during service. Replace damaged components rather than taping a cover shut or leaving a key permanently in the lock. Record the refill code used where multiple washroom systems operate on one site. Repeated torn sheets, double dispensing or unexplained consumption should prompt a format and condition review, not an unsupported performance claim.
From identification to a checked result
| Stage | Good practice for this range | Mistake to avoid |
|---|---|---|
| Identify | Record dispenser label, paper format and supported codes | Ordering from appearance or brand name alone |
| Survey | Check substrate, services, clearances, reach and splash | Using catalogue dimensions as a drilling template |
| Install | Use suitable fixings and the physical instructions | Assuming generic screws support a loaded dispenser |
| Load | Keep refills dry, orient correctly and avoid overfilling | Forcing an almost-matching roll or towel stack |
| Verify | Test dispensing, lock the cover and schedule inspection | Ignoring recurring jams or empty periods |
Keep the dispenser code, confirmed refill reference and installation or service instructions together in the site record. This prevents future staff from substituting a current Northwood item merely because the historic code is no longer familiar.
Reading real Northwood references
The Northwood names below are examples from the current range and show why the complete description matters. They are not universal Northwood recommendations and should not be treated as a fitment list. Within Northwood, a shared family word can conceal a different dimension, connector, material, pack format, operating condition or installation side.
| Example listing | What to verify beyond the name |
|---|---|

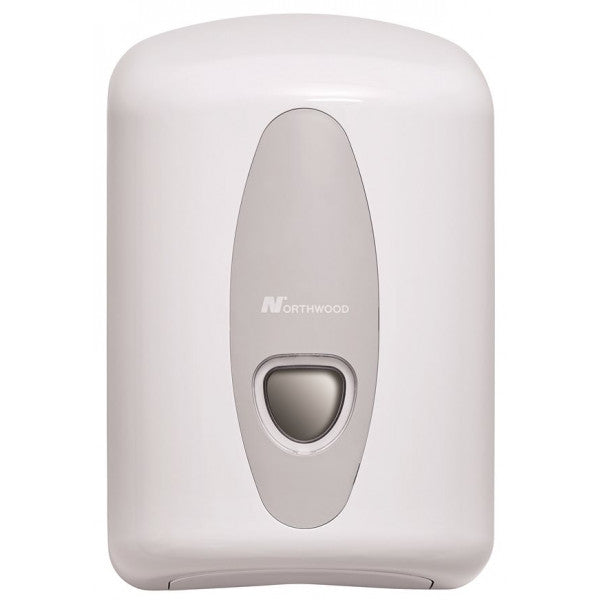

| Centrefeed Roll Dispenser | Centrefeed dispenser, physical label, AXC00100/AXC00101/AXC00181/AXC00182/C2B157FN/C2W159FN evidence, roll dimensions, core method and mounting instructions |

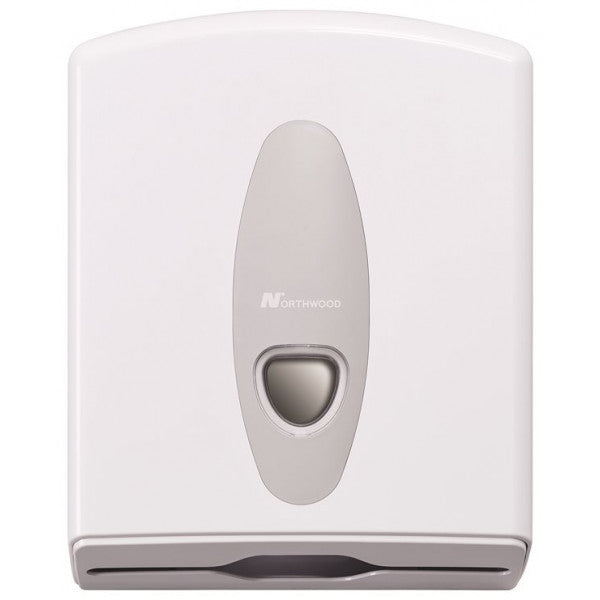

| Hand Towel Dispenser | Hand towel dispenser, physical label, HMG130/CGT28801/CBT28801/CWT24002 evidence, fold format, stack dimensions, loading direction and mounting instructions |
The collection evidence supports two dispenser types and named refill lists, not universal compatibility across Northwood's historic and current ranges. Confirm any substitute or superseding code before use.
Common errors around Northwood products
- Treating centrefeed rolls and folded hand towels as interchangeable.
- Assuming every current Northwood refill fits an older dispenser.
- Dropping digits from a refill code or accepting a similar prefix.
- Using catalogue dimensions as the drilling-hole layout.
- Mounting without checking the substrate or concealed services.
- Overfilling the case or compressing a towel stack.
- Loading damp or contaminated paper into a clean dispenser.
- Forcing recurring jams instead of checking format and condition.
Northwood questions and answers
Q: Which Northwood products are listed?
A: A centrefeed roll dispenser and a separate folded hand towel dispenser.
Q: Do both dispensers use the same refills?
A: No. They use fundamentally different roll and folded-paper formats.
Q: Which centrefeed references are recorded?
A: AXC00100, AXC00101, AXC00181, AXC00182, C2B157FN and C2W159FN.
Q: Which hand towel references are recorded?
A: HMG130, CGT28801, CBT28801 and CWT24002.
Q: Will a newer Northwood refill automatically fit?
A: No. Obtain an explicit cross-reference for the exact physical dispenser.
Q: Can case dimensions be used to mark drill holes?
A: No. Use the physical unit and its installation template or instructions.
Q: Are generic wall plugs always suitable?
A: No. Fixings must suit the wall substrate, loaded unit and site method.
Q: How high should it be mounted?
A: Use an accessibility and room-layout assessment rather than a universal height.
Q: Why does a centrefeed roll jam?
A: Wrong size, core preparation, damp paper, tearing, overfilling or aperture damage are possible causes.
Q: Why do folded towels dispense in clumps?
A: The fold type, stack direction, compression or dampness may be wrong for the unit.
Q: Can strong solvent be used to clean the case?
A: Only when the dispenser instructions confirm compatibility with the plastics and window.
Q: Does a viewing window replace servicing?
A: No. It supports stock checks but not internal cleaning, damage or refill-identity checks.
