Asia Motors is a legacy import identification task

Asia Motors produced utility vehicles including Rocsta and Topic, with market and production variations. Documentation and registration databases can be incomplete. Later corporate relationships do not turn every part into a Kia component.

Record chassis/VIN, build plate, market, body, engine, gearbox, transfer and axles. Photograph removed components and routing before dismantling.

Engine ancestry is a clue, not fitment evidence

Some engines or service components may trace to other manufacturers or suppliers. Asia-specific sumps, mounts, cooling, pulleys, fuel equipment or electrics can change the final installation.

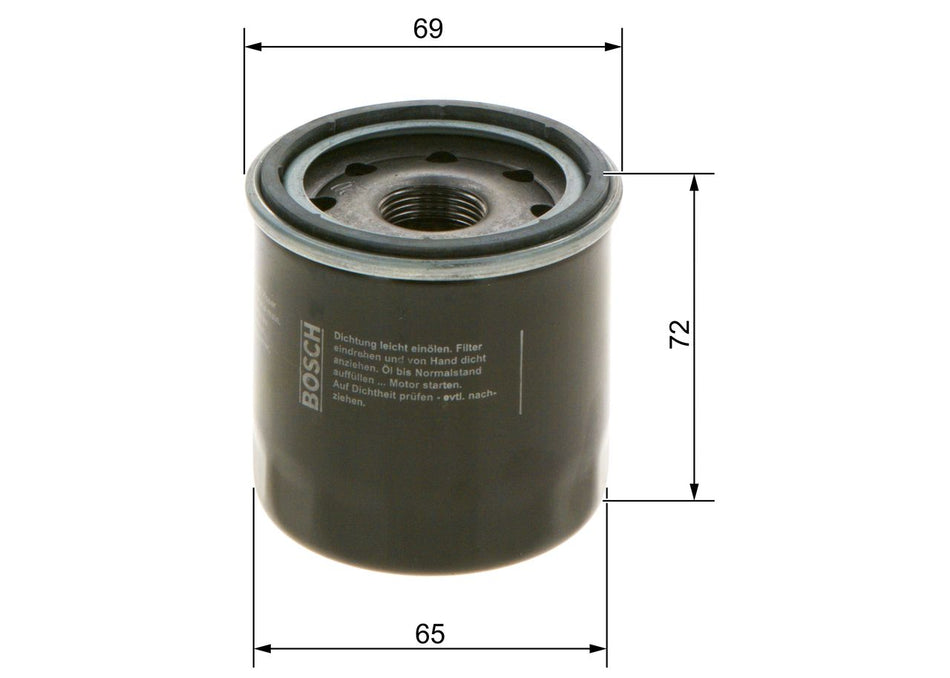

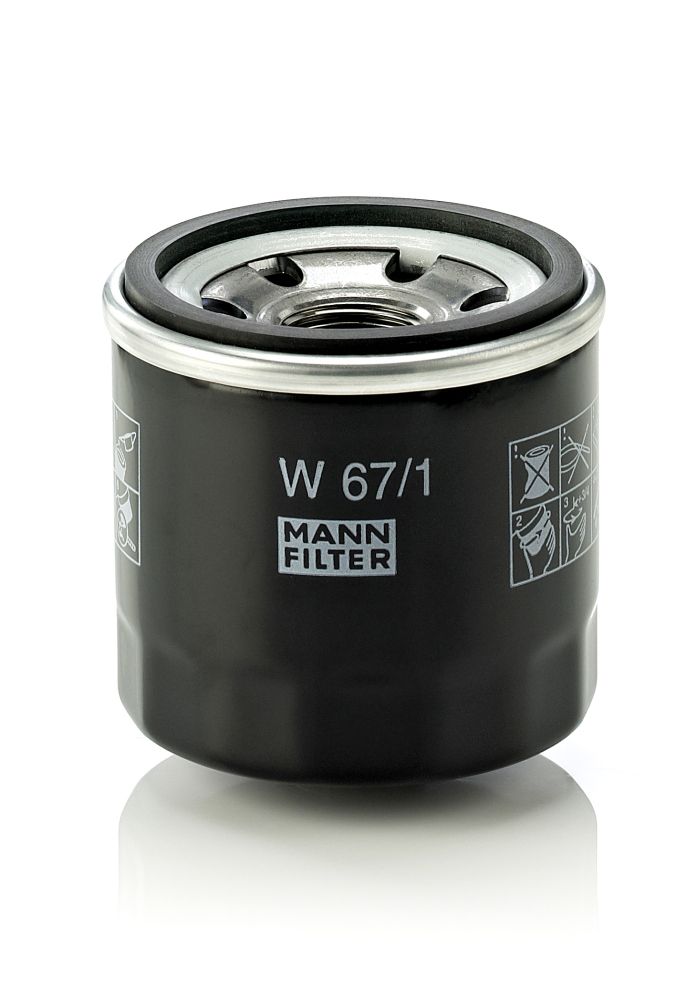

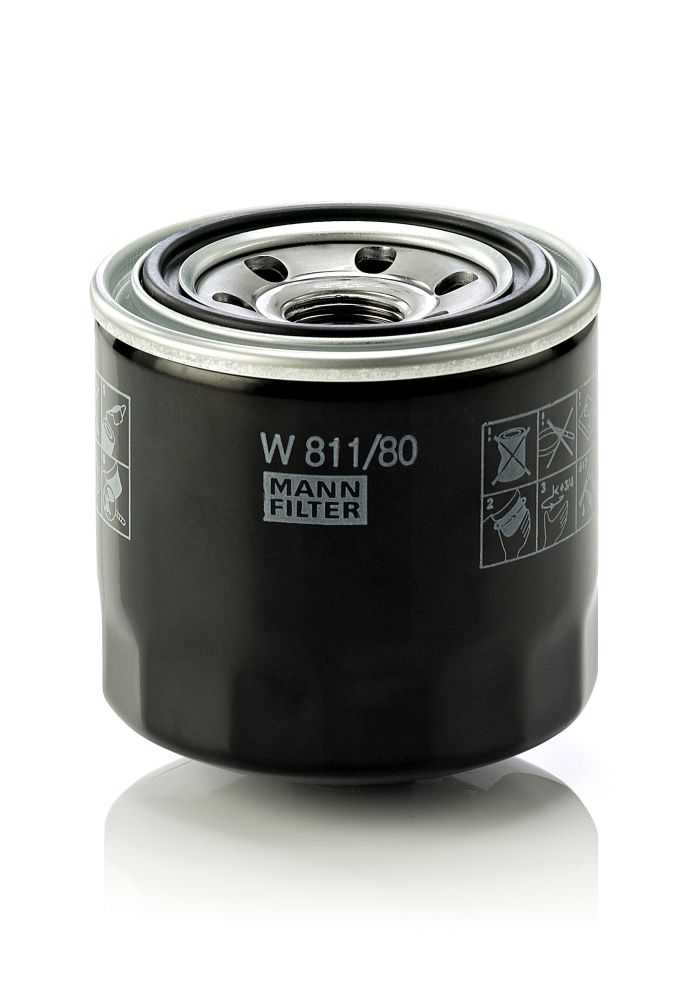

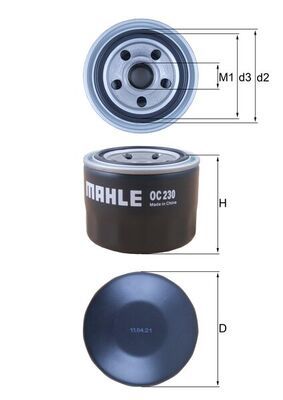

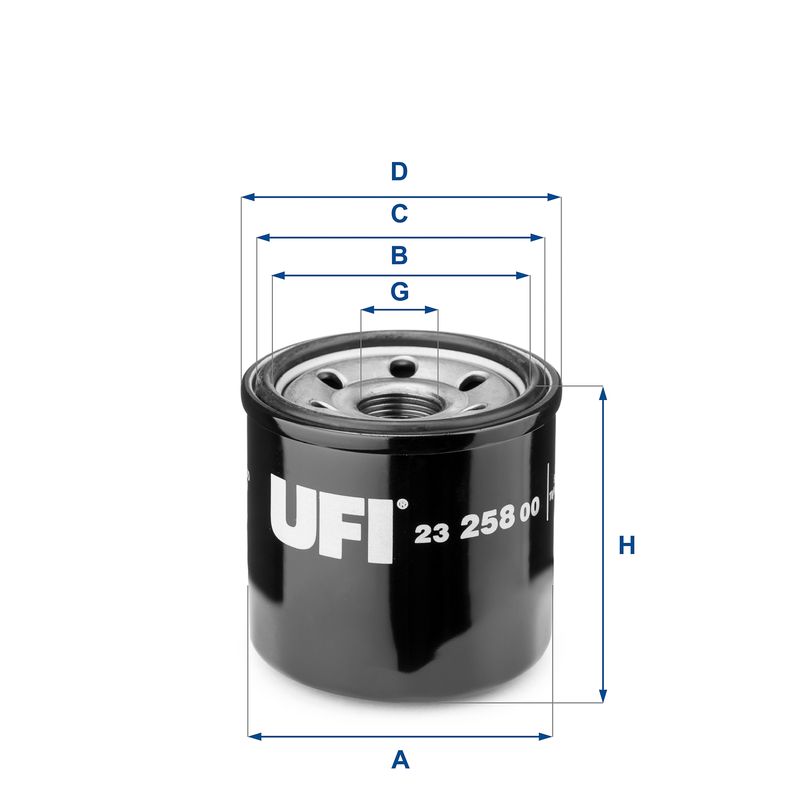

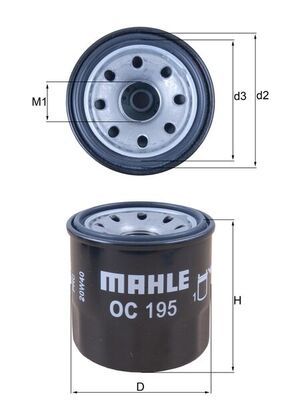

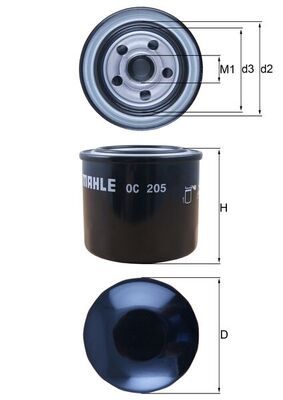

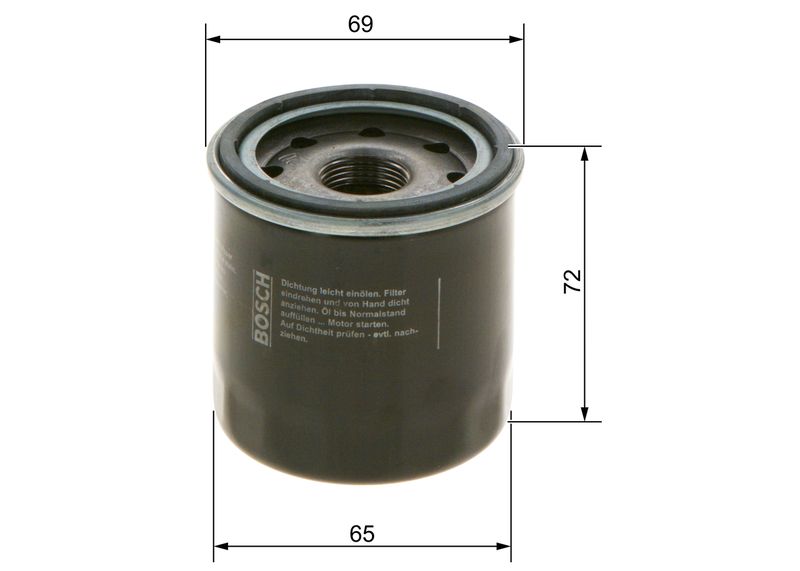

Confirm an exact cross-reference or compare all relevant dimensions and ratings. An oil filter must match thread, seal and bypass characteristics, not only screw onto the housing.

Create an import and drivetrain evidence file

Petrol and diesel service paths are unrelated

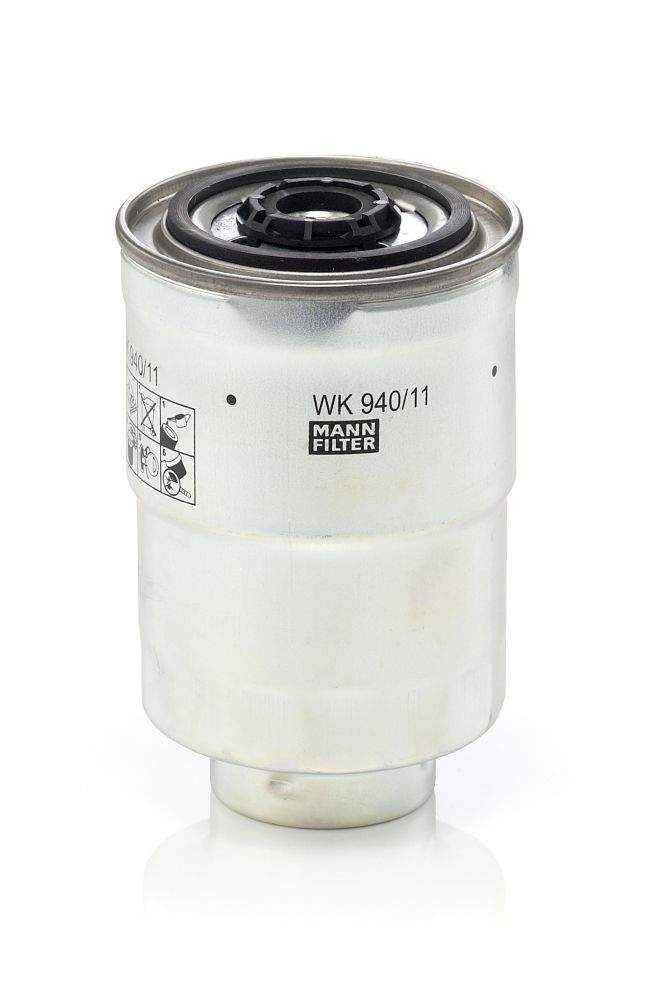

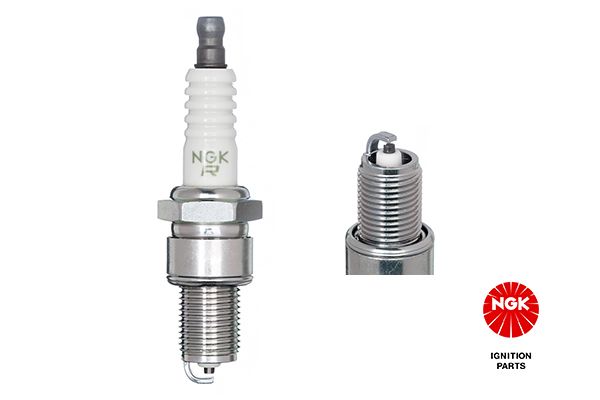

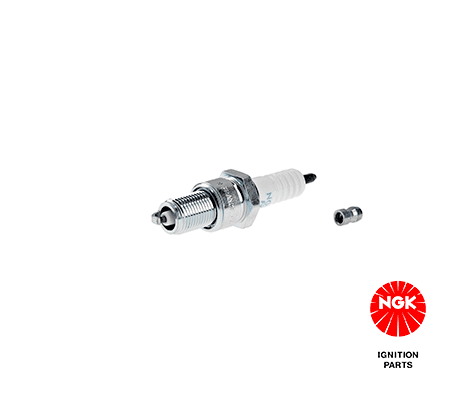

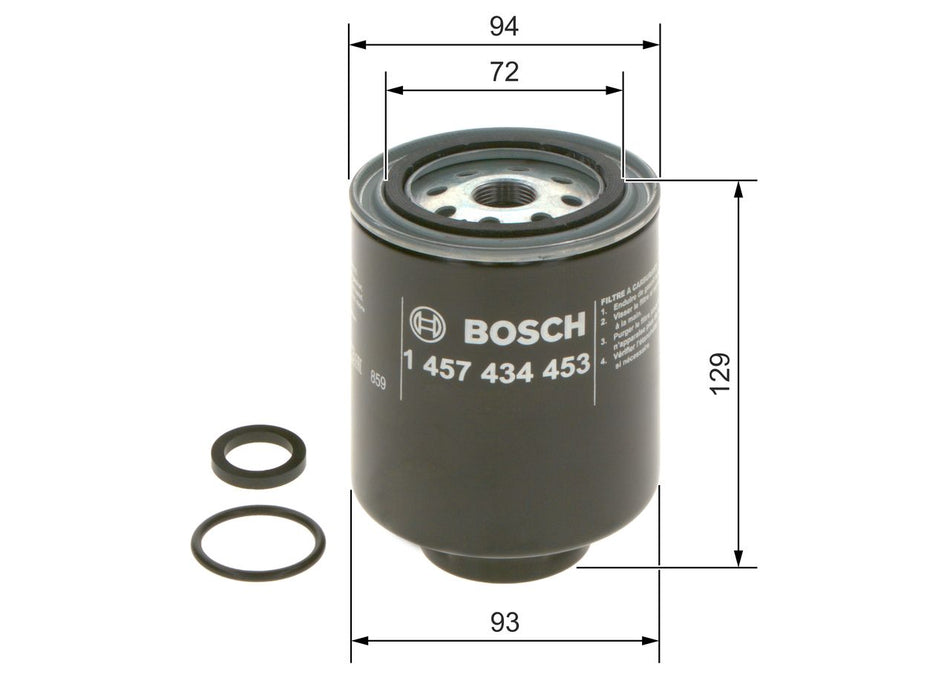

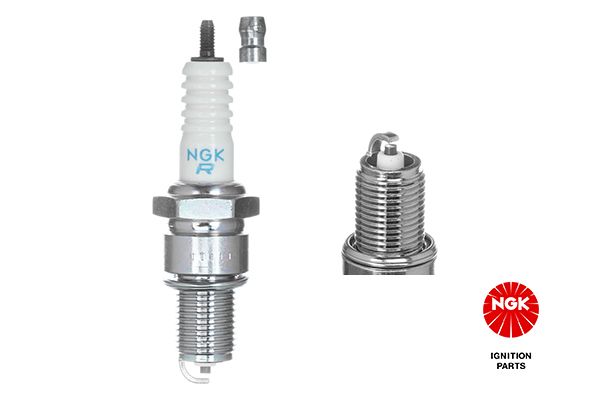

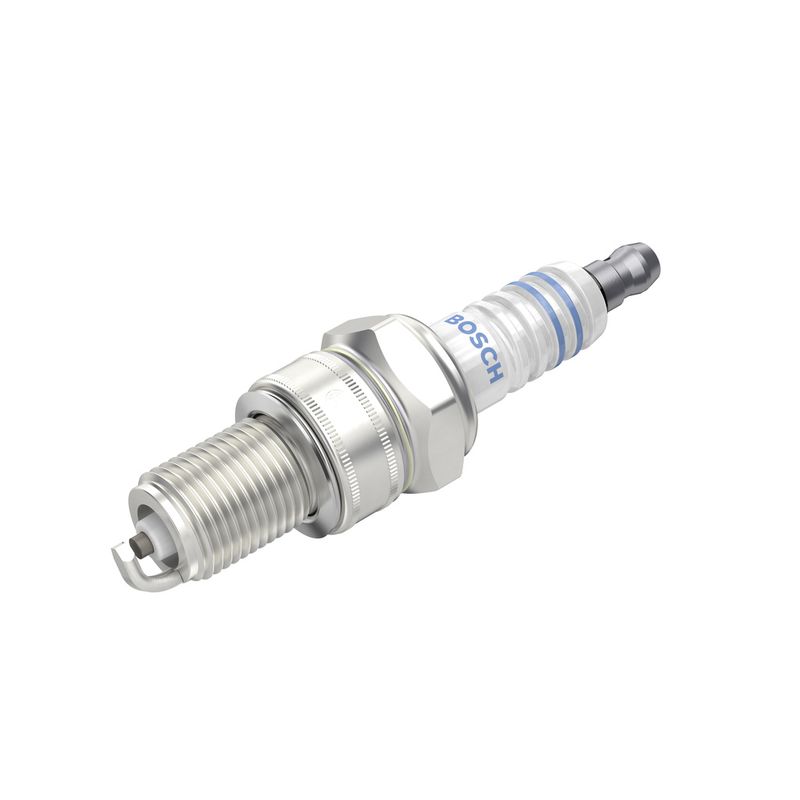

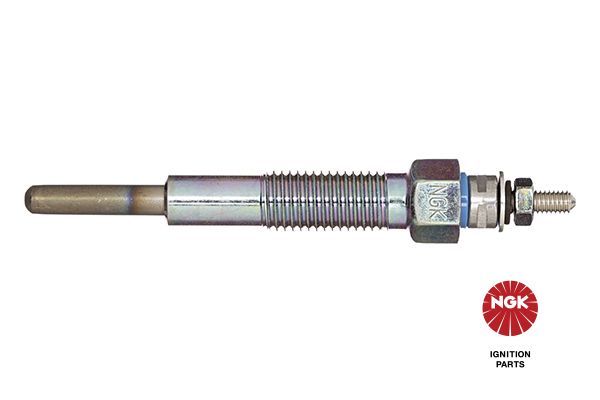

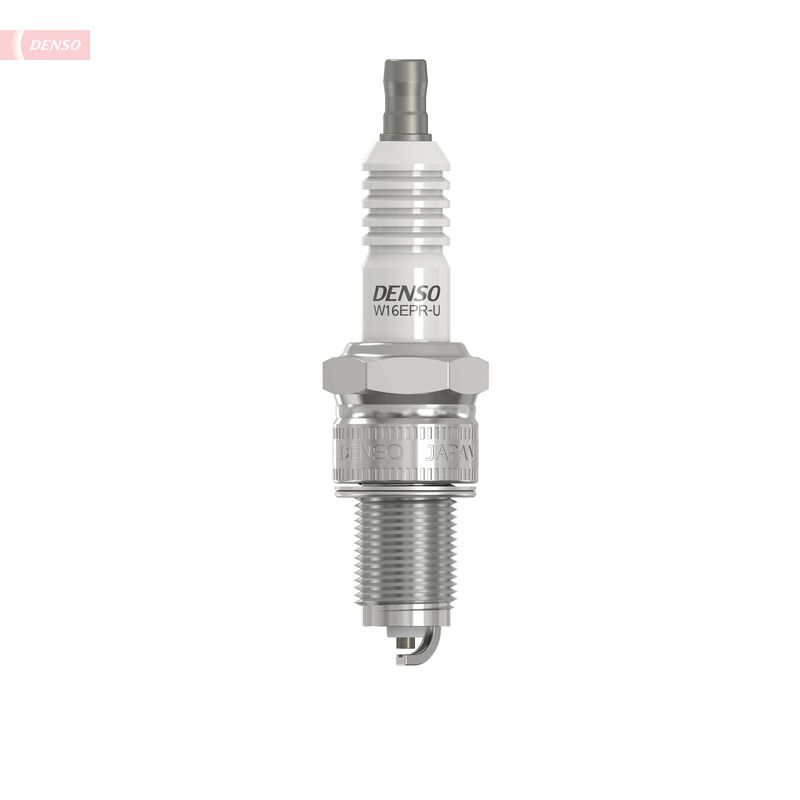

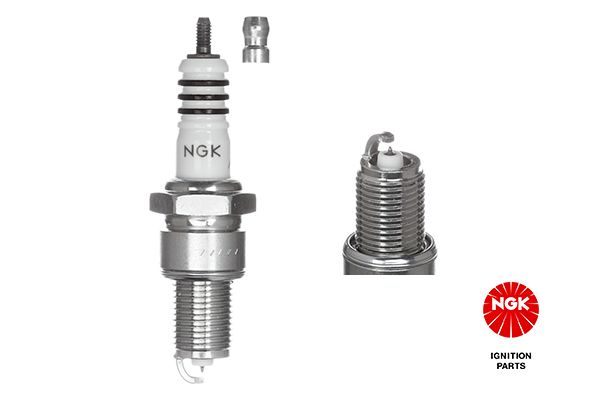

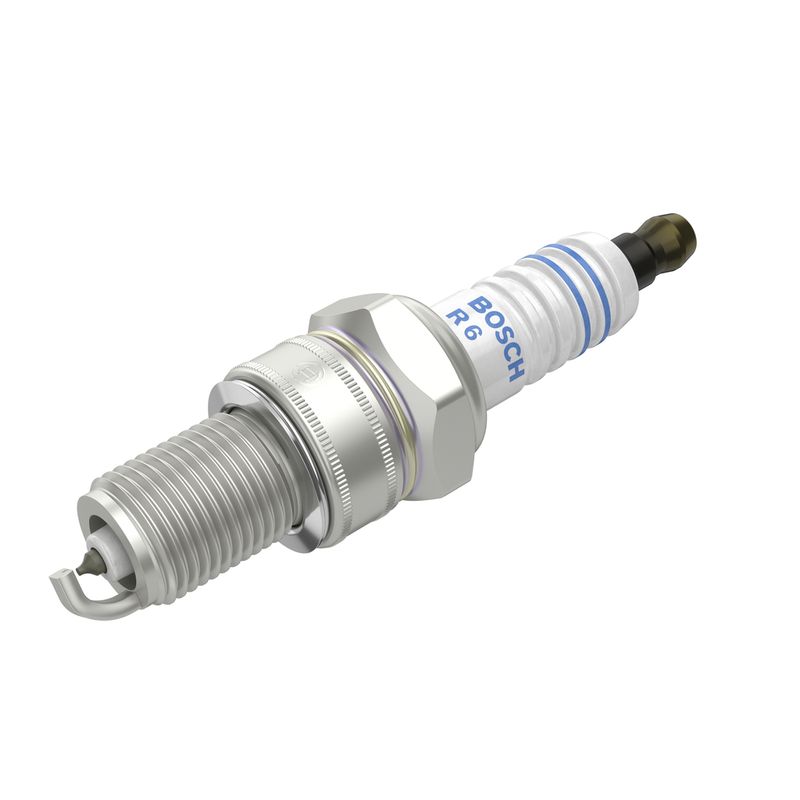

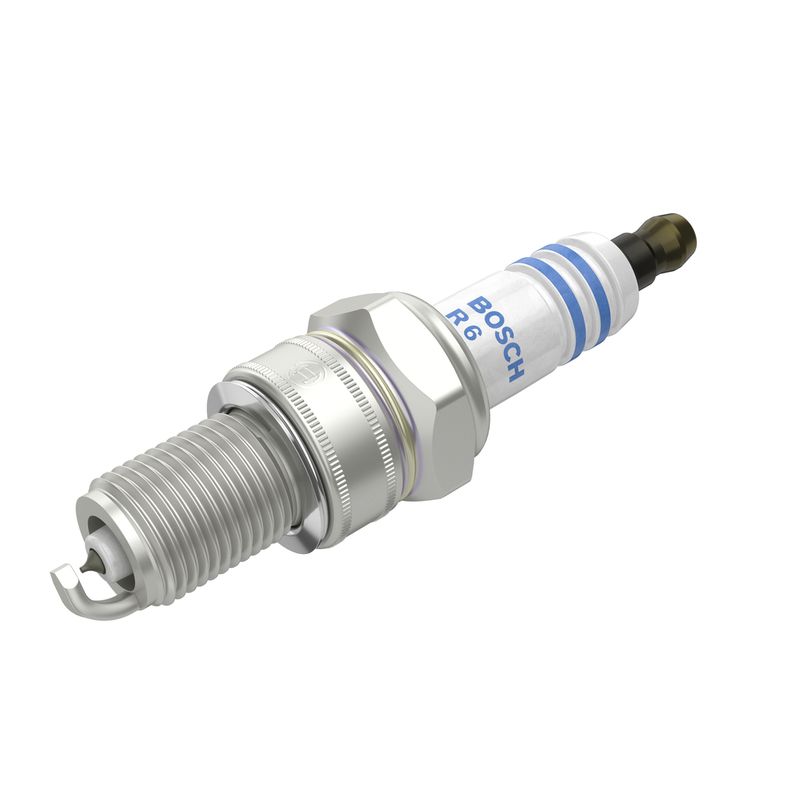

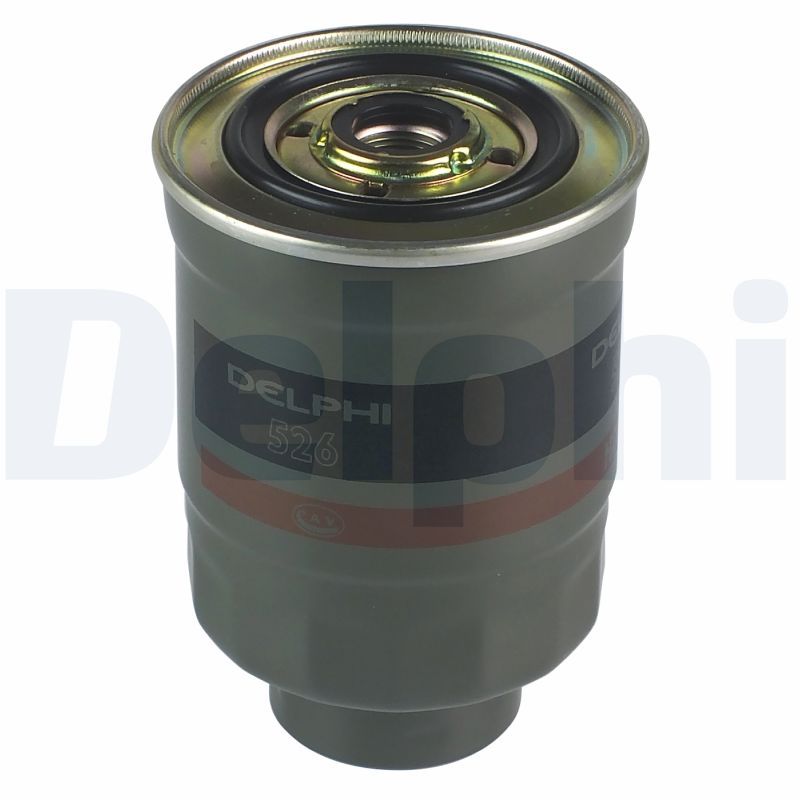

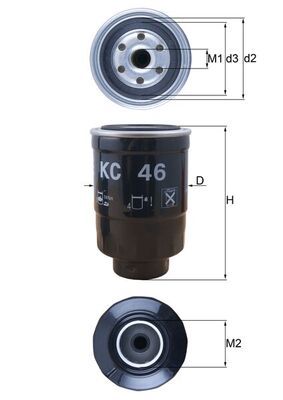

Petrol ignition requires correct plugs, leads or distributor/electronic parts, while diesel versions need exact glow, injection and fuel filtration. Engine capacity or model alone cannot select them.

Check compression, valve/timing condition, fuel pressure or delivery, intake leakage and electrical supply before replacing parts for poor starting.

Timing components need engine-specific marks

Identify belt, chain or gear drive and obtain the correct timing diagram. Inspect tensioners, pulleys, seals and pump where the design makes them relevant. Rotate by hand before starting.

A failed timing drive may have internal consequences

Do not repeatedly crank an engine after a belt failure. Establish valve-to-piston risk and use compression or leakage tests appropriately. A new belt cannot correct damaged valves.

Cooling faults should be mapped through the whole circuit

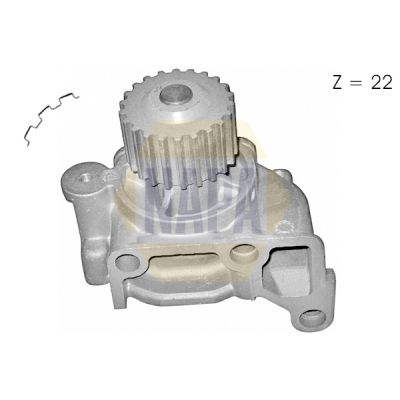

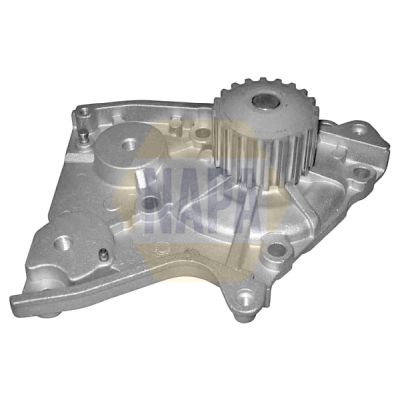

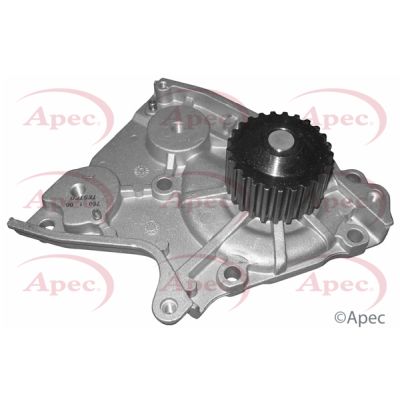

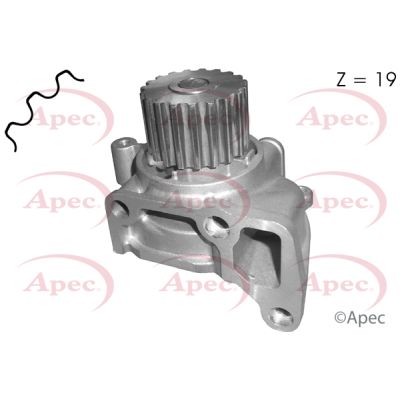

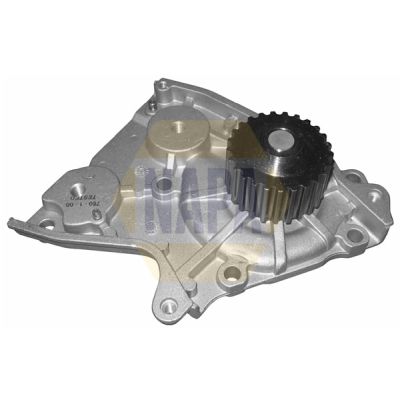

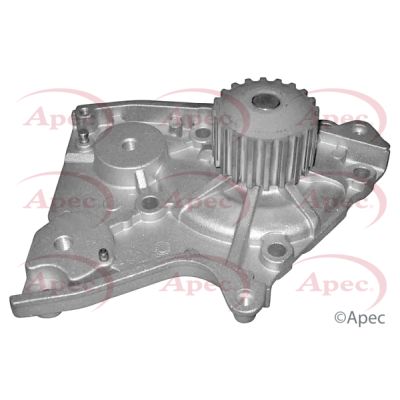

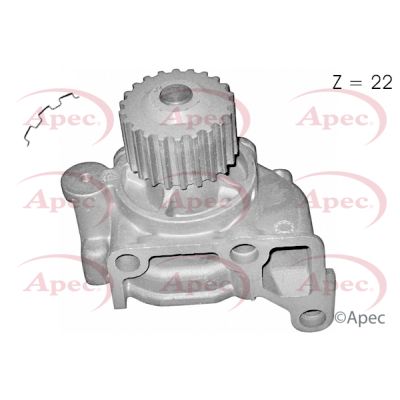

Test radiator flow, cap, hoses, thermostat, pump, fan and heater path. Mud, debris and corrosion can restrict an off-road vehicle’s heat exchangers. Confirm gauge accuracy against a measured temperature.

Use the correct coolant chemistry and concentration and bleed at every required high point. Never open a hot system.

Lubricants are housing-specific

Four-wheel drive depends on matching ratios

Confirm front and rear axle tags, transfer type and tyre size. A mixed-ratio axle can bind immediately when 4WD is engaged. Different tyre circumference creates a similar load.

Use each mode only on suitable surfaces and speeds. If steering becomes heavy or the driveline winds up, stop rather than forcing a tight turn.

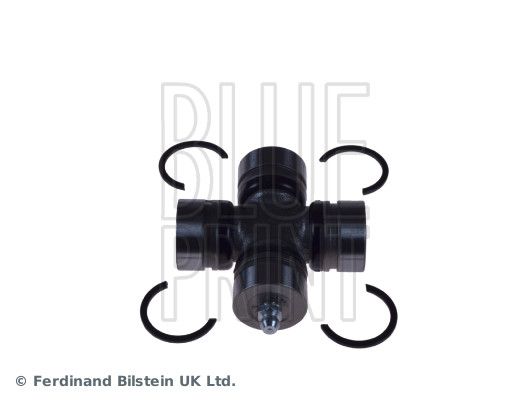

Prop shafts need joints, phase and angle checks

Inspect universal joints, slip splines, flanges, fasteners and centre support where fitted. Mark phase and orientation when required. A lifted suspension or changed engine mount can alter joint angles.

Replace worn joints with the correct dimensions and retention. Verify clearance to exhaust, brake pipes and crossmembers through suspension travel.

Hubs may include manual or automatic engagement

Identify the front hub design, wheel-bearing adjustment, seals and lubrication. A hub that does not disengage can mimic transfer trouble. Follow the engagement and service procedure instead of forcing the selector.

After bearing work, check end float or torque, seal leakage, temperature and free rotation. Keep water and abrasive dirt out during assembly.

Brake dimensions and cylinder bore determine balance

Record disc or drum size, pad/shoe outline, caliper or wheel-cylinder bore, master cylinder and hose ends. Mixed bores can alter pedal travel and side balance.

Photograph drum springs and adjusters, then confirm against correct data. Replace contaminated linings, repair leaks, adjust shoes and finally set the parking cable.

Chassis and spring mounts carry off-road loads

Inspect rails, crossmembers, spring hangers, shackles, axle seats, steering gear mounts, body mounts and tow structure. Clean away mud and loose coating before assessing corrosion or cracks.

Check U-bolts or suspension fasteners for movement marks and use the specified replacement/torque procedure. A cracked bracket cannot be made safe by tighter bolts.

Steering and suspension should be checked under load

Assess ball joints, tie rods, idlers, kingpins or uprights, bushes, dampers and springs in the positions required by the design. Compare wheelbase and ride height side to side.

Set geometry only after the chassis and joints are sound. Tyre feathering may come from axle alignment or worn spring bushes rather than front toe.

Tyres must match road, load and 4WD duty

Use correct size, construction, load/speed rating and pressure. Keep comparable circumference across all wheels. Aggressive tread does not compensate for insufficient load rating or aged sidewalls.

Inspect wheels for cracks, runout, offset and fastener-seat damage. Spacers can increase bearing and steering loads and require engineering evidence.

Electrical systems may include years of modification

Trace battery, starter, alternator, grounds, glow or ignition and accessory circuits. Test voltage drop under load; a continuity beep can hide resistance in old crimps.

Use correct fuses, cable size and grommets for added lighting or winches. High-current accessories need designed relays and isolation, not a direct unfused battery lead.

Steering assistance should be identified before filling

Some variants can use manual or hydraulic steering equipment. Identify the box or rack, pump, reservoir, hoses and belt drive. Use the specified fluid; an arbitrary power-steering or automatic fluid can swell seals or change assistance.

Heavy steering may come from tyre pressure, seized joints, belt slip, low flow, internal leakage or axle/geometry faults. Test mechanical freedom before increasing pump pressure. A leaking high-pressure hose needs a correctly rated formed replacement kept away from exhaust and moving joints.

Plan scarce-part repairs before making irreversible changes

When a direct legacy part is difficult to identify, record every dimension, material, operating load and connection before considering a substitute. Safety-critical adaptation needs engineering evidence and should remain inspectable and serviceable.

Do not machine a hub, steering arm or brake caliper simply to accept a convenient component. Retain drawings, supplier references and photographs for future owners. A reversible, documented solution is easier to verify than an anonymous modification.

Faults define whether movement is safe

Recommission in controlled stages

Begin with an unloaded static check, then verify low-range or four-wheel-drive engagement only on a surface and route suitable for the system. Record hub selection, tyre pressures and any axle noise before adding speed or payload.

After the first full heat cycle, inspect universal joints, flange bolts, hubs, brakes, coolant level and fuel connections. Older seals and fasteners can reveal problems only after temperature and chassis movement. Update the vehicle’s evidence file with every confirmed cross-reference.

1. Confirm chassis, engine and market identity.
2. Record gearbox, transfer, axle ratios and tyres.
3. Inspect chassis and lift points.
4. Use verified parts and housing-specific fluids.
5. Restore guards, line clips and electrical protection.
6. Set bearings, brakes and suspension fasteners.
7. Test two-wheel drive before four-wheel drive.
8. Align after ride height is stable.
9. Increase load and speed progressively.
10. Reinspect leakage, heat, joints and fasteners.

UK use depends on the actual imported vehicle

The MOT checks specified brakes, steering, suspension, tyres, structure, lights, restraints, emissions and warnings. It does not validate an overseas cross-reference, axle ratio, towing claim or off-road modification.

Confirm plated weights, lighting and registration requirements. Declare engine, suspension, wheel, winch and towing changes to the insurer.

Practical Asia Motors parts FAQs

Q: Does a Mazda-related reference automatically fit?
A: No. Verify the complete Asia Motors installation.

Q: Can a Kia listing replace every Asia Motors part?
A: No. Corporate history is not interchange evidence.

Q: Is registration year reliable for an import?
A: Not always; use build and chassis data.

Q: Can front and rear axle ratios differ?
A: Not when the 4WD design requires a matched set.

Q: Do different tyre sizes make 4WD bind?
A: Yes. Rolling circumference must remain compatible.

Q: Is one gear oil suitable for every housing?
A: No. Identify gearbox, transfer and axles separately.

Q: Can a noisy front hub be forced into position?
A: No. Diagnose and service the engagement system.

Q: Should parking-cable adjustment precede drum adjustment?
A: No. Set the service brake first.

Q: Can underseal prove a chassis rail is sound?
A: No. Clean and inspect the structure.

Q: Is a winch safe on an unfused battery cable?
A: No. Use a designed protected installation.

Q: Can toe adjustment correct axle displacement?
A: No. Repair bushes, springs or structure.

Q: When should an Asia Motors vehicle be recovered?
A: For brake, steering, binding, structure, heat or fuel hazards.

Q: Does an MOT approve off-road modifications?
A: No. Engineering and legal duties remain separate.
